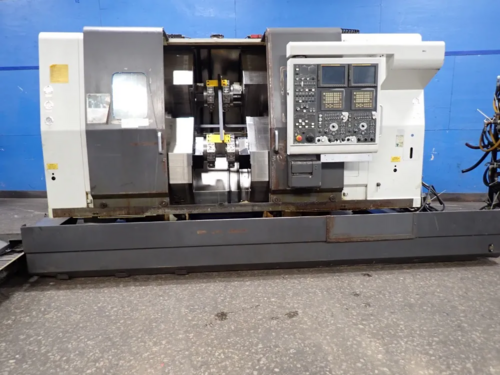

Nakamura -Tome #WT-150-II (MMY), 7" Axis CNC turning center, Fanuc 18iTB, 6" chuck, 2" bar, 2004

Nakamura-Tome WT-150-II (MMY) Multi-Axis CNC Turning Center Lathe
Year of Mfg. 2004
S/N W151201
# Axis 7

Chuck Size 6"

Bar Capacity 2"

Power 15 hp

Max RPM 4,000 RPM

Turning Dia 12"

Machining Length 42"

Dimensions 152" x 92" x 98"

Weight 23,000

Control CNC (Fanuc 18iTB)

SPEC SHEET

20HP spindle motor L/R, 5000rpm Left Spindle - 5000rpm Right Spindle

2" Bar Capacity (L/R) Spindle

Two Upper 12 Station Bolt-on Turrets/One Lower 12 Station Bolt-on Turret

Full "C" Axis Milling Unit each spindle - Includes:5HP Motor for Milling on

12 Milling Stations (Two Upper and One Lower Turret)

60-6,000 RPM Rotating Tool Speed

Parts Catcher - 2" Dia. X 6" Long Capacity

NOTE: for Catching Parts from Right Spindle

Y-Axis - Only for both Upper Turrets L/R: Y Axis Stroke (30mm) +/- 1.18",

1.34 HP Feed Motor

Spindle Air Blow ( R ) Spindle

Fixed Air Blow L/R

Spindle Speed Override

Polygon Turning, NT Nurse, Rigid Tapping all Standard

Leveling Jig
