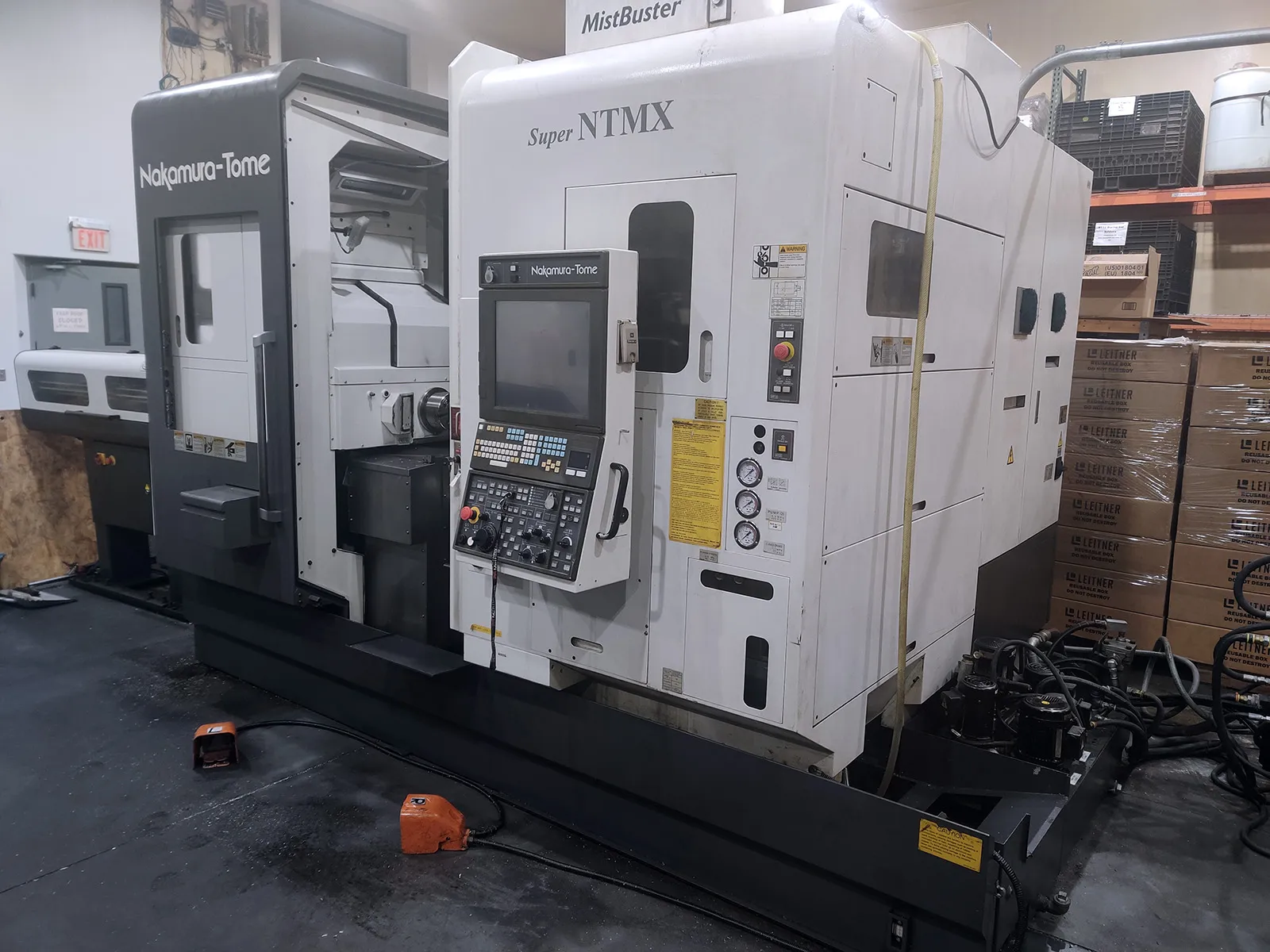

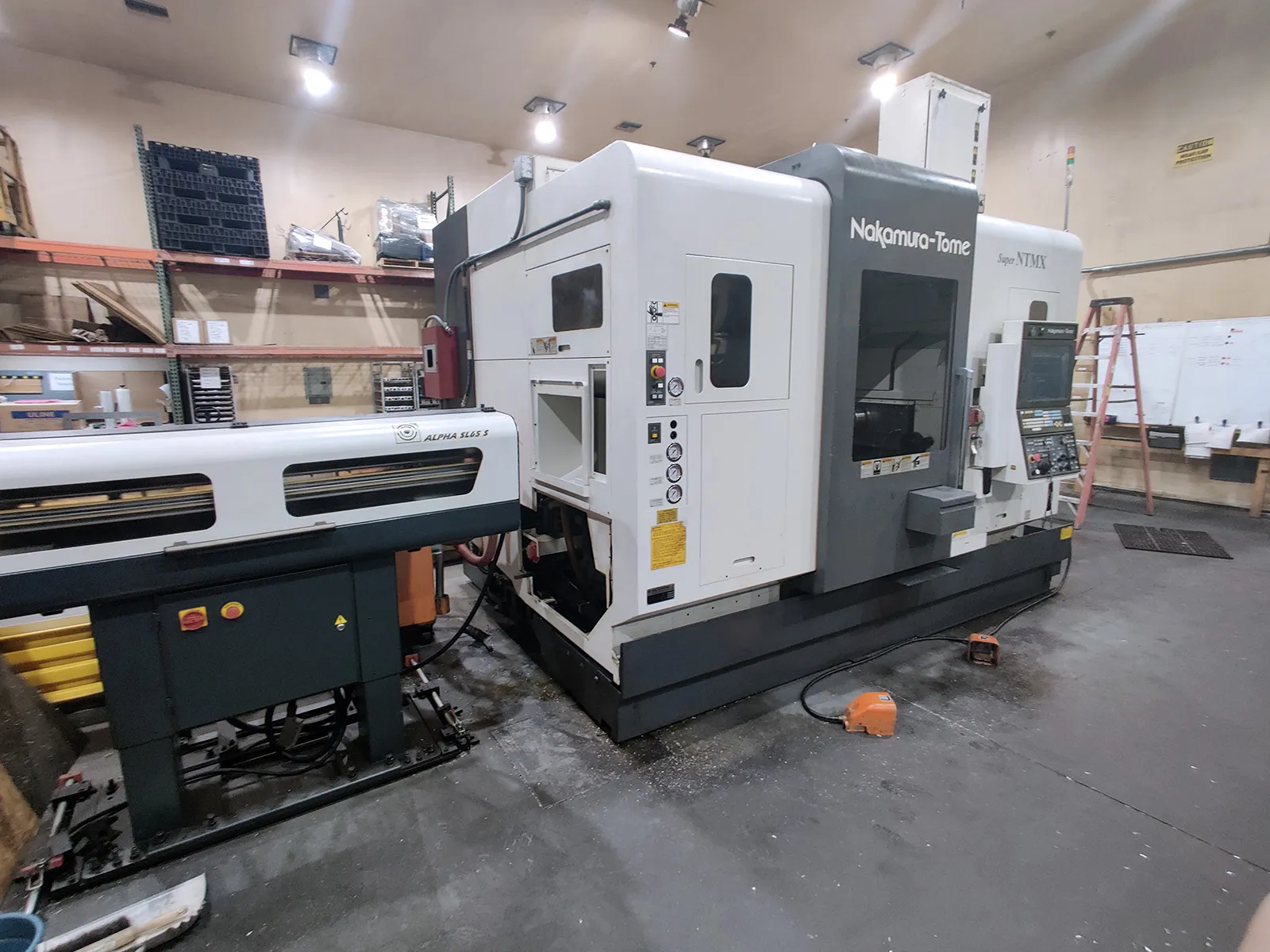

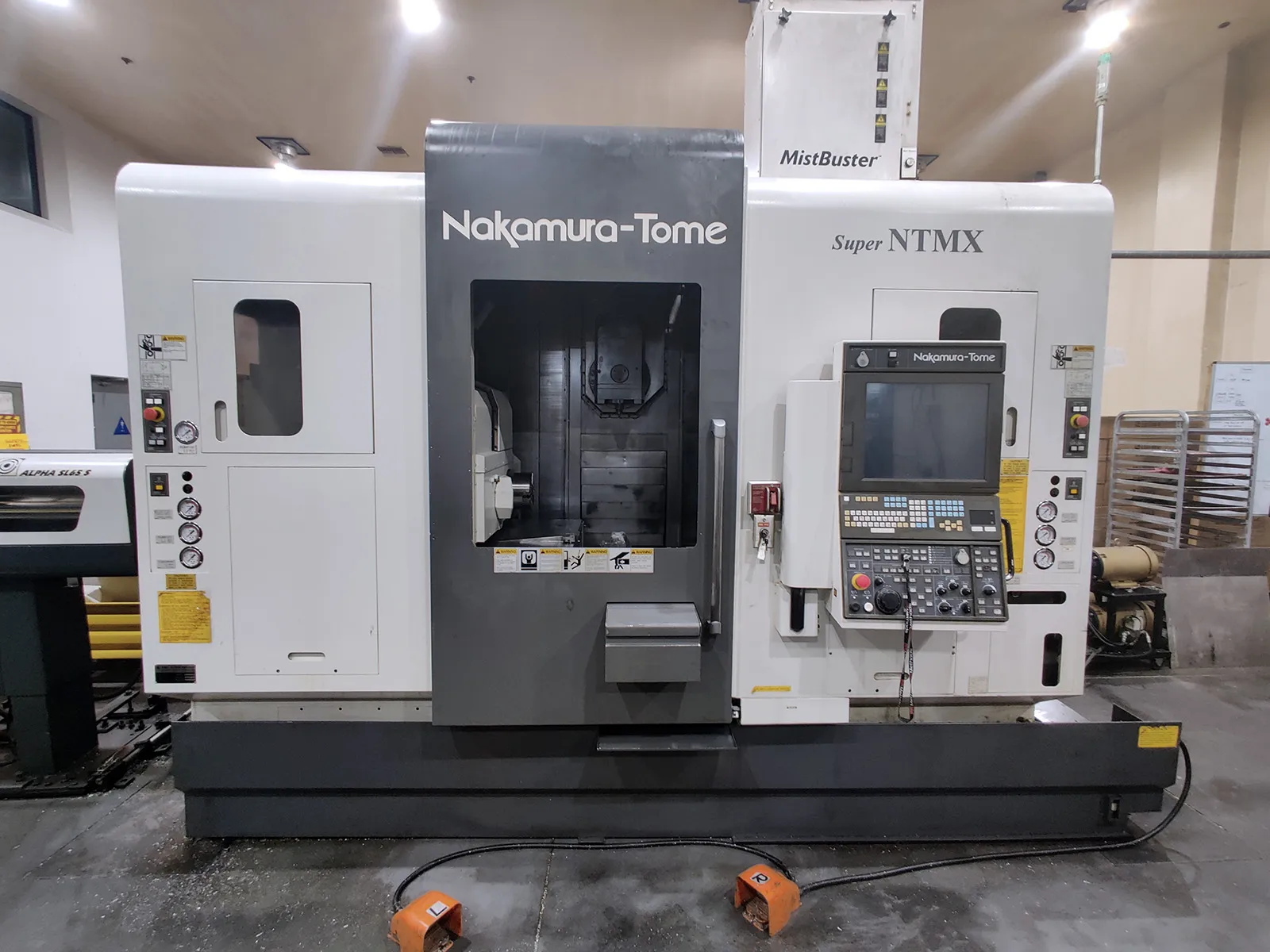

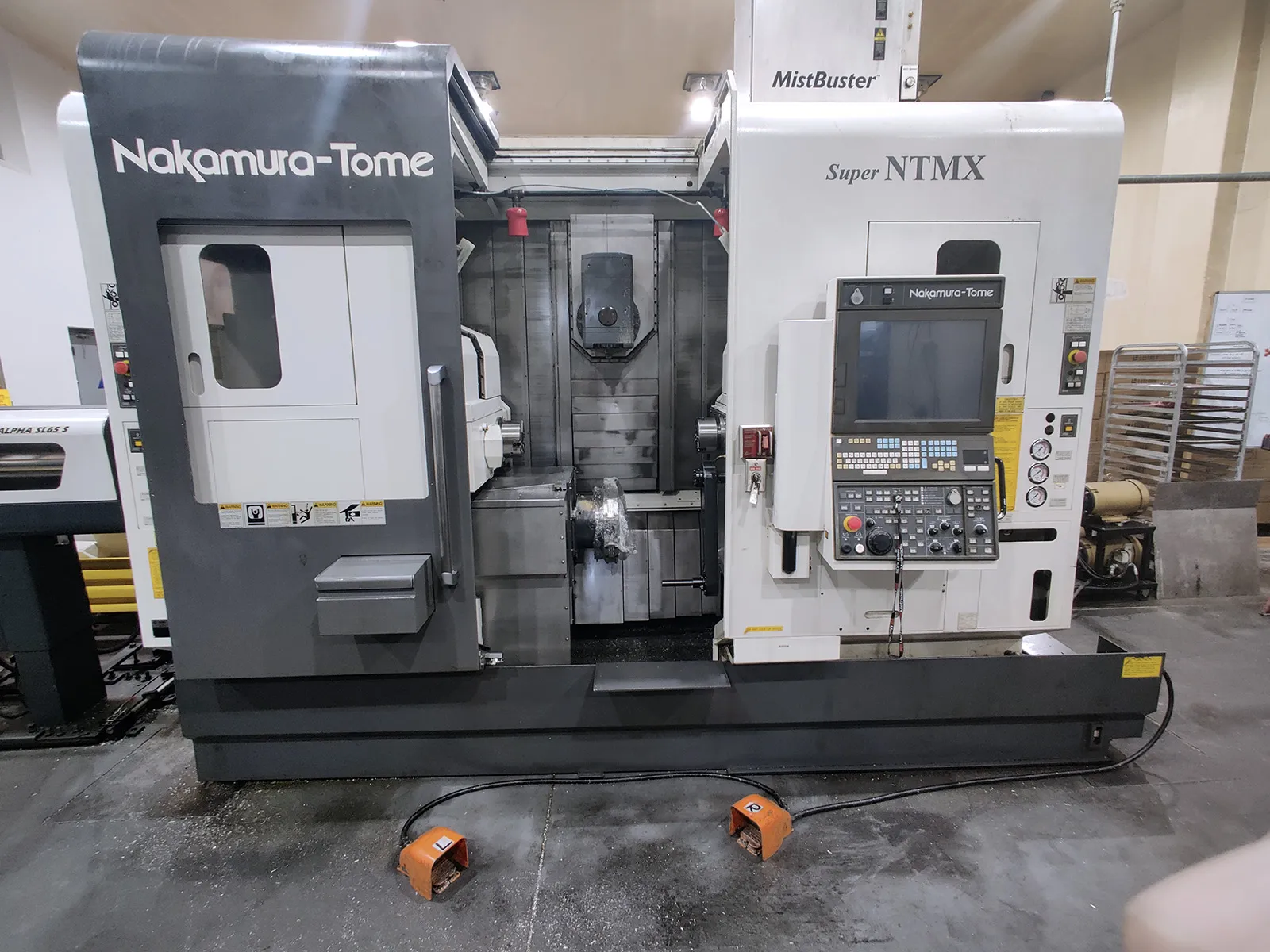

Nakamura Tome #Super-NTMX, CNC turn-mill, 8" swing, 38.5" centers, 7" chuck, 2" bar, twin spindle, Y-axis, B-axis, 5000 RPM, 15 HP, 2013

Tool Holders Included! Under Power! Readily Available!
NAKAMURA TOME SUPER NTMX (2013) CNC Turn-Mill Center is engineered for complete machining of complex, high-precision components in a single setup. Designed for aerospace, medical, automotive, and energy applications, it delivers exceptional accuracy, reduced cycle times, and increased productivity for parts such as turbine components, implants, housings, valves, and drivetrain assemblies.
Swing over cross slide: 8.07"
Max Cutting Diameter: 7.87"
Max Cutting Length: 30"
DISTANCE BETWEEN CENTERS: 38.58"
X-Axis Travel: 22.44"
Y-Axis: Yes
Y-Axis Travel: 7.87" (3.93")
Z-Axis Travel: 51.1"
Chuck Size: 7"
Bar Capacity: 2"
Spindle Nose: A2-5
Spindle Motor: 15 hp
Spindle Speed: 5,000 RPM
Sub Spindle: Yes
Sub Spindle - Chuck Size: 7"
SUB SPINDLE - BAR CAPACITY: 2"
SUB SPINDLE - Spindle Nose: A2-5
SUB SPINDLE - SPINDLE MOTOR : 15 hp
Sub Spindle - Spindle Speed: 5,000 RPM
B-AXIS MILLING SPEED: 12,000 RPM
B-AXIS Rotation: 190 (95)
Turret Capacity: 24
Live Milling Speed: 12,000 RPM
TURRET 2 CAPACITY: 24
TURRET 2 - X-AXIS TRAVEL: 5.13"
TURRET 2 - Z-AXIS TRAVEL: 25.9"
