For Sale by AM Metalmaq Inc
Surplus Record Dealer Since 1993
Location: Hialeah, FL
Contact Sales Dept.
Phone Number: 305...> Show Phone Number 305-883-9200
Let the seller know you found their listing on Surplus Record!

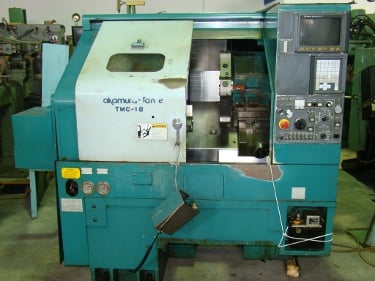

Description
Year of manufacture 1998
SPECIFICATIONS:
Swing over bed 16" (400mm)
Max diameter turned 11.2" (280mm)
Max turning length 12.2" (305mm)
X-axis travel 10.1" (254mm)
Z-axis travel 12" (300mm)
Spindle nose type A2-6"
Spindle bore 2.3" (58mm)
Bar capacity 2" (51mm)
Tool capacity 10
Spindle drive motor 15 HP (11.19 KW)
Electrics 220/440/3/60 HZ
Spindle speed range 50-4500 RPM
Gross weight 5,300 LBS
Dimensions (L x W x H) 64" x 58" x 64"
EQUIPPED WITH:

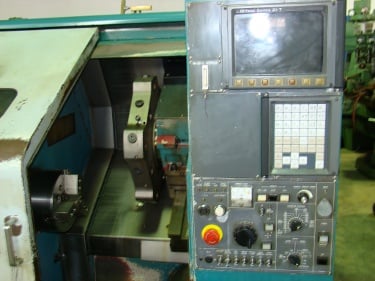

Fanuc 21-T CNC control, Kitigawa 8" 3 jaw chuck
Automatic lubrication, RS232
PRELIMINARY SPECIFICATIONS ARE SUBJECT TO CORRECTION.
SPECIFICATIONS:
Swing over bed 16" (400mm)
Max diameter turned 11.2" (280mm)
Max turning length 12.2" (305mm)
X-axis travel 10.1" (254mm)
Z-axis travel 12" (300mm)
Spindle nose type A2-6"
Spindle bore 2.3" (58mm)
Bar capacity 2" (51mm)
Tool capacity 10
Spindle drive motor 15 HP (11.19 KW)
Electrics 220/440/3/60 HZ
Spindle speed range 50-4500 RPM
Gross weight 5,300 LBS
Dimensions (L x W x H) 64" x 58" x 64"
EQUIPPED WITH:
Fanuc 21-T CNC control, Kitigawa 8" 3 jaw chuck
Automatic lubrication, RS232
PRELIMINARY SPECIFICATIONS ARE SUBJECT TO CORRECTION.
Get Your Price from AM Metalmaq Inc!
