Description

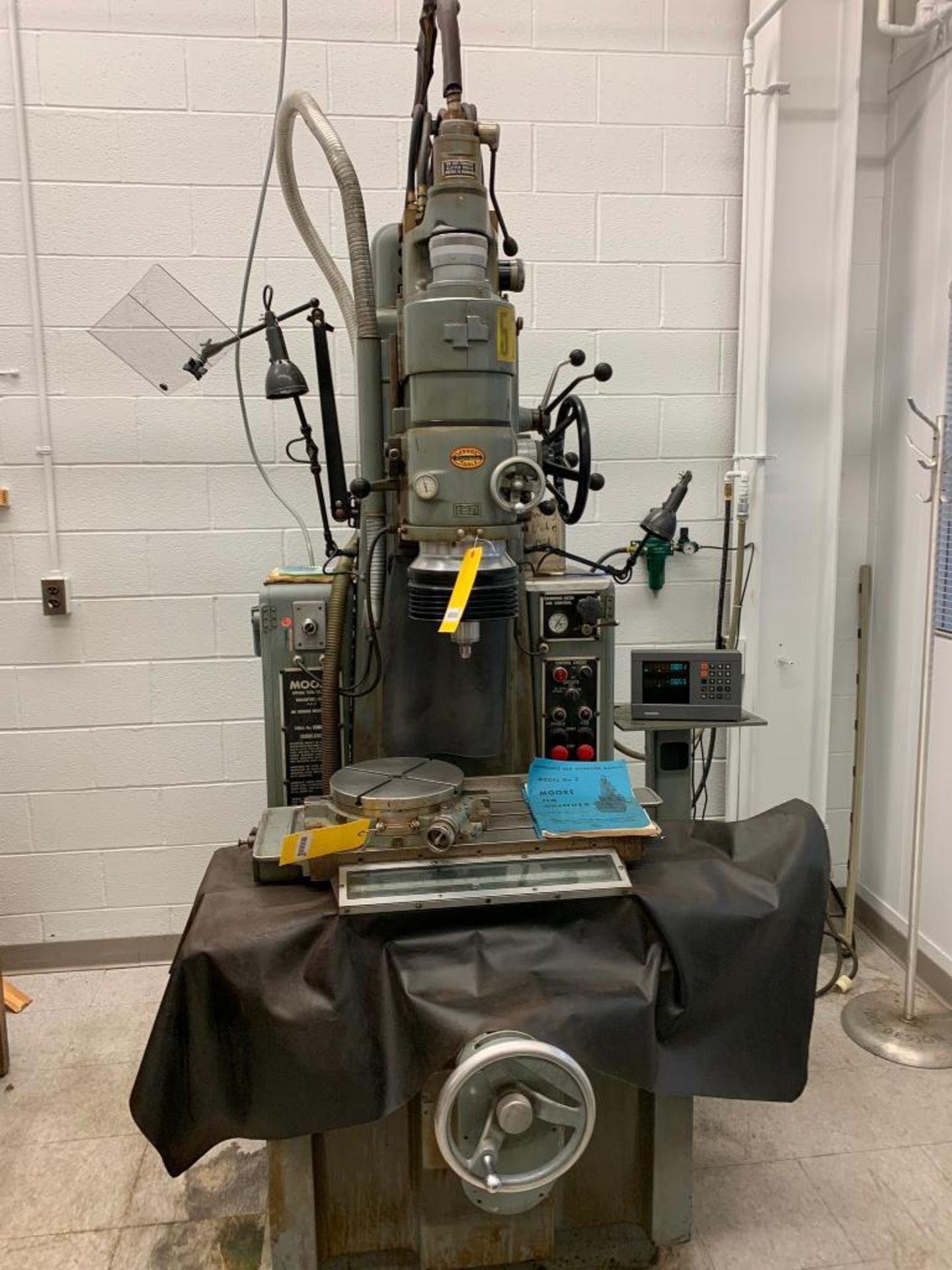

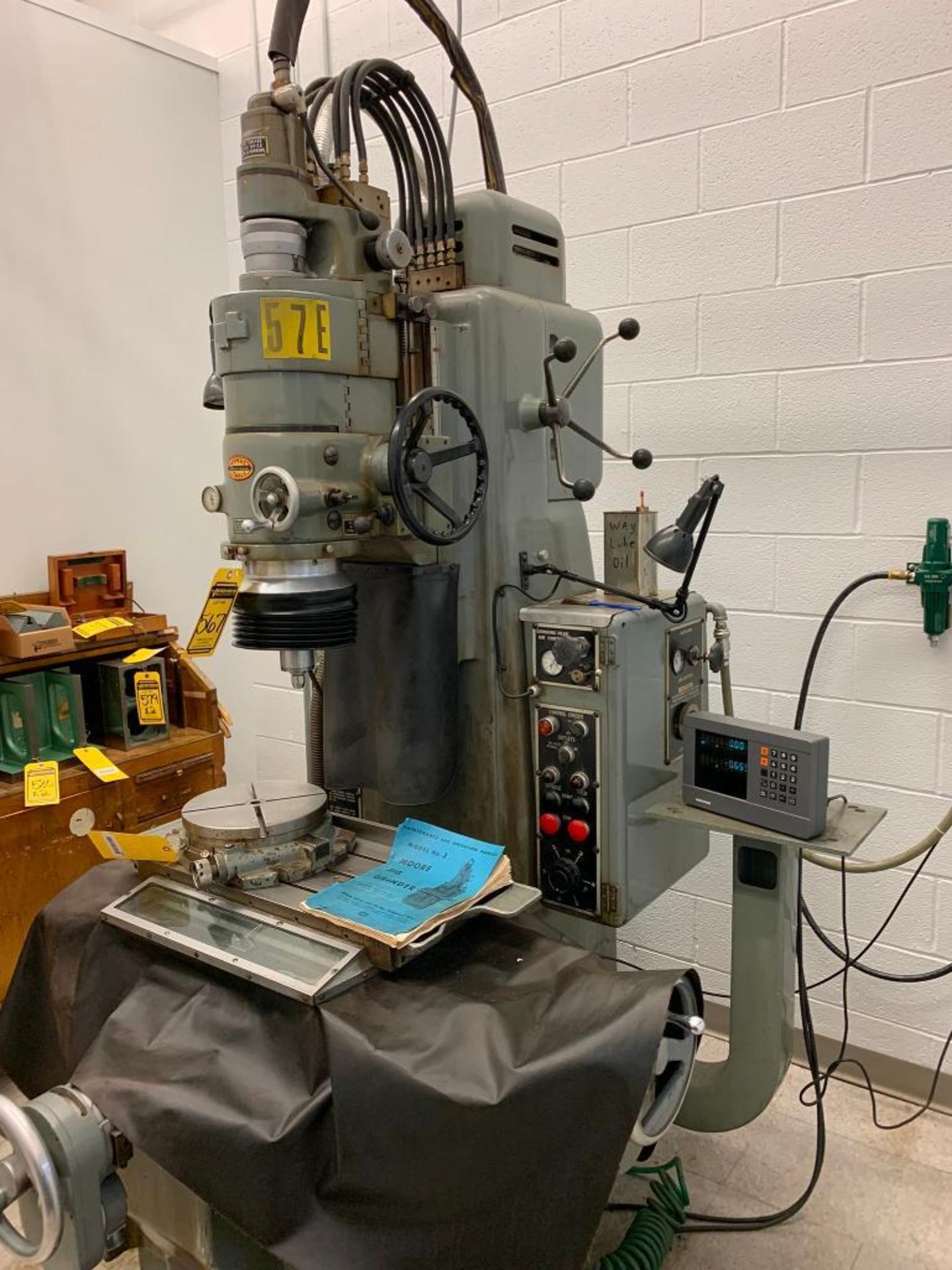

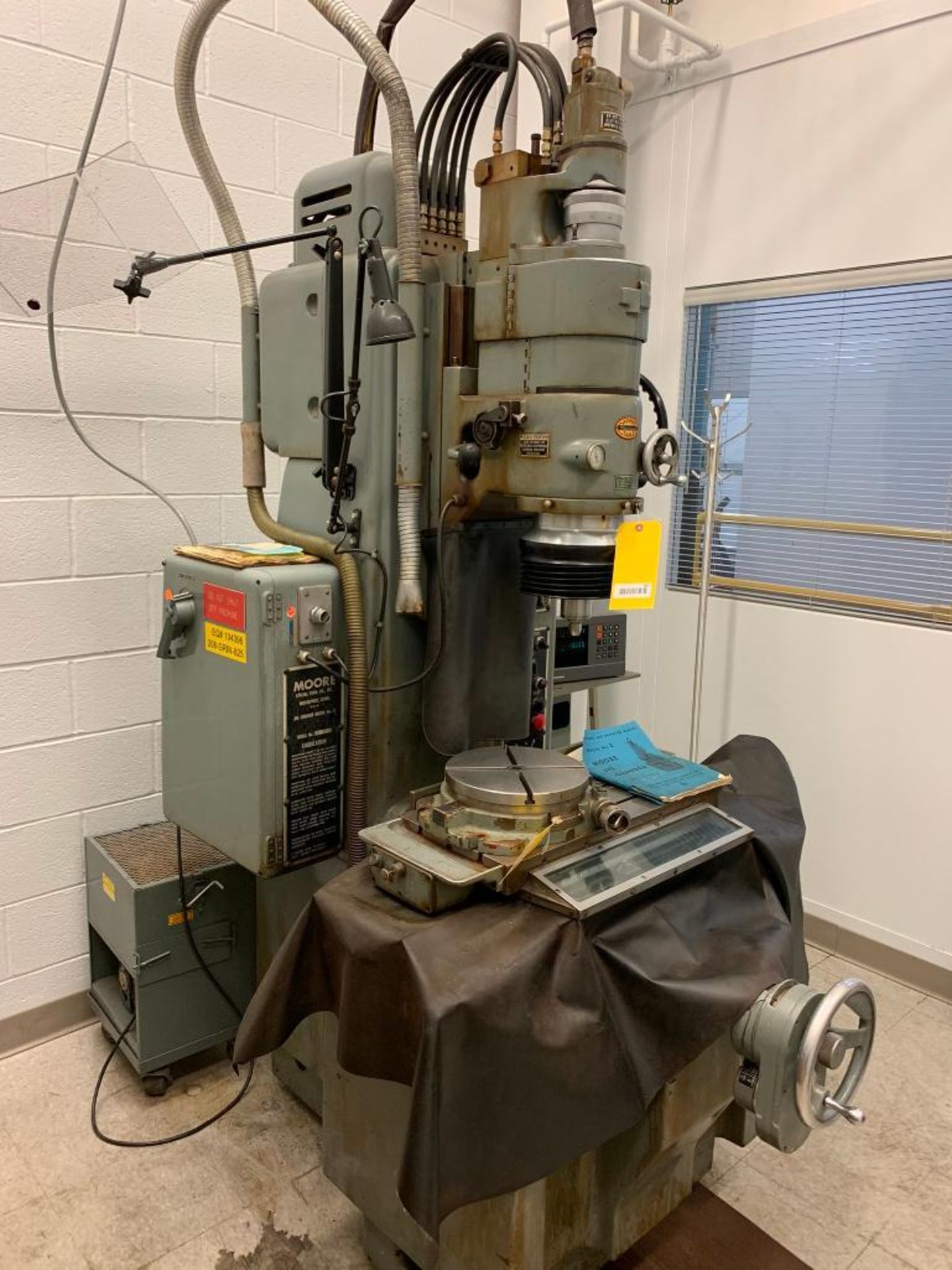

#3 MOORE JIG GRINDER
WITH HEIDENHAIN 2-AXIS DRO

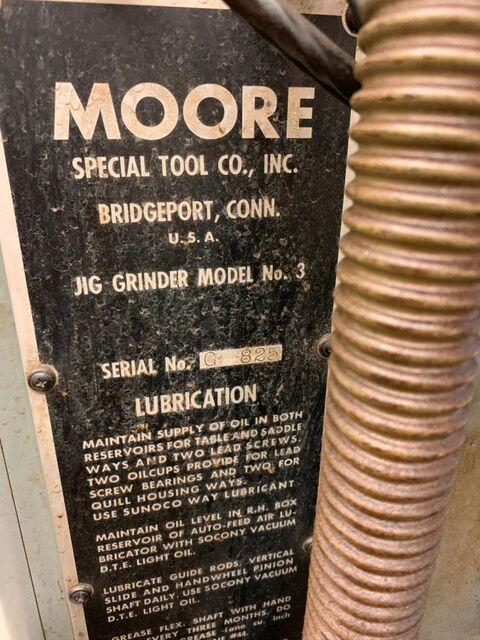

S/N: G-825
TABLE SIZE ........................... 11" x 24"
RANGE:
TABLE MOVEMENT ....................... 11" x 18"
TABLE TOP TO WHEEL COLLET ............ 2" x 18"
SPINDLE TO COLUMN WAYS ............... 10"
SPINDLE TO COLUMN BELOW WAYS ......... 13-1/2"
INFINITELY VARIABLE SPINDLE SPEEDS ... 40 TO 250 RPM
INFINITELY VARIABLE SPINDLE FEEDS .... 2 TO 120 SPM
GRINDING CAPACITY:
GRINDING WHEELS ......................″/16" TO 5"
DIAMOND MANDRELS ..................... 1/64" TO″/16"
MAIN SPINDLE SLIDE ADJUSTMENT ........ 1-1/2° EITHER WAY,
3° INCLUDED ANGLE
RADIAL OFF-SET OF GRINDING SPINDLE:
(A) - FROM CENTER TO 1-1/8" OFF CENTER BY ROUGH ADJ.
(B) - WHILE RUNNING .0001" ADJ. FOR DISTANCE OF .100"
ANYWHERE IN THE 1-1/8" RANGE
APPROXIMATE WEIGHT ...................″,700 LBS
APPROX. FLOOR SPACE REQUIRED ..... 72"LR x 84"FB x 102"H
EQUIPPED WITH:
HARDENED, GROUND AND LAPPED STEEL WAYS (NO GIBS)
HARDENED, GROUND… LAPPED LEAD SCREWS
1/2 HP VARIABLE DC MOTOR WITH RECTIFIER
MACHINE IS WIRED FOR 1PH/60Hz ELECTRICS
TOOLING… ACCESSORIES:
TWO… MOORE JIG GRINDING HEADS

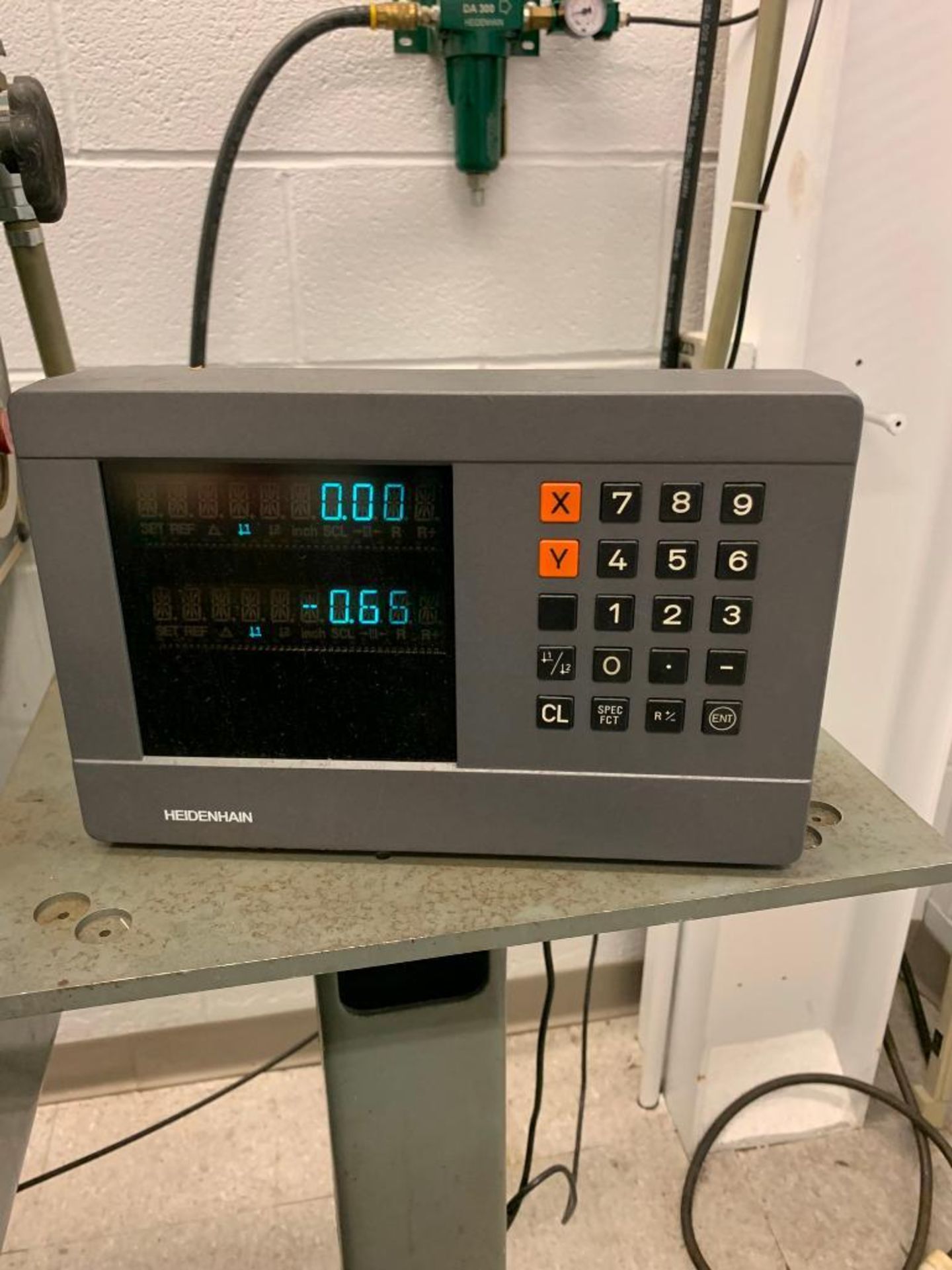

HEIDENHAIN 2-AXIS DIGITAL READOUT
WORK LIGHT
DUST COLLECTOR
** INSPECT UNDER POWER IN OUR WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE **
