Manufacturer: Kalamazoo
Model: GIANT-V-4014H
Year: 2013
Max Throat or Width: 40.00
Max Height / Under Guide: 14.00
Stock # 172466
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact David Valitt
Phone Number: 973...> Show Phone Number 973-497-7570
Let the seller know you found their listing on Surplus Record!
Description

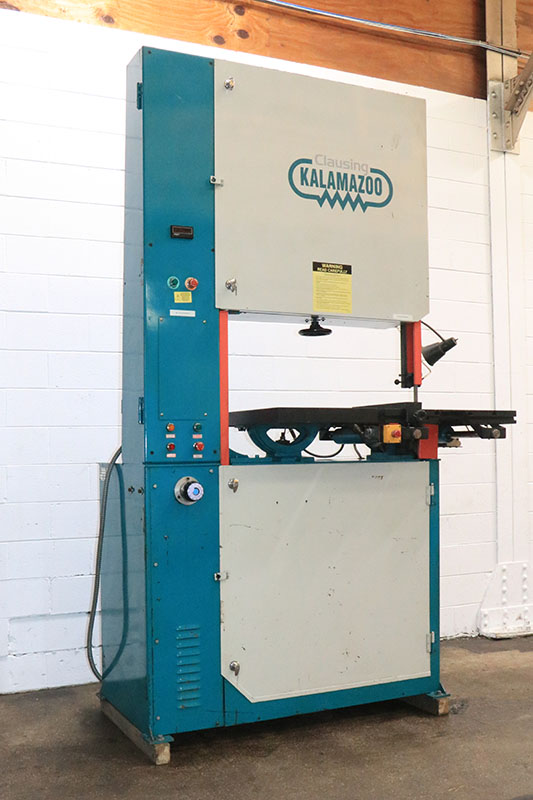

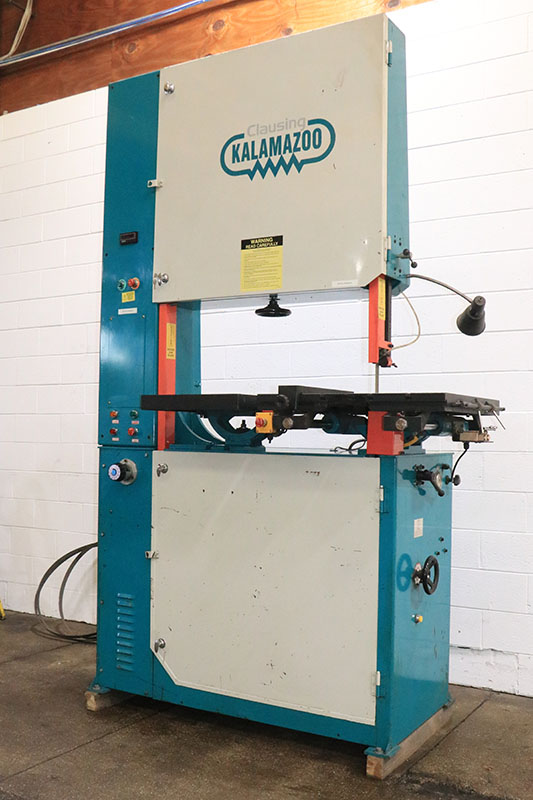

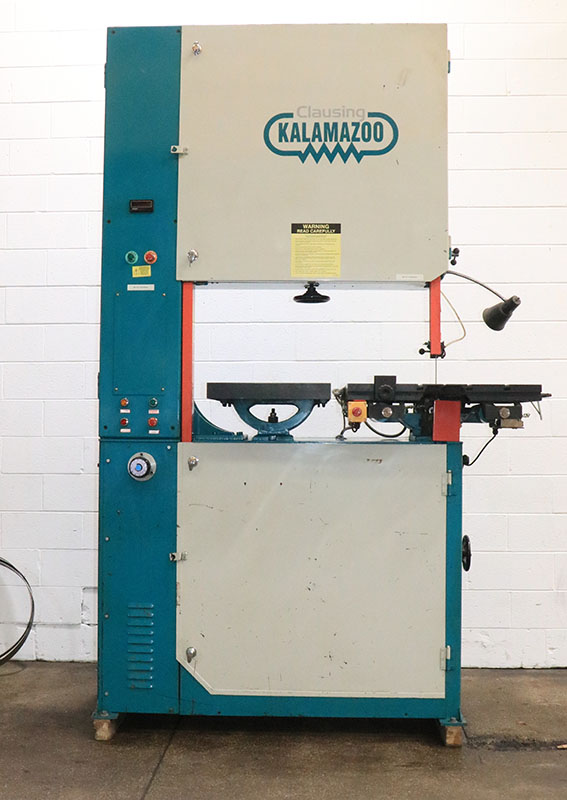

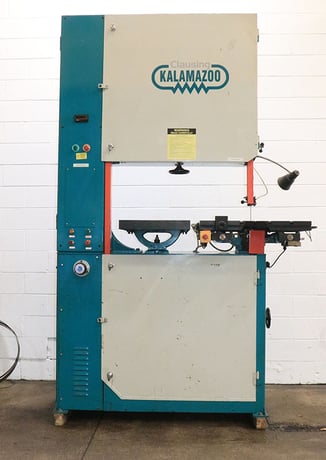

40" CLAUSING KALAMAZOO BANDSAW W/HYDRAULIC TABLE FEED
MODEL: GIANT V4014H,… S/N: M1310834,… NEW: 2013
SPECIFICATIONS:
THROAT BAND TO COLUMN.................. 40"
MAXIMUM WORK HEIGHT.................... 14"
TABLE HEIGHT........................... 54"
BAND WIDTH CAPACITY.................... 1/16" TO 1-1/4"
BAND LENGTH............................ 260" - 263"
TABLE SIZE OF FRONT TABLE.............. 29" X 27"
TABLE TILT............................. 45 DEG. RIGHT/
10 DEG./LEFT
TABLE SIZE OF REAR TABLE............... 19" X 26-3/4"

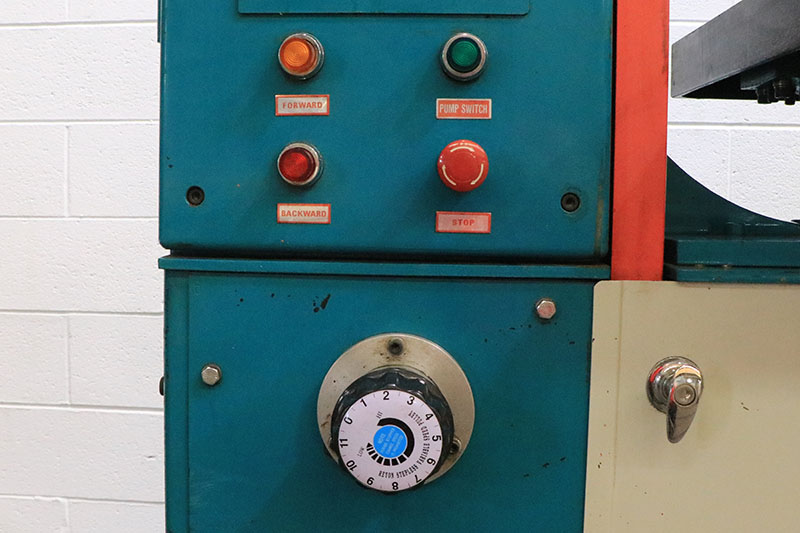

VARIABLE SPEED DRIVE, INF. VARIABLE.... 50 - 5200 FPM
TABLE STROKE........................... 12"
APPROXIMATE FLOOR SPACE................ 40"W X 72"L X 113"H
APPROXIMATE WEIGHT ....................″,500 LBS
EQUIPPED WITH:
HYDRAULIC TABLE FEED VARIABLE PRESSURE

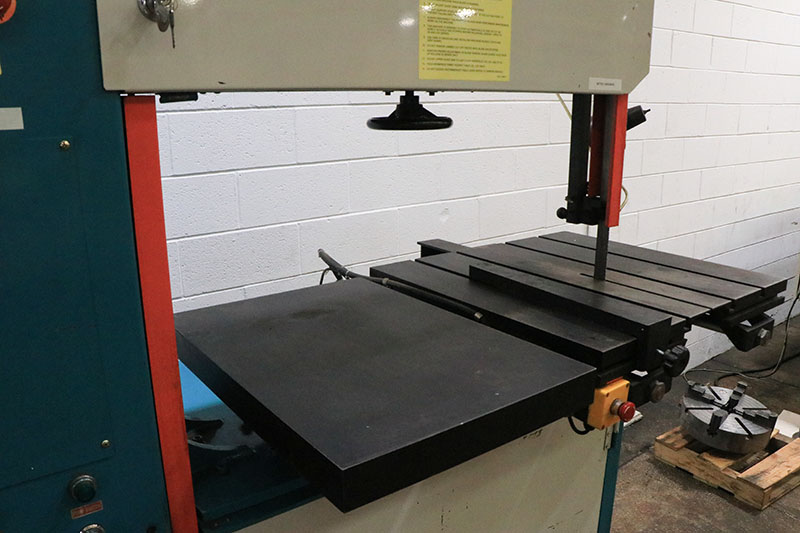

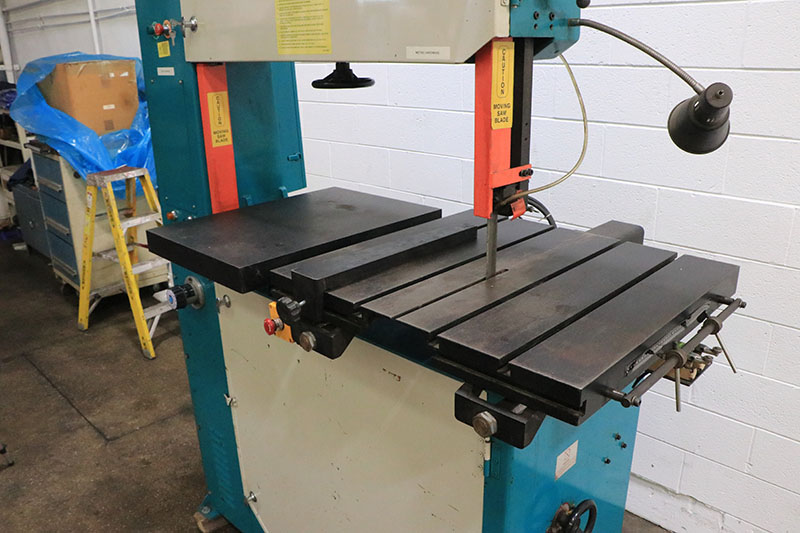

T-SLOTTED TABLE
4-SPEED VARIABLE TRANSMISSION
BUILT-IN AIR CHIP BLOWER
5 HORSE POWER DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
