Description

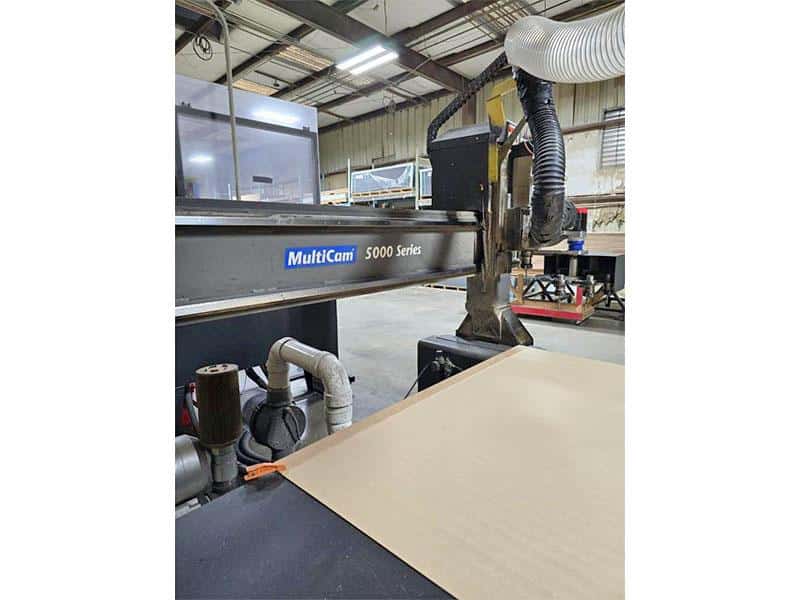

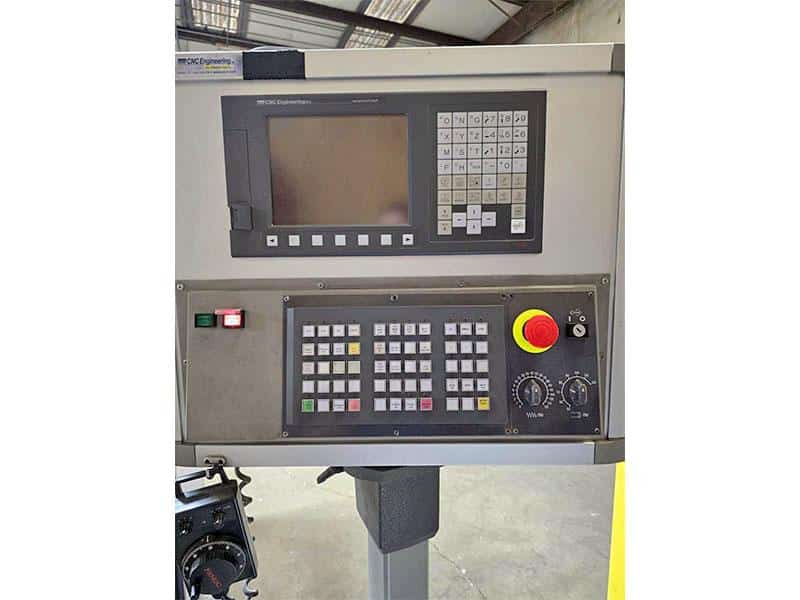

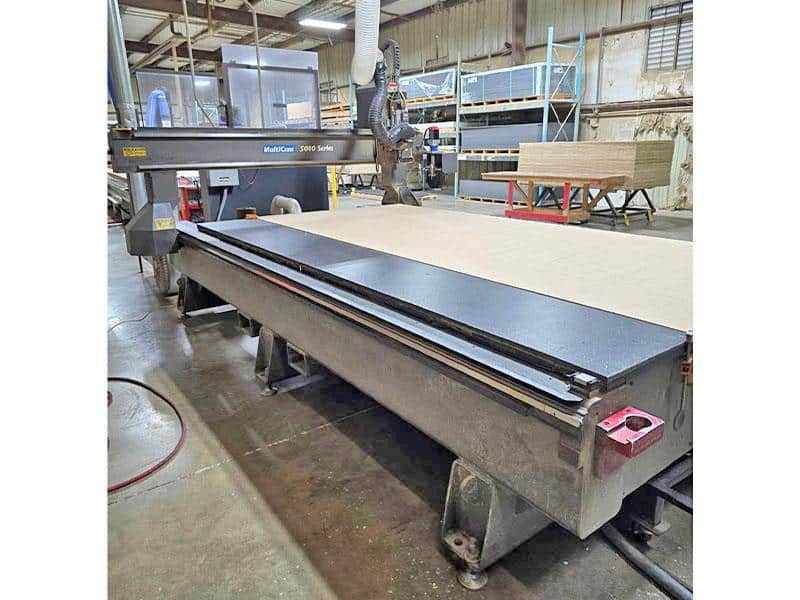

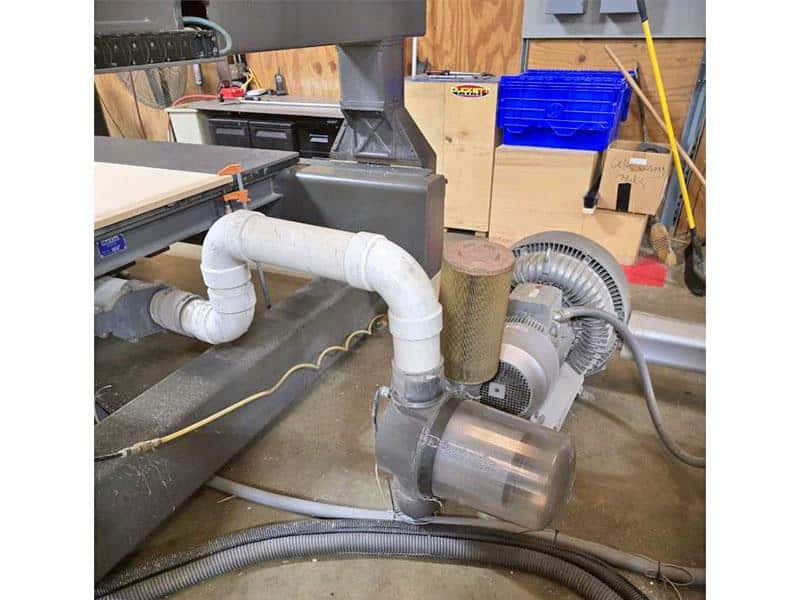

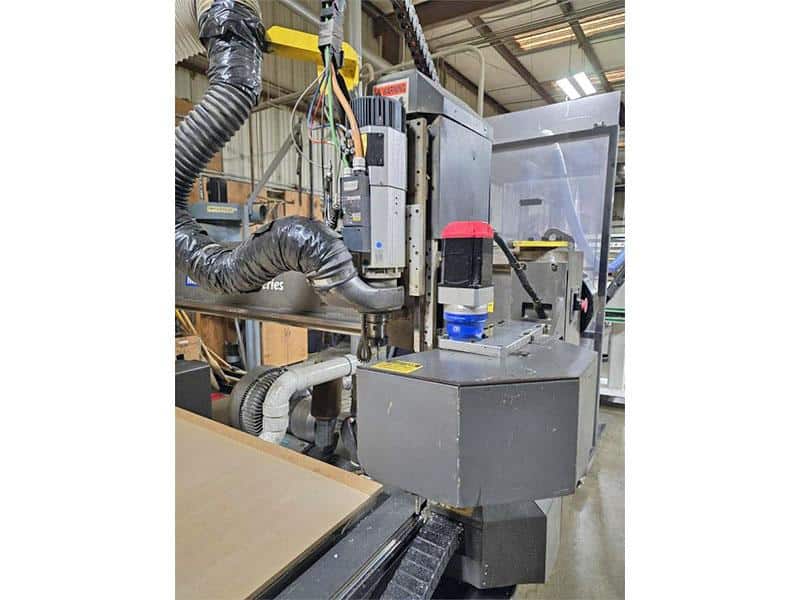

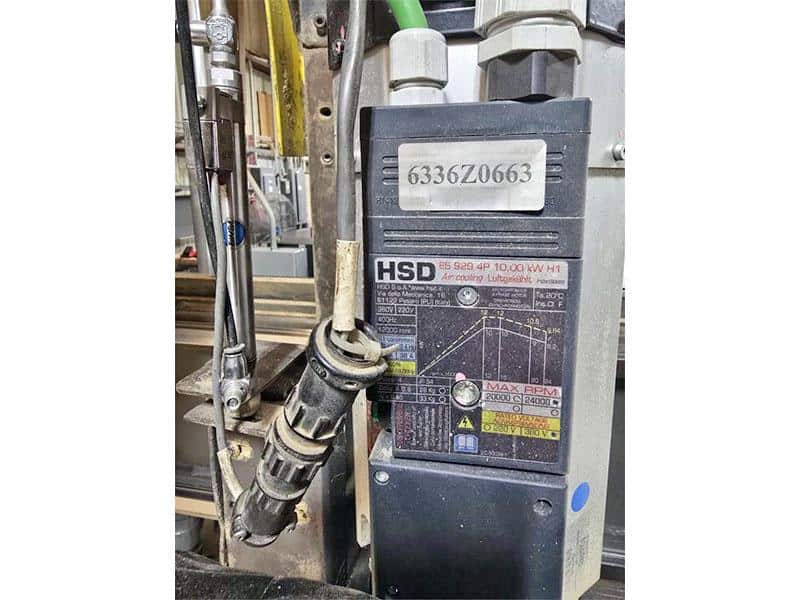

General Info Stock #: 163250006 Location: AL Brand: Multicam Model: 5000 Year: 2005 Approx. Shipping Weight: 11,000 lbs Approx. Shipping Dimensions: 13' L x 7' W x 6' H Specifications Table Size: 80" x 144" Spindle Speed Max: 24,000 RPM Tool Capacity: 8 Max Cutting Feed: 1,200 IPM Max Rapid Traverse (X & Y): 2,400 IPM Z- Axis Travel: 8" Electrical: 380V / 3 Phase Equipped With 13 HP HSD HSK Type Routing Spindle (New in 2020), Ride-A-Long 8 Position Tool Carousel, Fanuc Oi Series Controller (New in 2019), Assorted Tool Holders, 20HP Vacuum Pump, Remote Control Additional Info This machine can be demoed upon request.
25 mm and 35 mm linear ball-bearing profile rails, Z-axis clearance: 8” (20 cm), Cut speed: 1,800 IPM (45,5 m / min), Rapid traverse: 3,000 IPM (76 m / min), Repeatability: +/- 0.001” (0,025 mm), Drive system X and Y-axis: helical rack and pinion, Drive system Z-axis: ball screw, ( subject to change ...more
14HP HSK Spindle| 6' x 10' Vacuum bed| 36" Z| 24000 RPM, The Multicam 8000 CNC 5-Axis Router (2015) is a heavy-duty industrial machining solution built for precision 3D cutting, routing, and complex multi-axis manufacturing. Designed for wood, plastics, composites, and non-ferrous metals, this high-performance ...more
