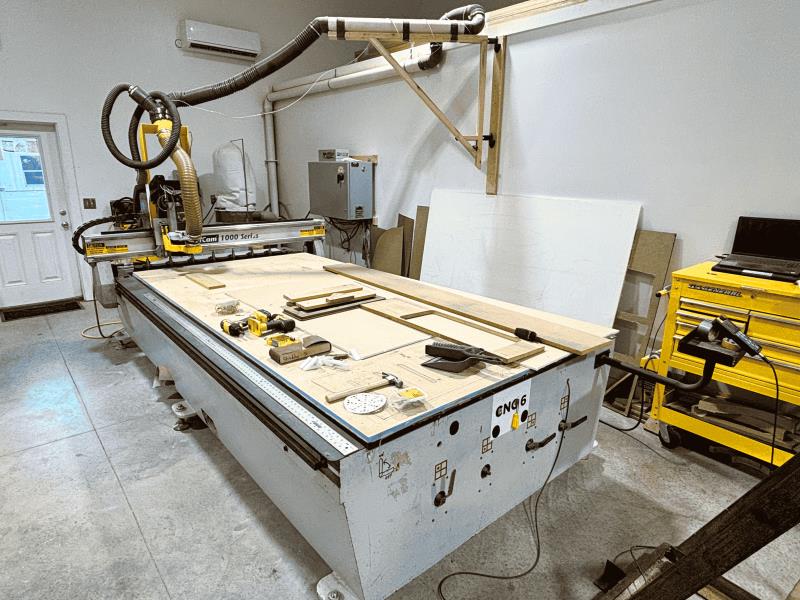

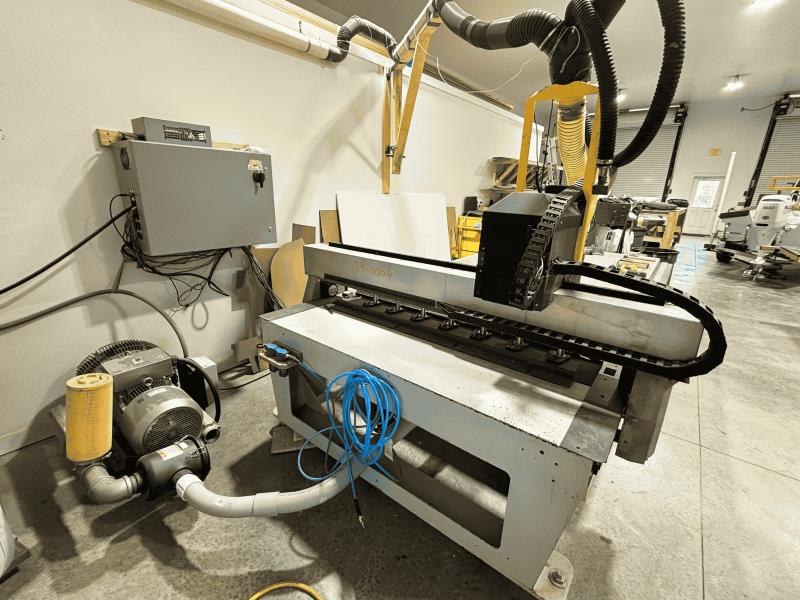

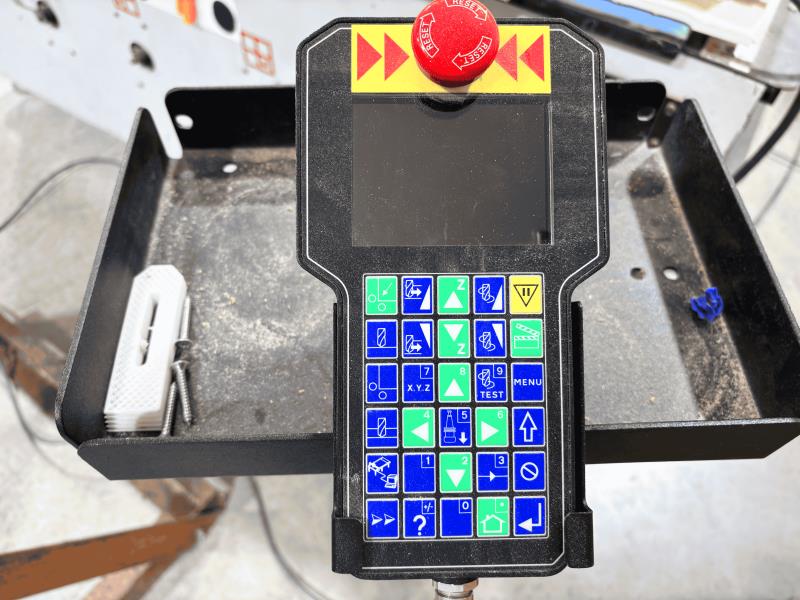

MULTICAM 1000 SERIES 5 X 10 with ATC:60" x 120" Fixed table, moving gantry machine in a front-to-back configuration with a manual (4) zone vacuum table supported by a 17 HP vacuum pump system. -- Equipped with:(1) 5 HP "COLOMBO" Spindle with ATC and a 8 position wine rack tool changer variable speed by inverter up to 24,000 RPM . -- Full table coverage On X- & Y-axis, rack & pinion gantry drive by AC servo motors using integrated 25 mm linear roller bearing rack system.6" Z-Axis travel with 4.5" clearance via lead screw drive; 600 IPM max rapid and cutting feed 450" IPM max. rapid traverse rate on X- & Y-axis. -- Control:MULTICAM CNC controller: Stand-alone RISC/DSP system; keypad interface with hot keys for repetitious functions and DNC access to host computer. -- Memory for instant job replay, 32-bit processor, 12 MB RAM & 2 MB flash memory, interprets HPGL and M & G codes; RS-232 interface for PC communication. -- Complete with:17 HP vacuum pump, assorted tool holders, dust collector and Windows 10 Laptop.
5’ X 10’ Router with Multicam CNC Control, Table Size: 5’ X 10’, Spindle Speed: 24,000 RPM, Electrical: 208V / 3Ph, Approx Dimensions: 15’ X 7’ X 6’, Approx Weight: 6,000 Lbs, INCLUDES: Multicam CNC Control, ***We strongly encourage personal inspection of all pieces of used ...more
2017 MIssile 1325 used 4 x 8, flat table, Nesting CNCFor pricing please click REQUEST QUOTE wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.Click <[LEASE](https://www.brightonmachines.com/pages/lease)> for leasing informationClick ...more
C.R. Onsrud Model 121M CNC Router The M Series may be the smallest moving gantry CNC router in the C.R. Onsrud line-up, but don't be fooled into thinking it's any less of a workhorse than bigger machines in our product line. C.R. Onsrud incorporates the same ed engineering, workmanship and quality of materials ...more
