Manufacturer: Mori Seiki
Model: ZL-250 MC/600
Year: 2000
Swing: 27.6
Bar Capacity: 2.9
Stock # Q12117
1 / 9
Click to zoom in
1 / 9
For Sale by Great American Eqpt Co
Surplus Record Dealer Since 1991
Location: Cincinnati, OH
Contact Sales Dept.
Phone Number: 513...> Show Phone Number 513-771-2111
Let the seller know you found their listing on Surplus Record!
Description

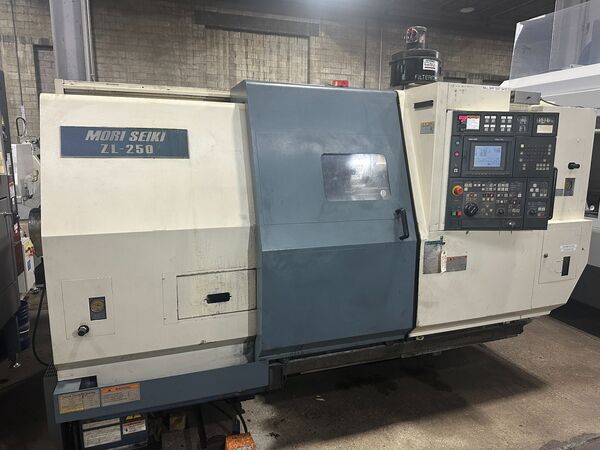

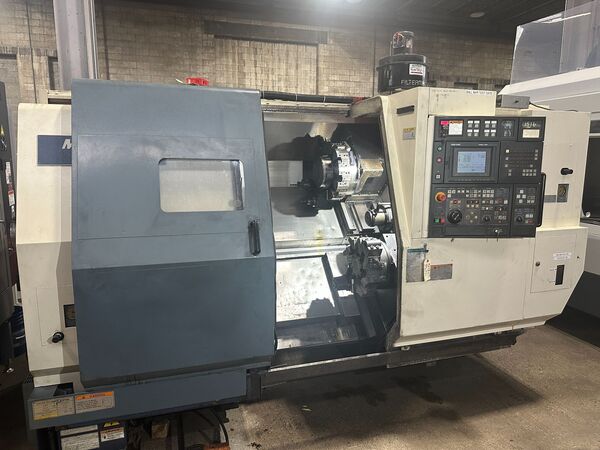

MORI SEIKI MULTI-AXIS CNC LATHE
Model ZL-250 MC/600, S/N 217, New 2000
Stock# Q12117
Model ZL-250 MC/600, S/N 217, New 2000
Stock# Q12117
EQUIPPED WITH:

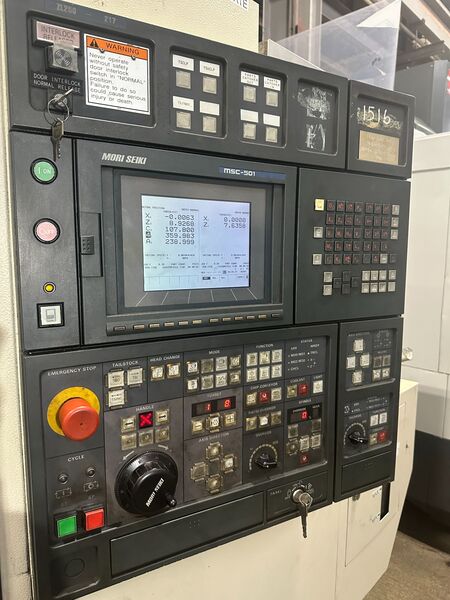

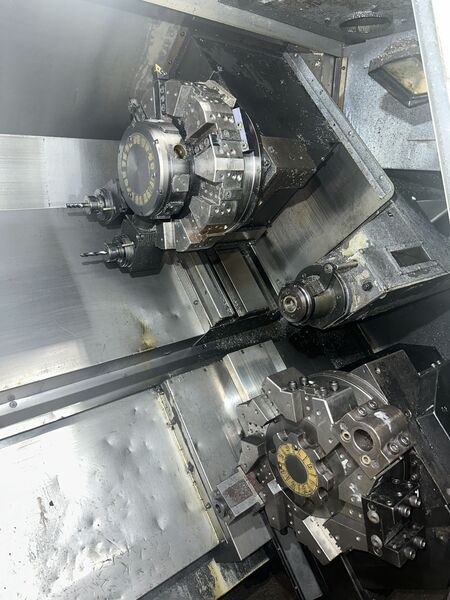

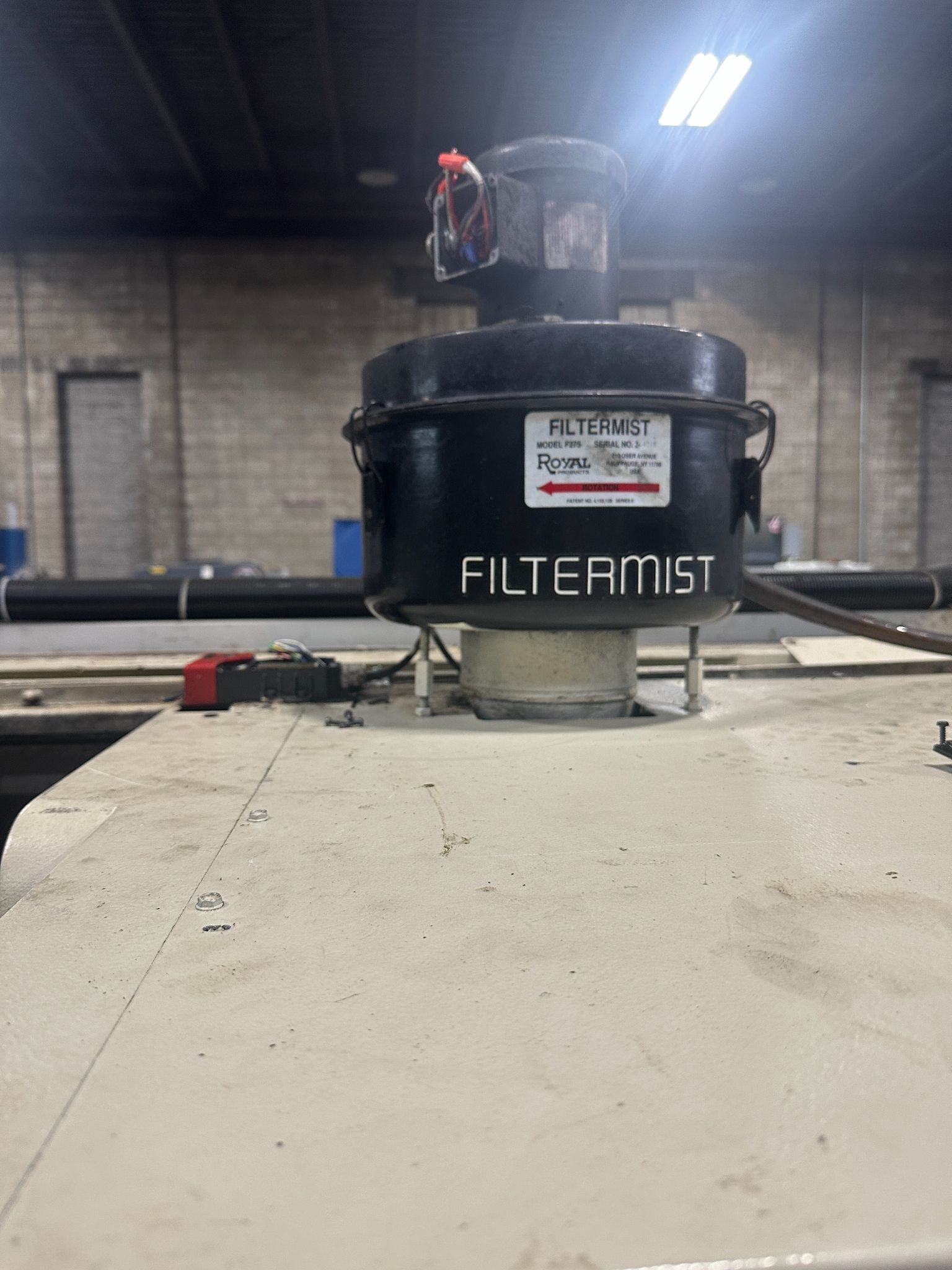

MSC-501 CNC Control, 18 Live Tool Positions (10 Upper Turret/8 Lower Turret), Tailstock, Royal FilterMist Mist Collector, Chip Conveyor, Coolant System.
CATALOG SPECIFICATIONS:
| CNC Control | MSC-501 CNC |
| # Axis | 6 |
| Max Swing Over Bed | 27.56" |
| Max Turning Diameter | 15.35" |
| Center Distance | 28.54" |
| # Turrets | 2 |
| X-Axis (Cross Travel: Upper Turret) | 9.37" |
| Z-Axis (Longitud. Travel: Upper Turret) | 25.59" |
| X2-Axis (Cross Travel of Lower Turret) | 6.81" |
| Z2-Axis (Longitud. Travel: Lower Turret) | 25.59" |
| C-Axis (Indexing Pos.: Main Spindle) | 0.001° |
| C2-Axis (Indexing Pos.: Sub-Spindle) | 0.001° |
| Max Bar Capacity | 2.87" |
| Spindle Nose | A2-8 |
| Spindle Power | 25 hp |
| Max Spindle Speed | 3,500 RPM |
| X-Axis Upper Turret Rapid Traverse Rate | 708 in/min. |
| Z-Axis Upper Turret Traverse Rate | 944 in/min. |
| Live Tooling | Yes |
| Max Live Tooling Speed | 3,000 RPM |
| Upper Turret Live Tool Positions | 10 |
| Lower Turret Live Tool Positions | 8 |
| Tailstock | Yes |
| Dimensions | 160" x 85" x 82" |
| Weight | 17,000 lbs |
CONDITION: This Machine Appears to be in Good Condition.
