Description

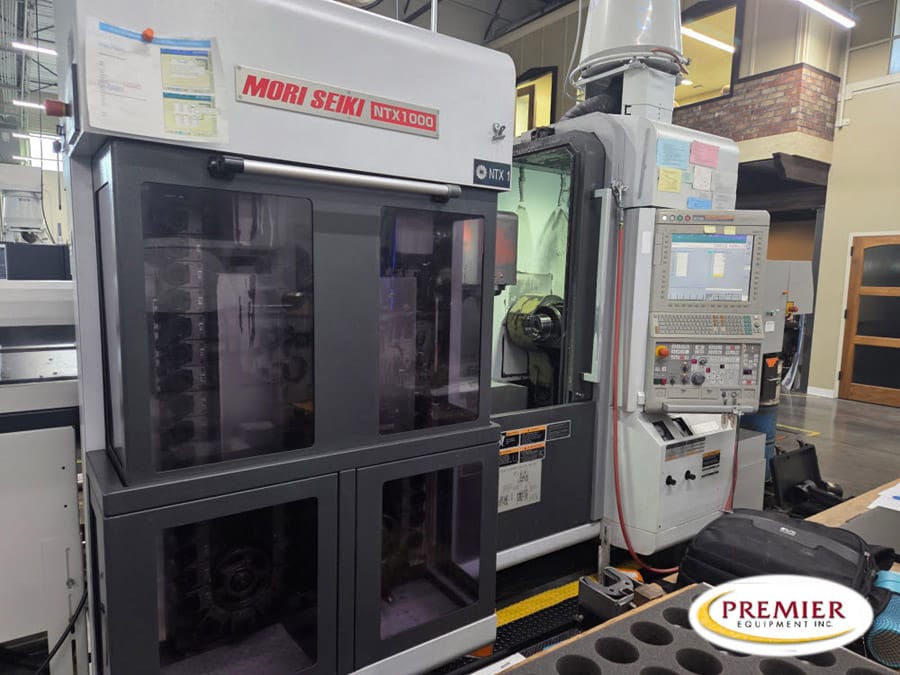

Mori Seiki NTX1000SZM CNC Lathe with Sub Spindle & Lower Turret with Milling
Specifications (subject to buyer verification):
SWING OVER WORKPIECE: 14.5″
SWING OVER CROSS SLIDE: 14.5″
TURRET 2: 10.6″
TURNING DIAMETER: 14.5″
TURRET 2: 10.6″
TURNING LENGTH: 16.6″
BAR WORK CAPACITY: 2.0″ – 2.5″
TRAVELS:
TRAVELS:
–X: 15″
–Y: +4.1″
–Z: 18.1″ + 6.1″
B-AXIS TRAVEL: +120 DEGREES
X2-AXIS: 6.1″
Z2-AXIS: 24″
SPINDLE 1:
SPINDLE SPEED: 6,000 RPM
SPINDLE SPEED RANGES: 2
SPINDLE NOSE: JIS A2-5 (JIS A2-6)
THROUGH SPINDLE HOLE DIAMETER: 2.4″ – 2.9″
SPINDLE INDEXING INCREMENT: 0.0001 DEGREE
SPINDLE INDEXING INCREMENT: 3.9″ – 4.3″
SPINDLE BEARING INNER DIAMETER: 3.9″ – 4.3″
SPINDLE TORQUE (40%ED/30MIN/COT): 164.5″/126.9″/116.5″
SPINDLE 2
SPINDLE SPEED: 6,000 RPM
NUMBER OF SPINDLE SPEED RANGES: 1
SPINDLE NOSE: 3.1″ G6 FLAT NOSE
THROUGH SPINDLE HOLE DIAMETER: 1.5″
SPINDLE INDEXING INCREMENT: 0.0001 DEGREE
SPINDLE BEARING INNER DIAMETER: 2.7″
SPINDLE TORQUE (25%ED/CONT): 27.3’/16.2′
TOOL SPINDLE (TURRET 1)
NUMBER OF TOOL STATIONS: 1
MIN. B-AXIS INDEXING INCREMENT: 0.0001 DEGREE
TOOL SPINDLE SPEED: 12,000 RPM
TAPER HOLE OF ROTARY TOOL SPINDLE: CAPTO C5
TOOL CHANGER CAPACITY: 76
TOOL DIAMETER:
2.7″ WITH ADJACENT TOOLS
5.1″ WITHOUT ADJACENT TOOLS
TOOL LENGTH: 9.8″
TURRET 2:
NUMBER OF TOOL STATIONS: 10
TURRET INDEXING TIME (1 STATION) SEC: 0.19″
SHANK HEIGHT FOR SQUARE TOOL: 0.8″
SHANK DIAMETER FOR BORING BAR: 1.2″
ROTARY TOOL SPINDLE SPEED: 6,000 RPM
SPINDLE TORQUE (15%ED/CONT): 1.7″
FEED RATE:
RAPID TRAVERSE RATE X,Y/Z: 1,574.8″/1,968.5″
TURRET 2 X2/Z2: 787.4″/1,417.3″
SPINDLE 2 A: 1,471.3″
MOTORS:
MOTORS FOR SPINDLE 1 (40%ED/30MIN./CONT): 15/15/10 HP
SPINDLE 2 DRIVE MOTOR (25%ED/CONT): 9/5.5 HP (12/7.5 KW)
TURRET 2 ROTARY TOOL SPINDLE DRIVE MOTOR: 2/1.6 HP
POWER SOURCES:
ELECTRICAL POWER SUPPLY (CONT): 41.2 KVA
MACHINE DIMENSIONS W/O LOADER & CHIP CONV: 100.6″ X 106.3″ X 94.4″
MACHINE WEIGHT: 19,800 LBS
Equipped With (subject to buyer verification):
MORI MSX-711 CNC CONTROL
Sub Spindle
Milling
Tool Presetter
Sub Turret with Milling
76 ATC
CoolJet HPC
LNS Barfeed
Parts Catcher
