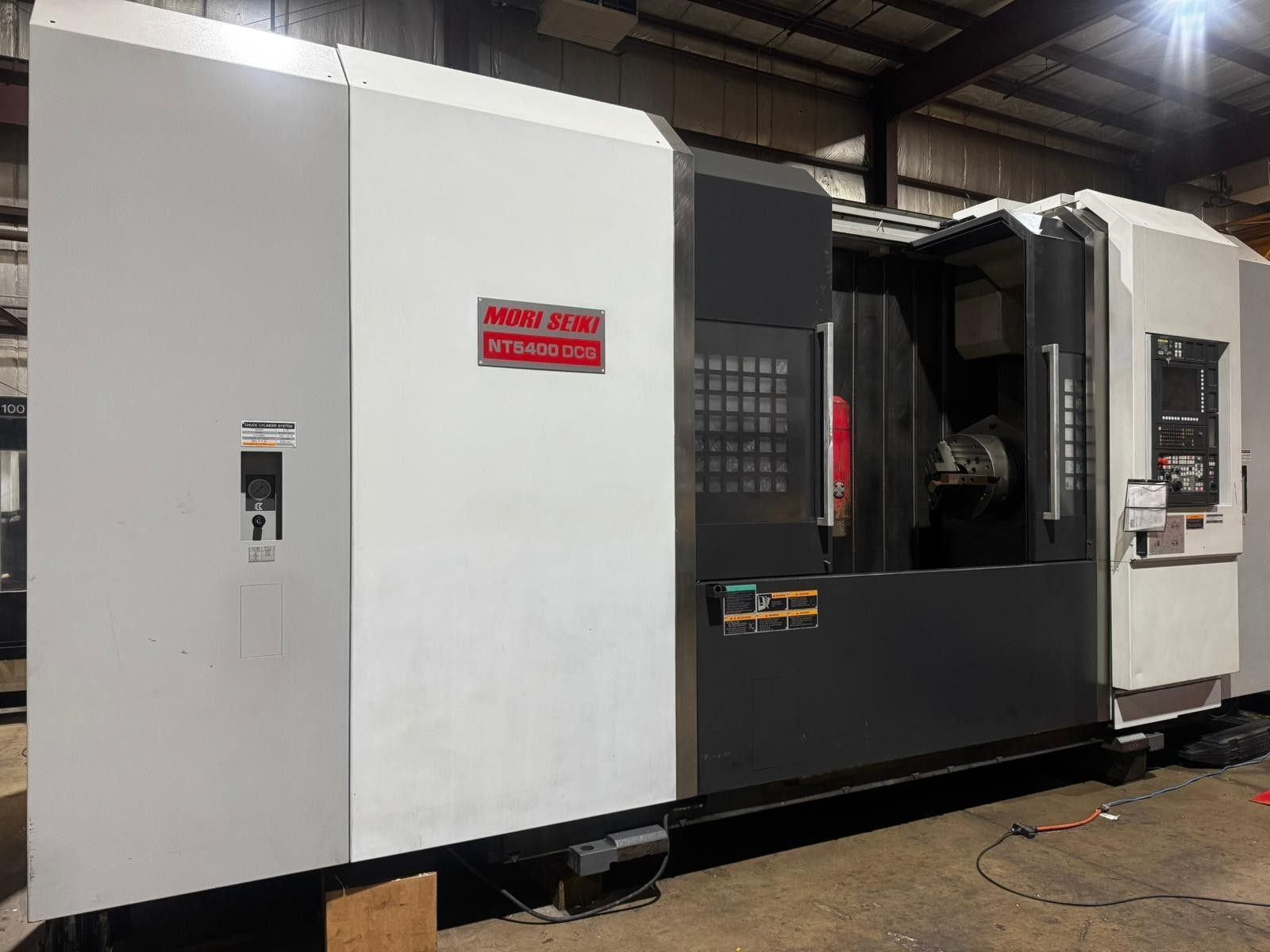

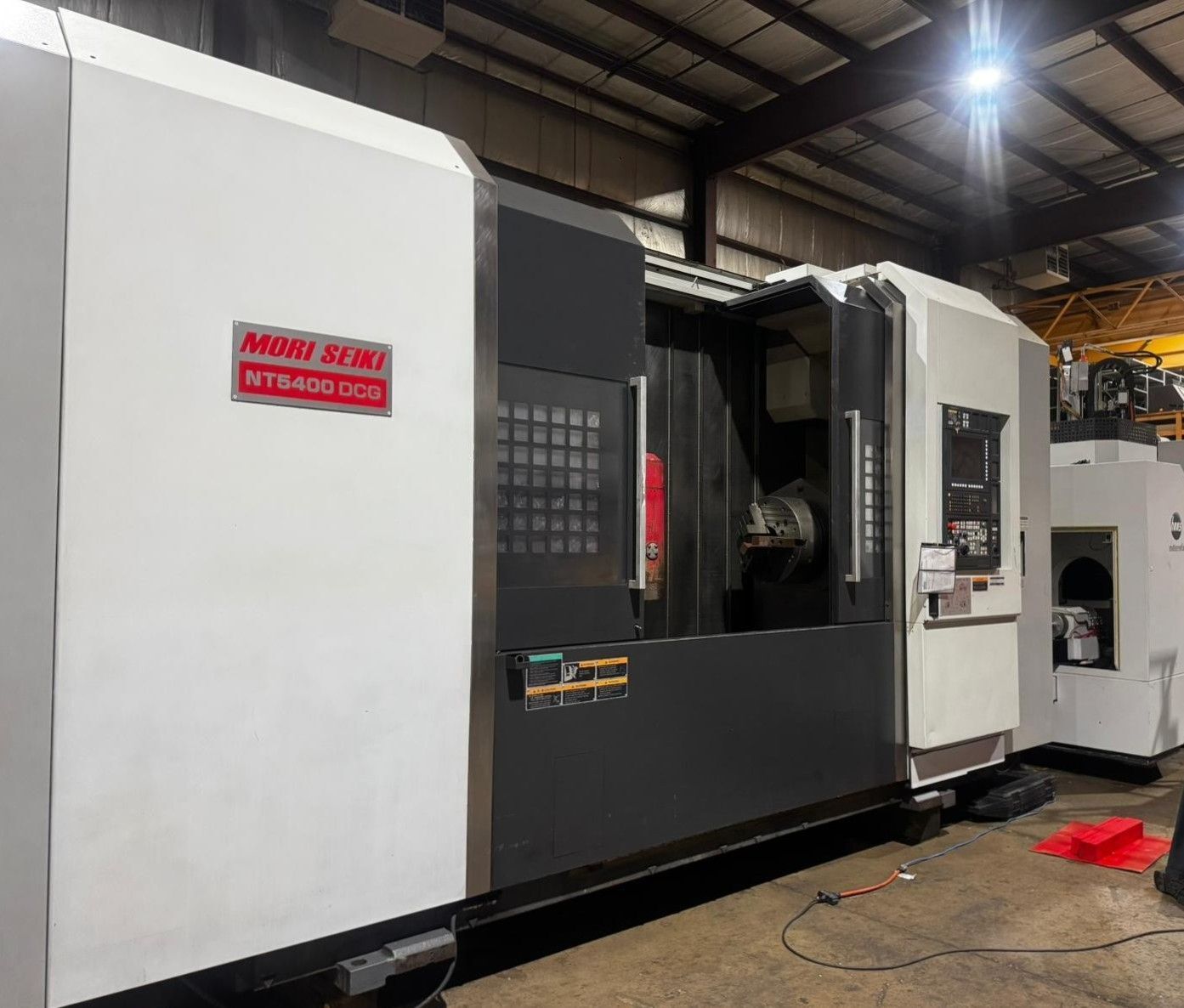

Mori Seiki #NT-5400DGC/1800SZ, 5" Axis CNC horizontal turning center, 4.1" bar, 15" chuck, 2007

2007 MORI SEIKI NT-5400 DCG-1800SZ
SPECIFICATIONS:
Swing................... 36.2"
Machining Length........ 75.6"
Max. Turning Diameter... 36.2"
X-Axis.................. 40.9"
Y-Axis.................. 10"
Z-Axis.................. 76.4"
C-Axis.................. .001

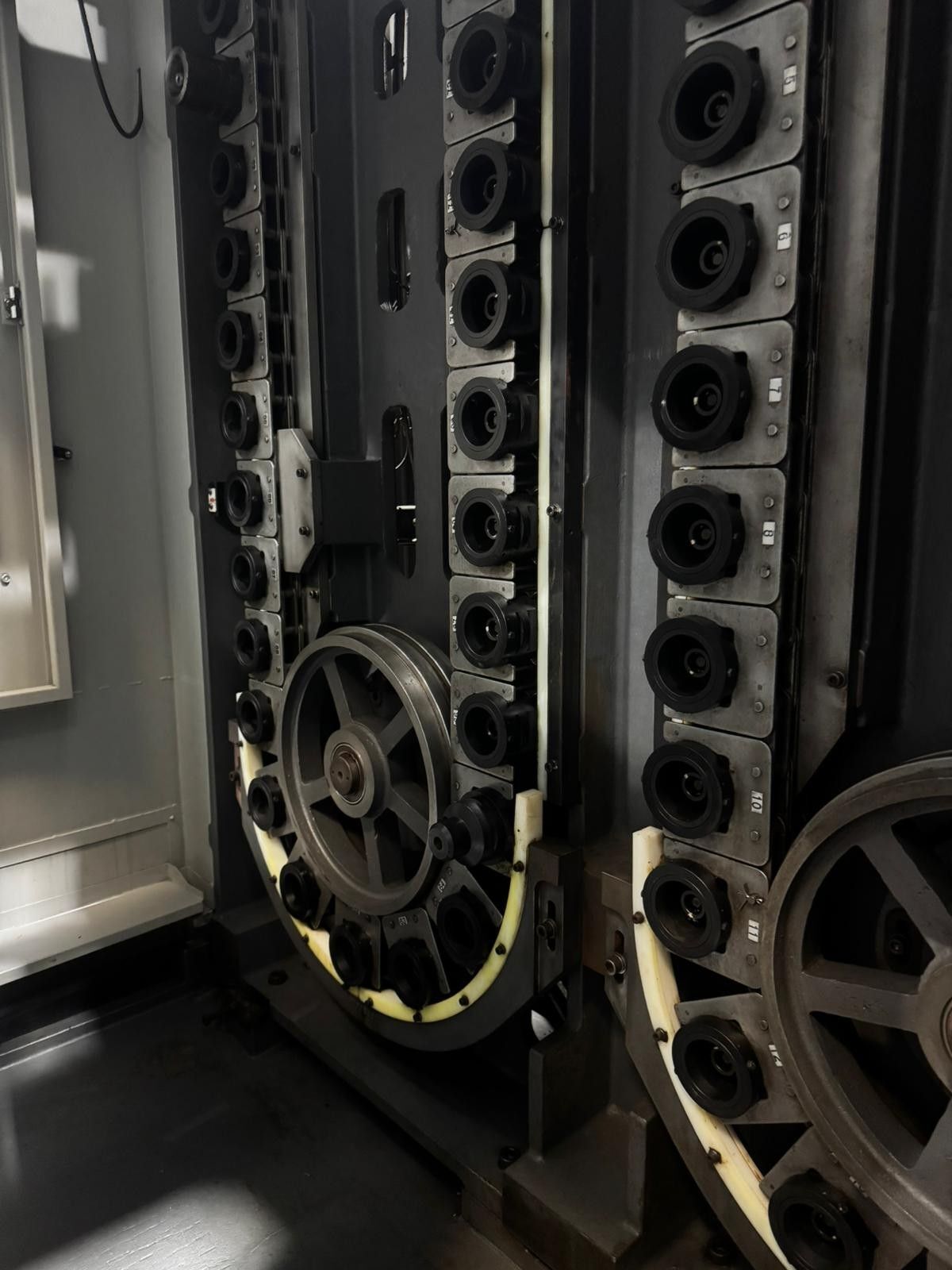

ATC..................... 80
# Axis.................. 5
Spindle Taper........... Capto C8
Chuck Size.............. 15"
Bar Capacity............ 4"
Spindle Bore............ 4.5 in
Spindle Nose............ A2-11
Power................... 50 hp
Max RPM................. 2,400 RPM
Turret Stations......... 10
Live Tooling............ Yes
Live Milling Power...... 40 hp
Live Milling Max RPM.... 6000 rpm
Sub Spindle............. Yes
Sub Spindle Power....... 50 hp
Sub Spindle Max RPM..... 2400 rpm

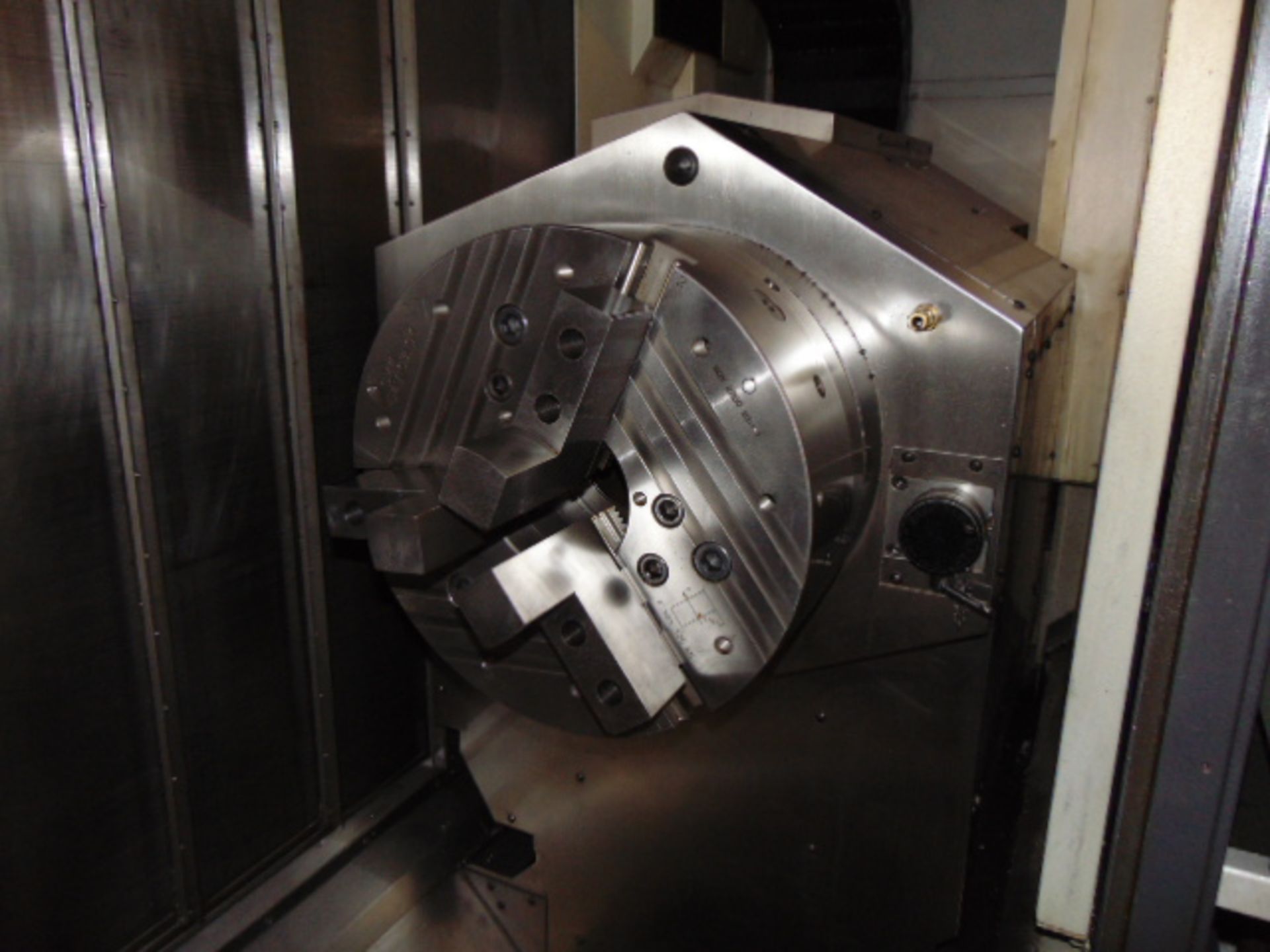

Sub Spindle Chuck....... 15 in

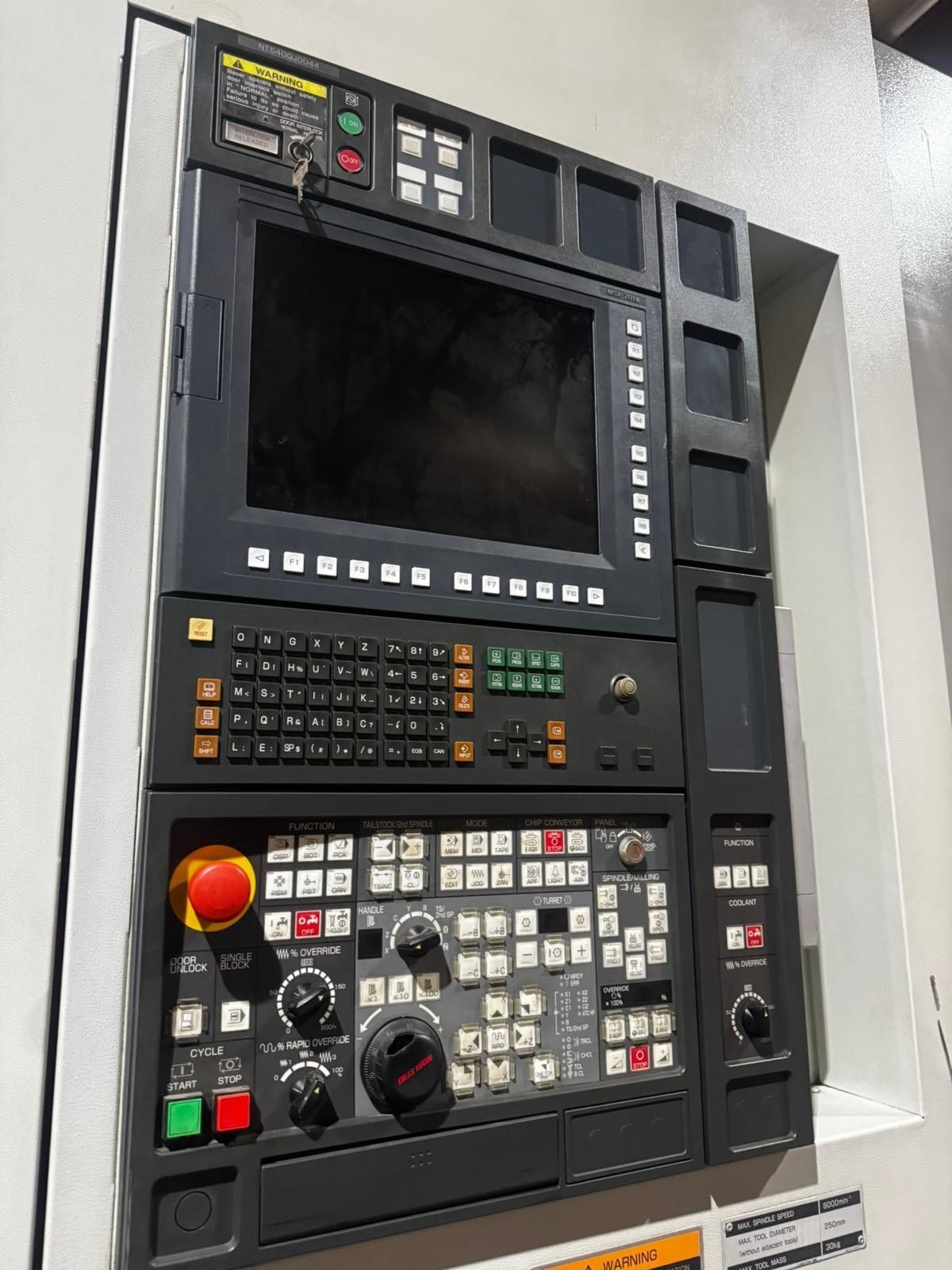

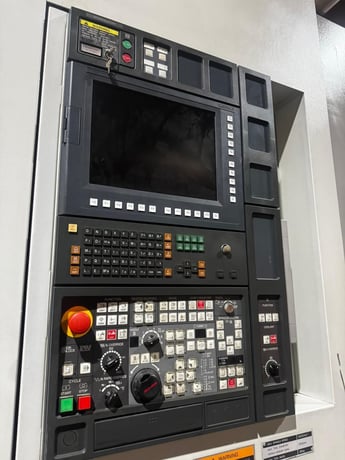

Control................. CNC (MXS-711 III CNC control)
EQUIPPED WITH:
CAPTO C8 TOOLING
SIMULTANEOUS 5-AXIS MACHINING
1,000 PSI CHIP BLASTER HIGH PRESSURE COOLANT

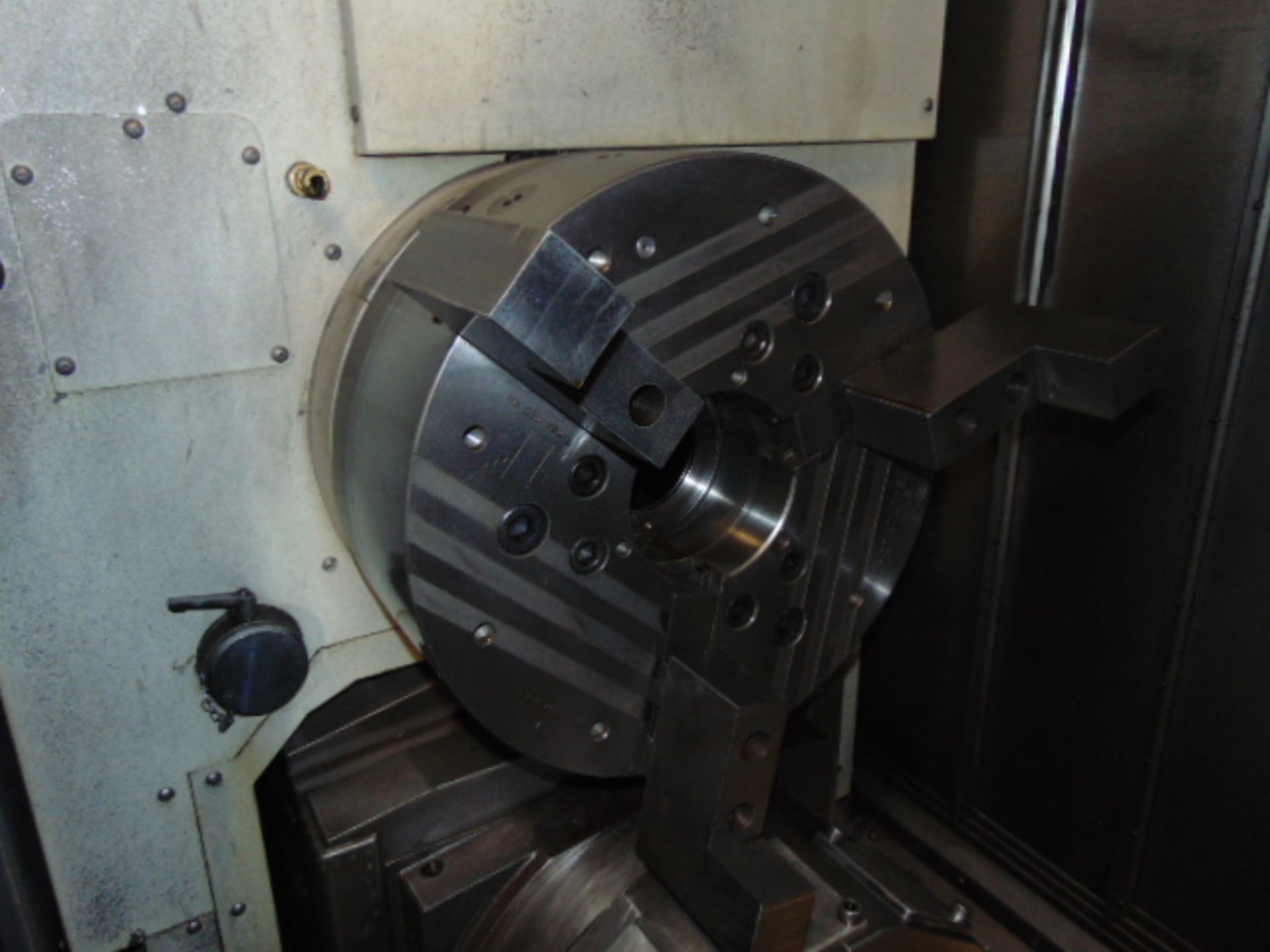

DUAL 15" POWER CHUCKS
MILLING ON TURRET 1
COOLJET COOLANT PUMP
TOOL CENTER POINT CONTROL
PART PROGRAM STRAGE (2MBYTE)
NUMBER OF STORED PROGRAMS: 1000
REMOTE COMMUNICATION FUNCTION: FAST DATA SERVER [100BASE-TX]
USER MEMORY AREA(BUILT-IN MAPPS): 50 MB
NUMBER OF TOOL OFFSET PAIRS: 240
TOOL OFFSET FOR 5-AXIS MACHINING: PROVIDED
NUMBER OF WORK COORDINATE SYSTEM PAIRS: 6
PROGRAMMABLE DATA INPUT: PROVIDED
NUMBER OF CUSTOM MACRO COMMON VARIABLES: 600
AI CONTOUR CONTROL: 2
DIAMETER/RADIUS DYNAMIC EXCHANGE: PROVIDED
TILTED WORKING PLANE COMMAND: PROVIDED
NANO SMOOTHING: PROVIDED
TOOL LIFE MANAGEMENT: B
NUMBER OF TOOL LIFE MANAGEMENT (MORI): MAX. 120 PAIRS * 8
LOAD MONITOR: B
