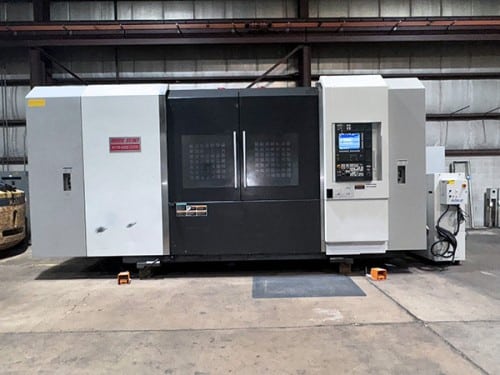

Mori Seiki #NT-5400DCG/1800SZ, CNC lathe, 9-Axis, MSX-711 III Control, 15" chuck, 4.1" bar, 2007

Mori Seiki NT5400DCG/1800SZ

Specifications
NUMBER OF AXIS 9
MACHINING LENGTH 75.6″
CHUCK SIZE 15″
BAR CAPACITY 4.1″
SPINDLE POWER 29.5 hp
MAX SPEED 2,400 RPM
TURNING DIAMETER 36.2″
B-AXIS (YES/NO) Yes
MILLING On Upper And Lower Turret Lower Only
CONTROL CNC (Mxs-711 III CNC Control)

Options/Equipped With
CAPTO C8 TOOLING •
SIMULTANEOUS 5-AXIS MACHINING
1000 PSI CHIP BLASTER HIGH-PRESSURE COOLANT •
DUAL 18″ POWER CHUCKS
MILLING ON TURRET 1 •
COOLJET COOLANT PUMP
TOOL CENTER POINT CONTROL PART PROGRAM STRAGE (2MBYTE)
NUMBER OF STORED PROGRAMS: 1000
REMOTE COMMUNICATION FUNCTION: FAST DATA •
SERVER [100BASE-TX]
USER MEMORY AREA(BUILT-IN MAPPS): 50 MB •
NUMBER OF TOOL OFFSET PAIRS: 240
TOOL OFFSET FOR 5-AXIS MACHINING: PROVIDED
NUMBER OF WORK COORDINATE SYSTEM PAIRS: 6
PROGRAMMABLE DATA INPUT: PROVIDED
NUMBER OF CUSTOM MACRO COMMON VARIABLES: 600
AI CONTOUR CONTROL: 2 •
DIAMETER/RADIUS DYNAMIC EXCHANGE: PROVIDED
TILTED WORKING PLANE COMMAND: PROVIDED •
NANO SMOOTHING: PROVIDED
TOOL LIFE MANAGEMENT: B
NUMBER OF TOOL LIFE MANAGEMENT (MORI): MAX. 120 PAIRS * 8
LOAD MONITOR: B
