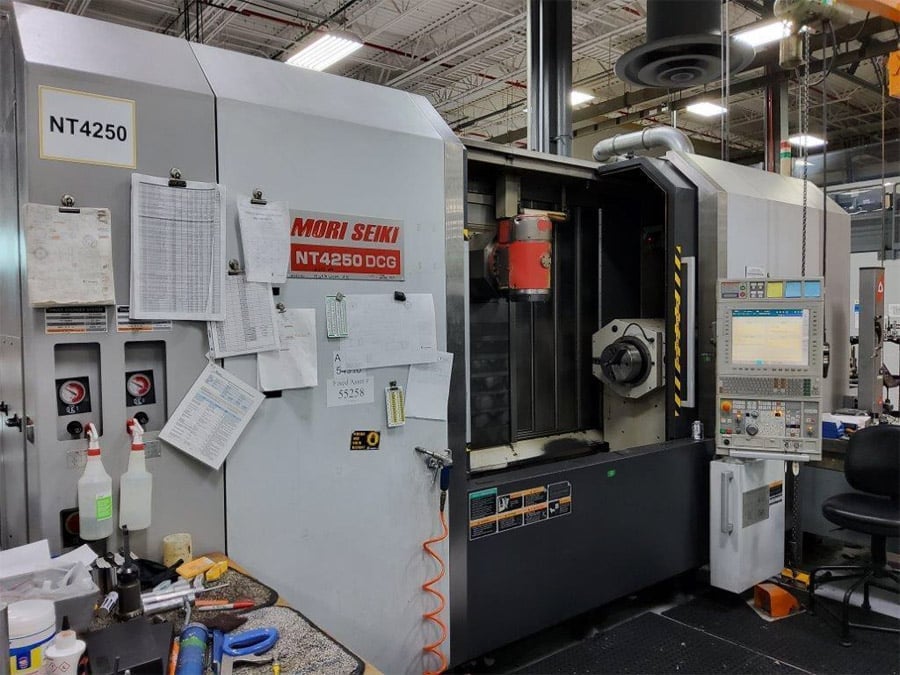

Mori Seiki #NT-4250DCG/1500SZ, CNC multi-tasking lathe, 9-Axis, Mitsubishi MSX-711IV Control, 28.7" swing, 61.4" centers, 3.1" bar, 10" chuck, 2009

2009 Mori Seiki NT4250DCG/1500SZ CNC Multi-Tasking Lathe

SPECIFICATIONS
# Axis 9
Swing 28.7 in
Turning Diameter 25.9 in
Turning Diameter Lower Turret 13.7″
Center Distance 61.4 in
Bar Capacity 3.1 in
X Axis Travel 29.5 in
X2 Axis Travel 7.7″
Y Axis Travel 8.3 in
Z Axis Travel 64.9 in
Z2 Axis Travel 60″
B Axis Indexing +/- 120° 1-Degree
C1/C2 Axis Index 0.0001°
Spindle Nose A2-8
Spindle Speed 4,000 rpm
Main Motor 30 hp
Tailstock no
Y Axis yes
Live Tooling yes
Milling Spindle Taper KM63
Live Tooling Speed 12,000 rpm – Milling Spindle
Live Tooling Motor 25 hp
Sub Spindle yes
Sub Spindle Bar Capacity 3.1 in
Sub Spindle Nose A2-8
Sub Spindle Speed 4,000 rpm
Sub Spindle Motor (HP) 30 hp
Turret Capacity 12 Stations Lower Turret
ATC Capacity 40 Stations
Machine Weight 56500 lb

EQUIPPED WITH
– Mitsubishi MSX-711IV CNC Control
– MAPPS Conversational Programing
– Chip Conveyor
– Coolant Tank & Pump
– Milling Spindle
– Lower Turret
– Sub Spindle
– Y Axis
– 10″ Chuck on Main Spindle
– 10″ Chuck on Sub Spindle
– Renishaw Probing
– Tool Presetter
– Coolant Thru Spindle – High Pressure
– Chip Blaster Unit

****COMES WITH ALL THE PICTURED TOOL HOLDERS-NO COSUMABLES****
