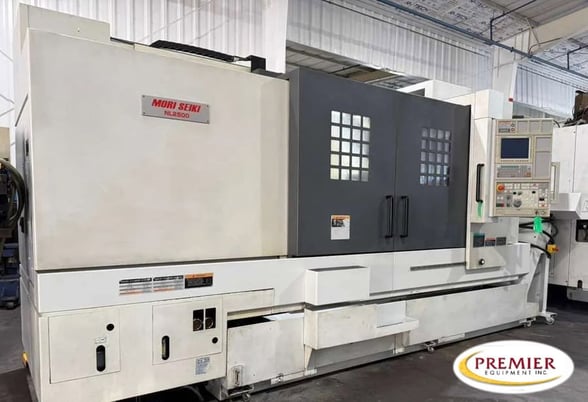

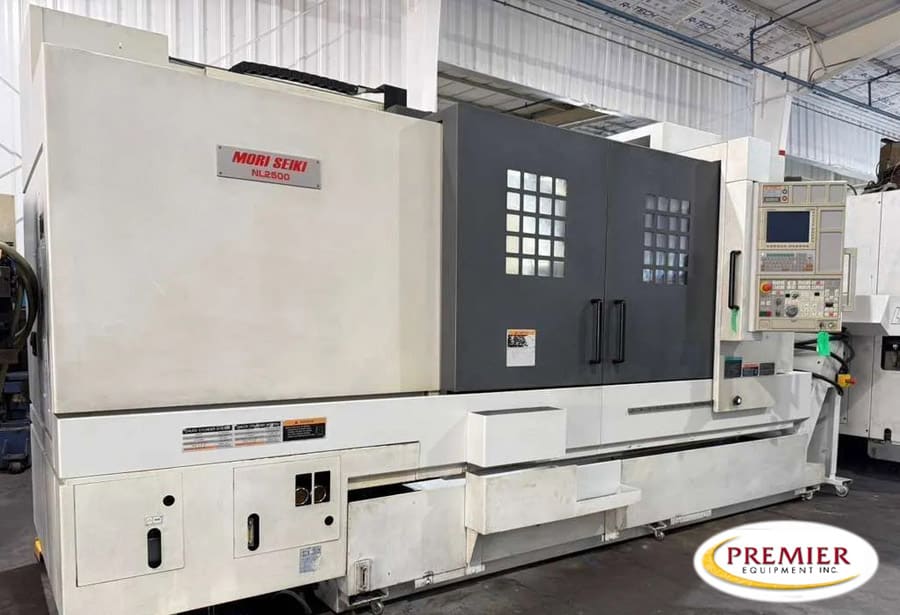

Mori Seiki #NL-2500SY/1250, CNC turning center, long bed, sub spindle, MSX-850IV, 29.7" swing, 3.1" bar, 2011

MORI SEIKI NL2500SY/1250 CNC TURNING CENTER – LONG BED SUB SPINDLE Y AXIS LATHE

SPECIFICATIONS:
Capacity:
Max Turning Diameter: 14.0″
Max Turning Length: 51.1″
Swing Over Cross Slide: 29.7″
Max Bar Capacity: 3.1″

Travels:
X Axis Travel: 10.2″
Y Axis Travel: 3.9″ (±2.0)
Z Axis Travel: 53.0″
B Axis Travel (Sub Spindle): 50.6″
C Axis (Both Spindles): 360 Degree (0.001)
Rapid Traverse Rate X & Z Axis: 1181 IPM
Rapid Traverse Rate Y Axis: 394 IPM
Rapid Traverse Rate B Axis: 787 IPM

Main Spindle:
Spindle Nose: A2-8
Spindle Bore: 3.6″
Spindle Speed: 4000 RPM
Spindle Motor: 25 HP

Sub Spindle:
Spindle Nose: A2-5
Spindle Bore: 1.7″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6000 RPM
Rotary Tool Motor: 7.5 HP
Turret Type: BMT

General:
Power Source: AC 220 V Three Phase 60 Hz
Power Requirement: 50 kva
Overall Dimensions: 171″ x 85″ x 88″ High
Weight : 16,750 lbs Approx.

EQUIPPED WITH:
MSX-850IV
Bar Feeder Interface
10″ 3-Jaw Kitagawa Chuck on Main Spindle
8″ 3-Jaw Kitagawa Chuck on Sub Spindle
C Axis Capable
Y Axis On Turret
12 Station High Speed Live Tool Turret
Oil Cooling Unit
Tool Presetter
Parts Catcher
LNS Chip Conveyor
Foot Switches
