Description

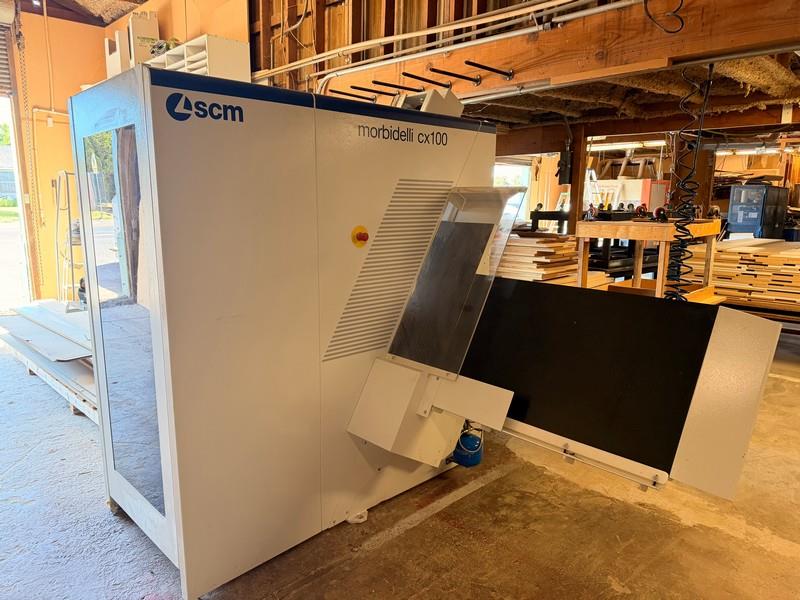

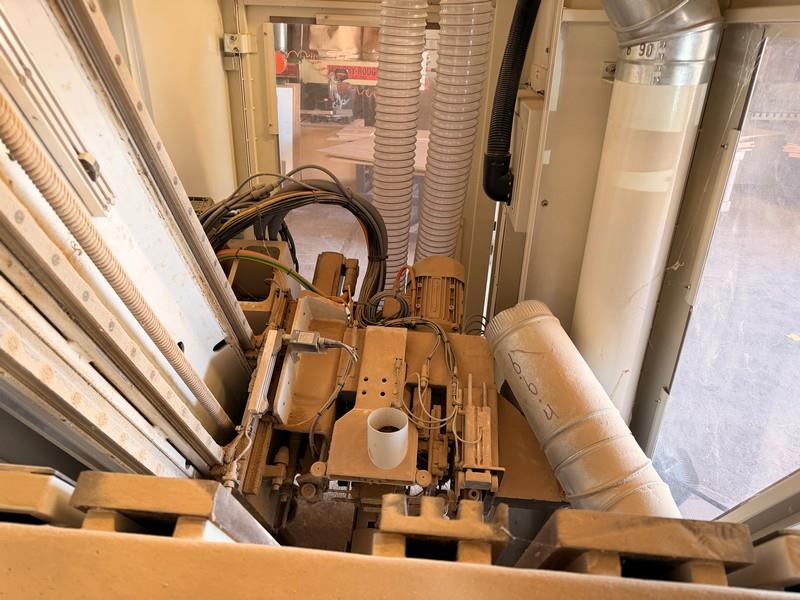

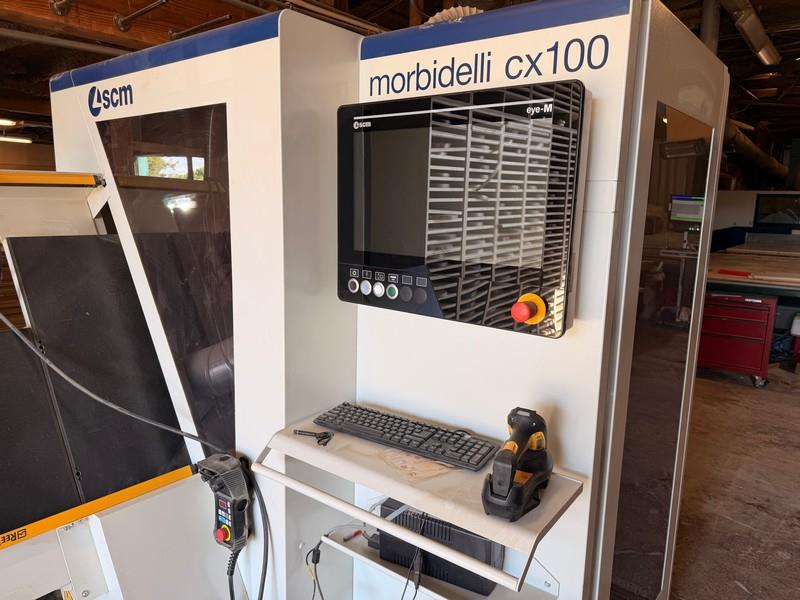

MORBIDELLI - CX 100: CNC Machining Center (Vertical) -- SpecificationsFlexible "Vertical" Machining Center reaches movement speeds of: 229 FPM (70 MPM) in "X" axis; 131 FPM (40 MPM) in "Y" axis; 98 FPM (30 MPM) in "Z" axis with: Total safety. -- Working CapacityMax. part size for: "X" Axis is 120" (3,050 mm); "Y" axis 35.4" (900 mm); max. part thickness: 2.3" (60 mm). - Min part size for: "X" Axis is 7.8" (200 mm); "Y" axis 1.96" (50 mm); min. part thickness of 0.31" (8 mm); automatic infeed & outfeed from the LH side. -- Boring UnitBoring block with: 3 HP (2.2 kW) Motors; variable speed: Up to 8,000 RPM with: (12) Independent spindles: (7) In "X" axis; (5) in "Y" axis. - (6) Horizontal spindles with: (2 + 2) in "X" axis; (1 + 1) in "Y" axis. - (1) "X" Axis: Grooving saw; variable speed up to: 10,000 RPM; 125 mm max saw blade diameter. -- Machining(1) 7.4 HP (5.5 kW) Router with: ISO 30 Adaptor. - Variable speed from: 1,000 - 24,000 RPM. -- Operator InterfacePC Frontend. SCM "XILOG MAESTRO" + Windows Operating System with 3D graphics. Includes: 17" TFT Monitor; international keyboard; soft touch keypad & industrial mouse; RS-232 Serial ports; USB ports. Ethernet Connection. Real time multitask processing; programs can be transferred via: Diskette or downloading by wire is possible. -- Complete with:Handheld pendent control; (2) pneumatic part clamping devices; auto. lubrication system; sound enclosure & safety devices. -- Actual Model is: SCM MORBIDELLI CX 100
HOLZ-HER - EVOLUTION 7405: CNC Machining Center (Vertical) -- Flexible "Vertical" Machining Center can reach movement speeds of: 223 FPM (68 MPM) in "X" & "Y" axis; 49 FPM (15 MPM) in "Z" axis with total safety. -- Working CapacityMaximum part size for "X" axis: 126" (3,200 mm); "Y" axis: 36.2" (920 mm); max. part ...more
THE 2006 BIESSE SKIPPER 100 IS A CNC THROUGHFEED DRILLING AND MACHINING CENTER DESIGNED FOR SIMULTANEOUS TOP AND BOTTOM PROCESSING OF PANEL MATERIALS. THIS DOUBLE-SIDED MACHINING CENTER S AN INNOVATIVE PANEL HANDLING SYSTEM WITH A CLAMPING SYSTEM THAT UTILIZES AUTOMATICALLY POSITIONED VICES, ELIMINATING THE NEED FOR ...more
WEEKE - BHX 055: CNC Boring Machine (P to P Vertical) -- Flexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space in addition to an innovative panel handling system. -- Working Cap.:Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm), max. part thickness 2.4" ...more
