Description

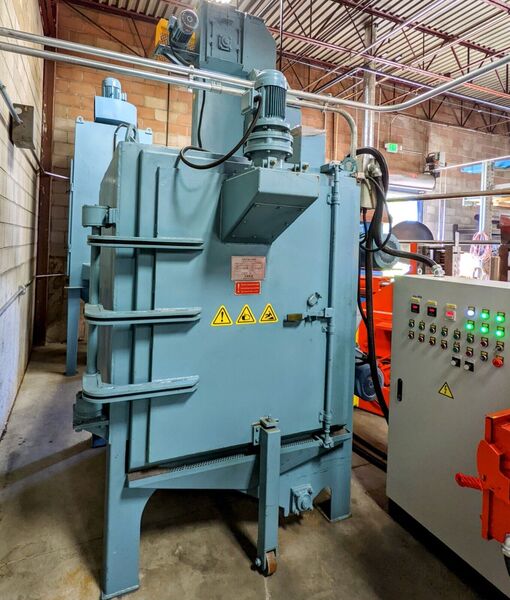

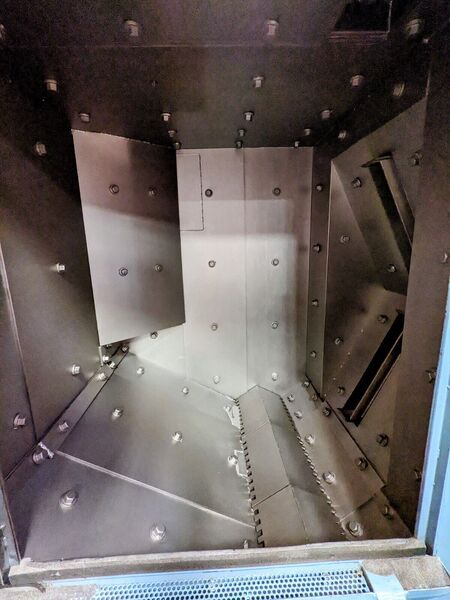

New Automatic Spinner Hanger Single Swing Door Shot Blast Machine
Model: TD367

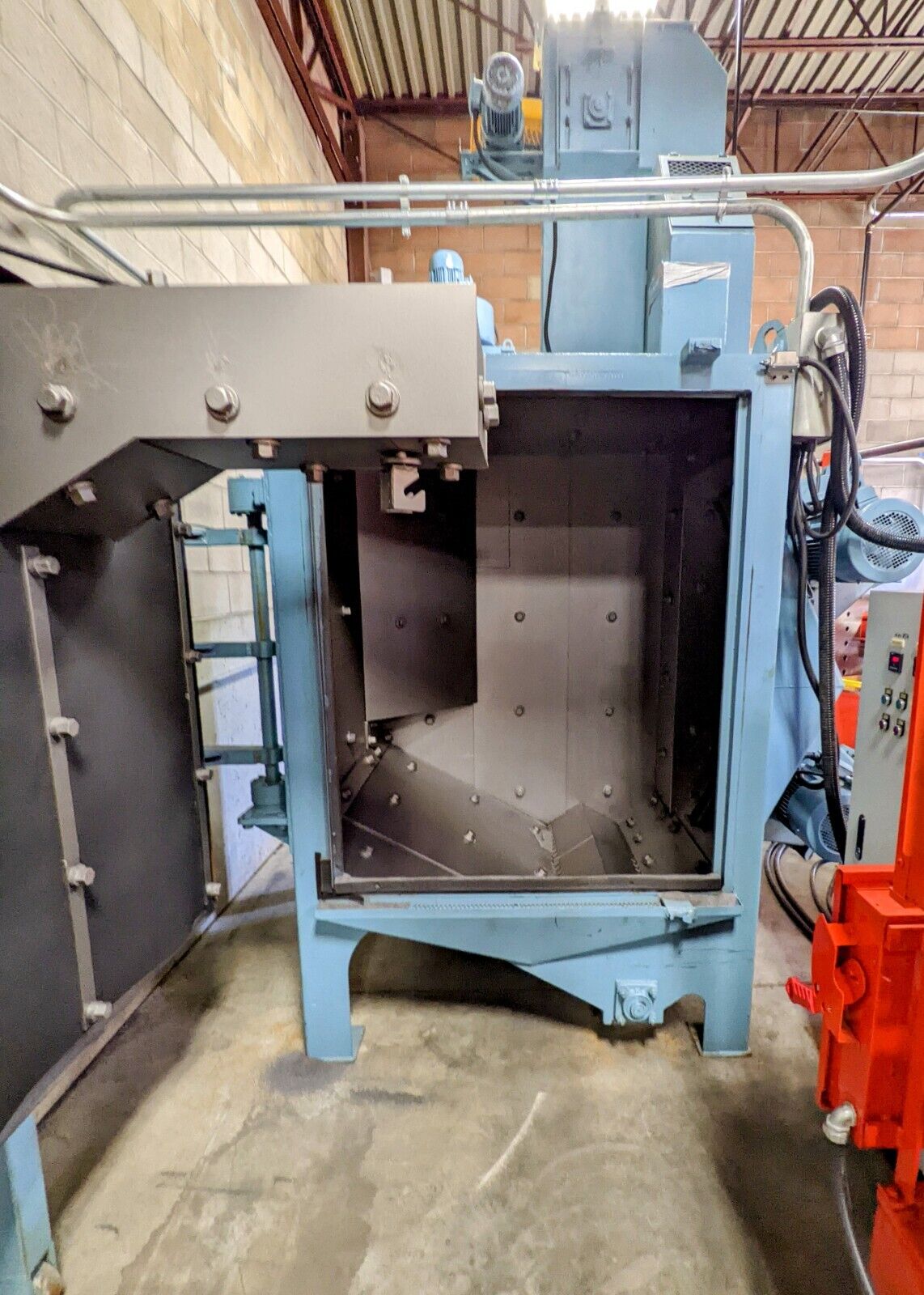

Maximum workpiece/fixture size: 27" diameter x 35" tall
Footprint/area required: 6ft wide x 20ft deep x 14ft tall with duct work and dust collector behind machine

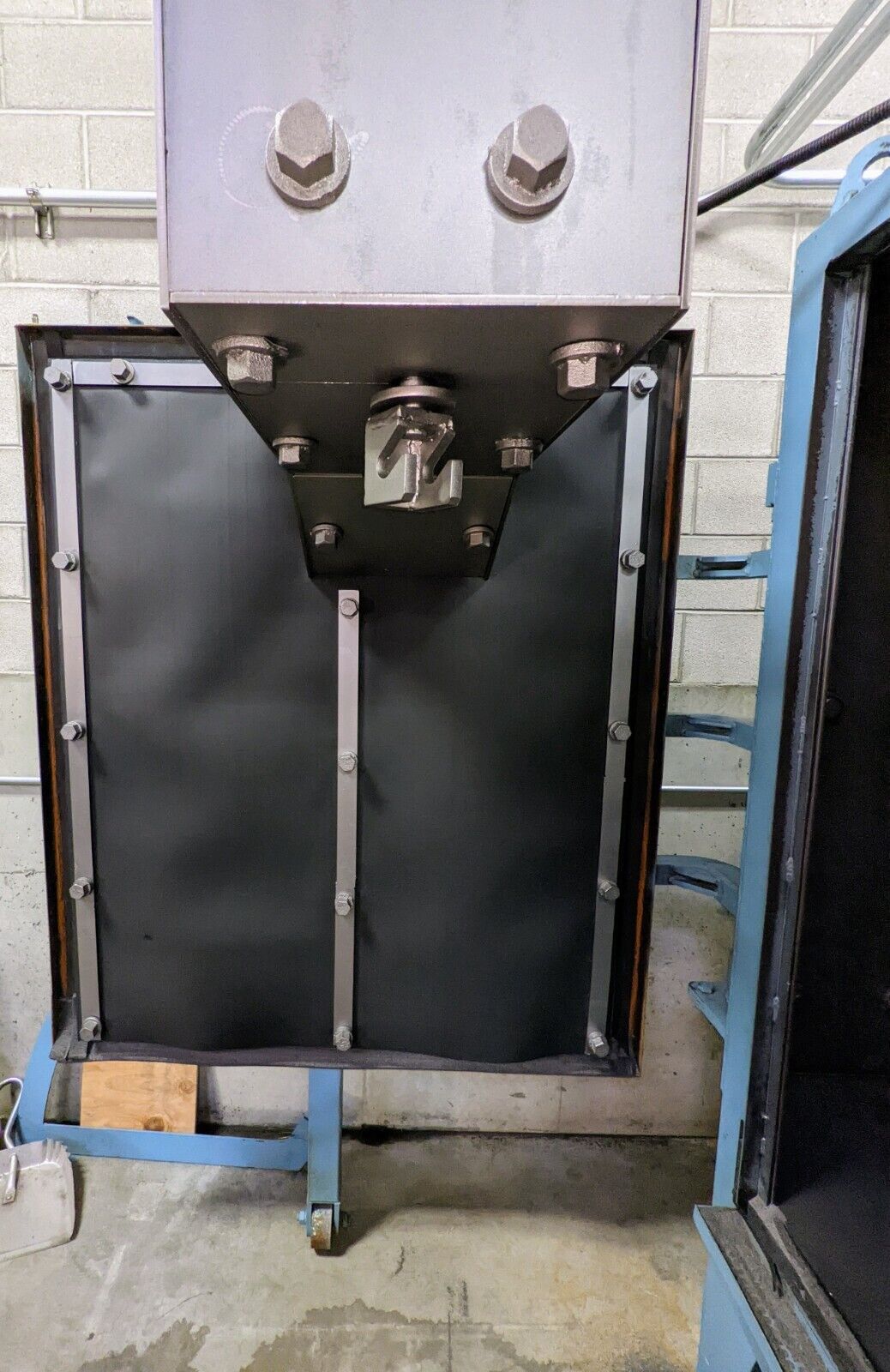

Swing door hook: 1 Hook rated for 1,102 lbs
Blastwheels: 2 - 10HP blastwheels with VFD's for soft start and gentile blast if desired. This blastwheel is a simple proven design and it's a workhorse. The blastwheel assembly is dynamically balanced, direct drive with a double disk design (each disk is over 3/4" thick), and straight blades
Abrasive flow rate: 264 lbs/min each wheel x two = 528 lbs/min total
Velocity: 250 ft/sec

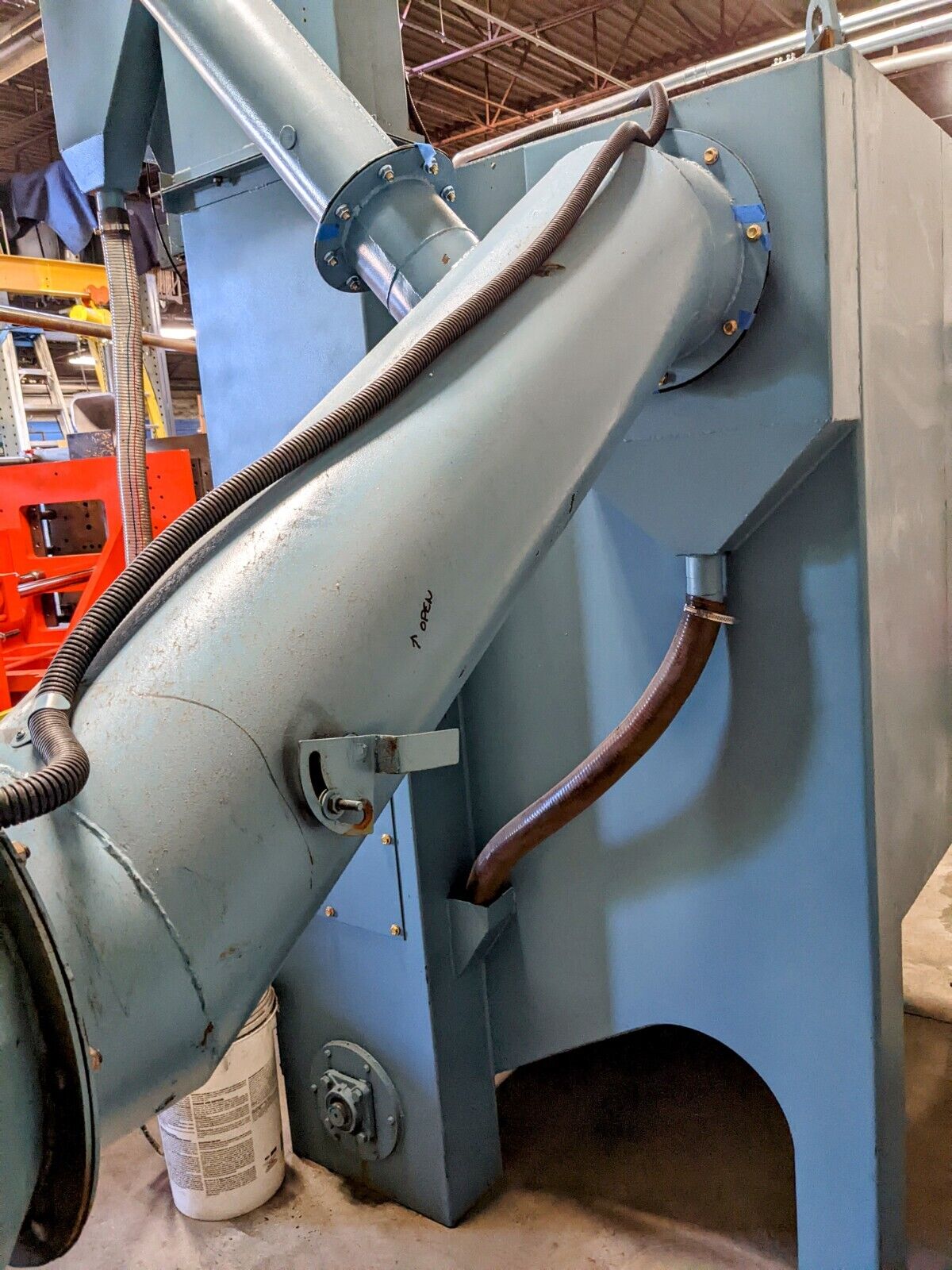

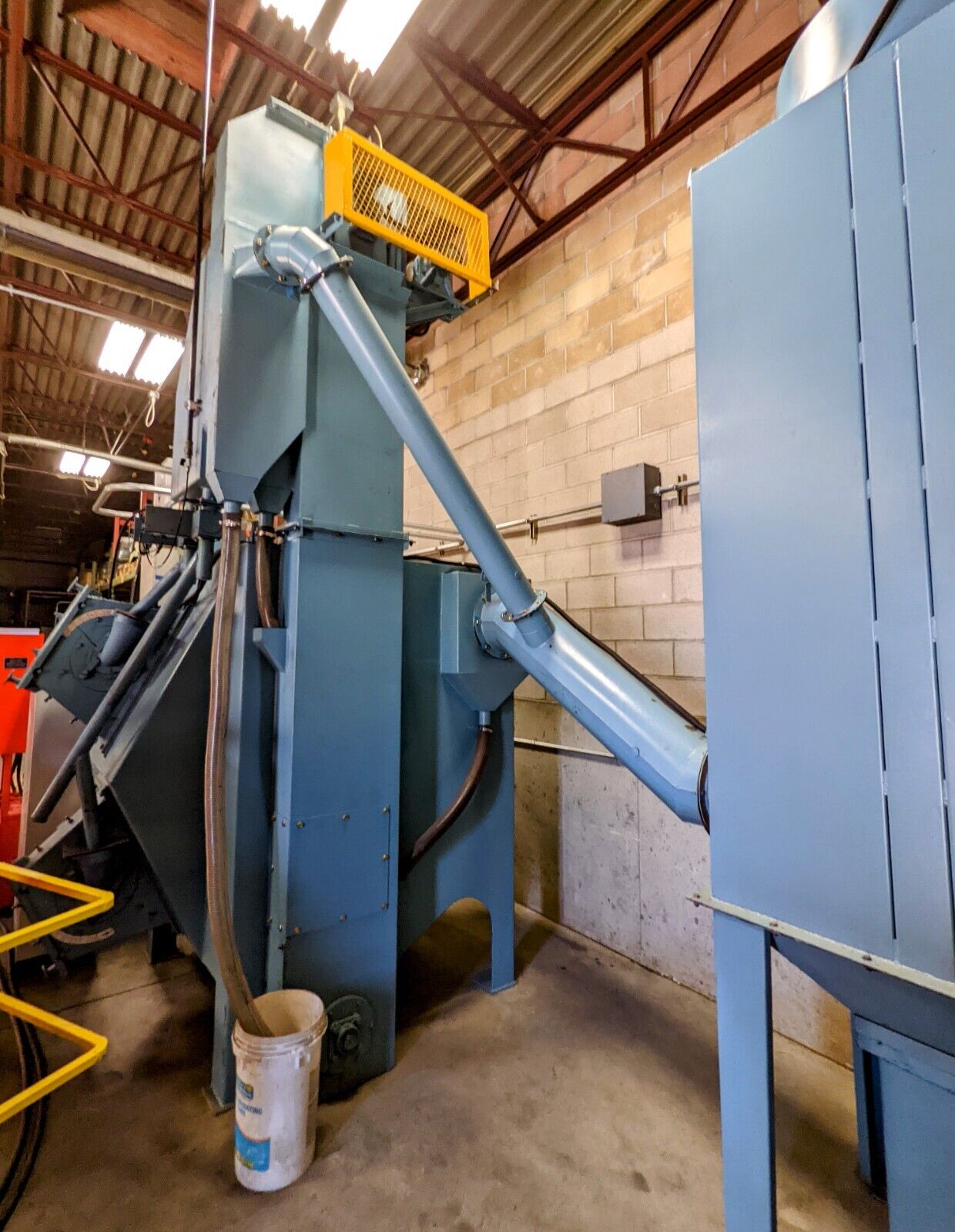

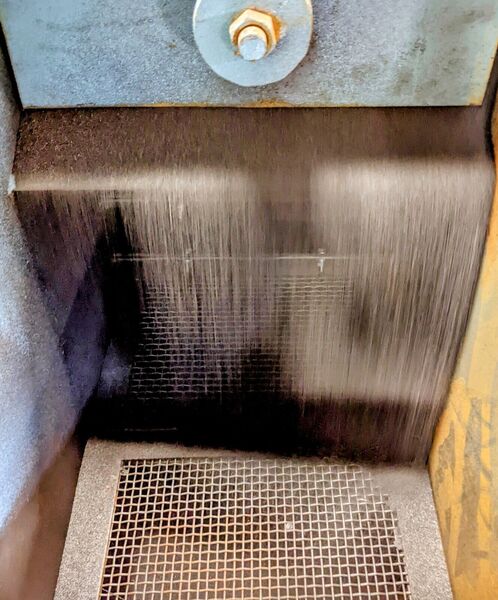

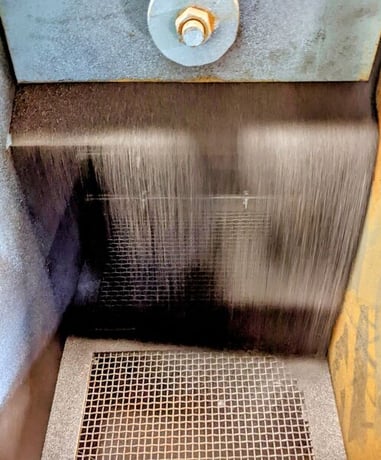

Media cleaning/recycling system: bucket elevator with airwash separator
Initial media charge: 1,100 lbs

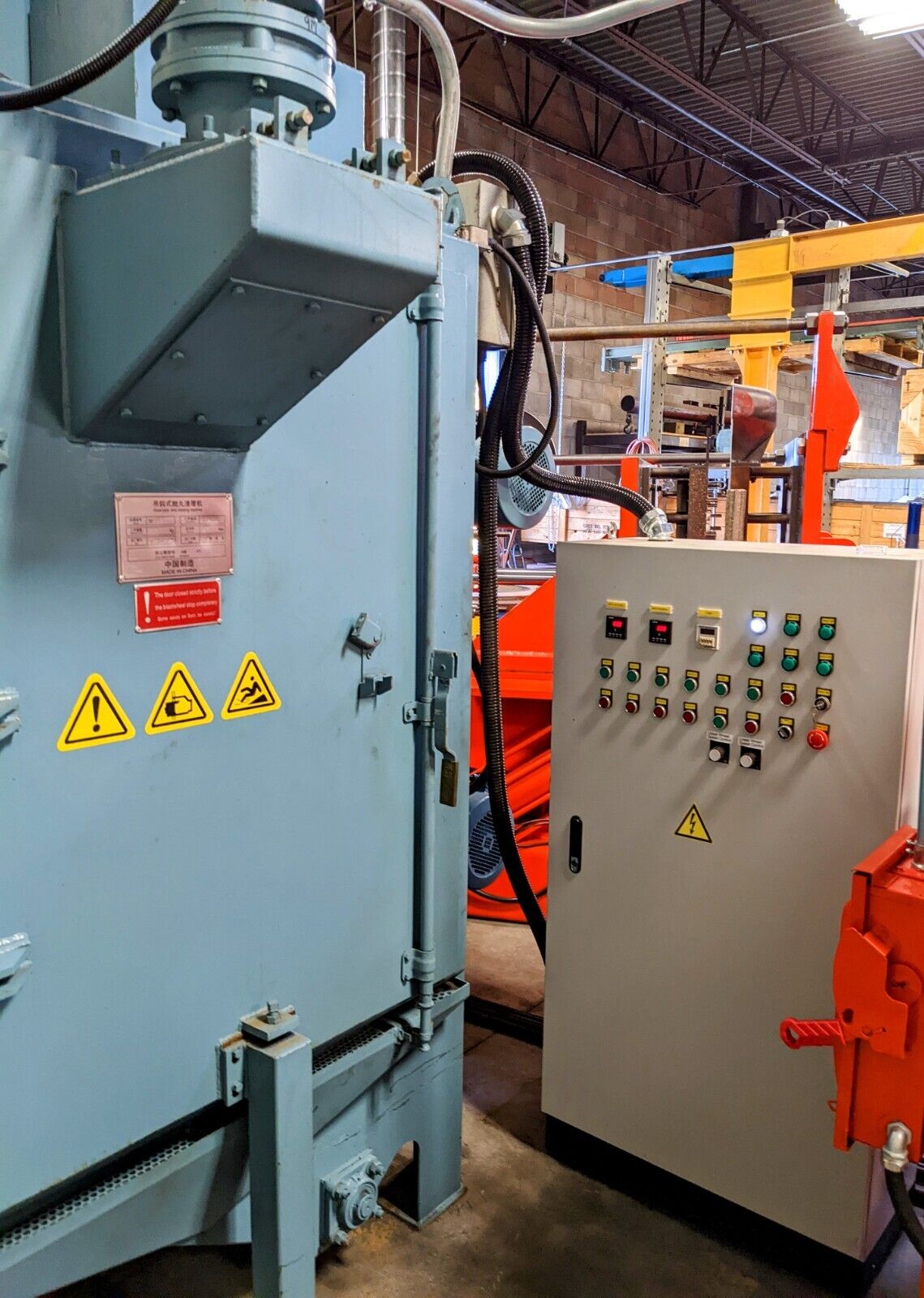

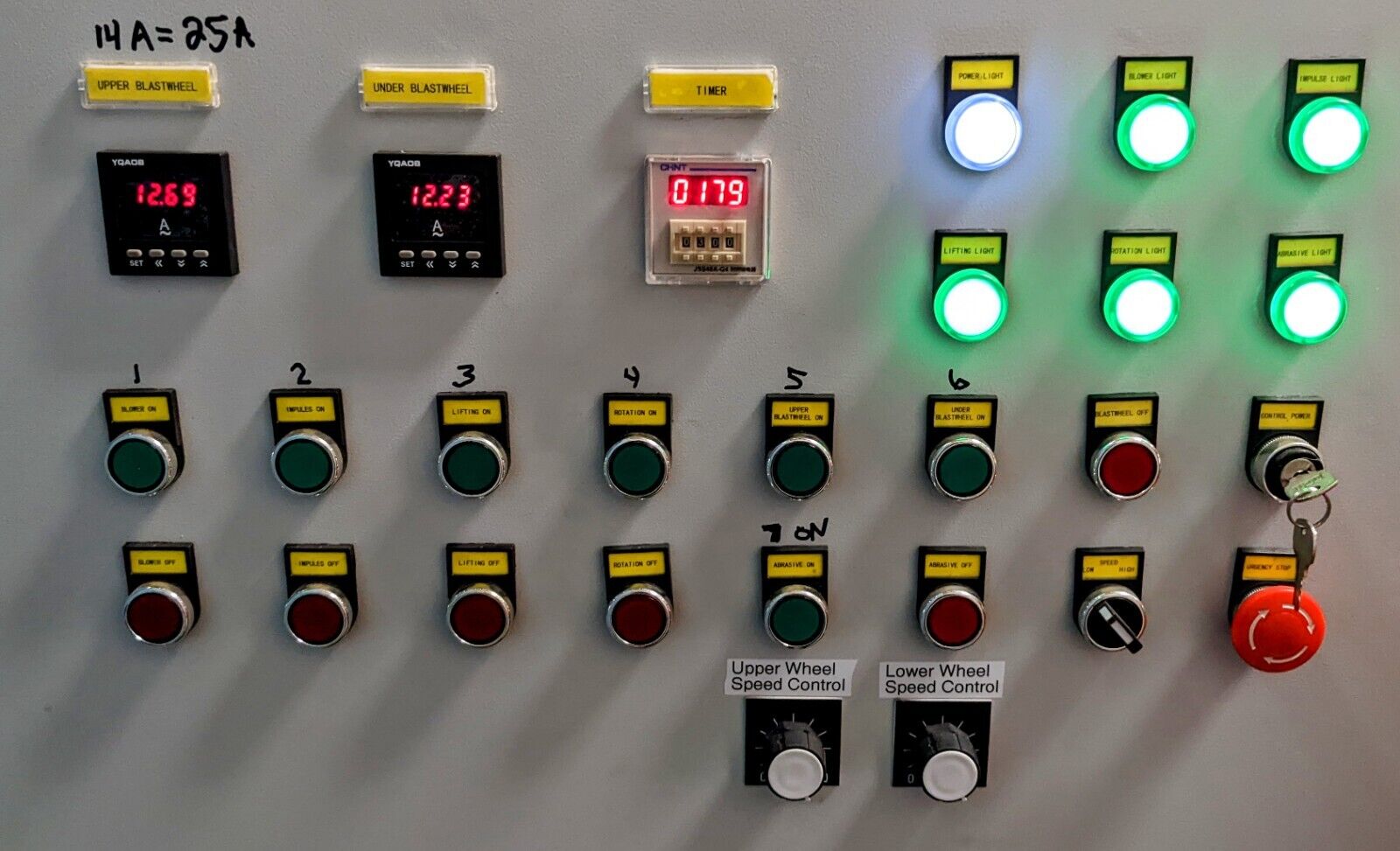

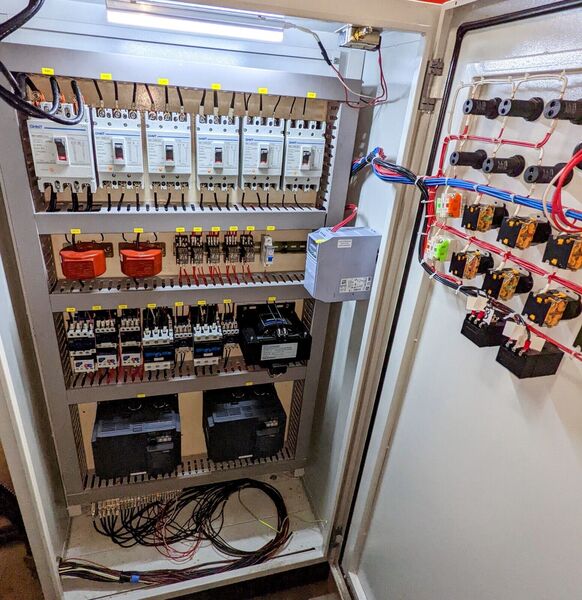

Electric control system: control panel, 460V, 3 phase, 60 Hz
Stock #: 191260022, Brand: Wheelabrator, Year: 2015, Serial Number: 600882, HP: 34, Extra Hanger Racks, Dust Collector, Reclaim Elevator And Ladder/ Gantry System., Additional Info, Drive unit is currently removed and rebuilt (pictured in front of machine). Owner can assist in loadout., Stock #: 191260022Brand: ...more

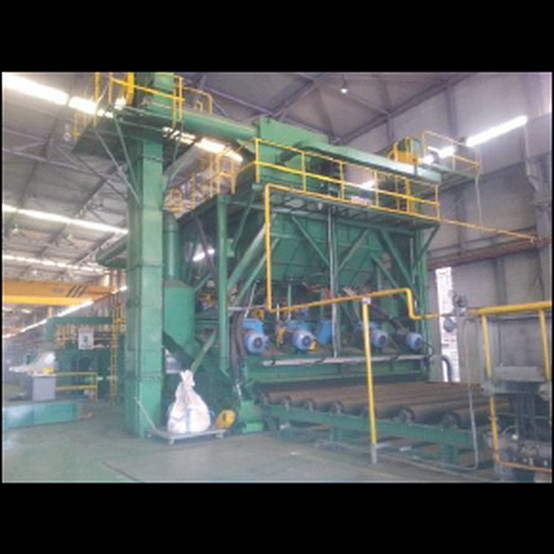

Work Range: Steel Plate:Width: Max 5,000mmThickness: 6 - 100tLength: Max 24,000mmWeight: Max 20 Ton/SheetPass Hight Max 300 (angle, channel ect)Feeding Speed: 1 - 7 M/min (Design: 4.0 M/min x 5,000mm x 18,000mm x 15t)Required Basic Blast Results: Swedish Standard SA 2 1/2 with Near White Metal Surface (Max: 4 M/min ...more
