MK Manufacturing #MKM-CD-250, Atomizer, Stainless Steel 316, Spray Disk, 9k-13k RPM w/ sensors, Insulated Jacket, new, AS IS

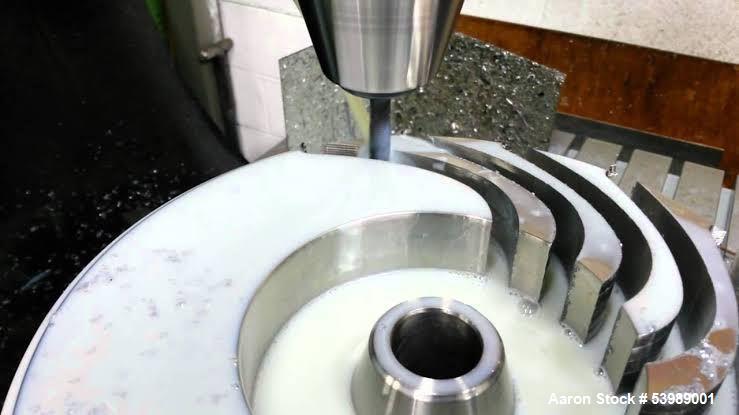

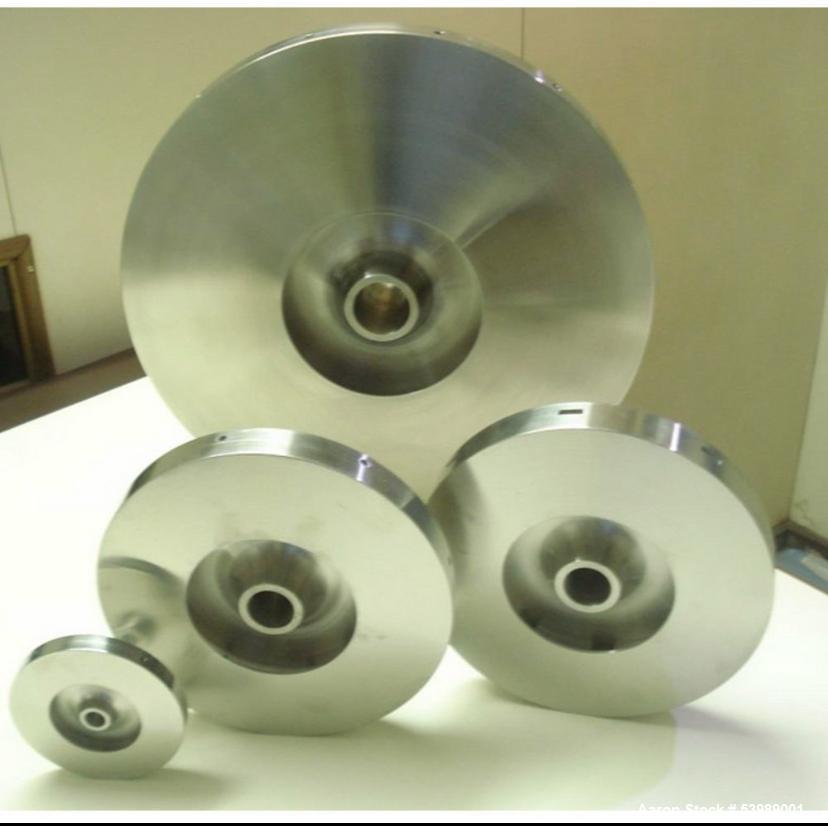

unused / new mk manufacturing co, atomizer, model mkm cd 250 features a feeder cover, retainer, sleeve, and feeding pipe made from ss 316 stainless steel, all tested, machined, and balanced as required, the spray disk is also ss 316, precisely machined and balanced, the main shaft is constructed from special spring steel with centerless grinding for high precision, bearing housing is fabricated from mild steel with cylindrical surfaces to accommodate bearing seats, the shaft is driven by a v-belt pulley system, operating speed ranges from 9000 to 13000 rpm and includes rpm sensors and a digital display, the atomizer jacket is insulated with ceramic wool, air purging is provided to prevent sediment buildup and ensure continuous spray dryer operation, lubrication is handled by an mkm make pump with motor, double filters, and gauges for continuous oil flow, the unit is supplied without a motor, compatible with a 25 hp, 2900 rpm flange-mounted siemens or hindustan motor, the atomizer pulley is made from ss 304 while the motor pulley is made from cast iron or mild steel. our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
