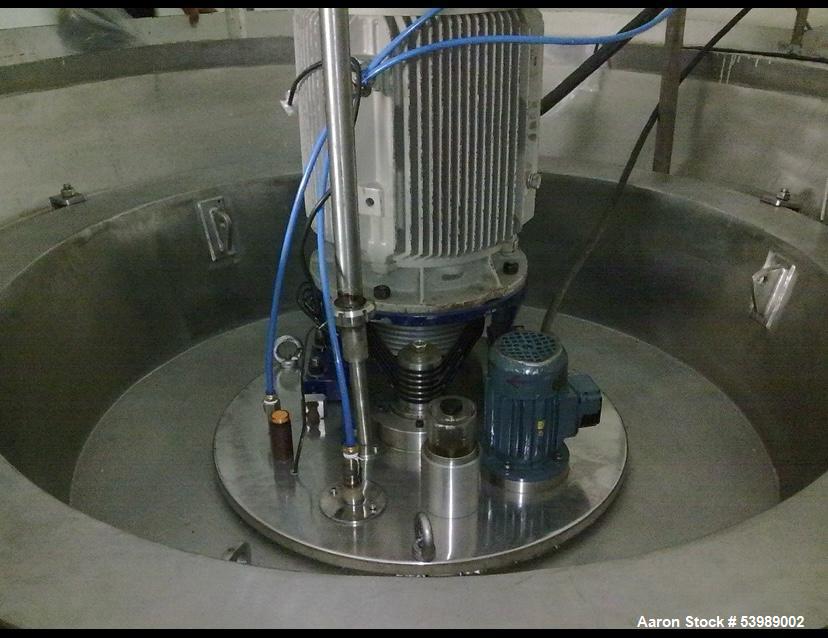

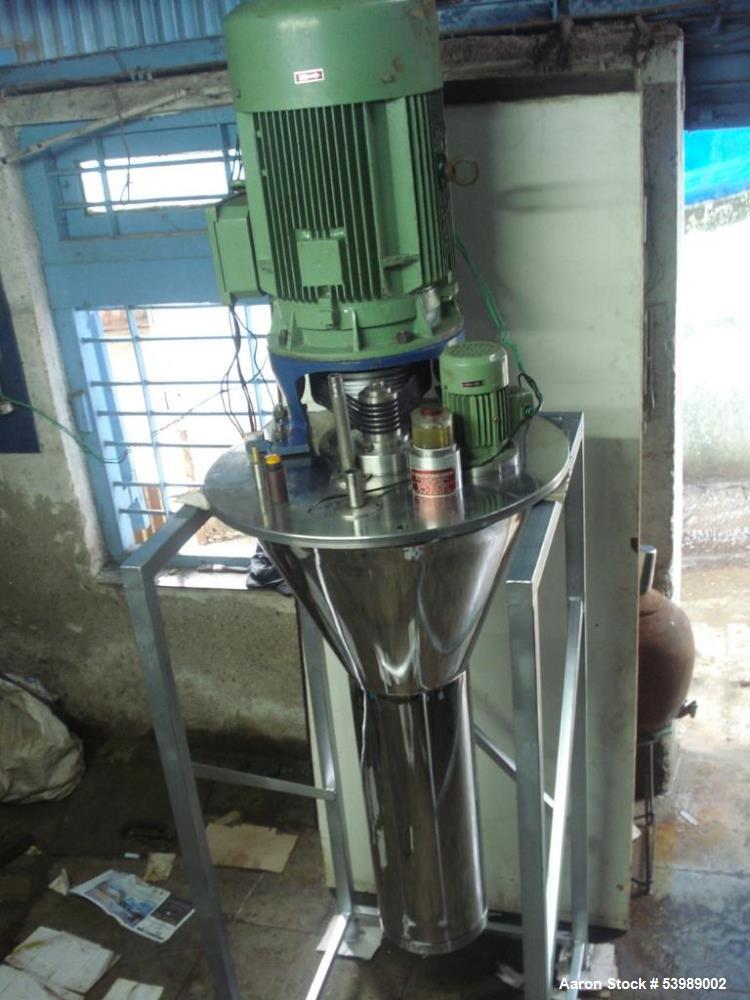

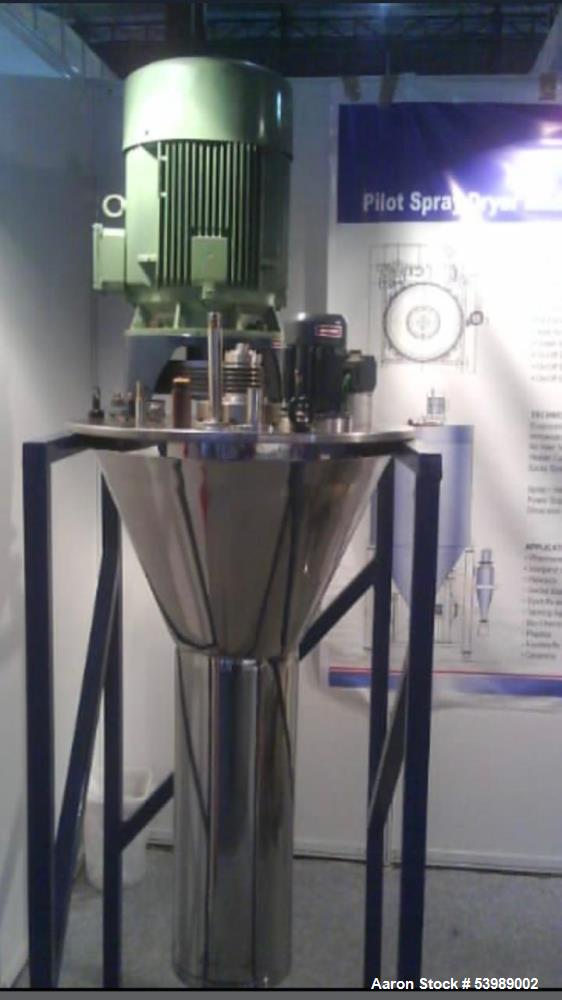

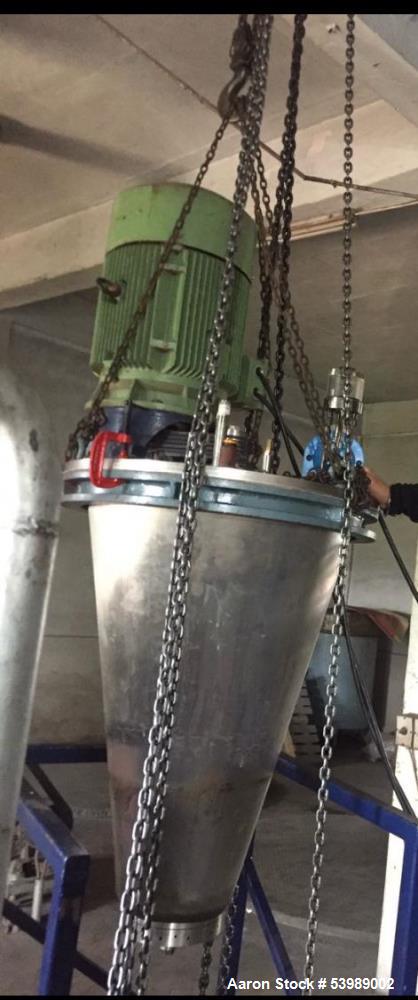

MK Manufacturing #MKM-CD-210, Rotary Disk Atomizer, same as #F-35, Stainless Steel 316, Spray Disk, 19k RPM, w/ sensors, Insulated Jacket, new, AS IS

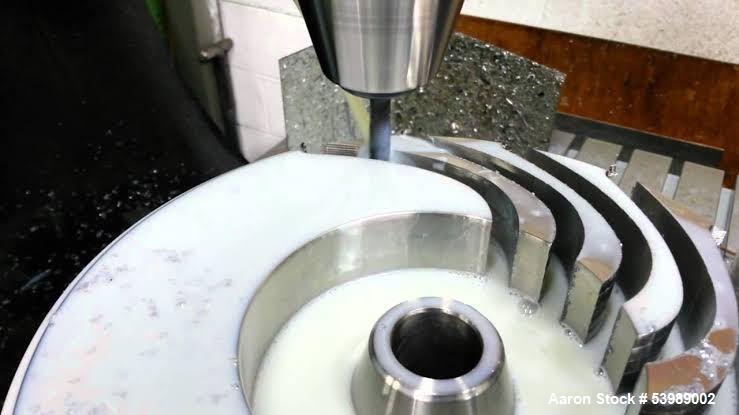

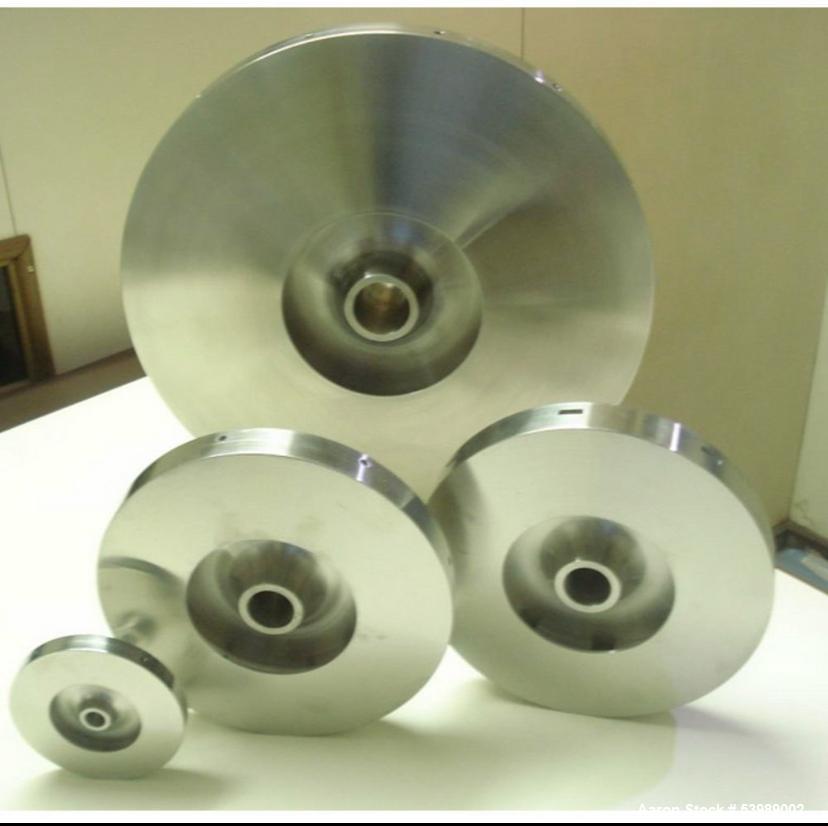

new mkm cd-210 rotary disk atomizer ss316, 19,000 rpm, f-35 compatible, includes toolkit. constructed of 316 stainless steel. the atomizer features key components in ss 316 stainless steel, including the feeder cover, retainer, sleeve, feeding pipe, and spray disk (?210 mm), all precision-machined and dynamically balanced at 19,000 rpm. the main shaft is spring steel, centerless ground for high concentricity and strength. the mild steel bearing housing includes precision-machined seats for alignment. power is delivered via a v-belt pulley system. operating speed matches existing f-35 units, with jacket and dimensions ensuring full interchangeability. an mkm oil pump system provides continuous automatic lubrication, with oil temperature maintained below 75c at 10 tpd. rpm range: 9,00018,000; vibration remains within specified limits. includes rpm sensor/display and a maintenance tool kit with pullers, spanners, and locknut tools. compatible with and replacement for an f-35 atomizer. our freight specialists can assist you with door to door transportation and all customs documents needed to make the process go as smoothly as possible.
