Miyano #ANC-45S, 5" Axis CNC turning center, Fanuc OTT, 23.6" swing, 1.7" bar, collet chuck

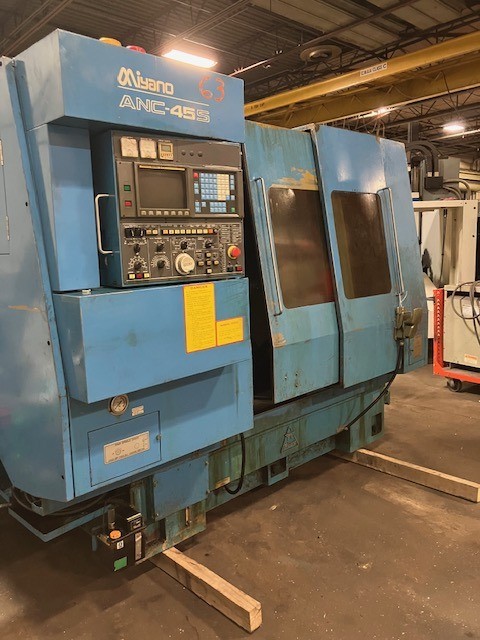

MIYANO ANC-45S CNC 5-Axis CNC Turning Center

Age 1992

Max. Swing ..................................... 23.62

Max. Work Length .......................... 15

MAIN SPINDLE:

Bar Capacity .................................. 1.75

Spindle Speeds ............................. 40-4000 RPM

Spindle Motor ................................. 15 HP AC

Spindle Nose .................................. A2-6

" Sub-Spindle

Bar Capacity .................................. 1.62

Spindle Speeds ............................. 40-4000 RPM

Sub-Spindle Motor ........................ 5 HP AC

Sub-Spindle Nose ......................... A2-5

B-Axis Stroke ................................. 17.32

Sifting Slide .................................... 5.118

UPPER TURRET:

Tool Stations .................................. 12

X-Axis Slide Stroke ....................... 6.299

Z-Axis Slide Stroke ........................ 17.913

Rapid Traverse, X/Z ....................... 394 IPM / 472 IPM

LOWER TURRET:

Tool Stations ................................... 8

X-Axis Slide Stroke ........................ 5.52

Z-Axis Slide Stroke ........................ 7.874

Rapid Traverse, X & Z ................... 394 IPM

EQUIPPED WITH:

 12 Station Upper Turret – 6 Live Stations – 5 Deg. Increments (No C-Axis)

 8 Station Lower Turrent – 4 Live Stations - 5 Deg. Increments (No C-Axis)

 2” Front Collet Chuck (Main Spindle)

 1-5/8” Collet Chuck (Lower Spinde)

 2 High Pressure Coolant Pumps

 Live Tooling

 Manuals

 Control for machine is FANUC OTT
