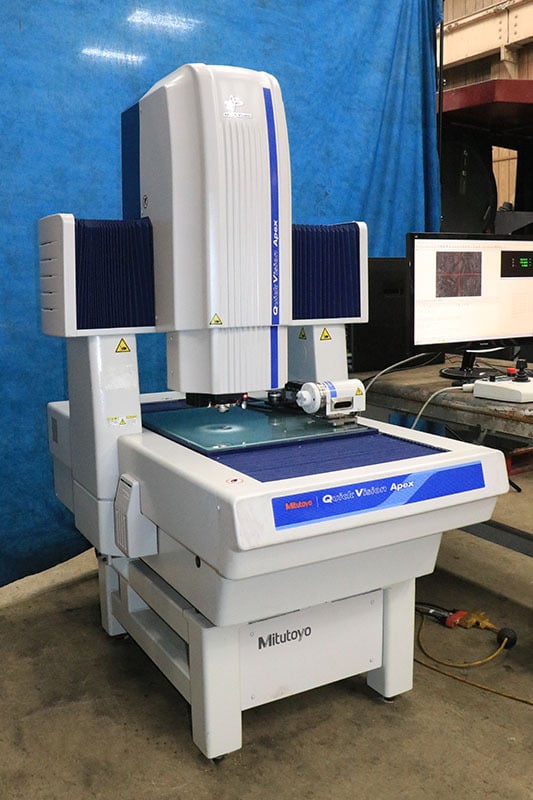

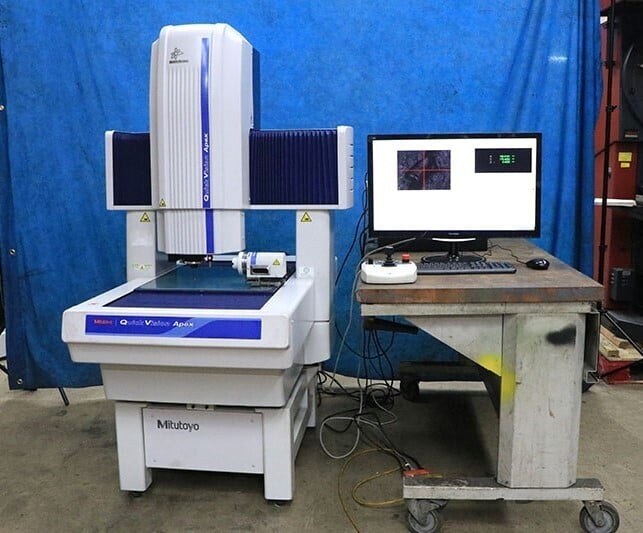

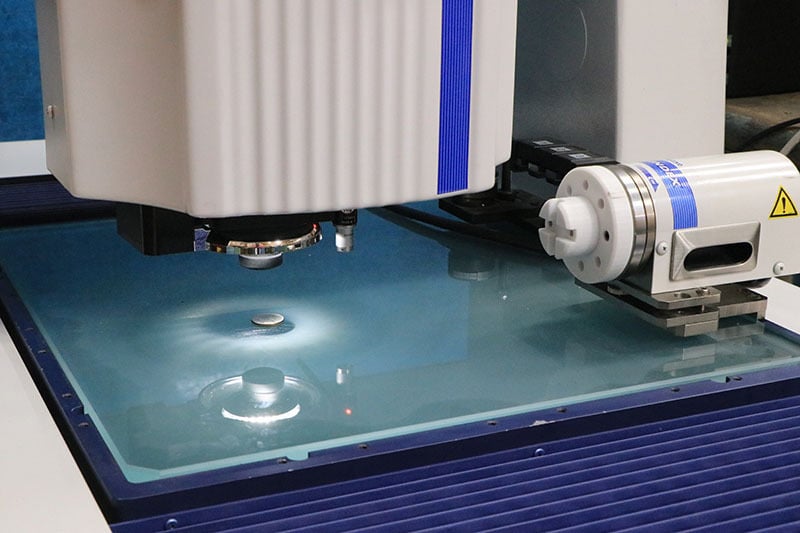

Mitutoyo Quick Vision #QVT1-X404P1L-D, coordinate measuring machine, 15.75" x 15.75" x 9.84" measuring range, 2016

2016 MITUTOYO QVT1-X404P1L-D
SPECIFICATIONS:
MEASURING RANGE............. 15.75 x 15.75 x 9.84
X&Y AXES DRIVE SPEEDS....... 942 in/min.
RESOLUTION OF SCALE......... 0.1 m LINEAR ENCODER

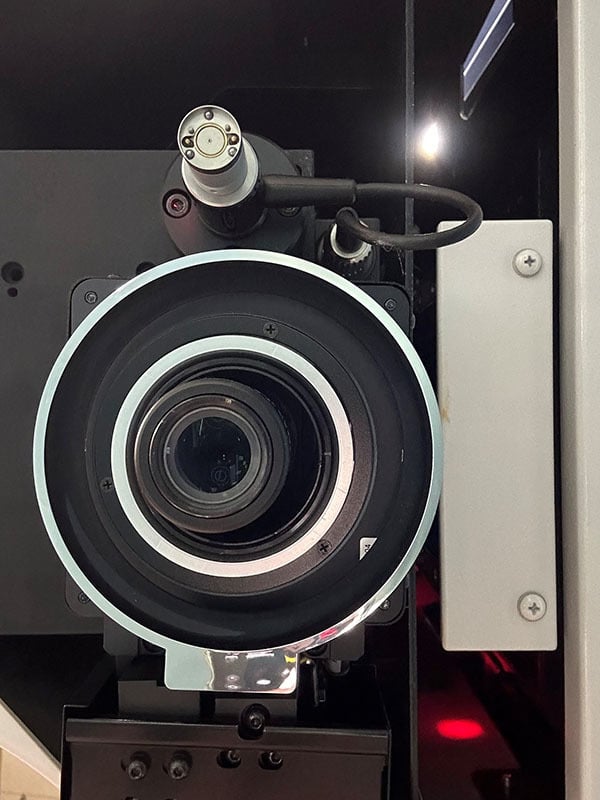

OBSERVATION UNIT TYPE....... ZOOM (8 POSITIONS)
IMAGE SENSOR................ COLOR CMOS CAMERA ILLUMINATION UNIT
COAXIAL LIGHT............... WHITE LED
TRANSMITTED LIGHT........... WHITE LED
PRL......................... 4-QUADRANT FIXED WHITE LED

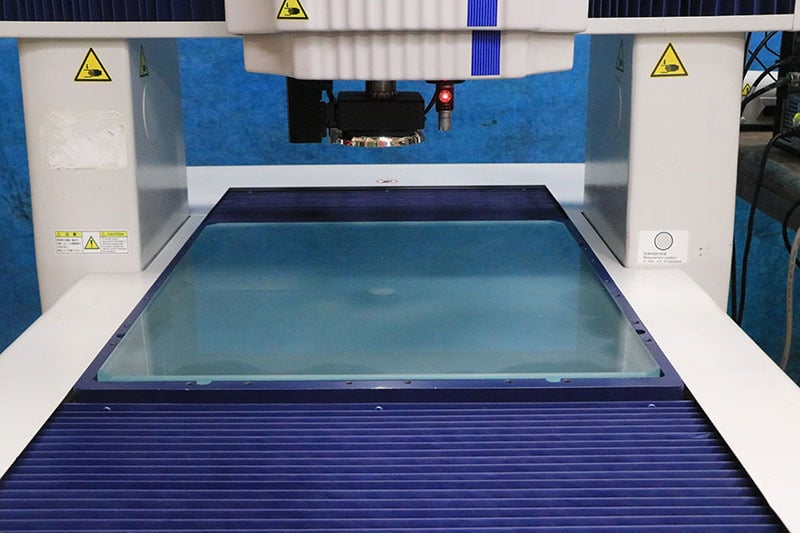

SIZE OF STAGE GLASS......... 19.41 x 21.69
MAXIMUM STAGE LOADING....... 88 LBS
APPROX MACHINE DIMENSIONS... 55.39 x 40.43 x 54.37
APPROX MACHINE WEIGHT....... 1276 LBS
EQUIPPED WITH:
ACCURACY
E1x, E1Y: (1.5+3L/1000) m
E1Z: (1.5+4L/1000) m
E2: (2+4L/1000) m
OBSERVATION UNIT STD: 1X-2X-6X
ACCURACY GUARANTEED TEMPERATUR RANGE: 201C
DELL COMPUTER
WINDOWS 7 PRO OS

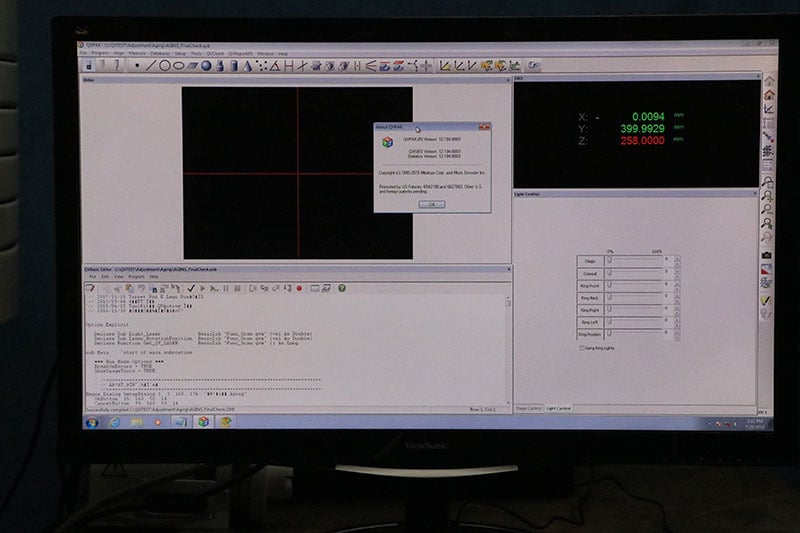

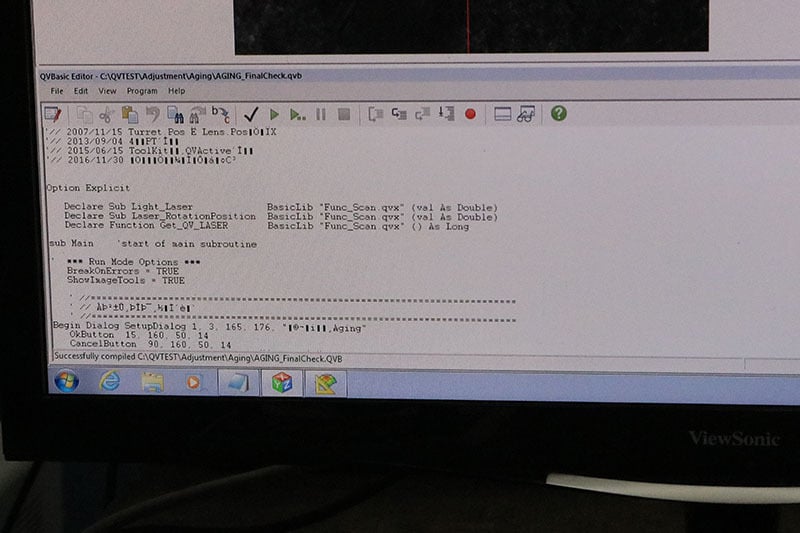

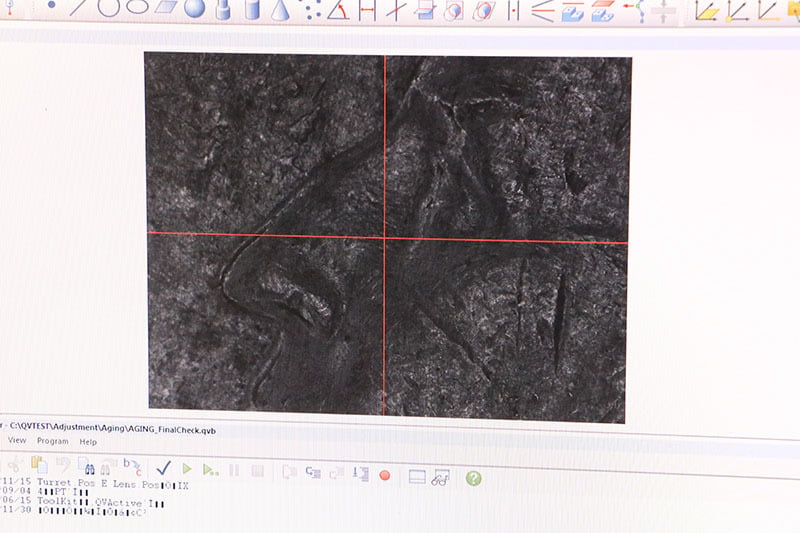

MITUTOYO SOFTWARE, QVPAK VERSION 12
HIGH-PERFORMANCE MULTI AUTOFOCUS
MAGNIFIED VISION
RENISHAW PROBE HEAD, USES A TP-20 STYLUS

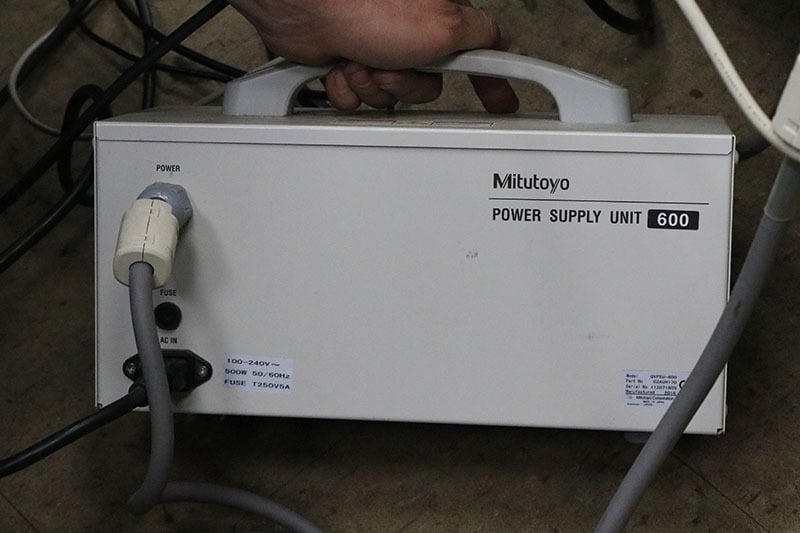

MITUTOYO QVPSU-600 POWER SUPPLY UNIT
MITUTOYO QV-INDEX CNC UNIT, OPTION NO. 363-002A, SN: 100351602

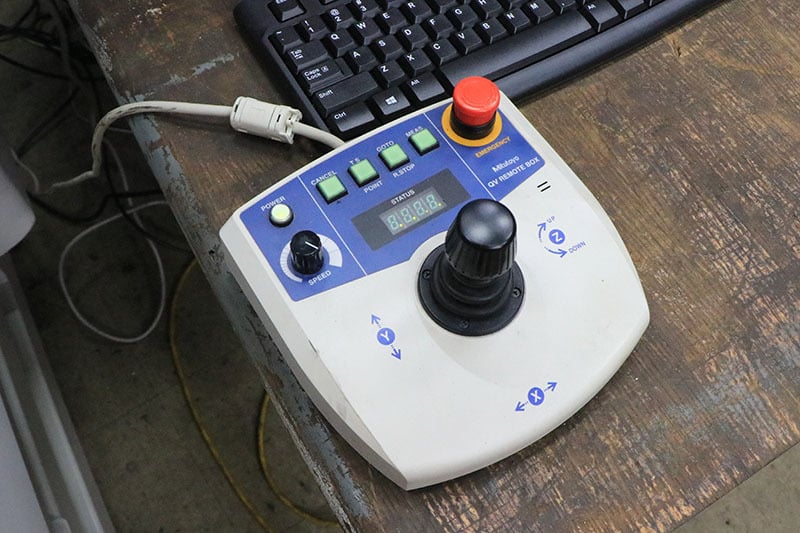

MULTI-FUNCTION CONTROL BOX, VARIABLE SPEED
CONTROL, JOYSTICK, E-STOP BUTTON & 4-DIGIT STATUS LED
TRACKING FOCUS FEATURE
* LIGHTLY USED. CAME OUT OF MEDICAL FACILITY.
** SERVICED BY MITUTOYO ON 6/25/2024
** AVAILABL FOR IMMEDIATE INSPECTION & DELIVERY
