For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

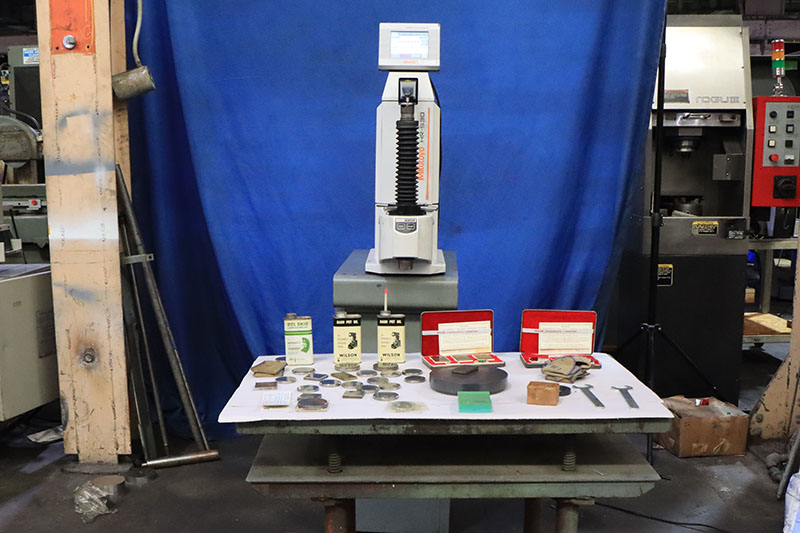

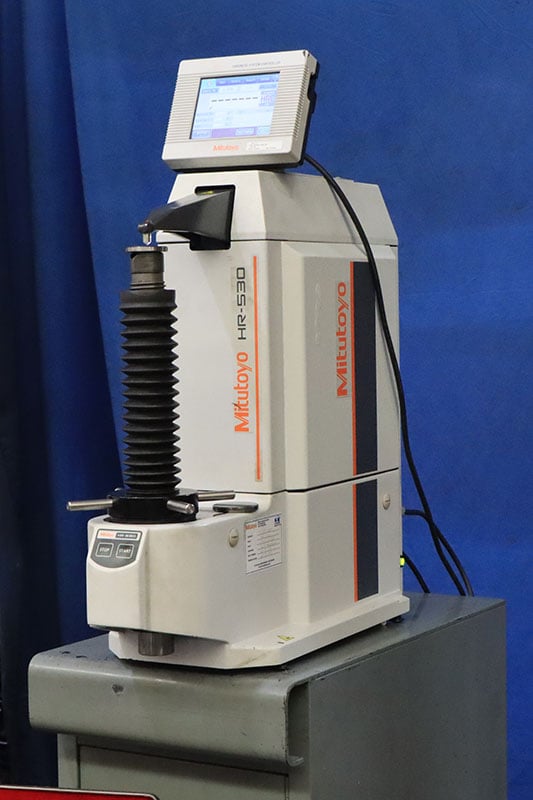

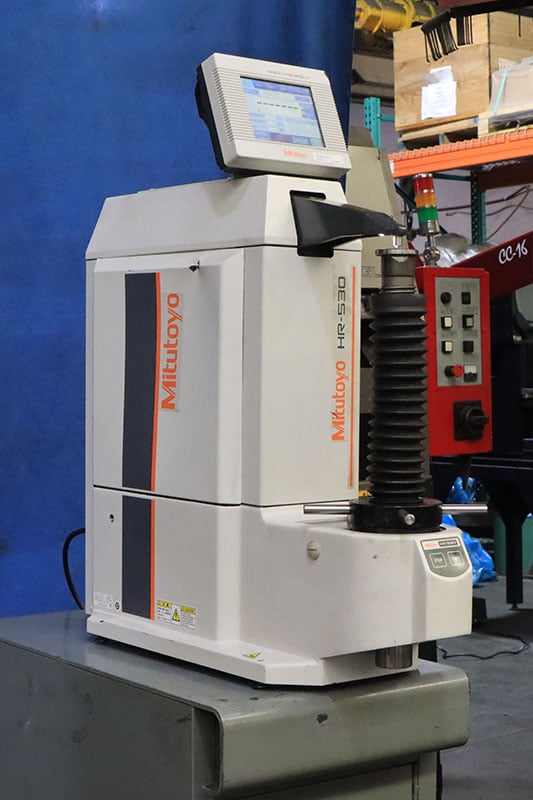

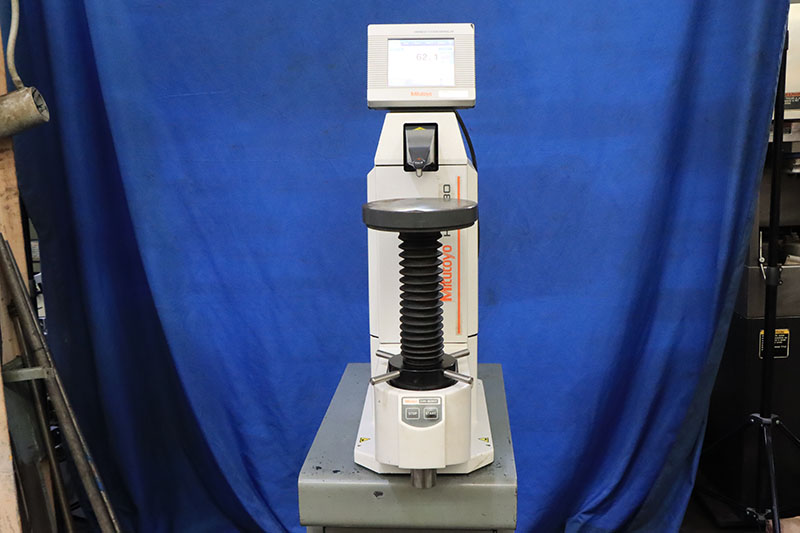

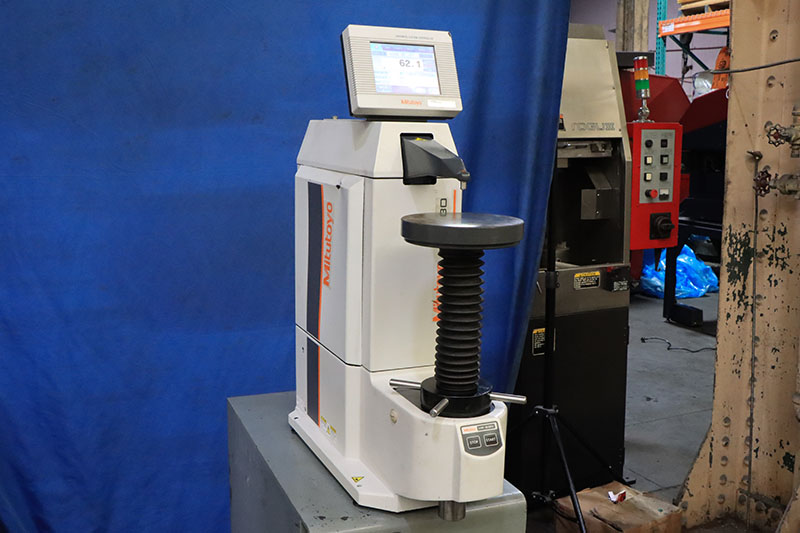

Mitutoyo HR-530 (810-237)
Mitutoyo Rockwell Hardness Testing Machine HR-530
Series Unique electronic control makes the HR-530
series of hardness testers capable of Rockwell,
Rockwell Superficial, Rockwell testing of plastics
(A… B) and Light Force Brinell hardness testing.
S/N:… 000061712…
New: 2024
https://www2.mitutoyo.co.jp/eng/support/service/catalog/06/E17009.pdf
The closed loop test force control on the Mitutoyo
HR-530 Rockwell and Brinell Hardness Tester allows
for a wide variety of hardness testing including plastics.
The HR-530 is capable of testing the inside wall hardness
of rings without cutting the ring into pieces.
An easy to use brake-start system automatically begins
testing when initial force is reached.
Maximum specimen size:
Height 250 mm (9.8"), Depth 150 mm (6")
Unique electronic control makes the HR-530 series
of hardness testers capable of Rockwell, Rockwell
Superficial, Rockwell testing of plastics (A… B)
and Light Force Brinell hardness testing.
The new HR530 and HR530L Rockwell and Superficial
hardness testers include a color touch-screen controller.
Four display types are available, as well as enhanced
statistical graphing. ASTM D785 Part A and B now
can be performed. The new HR530 includes common
Light Force Brinell testing forces from 6.25 to 187.5kgf.
All scales are shown on a single screen for ease of use.
Features:
Inside ring hardness testing
Test the hardness of the inside wall of a ring without
cutting the ring into pieces. (All models.)… Minimum
diameter is″4 mm, but inside diameters as small
as 22 mm can be tested by using the optional
5 mm diamond indenter (19BAA292).
Display with color touch-screen
The HM and HV series user interface has been adapted
to include Rockwell hardness testing capabilities.
Versatile color screens display the results of
statistical calculations and graphics functions, etc.
When space restrictions are an issue, the touch-panel
display unit can be mounted on top of the tester.
Graphic display of statistical calculation
results and X?-R control charts
This series allows numeric display of statistical analysis
results such as maximum and minimum values, mean
value and graphic display of X? -R control charts
and histograms required for hardness evaluation.

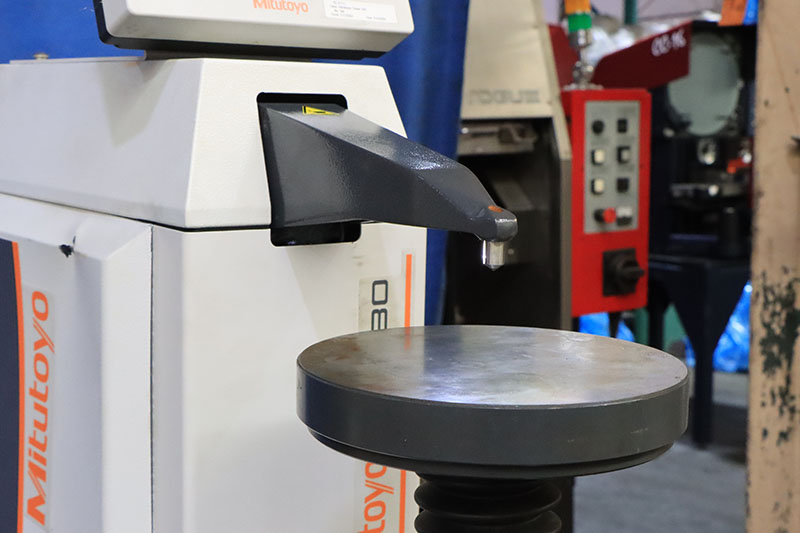

Measurement with a nose indenter shaft
A nose-type indenter enables measurement not only
of the flat top surface of a specimen, but also the
inside surface of a cylindrical specimen.
Continuous measurement function
When testing multiple workpieces with the same height,
continuous testing is possible by pressing the foot
switch or the START button.
RS-232C, Digimatic and USB interface ports
Initial Test Force:… <29.42, 98.07 N / 10,″ kgf
Test Methods:Rockwell, Superficial and Light Force Brinell
Brinell Force Range:… 61.29, 98.07, 153.2, 245.2, 294.2,
306.5, 612.9, 980.7, 1226, 1839 N / 10, 100, 125, 15.625,
187.5, 25,″0,″1.25, 6.25, 62.5 kgf
Rockwell Force Range:… 588.4, 980.7, 1471 N / 60, 100, 150 kgf
Superficial Force Range:… 147.1, 294.2, 441.3 N / 15,″0, 45 kgf
Test Force Control:… Automatic
Table Up/Down Mechanism:… Manual
Control Unit:… Color Touch-Pane
lTest Force Switching:… Operated with Display Unit
Test Force Hold Time:… 1…ndash; 120 sec
Max Sample Depth:… 5.9″ / 150mm
Inside Diameter of Tube:… .87, 1.38″ / 22,″5mm
Max Table Loading:… 45lbs / 20kg
Ball Indenter:… Tungsten Carbide Ball
Display:… Color LCD Touch Screen
Language:… Japanese, English, German, French, Italian,
Spanish, Korean, Simplified Chinese, Turkish, Portuguese,
Hungarian, Polish, Dutch and Czech
Data output: RS-232C, SPC, USB2.0
Power Supply:… AC120V
LINK TO VIDEO: https://youtu.be/qIvvryeOyNk?si=zk82jUSwZJmC8YQq
In Stock, Harrison NJ
Like New
Get Your Price from Machinery Values Inc!
Buyers Who Viewed This Listing Also Viewed:
Mitutoyo #ATK-F1000, Twin Scale Hardness Tester, 9.4" vertical capacity, 5" throat, 120 Volt, 1PH
Category: Hardness Testers
Seller: Frank Bacon Machinery Sales
Location: Warren, MI
Mfr: Mitutoyo
Model: ATK-F1000
Mitutoyo ATK-F1000 Twin Scale Hardness Tester, USED Mitutoyo, Model ATK-F1000, Automatic Twin Digital Hardness Tester for Standard & Superficial Scales., Vertical Capacity: 9.4"Throat Depth: 5"Electrical Requirements (V,Hz,PH): 120, 60, 1Dimensions: 24" x 9" x 40"Weight (lbs): 127Dead Weights: 15, 30, 45, 60, 100 ...more
NewAge Digital #Versitron Rockwell hardness tester, from service, last calibration due May 2020, Tag #16226
Category: Hardness Testers
Seller: Yeoman Machinery Corp
Location: Elkhart, IN
Mfr: Newage
Model: VERSITRON
JUST ADDED!

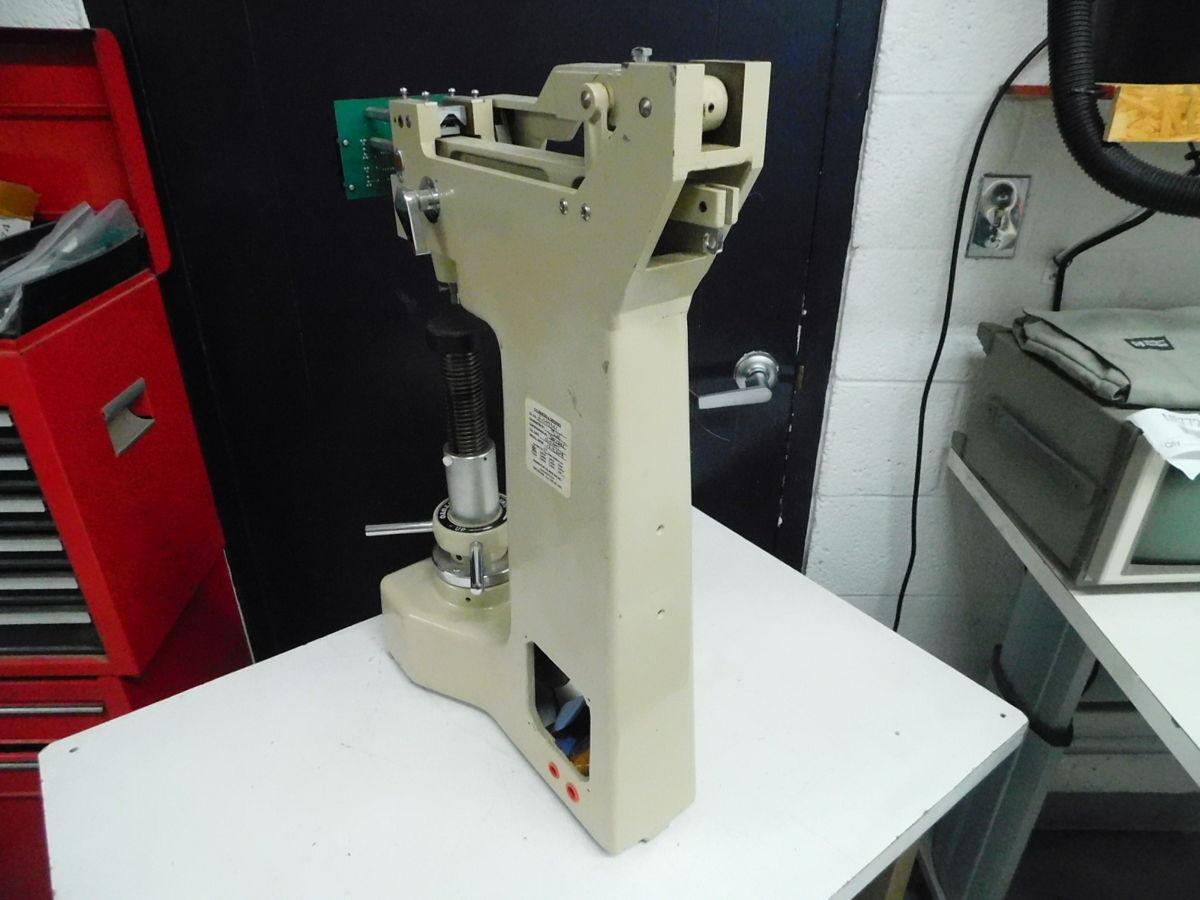

Mitutoyo #940-142, Hardness Tester
