Manufacturer: Milltronics
Model: RH20
Year: 2015
Automatic Tool Changer: 24
Longitudinal" X: 40.0
Cross" Y: 20.0
Vertical" Z: 24.0
RPM: 8000
Stock # X3X4120
1 / 8
Click to zoom in
1 / 8
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

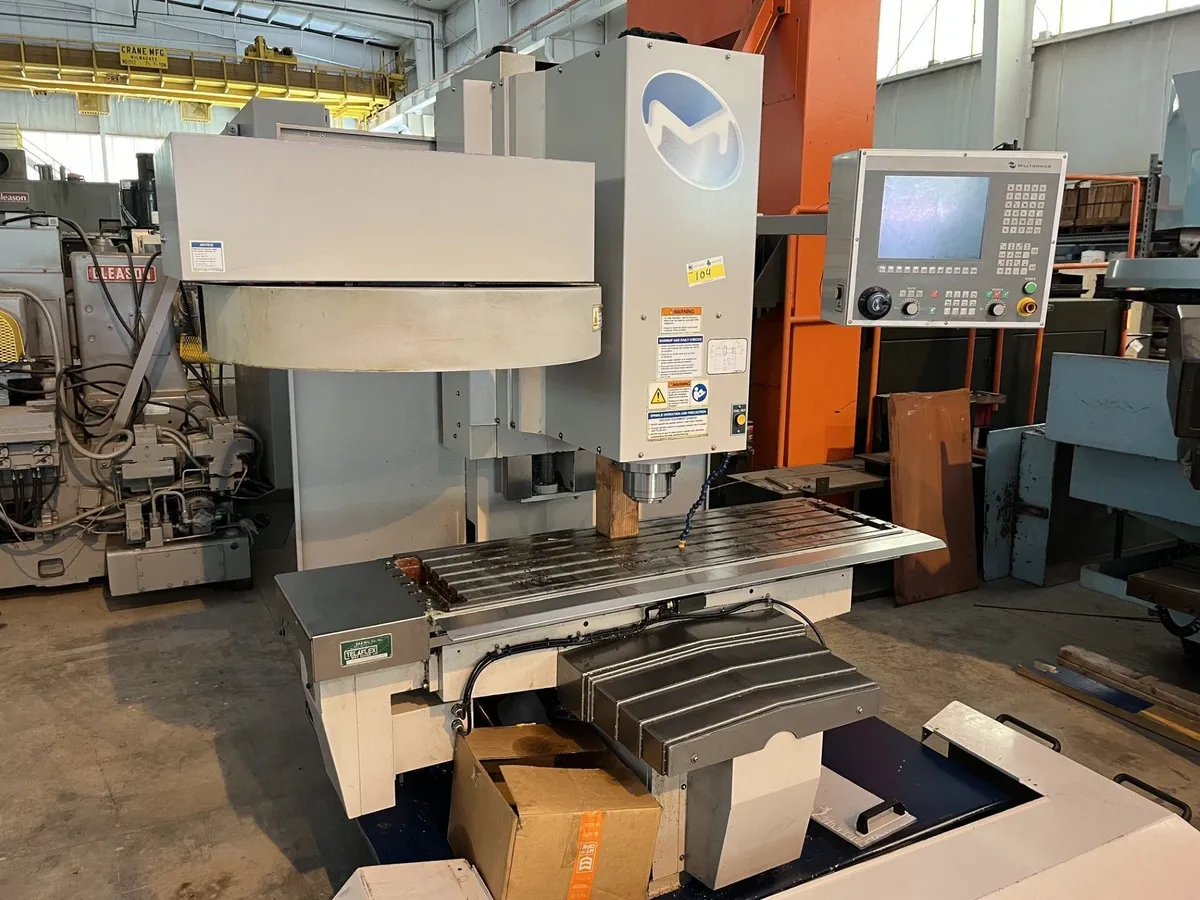

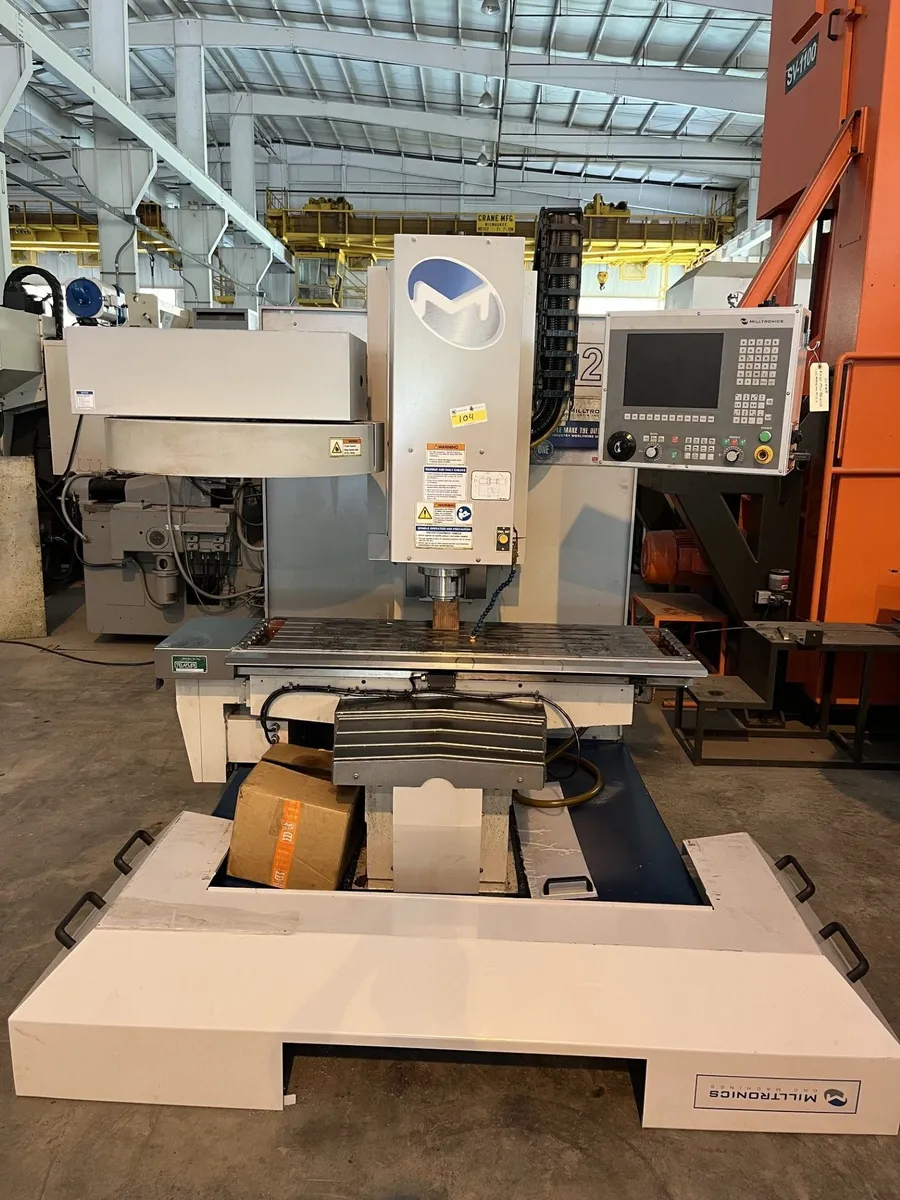

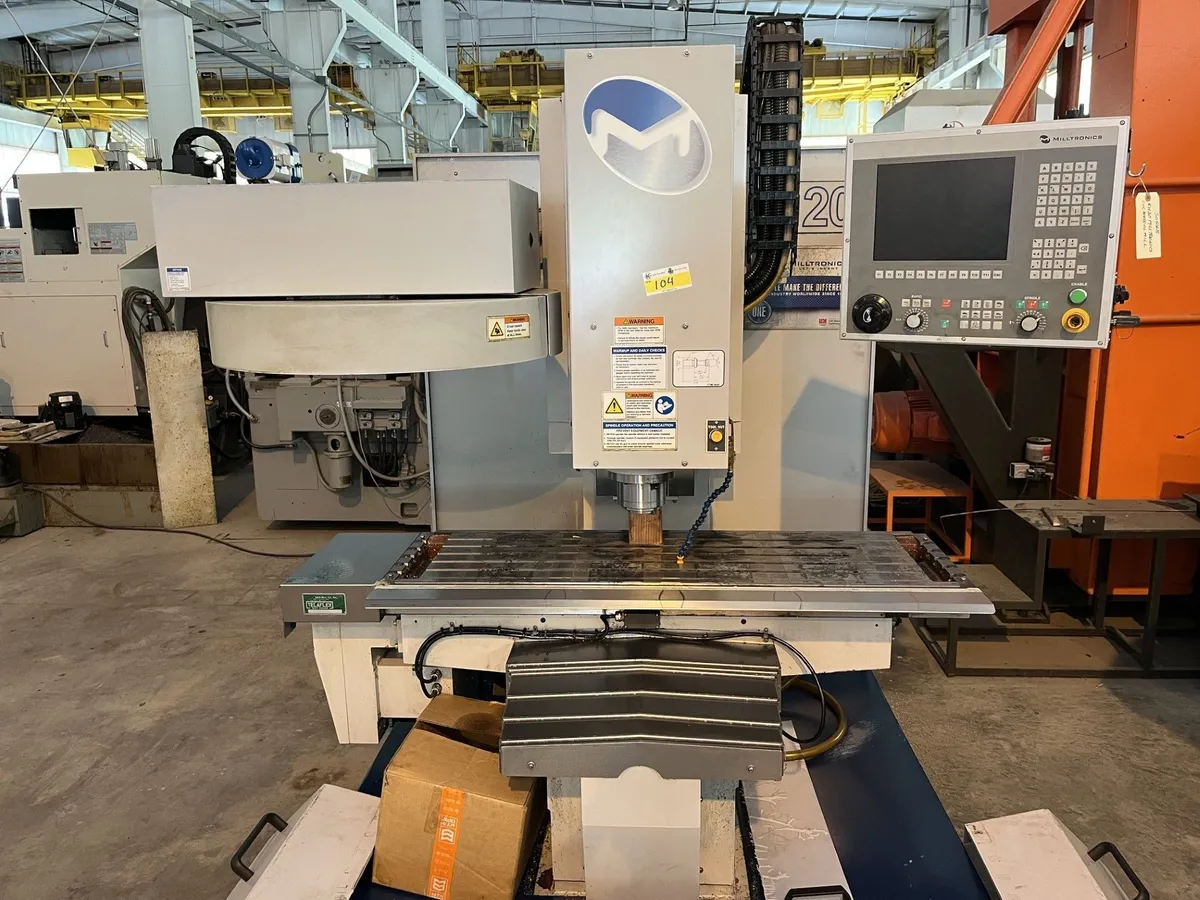

Vertical Machining Center, used. Features include 54" x 16" table, 40" X-travel, 24" Z-travel, 2500 lbs capacity, CT40 spindle taper, 8000 RPM max speed, 24-tool changer, Milltronics CNC control, and programmable coolant.
Table Working Surface 54" x 16"
Table Longitudinal Travel (X-Axis) 40"
Saddle Cross Travel (Y-Axis) 20"
Vertical Head Travel (Z-Axis) 24"
Table Load Capacity 2500 LBS
Spindle Nose to Column 21"
Spindle Nose to Table, Minimum 2"
Spindle Nose to Table, Maximum 26"
Spindle Taper CT40
Tool Diameter, Maximum 3.5"
Tool Length, Maximum 11"
Tool Weight, Maximum 15 LB
Spindle Speeds, Range 50 to 8000 RPM
Feed Rate, Maximum 300 IPM
Power Rapid Traverse Rate X,Y 500 IPM
Power Rapid Traverse Z 300 IPM
Spindle Motor, Horsepower Rating 18/12 HP
Overall Dimensions, W x D 129" x 82"
Overall Height 103"
Weight Approximately 8000 LBS
Table Working Surface 54" x 16"
Table Longitudinal Travel (X-Axis) 40"
Saddle Cross Travel (Y-Axis) 20"
Vertical Head Travel (Z-Axis) 24"
Table Load Capacity 2500 LBS
Spindle Nose to Column 21"
Spindle Nose to Table, Minimum 2"
Spindle Nose to Table, Maximum 26"
Spindle Taper CT40
Tool Diameter, Maximum 3.5"
Tool Length, Maximum 11"
Tool Weight, Maximum 15 LB
Spindle Speeds, Range 50 to 8000 RPM
Feed Rate, Maximum 300 IPM
Power Rapid Traverse Rate X,Y 500 IPM
Power Rapid Traverse Z 300 IPM
Spindle Motor, Horsepower Rating 18/12 HP
Overall Dimensions, W x D 129" x 82"
Overall Height 103"
Weight Approximately 8000 LBS
Get Your Price from Toolquip Inc!
