For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

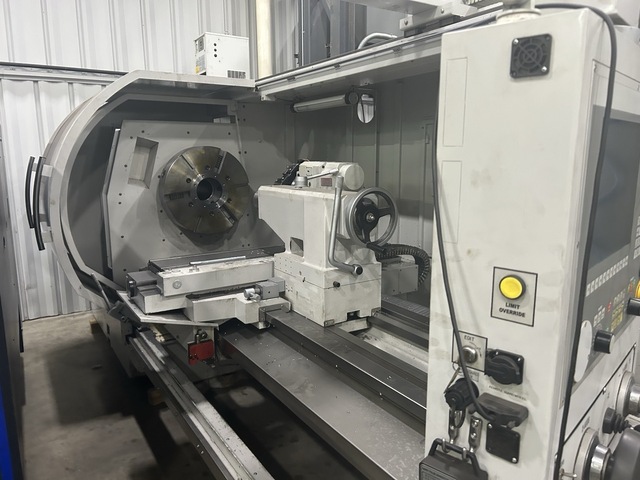

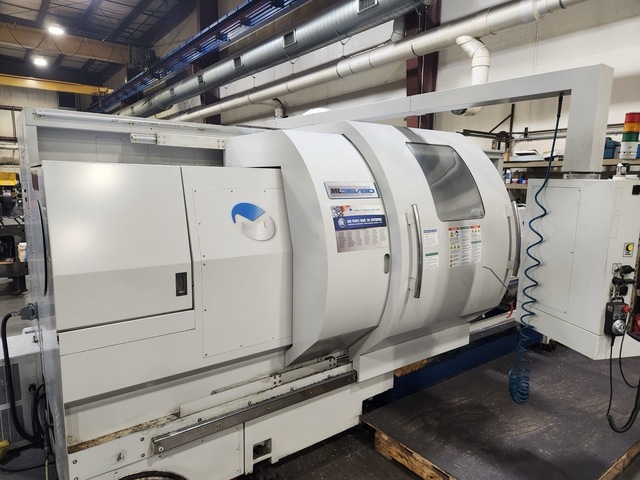

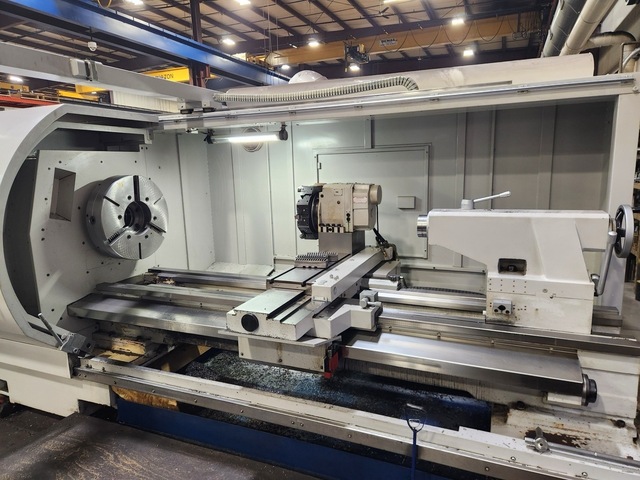

Used CNC lathe for sale, featuring Milltronics 8200-B control, 24" 3-jaw chuck, and 8-station auto turret. Offering 19" X-axis and 87" Z-axis travels with 500 IPM rapid traverse, this unit weighs 23,000 lbs.
X-Axis Travel: 19 (480 mm)
Z-Axis Travel: 87 (2210 mm)
Swing Over Bed: 36.2 (920 mm)
Swing Over Gap: 45 (1150 mm)
Swing Over Cross Slide: 21.6 (550 mm)
Gap Distance: 14.6 (370 mm)
Spindle Bore: 6.02 (153 mm)
Spindle Nose: A2-11
Spindle Range: 10-900 RPM
Spindle Motor: 35/25 HP (26/18 kW) WYE Delta
Spindle Torque: 1850 ft-lbs (2500 N.m)
Tailstock Quill Travel: 8 (200 mm)
Tailstock Quill Diameter: 4.92 (125 mm)
Tailstock Quill Taper: MT6
Tools: 8
Tooling Size: 1.5 (38 mm)
Bar Capacity: 2 (50 mm)
X, Z Axis Rapid Traverse Rate: 500 IPM (12.7 m/min)
Max. Cutting Feed Rate: 100 IPM (2540 mm/min)
Approximate Dimensions: 193 x 110 x 90
Approximate Machine Weight: 23,000 lbs.
X-Axis Travel: 19 (480 mm)
Z-Axis Travel: 87 (2210 mm)
Swing Over Bed: 36.2 (920 mm)
Swing Over Gap: 45 (1150 mm)
Swing Over Cross Slide: 21.6 (550 mm)
Gap Distance: 14.6 (370 mm)
Spindle Bore: 6.02 (153 mm)
Spindle Nose: A2-11
Spindle Range: 10-900 RPM
Spindle Motor: 35/25 HP (26/18 kW) WYE Delta
Spindle Torque: 1850 ft-lbs (2500 N.m)
Tailstock Quill Travel: 8 (200 mm)
Tailstock Quill Diameter: 4.92 (125 mm)
Tailstock Quill Taper: MT6
Tools: 8
Tooling Size: 1.5 (38 mm)
Bar Capacity: 2 (50 mm)
X, Z Axis Rapid Traverse Rate: 500 IPM (12.7 m/min)
Max. Cutting Feed Rate: 100 IPM (2540 mm/min)
Approximate Dimensions: 193 x 110 x 90
Approximate Machine Weight: 23,000 lbs.
Get Your Price from Toolquip Inc!
