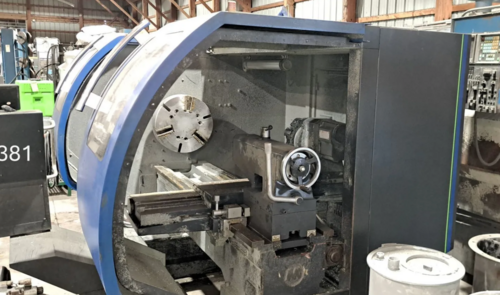

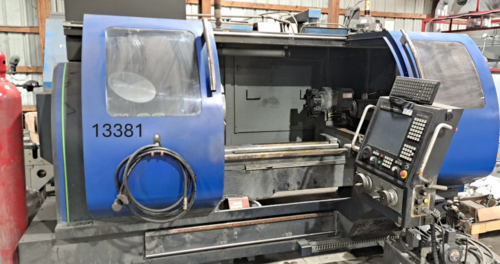

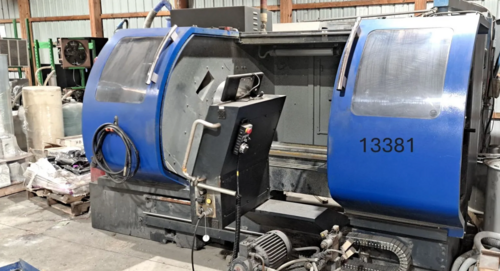

Milltronics #ML26/40, CNC Lathe, 27" swing, 40" machining length, 3.22" bore, 24 HP, 2000 RPM, 8-station turret, Milltronics 9000 CNC, tailstock, 2017

CNC Lathe, used, offers a 27" swing, 40" machining length, and a 3" bar capacity. Powered by a 24 hp motor reaching up to 2,000 RPM, this lathe includes Milltronics 9000 CNC Control and an 8-station automatic turret.
CAPACITY:
X axis travel 13" (330 mm)
Z axis travel 63.5" (1600 mm)
Swing over bed (diam) 23" (580 mm)
Swing over gap (diam) 30.3" (770 mm)
Swing over cross slide (diam) 12.1" (310 mm)
Gap distance 12.75" (320 mm)
SPINDLE:
Spindle nose A1-8
Spindle bore 3.22" (82 mm)
Spindle range 40-2000 RPM
AC spindle motor 24/15 HP (18/11 kW) 2 Speed Delta/WYE
Spindle torque 1050 ft-lbs (1423 N.m)
TAILSTOCK:
Tailstock quill travel 6" (150 mm)
Tailstock quill diameter 3.94" (100 mm)
Tailstock quill taper MT5
AUTOMATIC TURRET:
Number of tools 8
Tooling size 1" (25 mm)
Boring bar capacity 1.5" (38 mm)
Tool selection Bi-directional
MOTION:
X, Z axis rapid traverse rate 500 IPM (12.7 m/min)
Max. cutting feed rate 100 IPM (2540 mm/min)
X axis ball screw diameter 1.25" (32 mm)
Z axis ball screw diameter 1.77" (45 mm)
Positioning accuracy* +/- 0.00025" (+/- 0.0063 mm)
Repeatability* 0.0002" (0.005 mm)
Axis thrust force X,Z 2300 lbs. (1040 kg)
GENERAL:
Machine Height 83" (2108 mm)
Floor Space Required (W x D) 143" x83 " (3630 x 2108 mm)
Machine Weight 10,000 lbs. (4500 kg)
Power required 24 KVA / 60 amps
Voltage required 208-240 Volts / 3 Phase
