For Sale by Equilibrium Machinery
Description

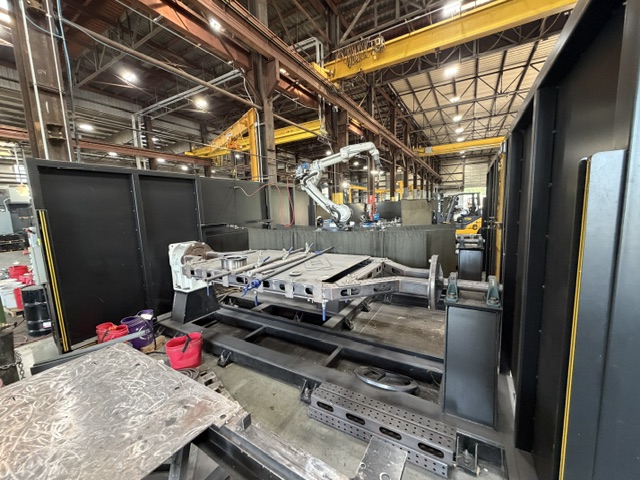

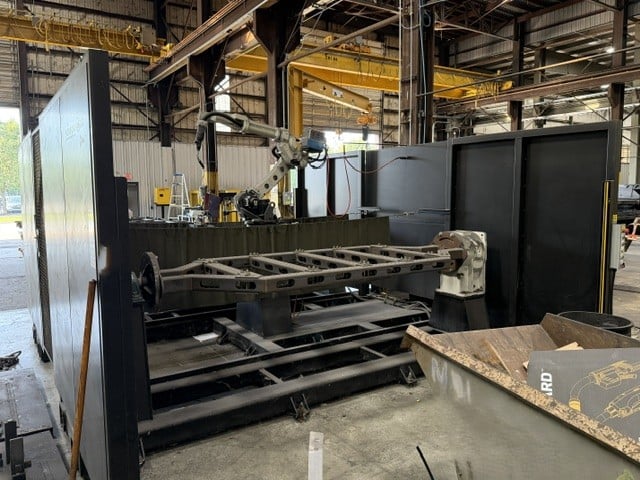

2021 Miller PerformArc PA-2200SS Robotic Welding Cell (2 Weld Cells available)

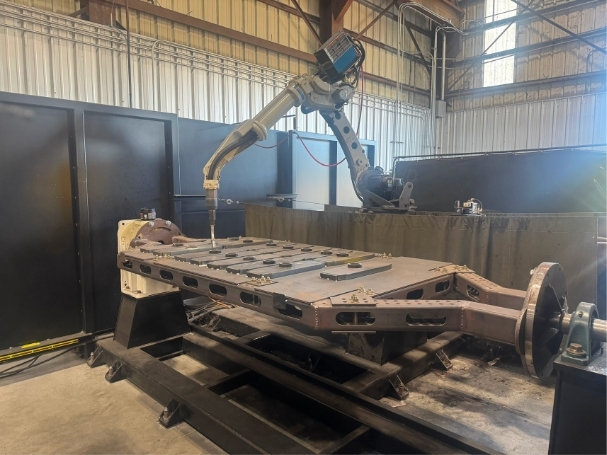

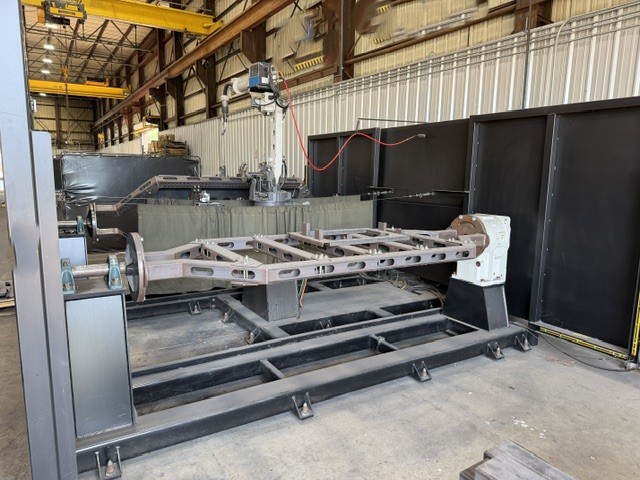

Positioners – 2 Stations, 1 Axis Per Station
Headstock to tailstock length of ~120″
Rotation diameter of ~70″
All axis fully servo driven, not limited to indexed positions
Panasonic Servo Positioners (one per station)
2200-lb capacity per side
55mm through hole on outboard positioners for utilities passage

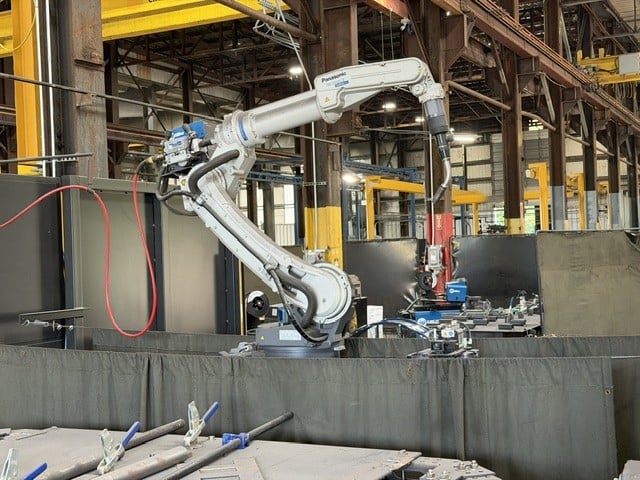

Panasonic TM-2000 Robot
6kg Payload
79.2 inch reach to Point P
Collision Detection
TM can use a thru arm torch or a conventional over the arm torch design

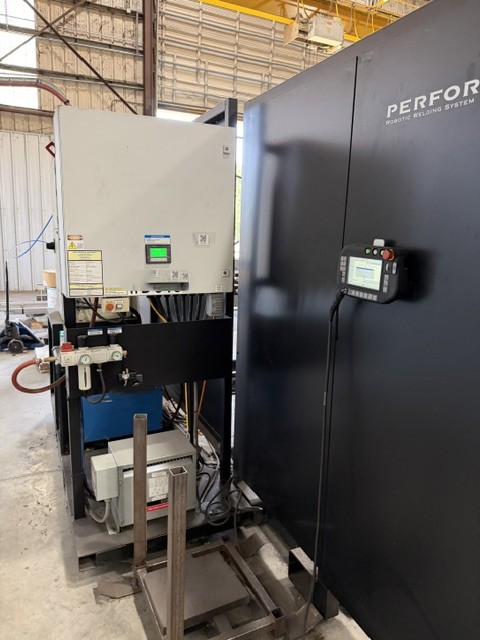

Panasonic G3 Robot Controller
Panasonic G3 Teach Pendant (Windows CE 7″ Color GUI)
40,000 Point memory, virtually unlimited expansion with SD card
Ethernet LAN connection standard
Teach Pendant with 7-inch-wide TFT color LCD, Windows CE operation system

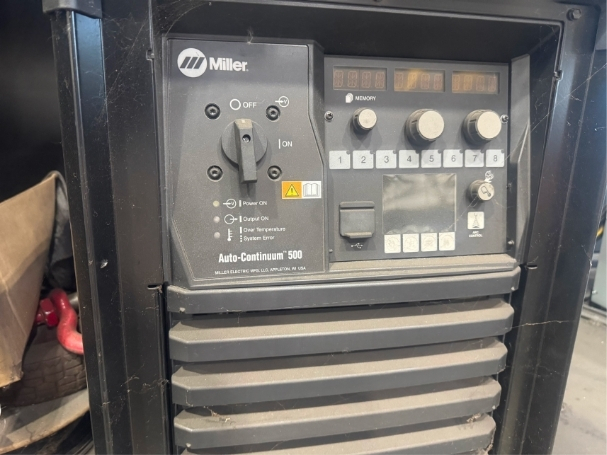

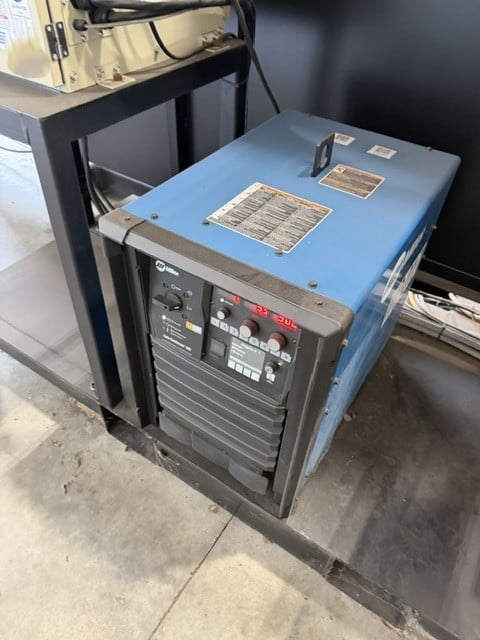

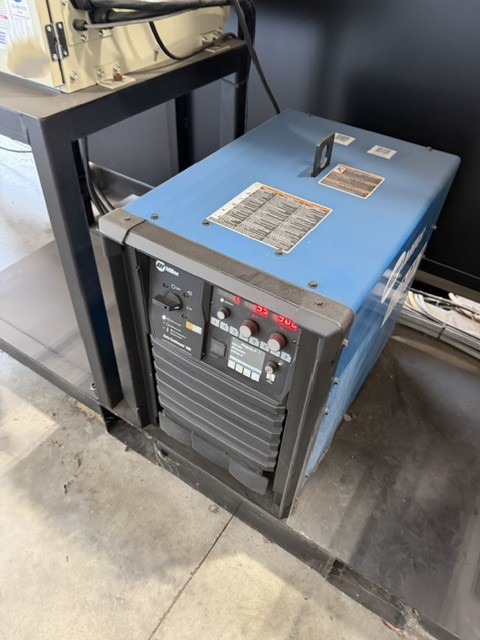

Miller Auto Continuum 500
500-Amp, 100% Duty-Cycle, Digital Welder
Inverter based Pulse Welding and CV Welding
80-Volt Touch Sensing Technology
Miller Robotic Wire Feeder
Tregaskiss Air Cooled Torch
Get Your Price from Equilibrium Machinery!
Buyers Who Viewed This Listing Also Viewed:
Miller & Motoman, robotic welding cell, Allen Bradley PLC, single pendant, 124" bed width
Miller PA350S, Robotic Welding Workcell, 350 lb Payload, 180° Index Table, 480V., 3 Ph., 2013, N
Miller, PerformArc PA-550HW, Robotic Welder, 6-Axis, 13200 lbs. Payload, 70.7" Horizontal Reach, 10' L x 6' diameter Swing Headstock/Tailstock, 2014

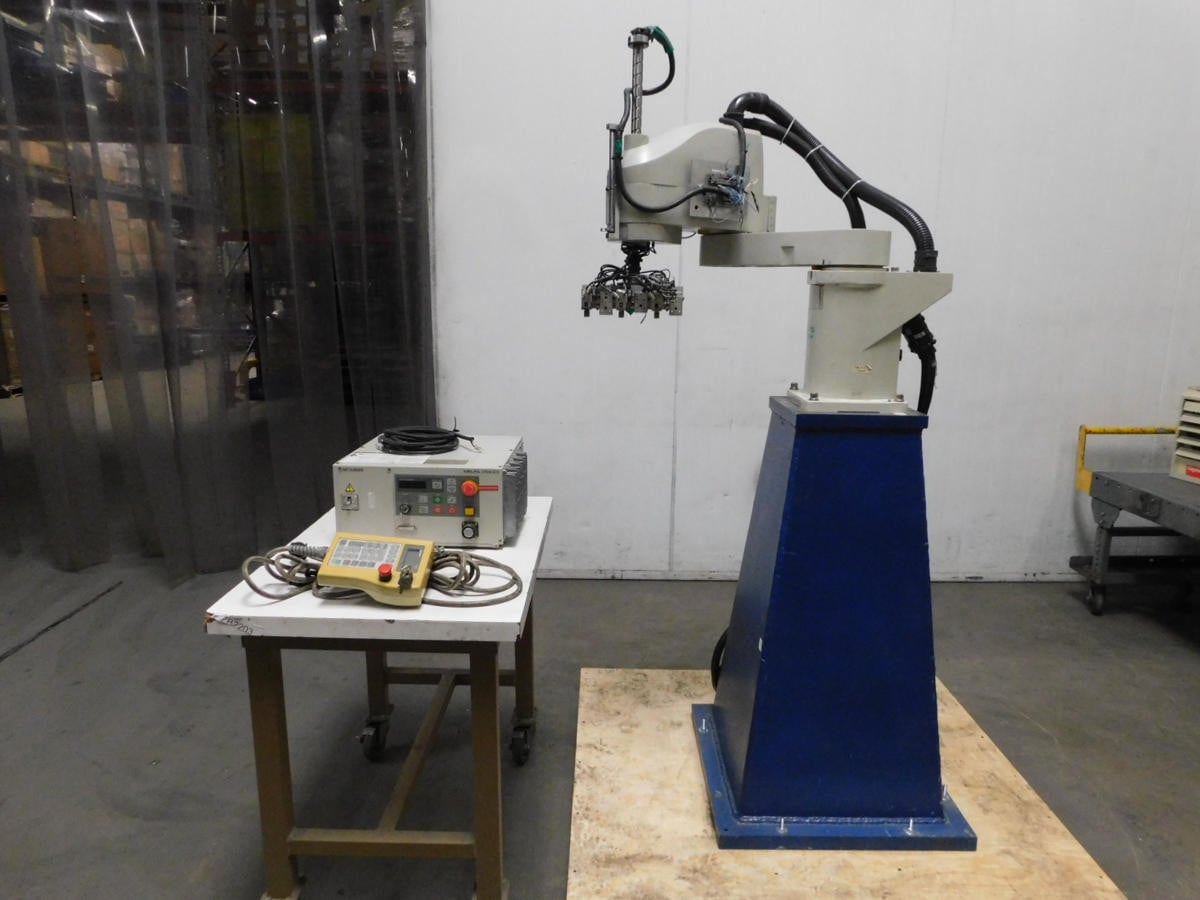

Mitsubishi RH-10AH, 4-Axis SCARA robot, 10 kg payload, 850 mm reach, .03 mm repeatability, CR2A-572 controller, R28TB pendant
