Description

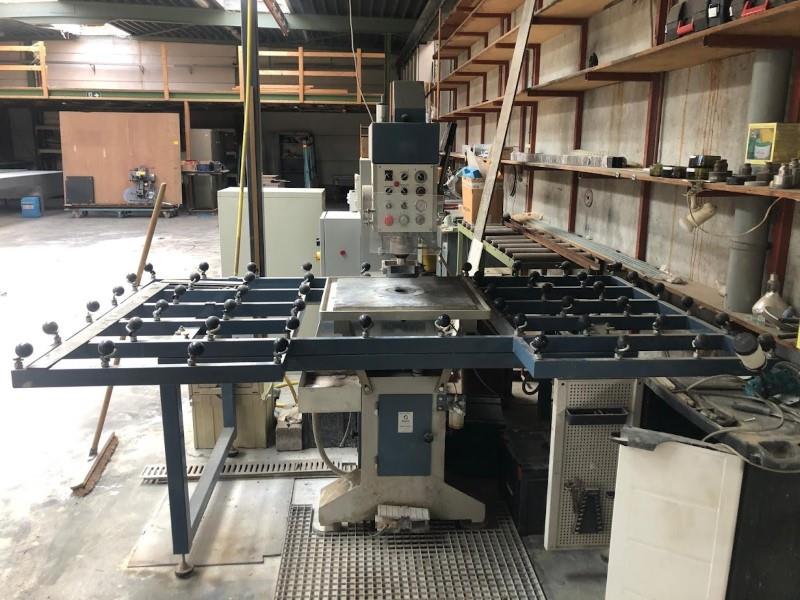

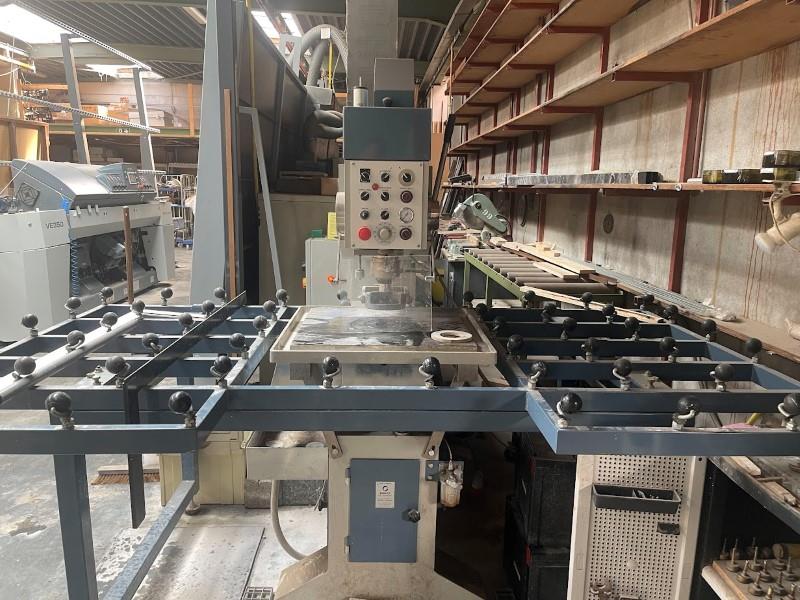

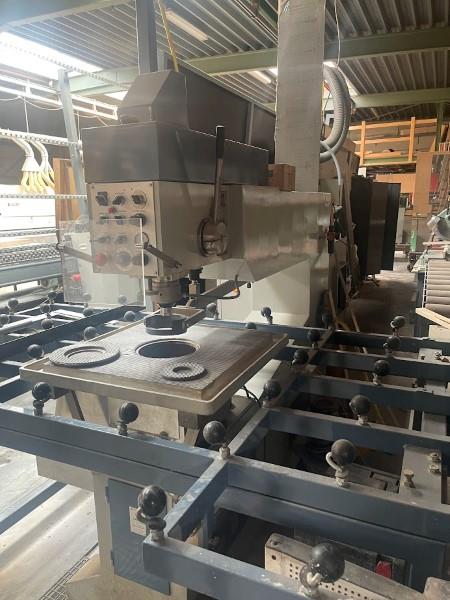

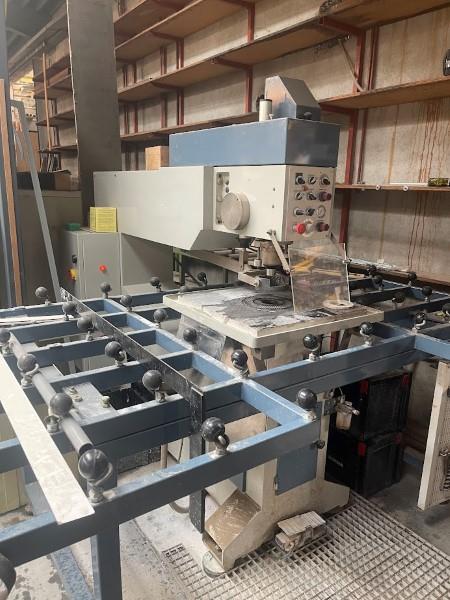

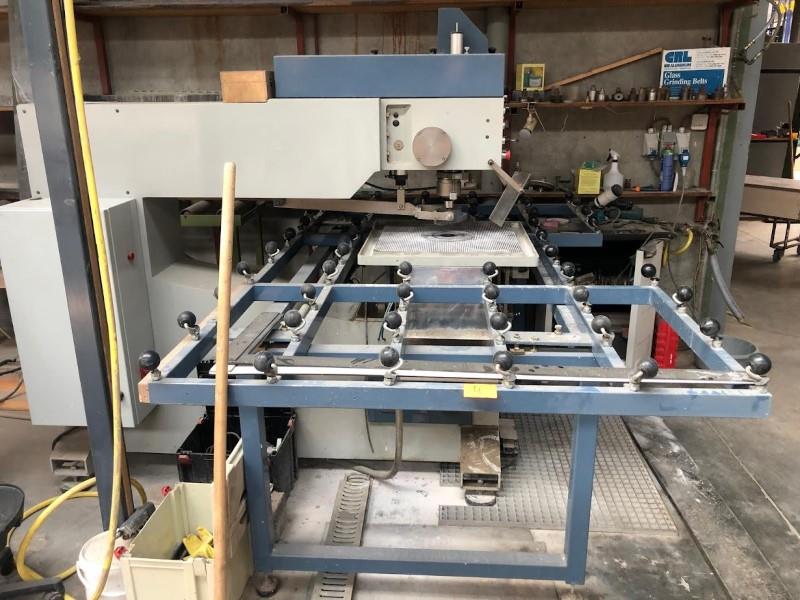

METRAL - TD3: Automatic Horizontal DrillAutomatic glass drill with: Microprocessor for drilling & processing of flat glass. Incorporates top & bottom drill heads; fed via an air-over-oil circuit. Processes holes up to 180 mm with: Automatic lower & upper drilling.Specifications● Drill diameter capacity: 3 - 180 mm (0.12" - 7.087").● Glass thickness capacity: 2 - 50 mm (0.080" - 1.97").● Distance to bit center: 1,200 mm (47.25"). ● Dimensions: 4,000 x 2,500 x 1,700 mm (79" x 51" x 67";).● Weight: 775 kG (1,700 Lbs).Features● Double-headed drill; up to 180 mm (7.087")● Automatic lower & optional manual or automatic upper drilling.● Automatic Cycle: - 1 Tier feed: On and Off. - 2 Clamping of glass. - 3 Slug ejection. - 4 Continuous cycle for work in series.● Optional Laser centering.● Caster table: 4,000 x 2,500 mm for support & glass location when drilling in large sheets of glass. NOTE: Machine is in very good condition and ready for delivery.NOTE: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full-Service Logistics"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
