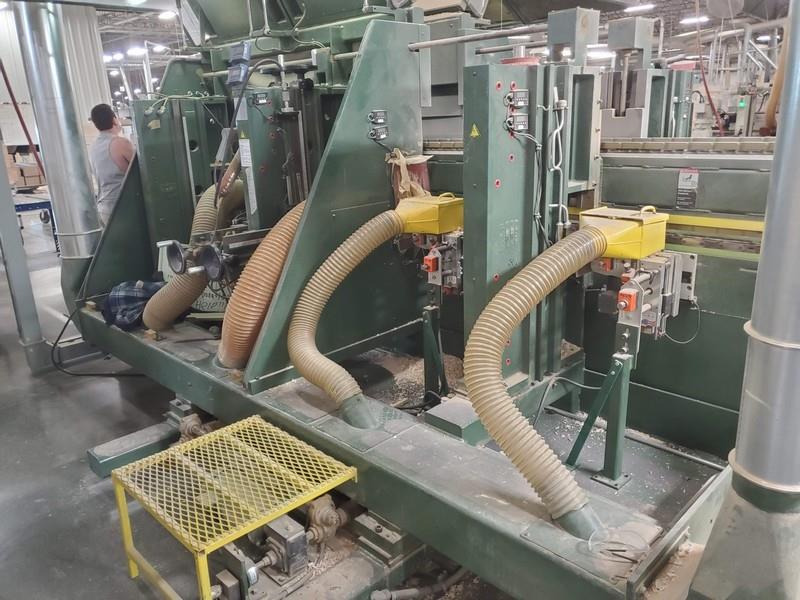

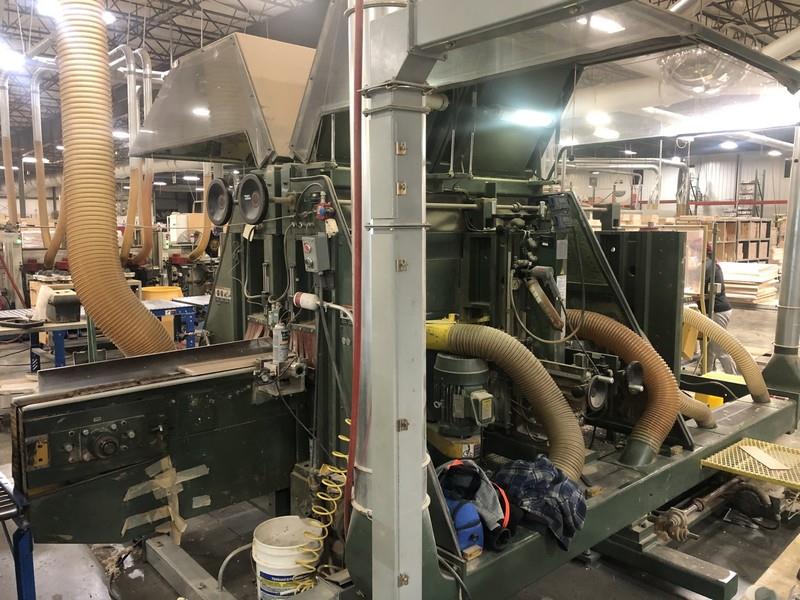

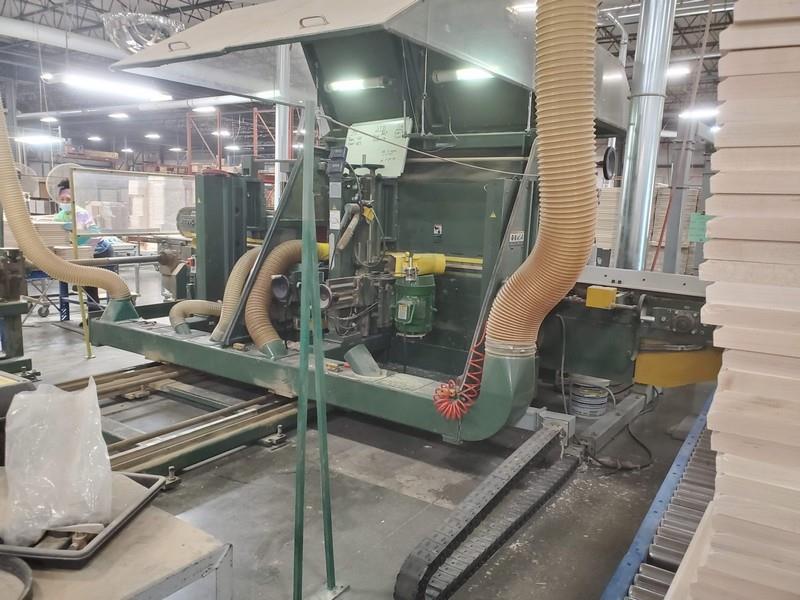

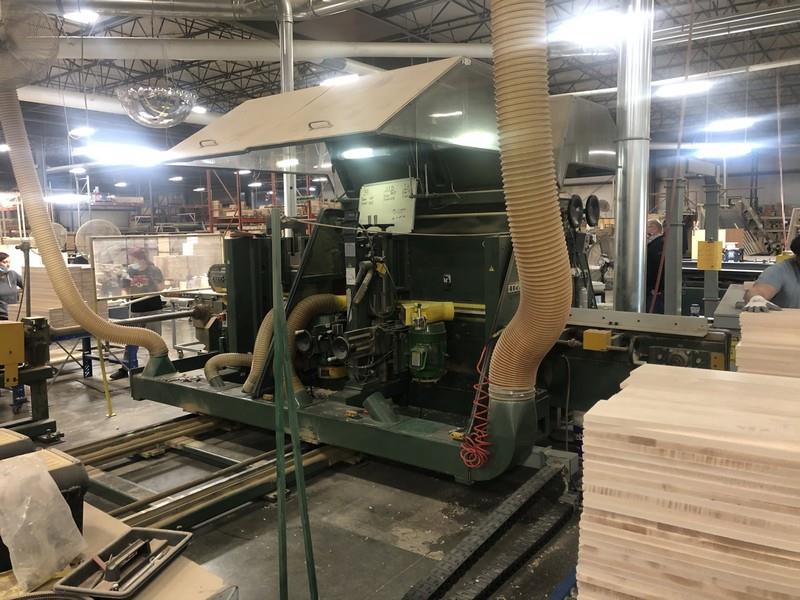

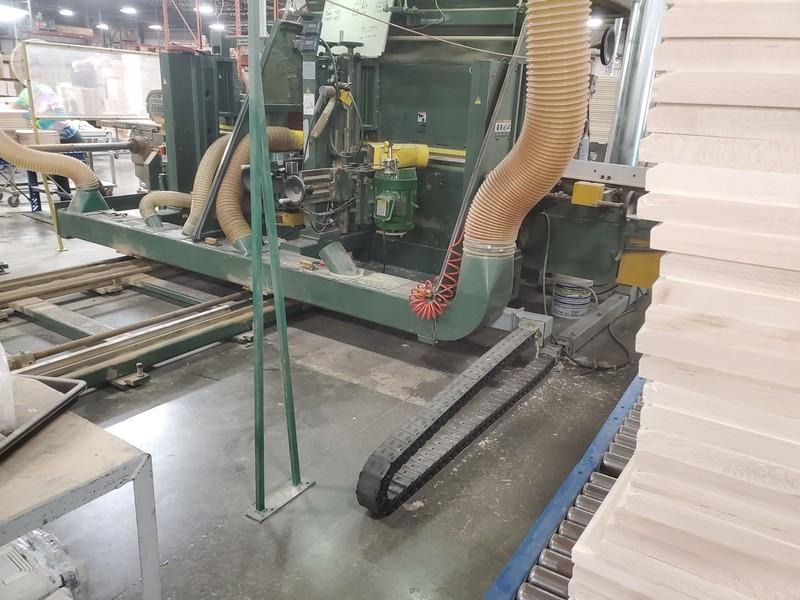

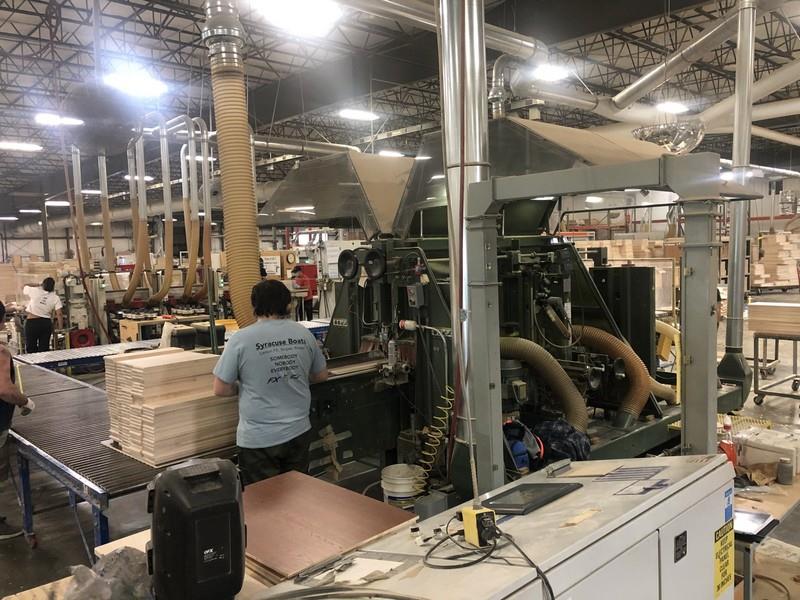

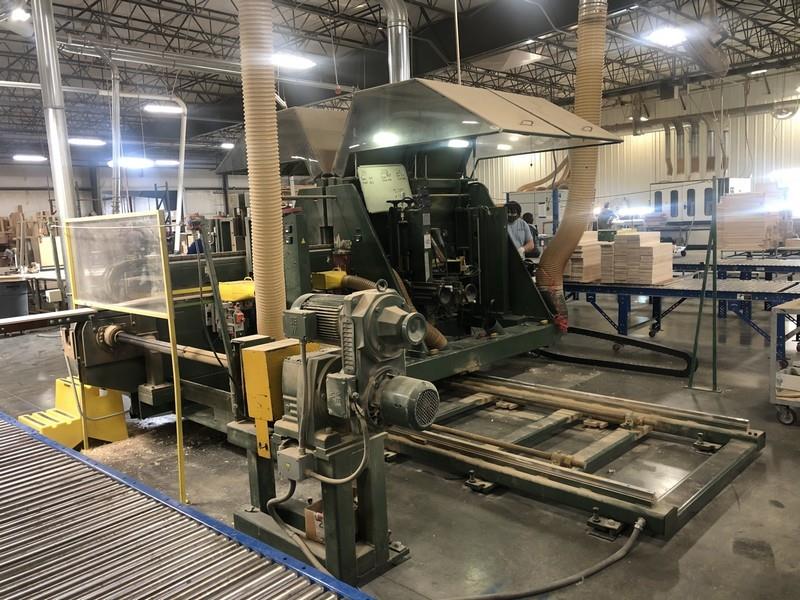

Mereen-Johnson #2050, Double End Tenoner, 10-Head, 96" max Opening, 30" Infeed, 6" max Thickness Opening, 7" max Throat, 15-75 FPM, 10 HP, 2004

MEREEN-JOHNSON - 2050: Double End Tenoner; (10) Heads(10) Heads Double End Tenoner with: Cutting/hogging; jump cope; cope; disc sanding; disc sanding. -- 96" Max. x 51/4" min. motorized opening. -- 30" Infeed in front of holddowns; 6" max. thickness opening; 7" max. throat; (2) tool posts; RH fixed, LH movable.Each side equipped as follows: -- 1st Station: Tilting trim/hog head (currently not installed); 360 worm gear tilt with: Indicator; 10 HP - 3,600 RPM motor; 1-1/4" dia. arbor; 12" to 14" tooling dia. -- 2nd Station: Jump cope head; 10 HP motors; 1 1/4" dia. arbor x 3-1/4" tool space. -- 3rd Station: High speed cope head; 10 HP - 3,600 RPM motor belt, driven to 6,000 RPM; 1-1/4" dia. arbor x 3-1/4" tool space; 6" - 9" tool dia. -- 4th Station: Tandem sanding wheels; 0.33 HP; counter-rotating. -- 5th Station: Tandem sanding wheels; 0.33 HP; counter-rotating. -- Feed Drive: Variable feed speed: 15 - 75 FPM; 7-1/2 HP feed motor with: Safety overload; MULTI-VEE smooth steel feed chains;, 1-3/4" wide. -- Feed lugs on: 10" Centers x 5/8" high. -- Non-powered upper holddowns with: Interlocking polyurethane pads.Includes -- Infeed over part thickness emergency stop. -- Infeed fence line with: Single handwheel adjustment. -- Centralized dust manifolds on each side of machine. -- Separate control cabinet with: ALAN BRADLEY "PanelView 1,000 interface." -- Sound enclosure.NOTE: Teardown not included.
