Description

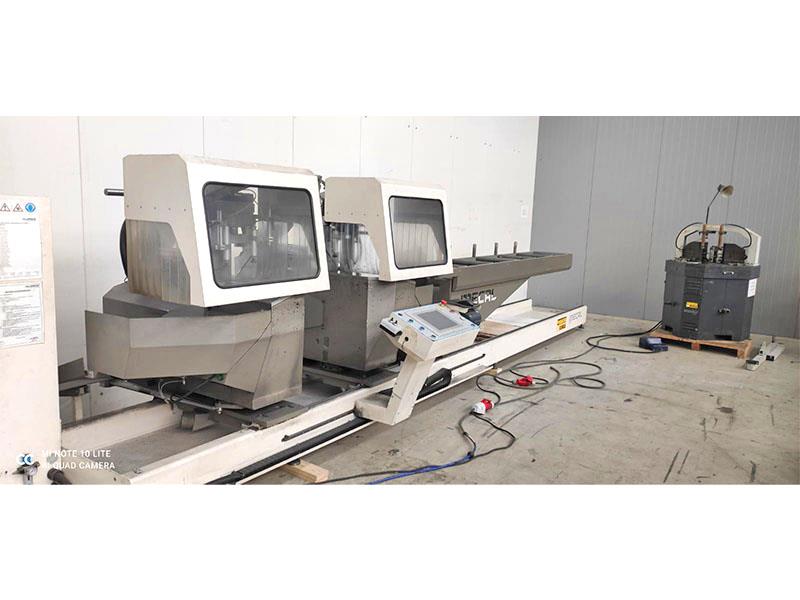

MECAL TDC 622 Edgemaster Twin Head Double Miter Saw For Window Profile Fabrication - 6 Meter (20 ft)CNC up-stroke double head compound miter saw with powered movement of the right head by means of a DC servomotor. The left hand side unit is stationary.The saw carries ∅ 600 mm (23.6″) saw blade. Compound blade feed motion for increased cutting capacity. Linear radial motion addition to pivoting motion of the saw allows this machine to achieve a very large compound cut capability.Cutting units are electronically tilted within 45 and 90 and electronically rotated within 22.5. and 135. (5) CNC axes driven by brushless DC servomotors including: positioning of mobile head, tilt and rotation of both heads. Capable cutting modes are: single cut, automatic cutting list processing, over-size and under-size cutting cycles. Cutting lists can be entered on the machine pc, can be imported through a USB key or network.Machine has a 6 meter useful cutting length at single stroke and a max length of 10 meter with double stroke.Specifications: ● Cutting bed length: 6000 mm (20') ● Min. cutting length at 90: 375 mm (13-3/4") ● Min. cutting length tilted at 45: 375 mm ● Pivoting range inwards: 90 - 45 (up to 22.5 manual with digital display) ● Tilting range inwards pneumatically: 90 - 45 ● Saw blade diameter: 600 mm ● Saw blade speed: 2850 RPM ● Power output per motor: 5 kW (5.5 HP) ● Compressed air supply: 7 bar (95 PSI)Dimension: 8780 x 2700 x 2100 mmWeight: 3200 kG Features: ● 600 mm (23.62″) Saw blade ● Capability for series production as well as for special applications ● Unique radial blade feed with industry leading capacity ● Cutting width up to 500 mm at 90 ● Tilting of the cutting groups up to 45 towards inside variably ● Rotation of cutting units toward outside up to 22.5 and toward inside up to 45 variably ● Standard cutting cycle with only pivoting motion of the cutting units ● Dynamic cutting cycle with compound motion of the cutting units - pivoting motion is combined with linear forward & backwards motion to increase cutting capacity ● Universal pivoting and tilting of both saw units allows cutting of high and wide profiles as well as every type of compound miter ● External-dimension cuts are possible for all cutting variants. ● Pivoting range with digital angle display ● Dynamic protection guards for a complete coverage of the cutting area (Safety hoods) ● Equipped with digital display as standard ● Hydro-pneumatic blade feed for both pivoting and linear movements ● 15" Full color touch screen HMI with windows platform, ethernet and external USB ● (2) Vertical Pneumatic Clamps ● Workpiece Support - Moveable ● Unique back-fence that is not cut away by the saw blade ● Dynamic profile back support automatically adjusts according to the cutting angle in order to achieve best possi
