Mazak #VC-500A/5X, CNC vertical machining center, 60 automatic tool changer, 21.8" X, 19.8" Y, 20" Z, 20000 RPM, #40, 40 HP, Smooth X, 2019

MAZAK VC 500A/5X CNC 5 Axis Machining Center from 2019, used but in excellent condition. Equipped with MAZATROL SMOOTH X, 40 HP spindle, 20,000 RPM, 60 ATC, and synchronized tapping. Features high-speed performance and advanced software capabilities with probing.
2019 MAZAK VC 500A/5X
SPECIFICATIONS:
Number Of Tables / Pallets....... 1
Table Size - L................... 19.96"
Table Size - W................... 19.96"
Weight On Table.................. 440 lb
Main Spindle Horse Power......... 40 hp
Spindle Nose To Table............ 4.52" - 24.6"
Main Spindle Speeds.............. 20,000 RPM
Main Spindle Taper............... 40.0
X - Axis Travel.................. 21.85"
Y - Axis Travel.................. 19.88"
Z - Axis Travel.................. 20.07"
B - Axis Travel.................. + - 110 Degrees
C - Axis Travel Table Indexing... + - 360 Degrees
Rapid Traverse Rate - X.......... 1,181 in/min.
Rapid Traverse Rate - Y.......... 1,181 in/min.
Rapid Traverse Rate - Z.......... 1,181 in/min.
Automatic Tool Changer........... 60
Tool Diameter.................... 3.15", 4.92"
Tool Length...................... 10.23"
Tool Weight...................... 17 lb
Machine Weight................... 15,300 lb
Control.......................... CNC
Weight........................... 0.00
EQUIPPED WITH:
MAZATROL SMOOTH X CNC CONTROL
SYNCHRONIZED TAPPING

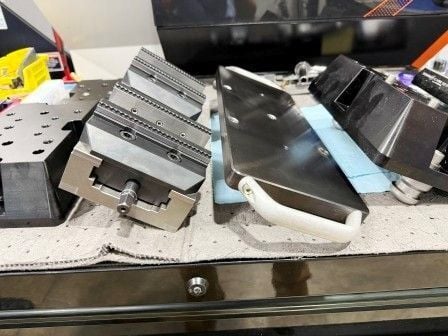

SCHUNK QUICK CHANGE SYSTEM
G00 SLOPE CONSTANT
CHIP CONVEYOR
EIA/ISO
HIGH SMOOTH CONTROL
SPIRAL EIA 3D COMPENSATION
ROTATION, GEOMETRIC, SCALING
EXT DATA I/O
HIGH SPEED
SHAPE COMP, THREAD, INVERSE TIME
3-D CO-OR ROT.
POLAR COORDINATE INPUT
COMPARISON STOP
VARIABLE 600 SETS
SIMULTANEOUS 5 AXIS
EIA HELICAL TAP AND PATTERN CYCLES
TILTED WORKPLANE
WORK POSITION ERROR COMP.
HAND HELD MPG
ADVANCED ETHERNET / IP
DUAL PROBING KIT RMP 600, RTS-AA W/EIA INSPECTION PLUS SOFTWARE
WORK PIECE AIR BLAST
CHIP CONVEYOR
