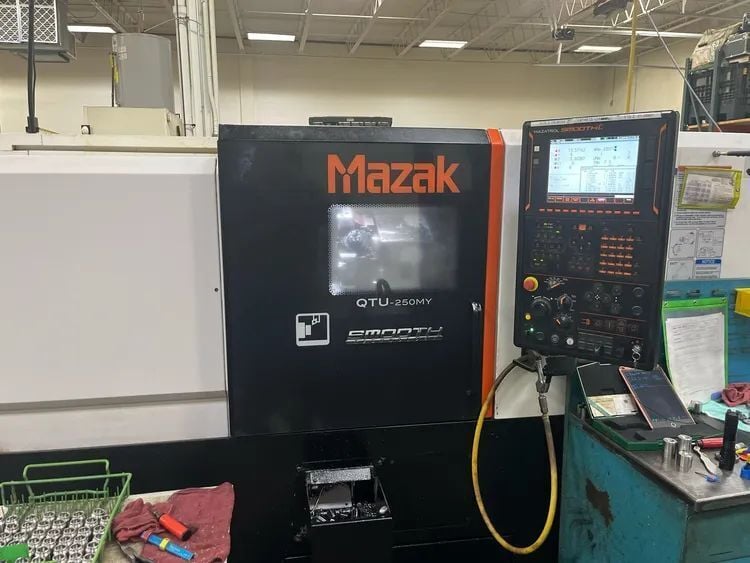

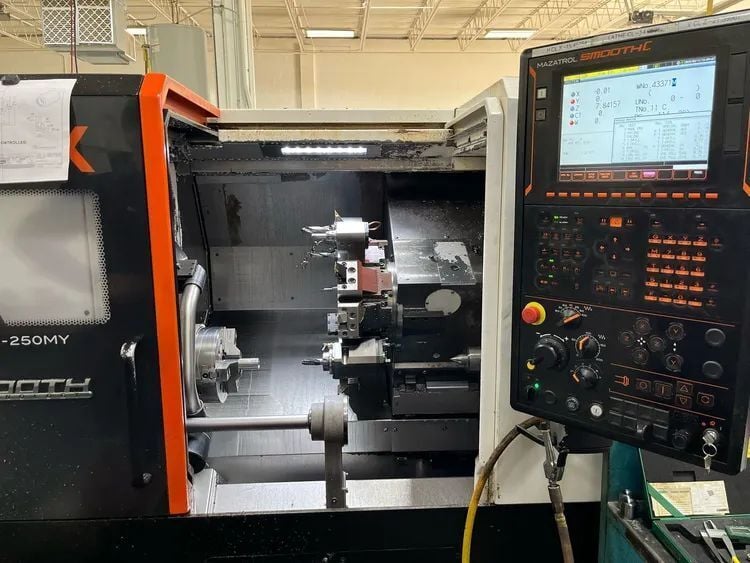

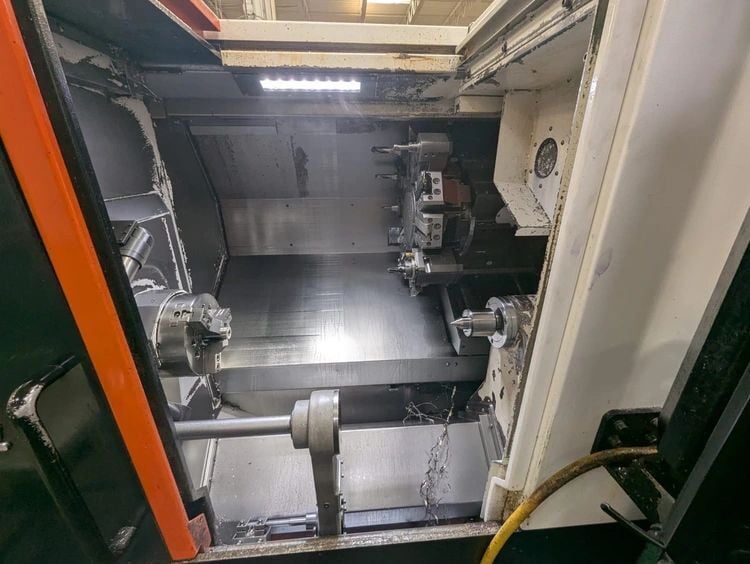

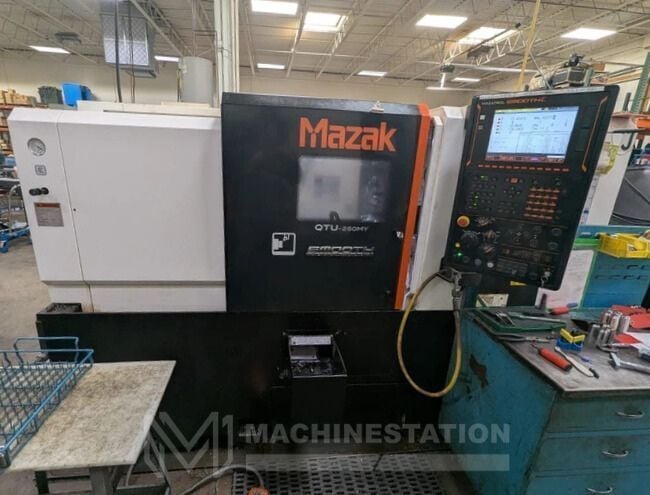

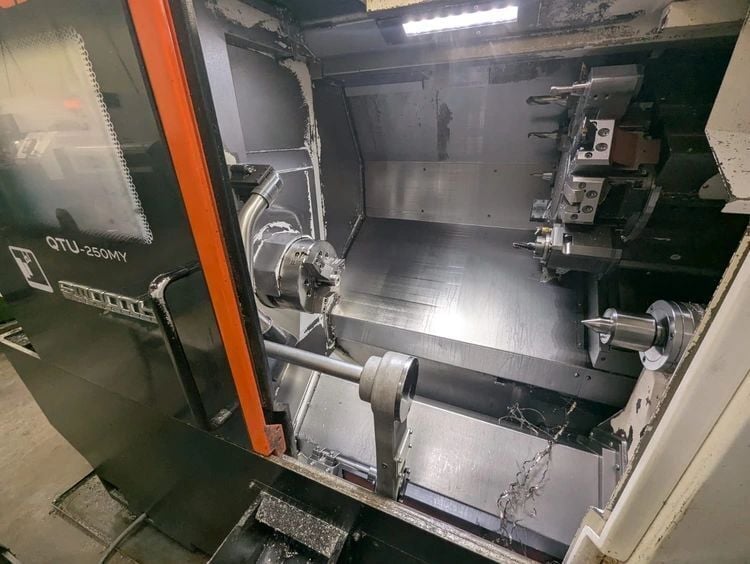

Mazak #QTU-250MY, CNC turning center, 27.4" swing, 8" chuck, 3-jaw, 2" bar, 13.4" dia., 21.03" lgth, A2-6, 12 turret, 4500 RPM, 20 HP, Smooth C, live tool, Y-Axis, rigid tap, 2017

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:

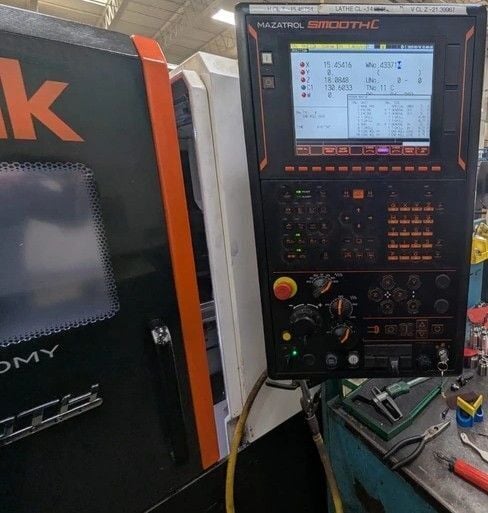

Mazak SmoothC CNC Control
EIA/ISO Package For KY Mill TC
Smooth Standard Software For Lathe (Mill)
Coolant System
Automatic Lubrication System
Capacity:
Max Turning Diameter : 13.40"
Max Turning Length : 21.03"
Max Swing Over Bed: 27.40"
Max Bar Capacity : 2.00"
Travels:
X Axis Travel : 8.50"
Z Axis Travel : 23.75"
Y Axis Travel: 4.00"
C Axis: 360° (0.001°) Both Spindle
Feedrate:
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM
Rapid Traverse Y Axis: 394 IPM

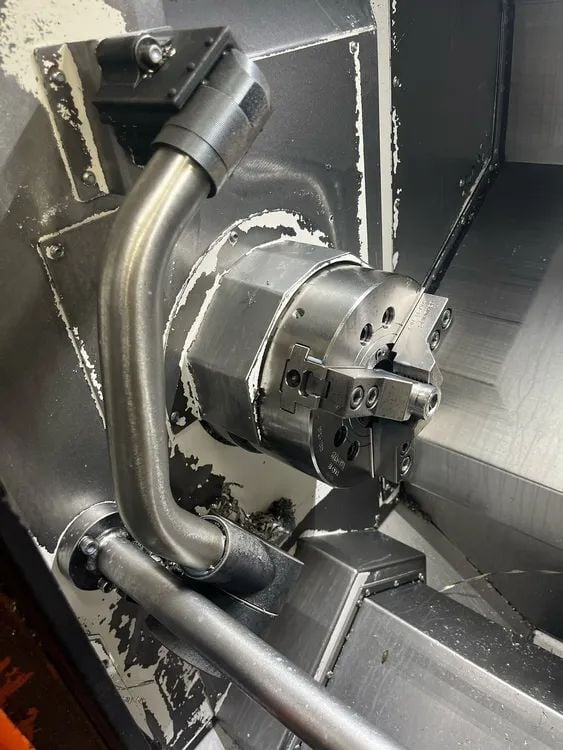

Spindle:
Spindle Bore: 2.99"
Spindle Nose: A2-6
Spindle Speed: 4,500 RPM
Spindle Power: 20 HP

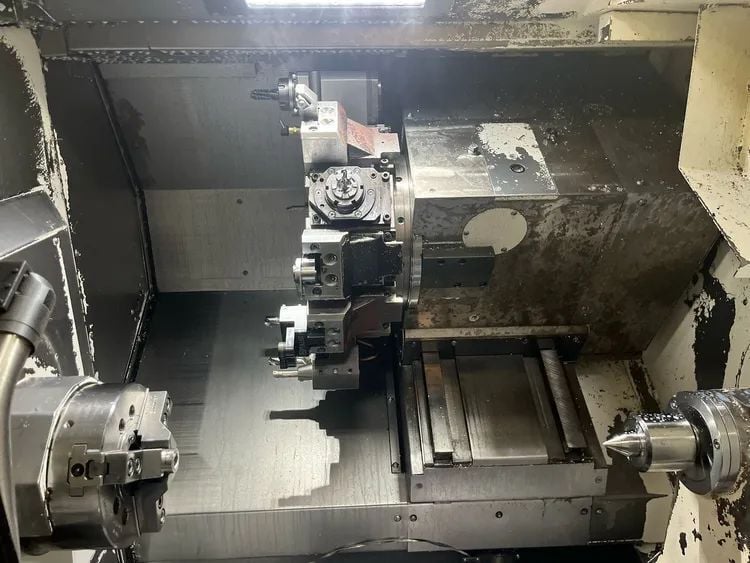

Turret:
Turret Capacity: 12 Stations
Live Tool Speed: 4,500 RPM
Live Tools Motor: 7.3 HP

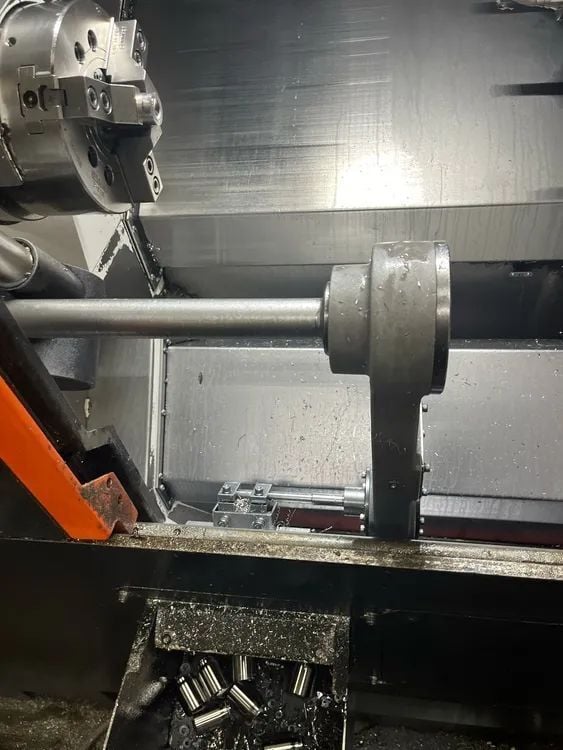

Tailstock:
Tailstock Taper: MT-5
Tailstock Type: Programmable
General:
Power Source: 208v / 50/60 Hz / 3-Phase
Overall Dimensions: 102" X 66.5" X 67.9" High Approx.
Weight: 12,500 lbs. Approx.
