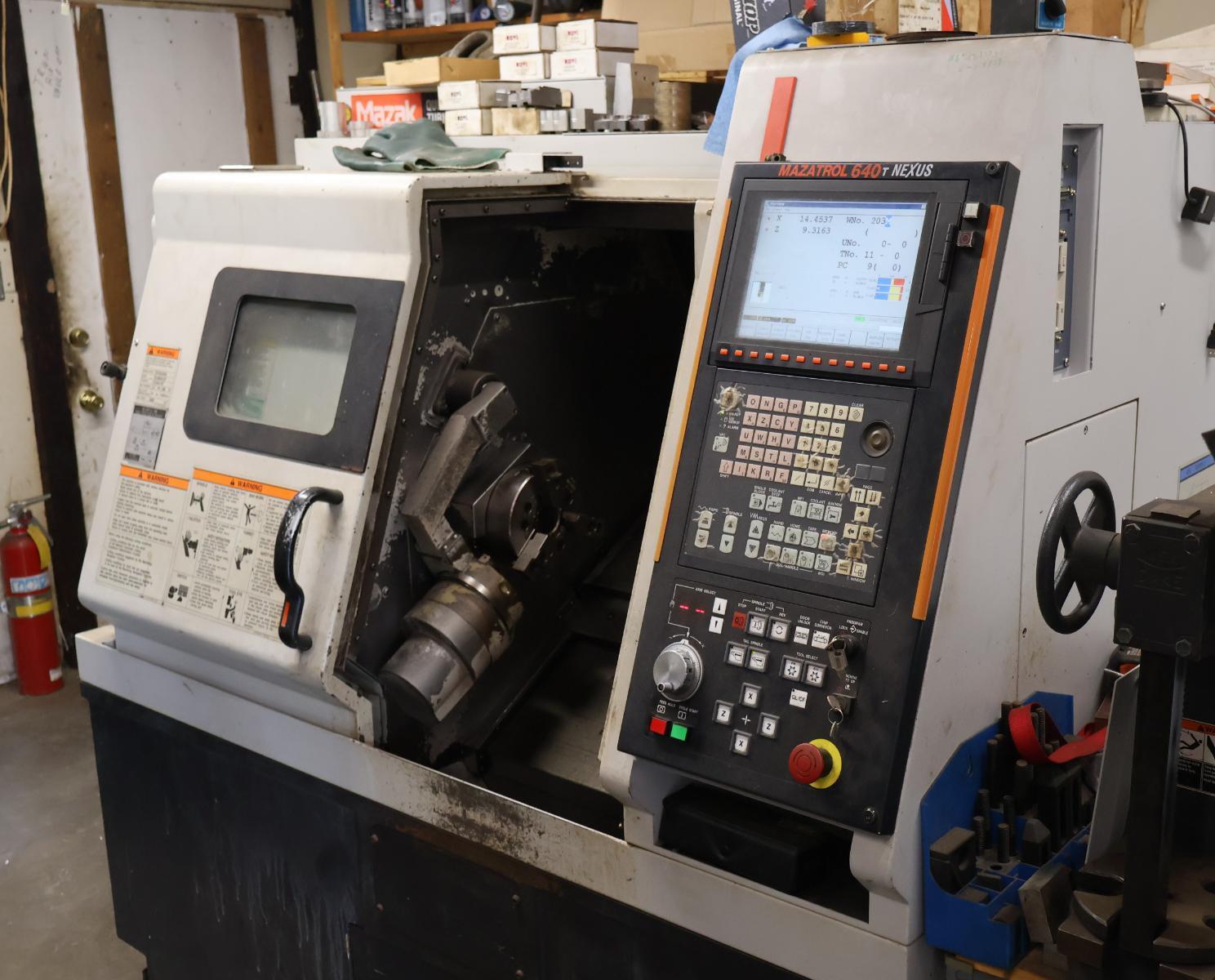

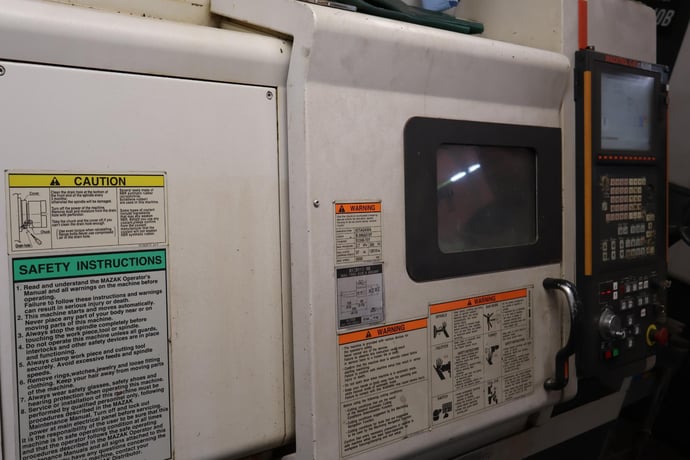

Mazak #QTN-100P, CNC turning center, 21.6" swing, 6" chuck, 3-jaw, 2" bar, 11" diameter, 12.1" length, 12 turret, A2-5, 15 HP, Mazatrol 640T Nexus, 2003

2-Axis CNC Turning Center
Manufacturer: Yamazaki Mazak (Made in Singapore)
Model: QTN-100P
Date of Manufacture: 12/2003
Electrics: 220 Volts, 3 Phase, 60 Hertz
Main Motor: 15 HP
Cutting Hours: <1,000
...8620 Steel, 90% of material cut
Features and Specifications:
...CNC 2-Axis Lathe w/ Tailstock
...CNC Control: Mazatrol 640T Nexus
......Color LCD 10.4"
......Floppy Disc Drive 3.5"
...Travels:
......X-Axis: 7.5"
......Z-Axis: 13"
...Swings:
......Over Bed: 21.6"
......Over Carriage/X-Slide: 11"
...Spindle Specs:
......Nose: A2-5
......Bore Size: 2.4"
......Speed: 6,000 RPM
......Max Bar Diameter: 2"
...Cutting Feedrates:
......X-Axis Rapid: 1,181 IPM
......Z-Axis Rapid: 1,299 IPM
...Max Cutting Diameter: 11.0"
...Max Machining Length: 12.1"

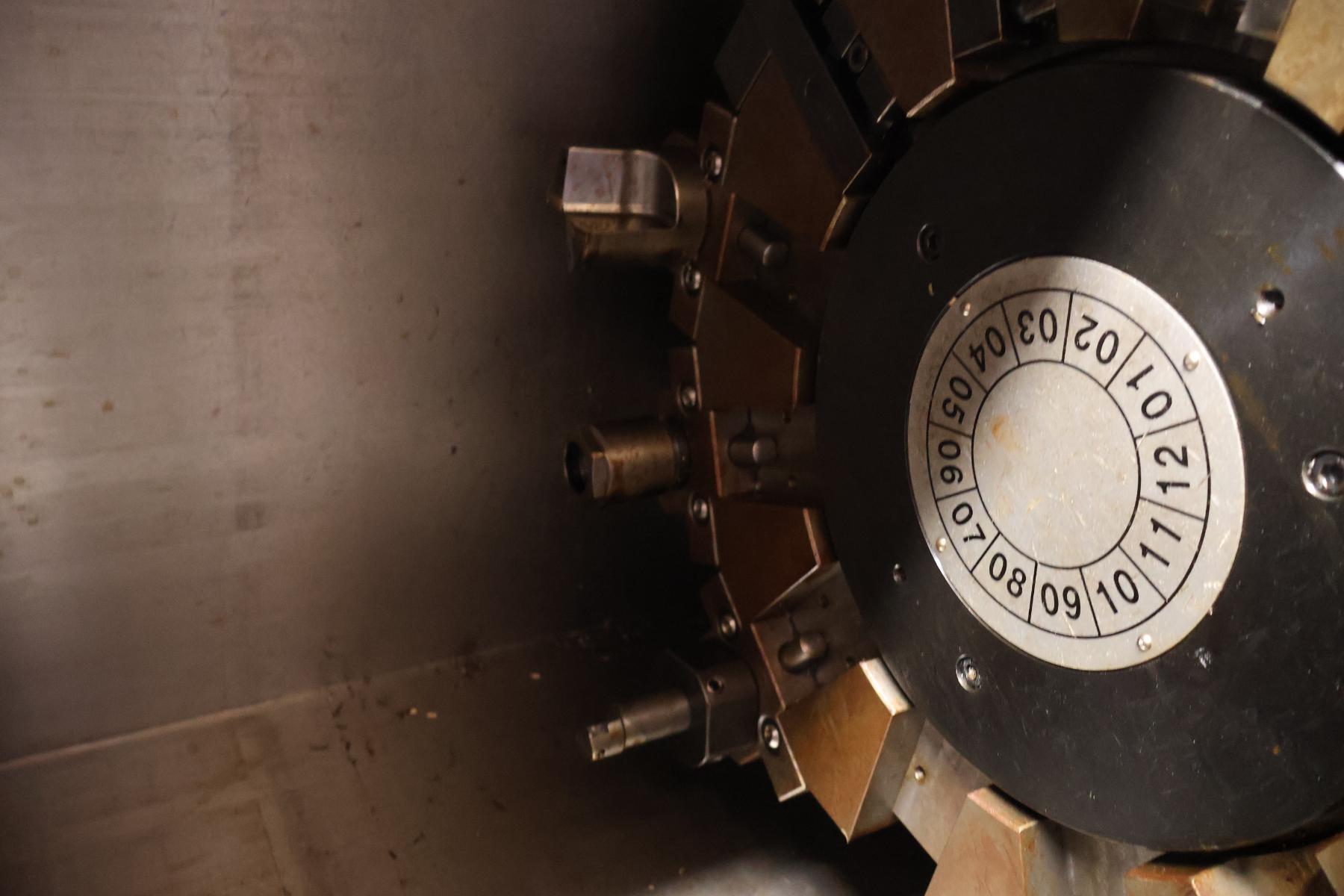

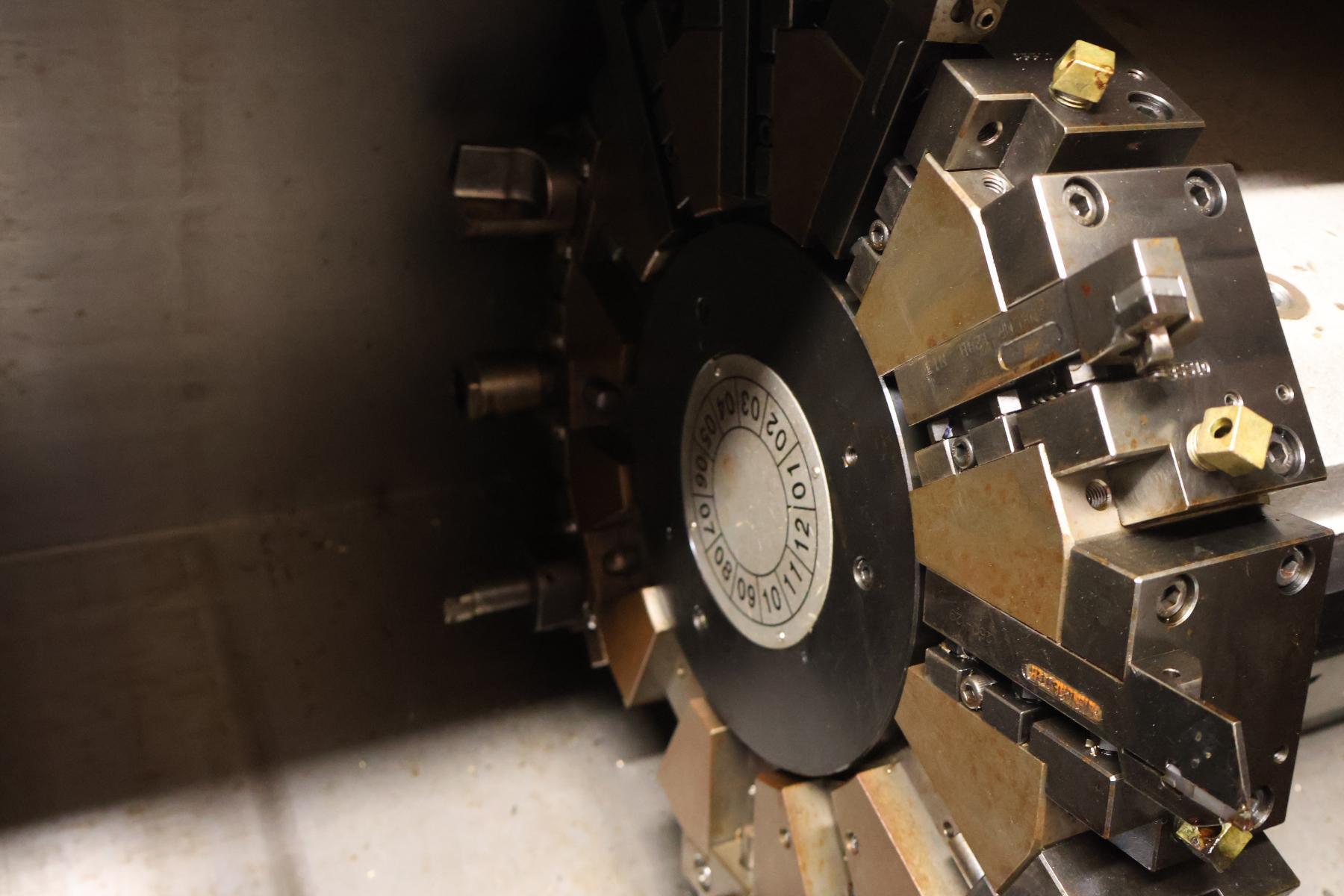

...12-Slot Turret

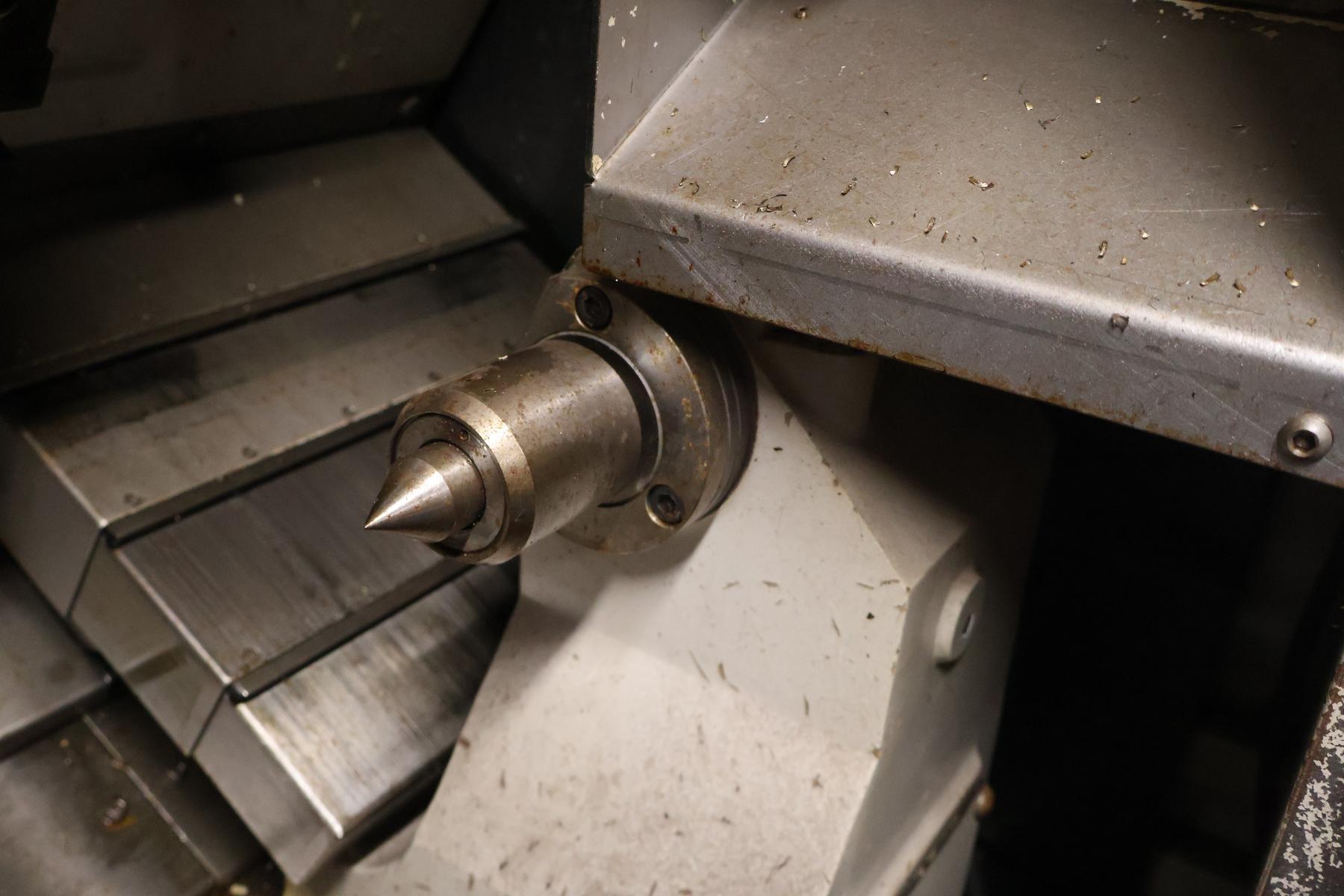

...Programmable Tailstock
...Tool Eye/Probe
...Hydraulic Power Unit:
......Tank Capacity: 5 Gallons
......Adj. Pressure Range: 290-500 PSI

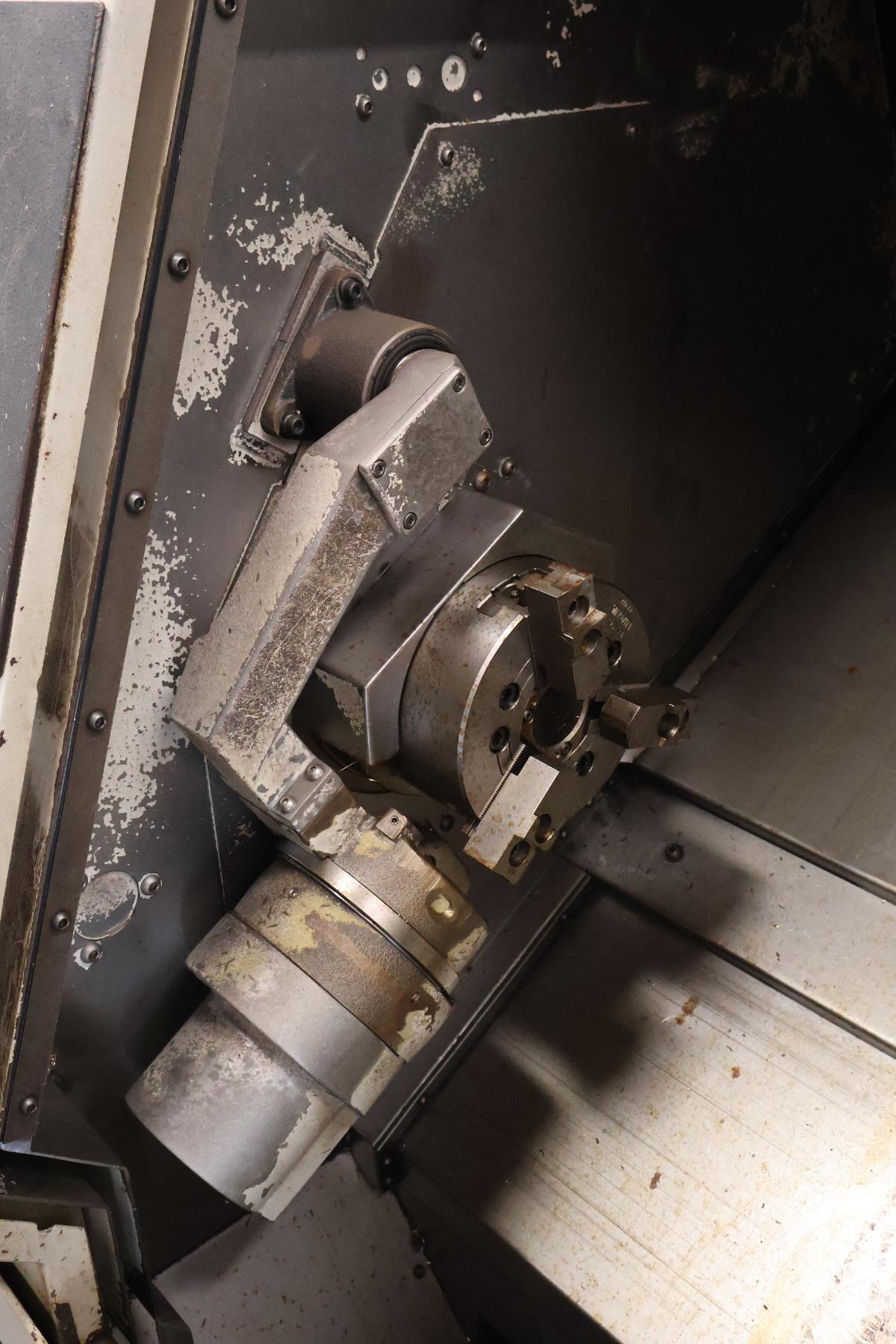

...Kitagawa Hydraulic 3-Jaw, 6" Chuck
......Model B-206A515F

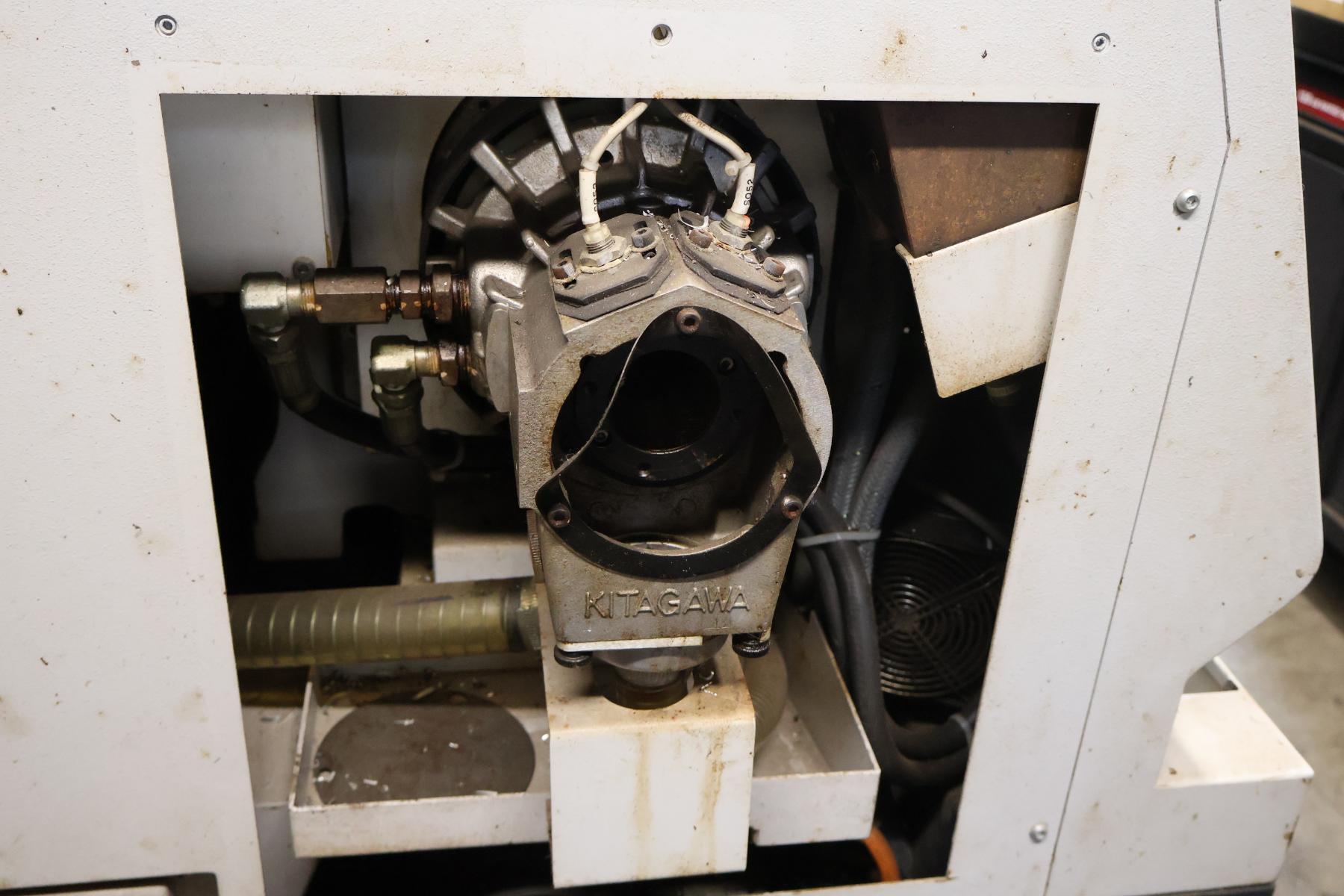

......Cylinder: S1246-15Y
......Max Pressure: 390 PSI
......Max Static Grip Force: 12,810 lbs.
......Max Speed: 6,000 RPM
...Tooling:
......Misc. Holders in Turret (see pics)
CNC Equipment Dimensions (approx.): 72" x 64" x 67"
Overall Equipment Weight (approx.): 7,700 lbs.
Approximate specifications and functionality history is taken from 1st-hand inspection, owner interview, manuals, and OEM research. While specifications are assumed accurate, confirmation by purchasing entity is always recommended.
Functionality Notes & History:
This equipment was purchased new by the present owner in 2004. This was a home-based business where he made one part for a dedicated customer base. Cutting hours are approximately 610; machine has been well maintained.
This machine has been a good runner since the beginning; the owner has retired and wishes to sell. Comes with some basic tooling holders as shown in the pics, full set of programming and operation manuals, and original receipts from OEM seller. Machine is under power and available for full inspection by potential buyers.
CALL FOR DETAILS, SCHEDULE INSPECTION
WE ARE OPEN TO OFFERS
EQUIPMENT LOCATION: Portland, OR Metro Area
Equipment is under power; available for inspection.
Buyer responsible for rigging out of shop, loading on transportation.
Buyer responsible for freight logistics and expenses.
MD Equipment Services can provide rigging, loading, and freight quotes.
Contact MD Equipment Services LLC to schedule inspection or arrange purchase details.
