Mazak #PowerMaster-Universal-3000, CNC lathe, 34" swing, 25" chuck, 12.5" bore, 122.5" centers, 21.65" dia., 117.52" lgth, 60 HP, 750 RPM, Mazatrol 640MT, chip conveyor, 2015

For sale: 2015 MAZAK POWERMASTER UNIVERSAL 3000 CNC lathe. Features 34" swing over bed, 122.5" distance between centers, 25" chuck, 60 hp, 750 RPM spindle. Equipped with MAZATROL 640MT control, chip conveyor, and high-pressure coolant system.
2015 MAZAK POWERMASTER UNIVERSAL 3000
SPECIFICATIONS:
Swing Over Bed..................... 34"
Machining Length................... 117.52"
Distance Between Centers........... 122.5"
Turning Diameter, Shaft Diameter... 21.65"
Chuck Size 1....................... 25"
Spindle Nose 1..................... A2 - 20
Spindle Bore Diameter 1............ 12.5"
Spindle Bar Capacity 1............. 12.5"
Spindle Speeds 1................... 750 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 25.79"
Z1 - Axis Travel................... 123"
Rapid Traverse Rate - X1........... 472 in/min.
Rapid Traverse Rate - Z1........... 472 in/min.
Turret Configuration 1............ 8
Turret Configuration 2............ 6 station
Tailstock Quill Diameter........... 5.9"
Tailstock Taper.................... MT 5
Tailstock Quill Travel............. 6.2"
Programmable Tailstock............. YES
Tailstock Travel................... 100"
# Axis............................. 2
Tailstock.......................... 'Yes'
Live Tooling....................... 'No'
Sub Spindle........................ 'No'
Control............................ CNC (MAZATROL 640T CNC COLOR CONTROL)
EQUIPPED WITH:
MAZATROL 640MT CONTROL
CHIP CONVEYOR

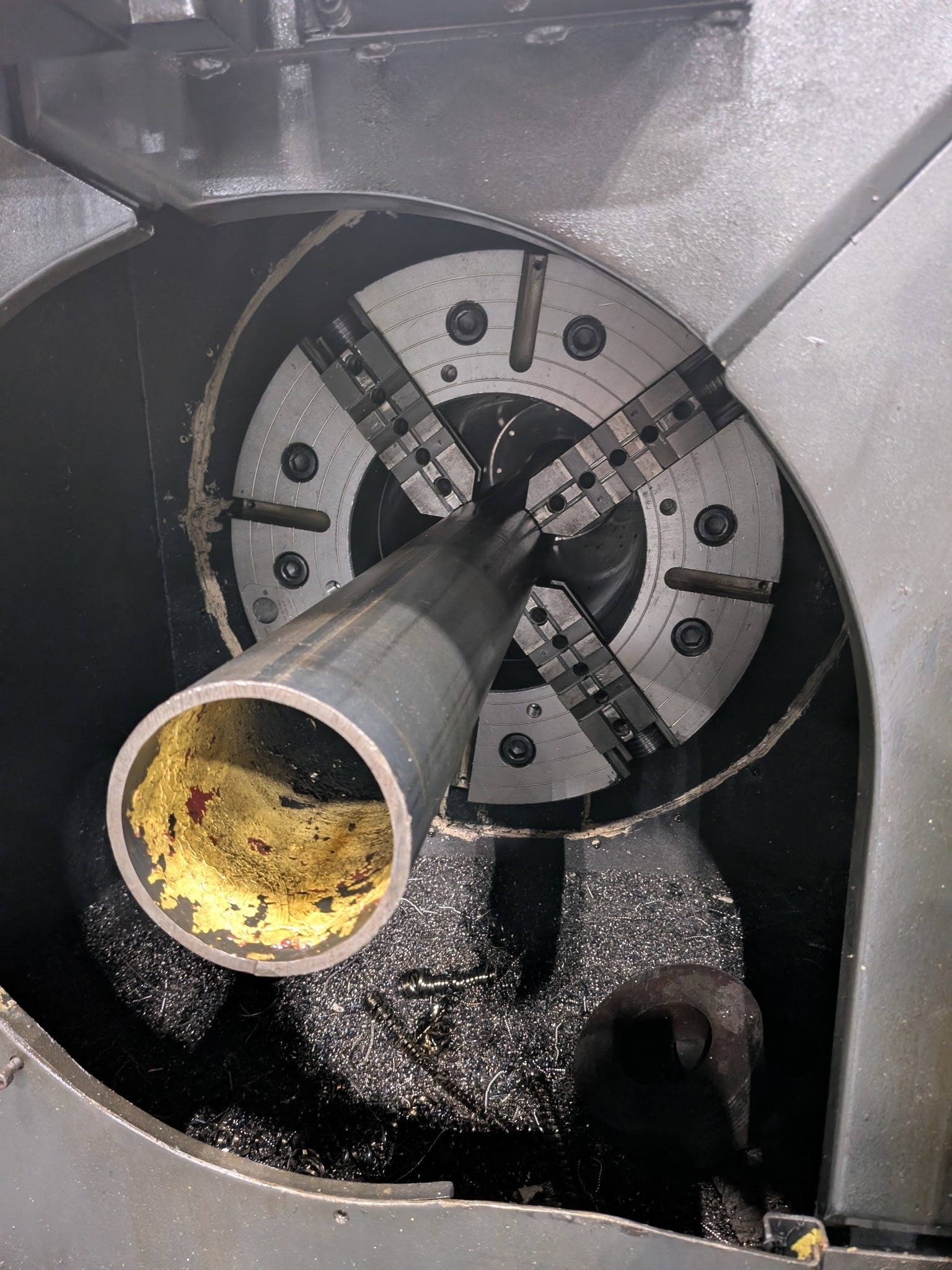

25" 4317-25 20A2-12.5 HD 4-JAW FRONT AND REAR
REAR CHUCK PREP
RE-THREAD FUNCTION
HI PRESSURE COOLANT 71PSI
