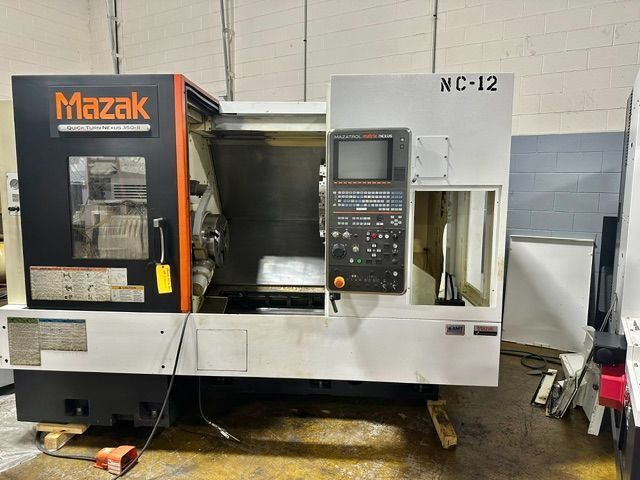

Mazak #Nexus-350-II, CNC turning center, 2-Axis, Mazatrol Matrix CNC Control, 26.7" swing, 15" chuck, 4" bar, 2013

MAZAK QUICK TURN NEXUS 350-II / QTN-350

2013 MAZAK QT Nexus 350-II / 650U
CNC Turning Center

SPECIFICATIONS:
SWING OVER BED 26.7″
MACHINING LENGTH 23.8″
TURNING DIAMETER, SHAFT DIAMETER 16.54″
CHUCK SIZE 1 15″
SPINDLE NOSE 1 A2 – 11
SPINDLE BORE DIAMETER 1 4.41″
SPINDLE BAR CAPACITY 1 4″
SPINDLE SPEEDS 1 3,300 RPM
SPINDLE HORSEPOWER 1 40 hp
X1 – AXIS TRAVEL 8.8″
Z1 – AXIS TRAVEL 26.7″
RAPID TRAVERSE RATE – X1 1,181 in/min.
RAPID TRAVERSE RATE – Z1 1,299 in/min.
TURRET CONFIGURATION 1 12
TAILSTOCK TAPER MT 5
TAILSTOCK TRAVEL 25.5″
# AXIS 2
BAR CAPACITY 4″
TAILSTOCK ‘Yes’
LIVE TOOLING ‘No’
CONTROL CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL)

EQUIPPED WITH:
MAZATROL MATRIX CNC COLOR CONTROL
USB I/F 2 PORT
LAN PORT
WINDOWS OPERATING SYSTEM XP
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
EIA, SPIRAL EIA 3D COMP., ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
THRED, INVERSE TIME, AUTO ATLM, POLAR COORDINATE INPUT, COMPARISON STOP
G54.1, VARIABLE 600 SETS, EIA HELICAL TAP CYCLE, EIA PATER CYCLE,
TILTED WORK PLANE, PITCH ERROR COMP.
CHIP CONVEYOR
