Mazak #Multiplex-6300, 5-Axis CNC Lathe, 12.2" X, 23.82" Z, 16.9" swing, 10" chuck, 30 HP, 4000 RPM, 12 position turret, Mazatrol 640T control, 2010

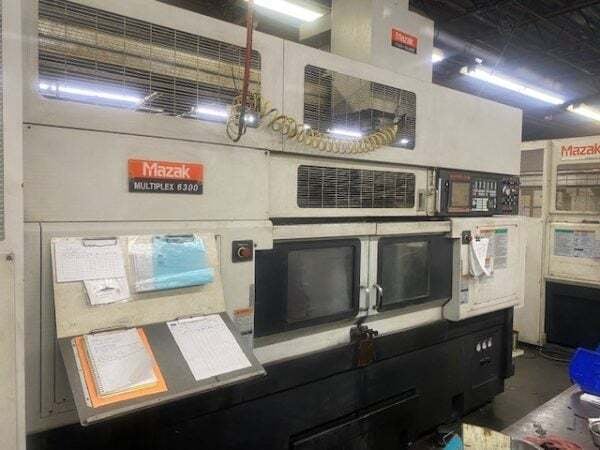

MAZAK MULTIPLEX 6300, 5-Axis Lathe, 2010, Used. Key specs: 16.93" swing, 10" chuck, 30 HP, 4,000 RPM. Equipped with C-Axis, 12 Position Turret, and GL200F Gantry Robot. Measuring 95.3" x 167.7" x 82.7". Total weight: 25,740 lbs.
Maximum Swing: 16.93
Standard Cutting Diameter: 13.0
Maximum Cutting Diameter: 16.93
Maximum Cutting Length Chuckwork: 8.86
Maximum Cutting Length Shaftwork: 25.59
MAIN SPINDLE (L&R)
Distance Between Spindle Faces:
Max.(Both Heads @ Home Position): 57.09
Min: 9.82
Spindle Nose: A2-8
Spindle Bore: 3.46
Maximum Bar Diameter: 3.0
Spindle Speed/Ranges: 4,000 RPM/1
Spindle Indexing (C-Axis): .001 deg./360,000 Positions
Spindle Horsepower (30 min.): 30 HP (AC)
Spindle Torque: 441.34 ft.-lbs.
TURRET (L&R)
Type of Turrets: Dodecagonal/Drum Non-Lift
Tool Holder Shanks: Modified VDI
Turret Index Time (1 Step): 0.3 Sec.
Total Number of Tools:
(Rotary Avail./All Positions): 24 (12×2)
Tool Size:
Turning & Facing: 1 x 1
Boring Bar Maximum Diameter: 2
MILL SPINDLE (L&R)
Spindle Speed: 4,000 RPM
Spindle Horsepower (10 Min): 10 HP (A.C.)
Spindle Torque (4000 RPM): 57.88 ft.-lbs.
Maximum Drill: 7/8
Maximum End Mill: 13/16
Maximum Tap: 8- 5/8 UNC
AXIS Travel:
X-Axis (L&R): 12.2
Z-Axis (L&R): 23.82
Rapid Traverse:
X-Axis: 945 IPM
Z-Axis: 945 IPM
C-Axis: 400 RPM
MACHINE
Machine Floor Space (W x L):
W/O Automation or Bar Feeder, etc: 95.3 x 167.7
Machine Height: 82.68
Total Power Required (Machine Only): 68 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will be Greater
Air Requirements: 71 psi / 14 CFM
Total Weight (For Machine Only): 25,740 lbs.

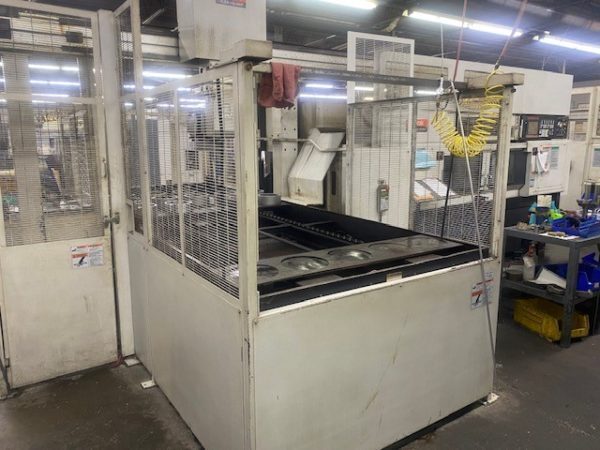

GL200F GANTRY ROBOT SPECIFICATIONS:
ROBOT
Maximum Workpiece Weight 44 Lbs. x 2
Body Traverse Speed.. 4728 IPM
Arm Up/Down Speed. 2364 IPM
CONTROLLER
Type.. Mazatrol Fusion 640
Teaching Method Teaching-less, Fixed pattern
Memory Capacity No limit on number of programs
limited by hard drive space.
HAND TYPE D3 (STD)
Type of Workpiece. Round Chuck Work
Construction Double Hand
Gripping. 3-Jaw Centripetal
Workpiece 11.81Dia. x 5.91L/44 lbs.x 2

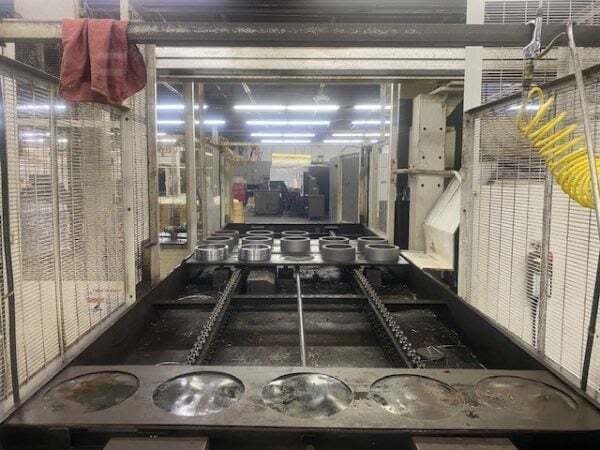

TYPE III PITCH FEED CONVEYOR
Number of Pallets. 6
Type of Workpiece. Chuckwork

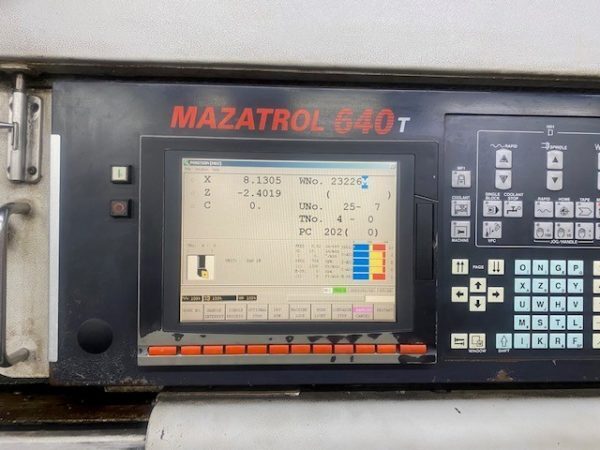

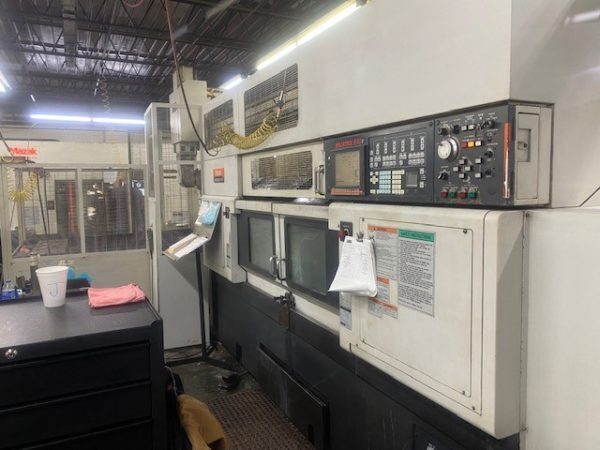

Mazatrol PC-Fusion 640T CNC Control
Main Spindle Motor 30 HP L&R
Spindle Speed 4000 RPM L&R
C-Axis 0.001 Degree Incr. L&R
12 Position Drum Turret (VDI Strt. Shank)
Rotary-Tool Spindle Speed 4000 RPM L&R / 57.88 ft-lbs
Automatic Tool eye L&R
Milling Spindle Synchronous Tapping L&R
Relocation Device
Chuck Air Blast L&R

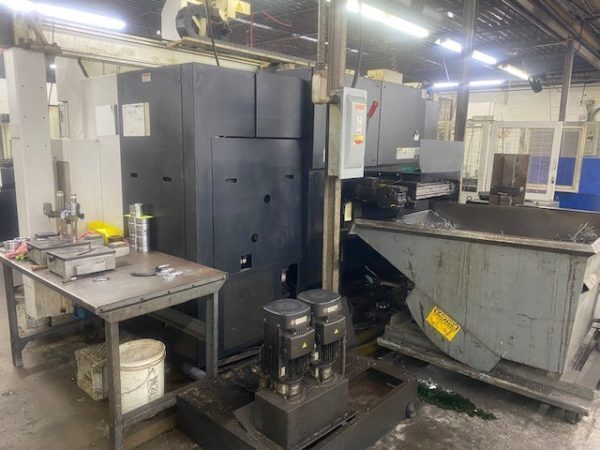

Chip Conveyor Rear Disposal (Hinge Type)
GL200F/Pitch-Feed Type 3/D2-Hand
12in chucks on both spindles
