Manufacturer: Mazak
Model: INTEGREX-I100S
Year: 2013
Swing: 20.9
Chuck: 6
Bar Capacity: 2.0
Stock # 45585
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

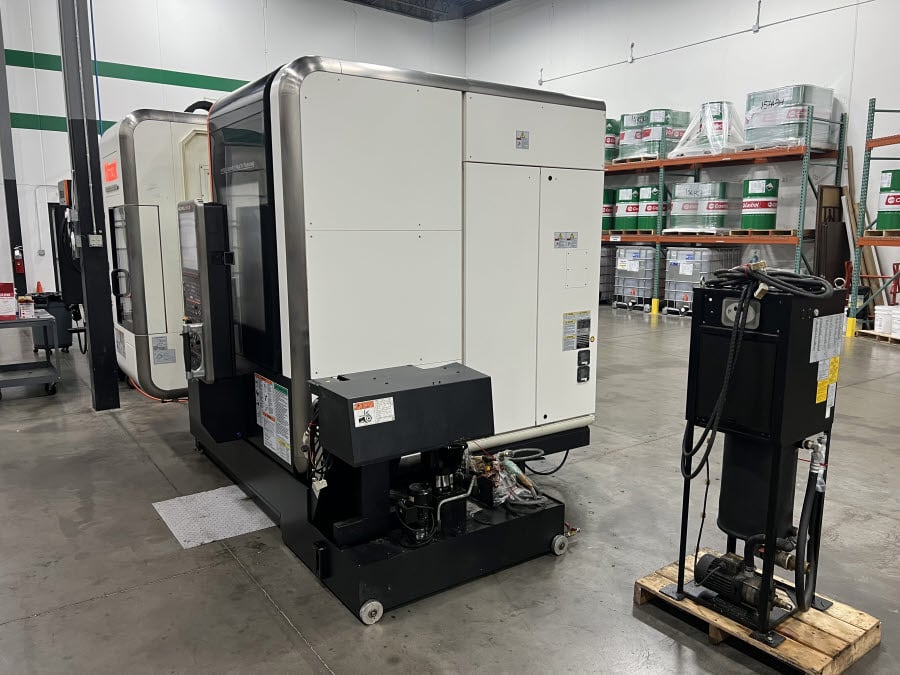

Mazak Integrex i100S
Specifications
Main Spindle Chuck6″
Maximum Swing20.9″
Maximum Cutting Diameter19.7″
Maximum Machining Length33.6″
Maximum Bar Size2″
Main Spindle HP10/15 HP
Main Spindle RPM6000 RPM
Main Spindle NoseA2-5
Main Spindle Bore2″
Main Spindle Min. Indexing Increment.0001
Spindle TaperKM 63
2nd Spindle HP10/15 HP
2nd Spindle RPM6000 RPM
2nd Spindle Chuck6″
Milling Spindle HP7.5/10 HP
Milling Spindle RPM12,000 RPM
Max Distance Between Spindles35.55″
Number of Tool Stations36 ATC
Maximum Tool Diameter3.54″
Max Tool Adjacent Pockets Empty5.12″
Maximum Tool Length9.84″
Maximum Tool Weight11 lbs
X Axis Travel17.72″
Y Axis Travel8.27″ , +/- 4.13″
Z Axis Travel35.59″
C Axis Positioning.0001
W Axis Travel35.55″
Rapid Traverse Rate X1575 IPM
Rapid Traverse Rate Y1575 IPM
Rapid Traverse Rate Z1575 IPM
Rapid Traverse Rate C555 IPM
Equipped With:
Mazatrol Matrix 2
Thru Coolant / Flood Coolant Simul-Flowable (213 PSI)
Work Measuring Renishaw Probe
Maximum Program Size : 8MB
Hobbing Function W/O Tooling
F)Tool Radius Compensation / 5-Axis (G41.5 / G42.5)
5-Axis Machining Package
Mazacc-2D Software
Mazacc-3D High-Speed
Shape Compensation
High Smoothing Control
EIA/ISO Function Simultaneous 5 Axes
Tool Tip Point Control / Simultaneous 5 Axes 5-Axis Spline Interpolation
Chip Conveyor Side Disposal
