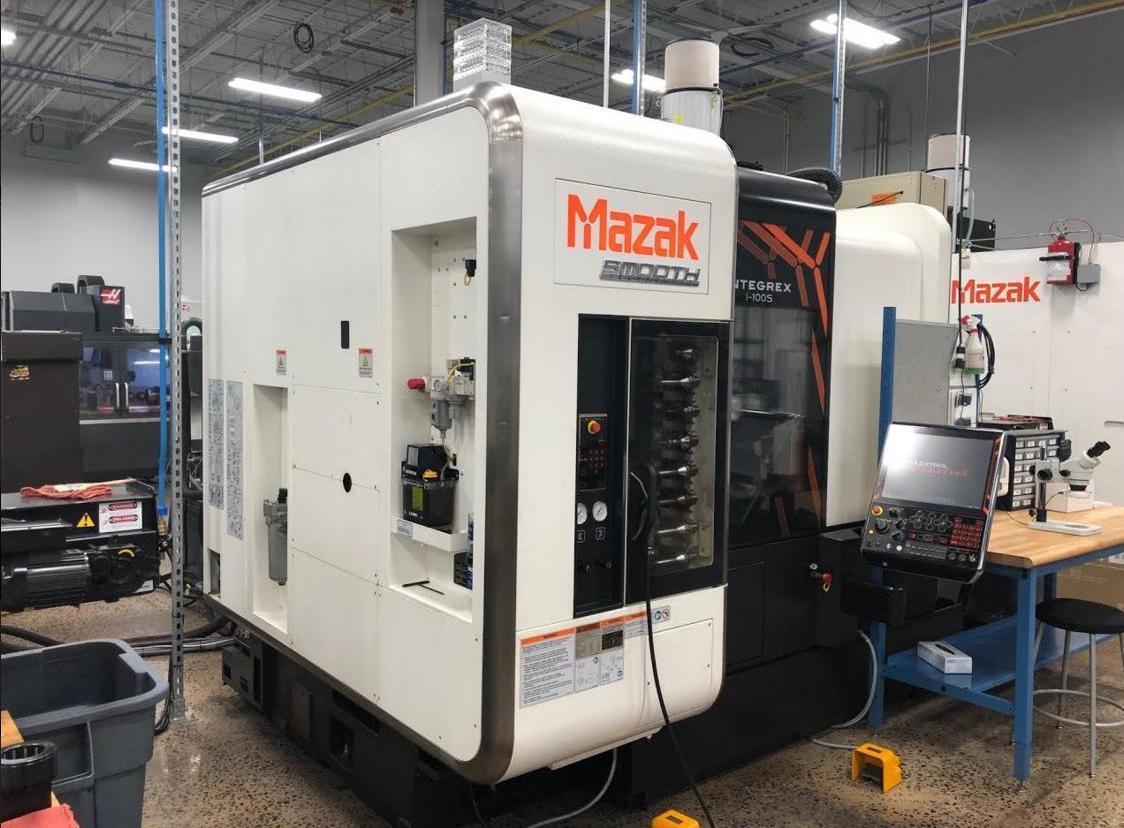

Mazak #Integrex-I-100S, CNC lathe, 20.9" swing, 6" chuck, 1.6" bar, Smooth HX Control, 213 psi thru spindle coolant, 2015

2015 Mazak Integrex i100S, 2 Available!
Ran only medical! Mazak Smooth HX Ctrl,
Mazak Integrex i100S CNC 6-Axis Multi-Tasking Turning Center
New: 2015 - 2 Available!
Specifications:
Max Swing Over Carriage: 20.9"
Max Machining Diameter: 19.7"
Max Cutting Length: 33.6"
Max Distance Between Chuck Jaws: 35.55"
X-Axis Stroke: 17.72"
X-Axis Below Spindle Center Line: 1.96"
Z-Axis Stroke: 35.59"
W-Axis Stroke (Second Spindle): 35.55"
Y-Axis Stroke: 8.27", +/- 4.13"
B-Axis Stroke: (0.0001 Degree incr.) 240 Degrees
B-Axis Travel: -30 to 210 Degrees
C-Axis Control - Main/Second Spindle: True C-Axis
Main Spindle Chuck Size: 6" Diameter
Main Spindle Bar Capacity: 1.65"
Main Spindle Speed: 6,000 RPM
Main Spindle Index - Prog True C: 0.0001 Degree
Main Spindle Motor: 10/15 HP
Main Spindle Power: 105 Ft Lbs
Main Spindle C-Axis Clamping Torque: 1,315 Ft Lbs
Second Spindle Chuck Size: 6" Diameter
Second Spindle Speed: 6,000 RPM
Second Spindle Index - Prog True C: 0.0001 Degree
Second Spindle Motor: 10/15 HP
Second Spindle Power: 105 Ft Lbs
Second Spindle C-Axis Clamping Torque: 1,315 Ft Lbs
Type of Turret: 1 Position
Turret Positioning: 0.0001 Degree (B-Axis)
Rotary Tool Spindle Motor: 7.5/10/12 HP
Rotary Tool Spindle Speed: 12,000 RPM
Tool Magazine Capacity: 36 Tools
Tool Selection Method: Random
Tool-Tool Time: 1.3 Sec
Maximum Tool Diameter (full) 3.54"
Maximum Tool Diameter (adjacent empty) 5.12"
Maximum Tool Length: 9.84"
Maximum Tool Weight: 11 Lbs
Rapid Traverse:
X/Y/Z-Axes: 1575 IPM
W-Axis: 1181 IPM
C-Axis: 555 IPM
B-Axis: 40 IPM
Equipped With:
Mazak Smooth HX Control
Kitagawa BB-206 A5 Chucks
Dual Spindle, Dual Chuck
36 ATC Capto Tool Magazine
Tool Holders
Collet Chucks with Collets
Chip Conveyor
Additional Options:
19" Color CRT
EIA/ISO, Additional EIA/ISO Functions
3-D Coordinate Conversion
G00 Slope Constant
Cylindrical (G12) (EIA)
Independent Rotation
C Axis 0.0001 Increment (1st spindle)
15 HP A2-05 Spindle Nose 1st Spindle
15 HP Second Spindle C Axis 0.0001 Increment
Chuck Air Blast 1st and 2nd Spindle
Rotary Tool Speed 12,000 RPM
B Axis Contouring 0.0001 Degree
36 ATC Capto Tool Magazine
6 Dia. Through Hole Chuck for Second Spindle
Kitagawa BB-206 Chuck
Automatic Tool Eye
Coolers for Ball Screws X, Z-Axes
Automatic Parts Catcher with Ejector
5-Axis Machining Package For Smooth hx
Tool Radius Comp 5 Axis (G41.5/G42.5)
Signal Tower (3) Lights
Software Upgrade To Support Windows 8
Standard 230 Volt Electrics
Re-Threading Function
ATS System True Length Collet
Error Compensation G54.4
EIA Dynamic, Compensation 1, Work Setting
Draw Bar Adaptor For Optional 2 Bar Capacity Package
Fire Suppressant System
Turret Air Blast
Flood Coolant Nozzle
213 PSI Through Coolant
X,Y,Z Pitch Error Compensation
