Mazak #Integrex-i-200S, CNC turn-mill, 23.6" swing, 3" bar, 33.5" length, 5000 RPM, 30 HP, 36 ATC, B-axis, sub spindle, gantry loader, 2014

Gantry Load System| Low Hours

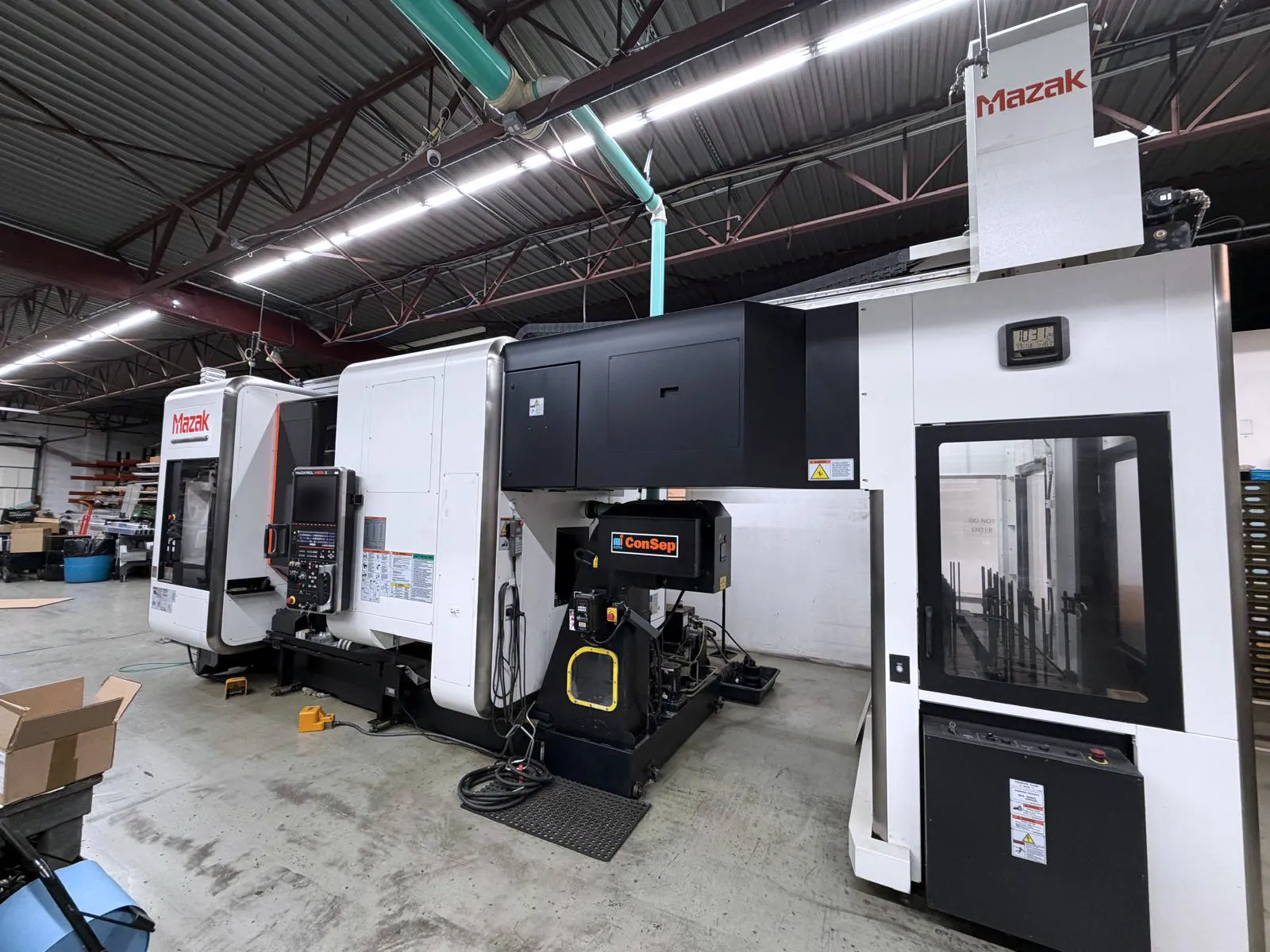

The Mazak Integrex i-200S (2014) with Gantry Loader is a high-performance multi-tasking CNC turn-mill center that combines precision turning, B-Axis milling, and automated part handling in one system. Designed for lights-out production, it excels at manufacturing complex, tight-tolerance components for the automotive, aerospace, medical, hydraulics, energy, and precision machining industries, delivering exceptional accuracy, efficiency, and reduced cycle times.
Main & Sub-Spindle Chuck Size: 8 in
Maximum Machining Diameter: 23.62 in
Maximum Machining Length: 33.46 in
Main & Second Spindle Bar Capacity: 2.56 in / 3.0 in
X-Axis Travel (Cross): 21.06 in
Y-Axis Travel (Off-Center): 8.27 in (+/-4.13 in)
Z-Axis Travel (Longitudinal): 33.46 in
B-Axis Travel (Milling Head Swivel): -30 to +210 (Continuous 0.0001 indexing)
C-Axis Travel (Both Spindles): 360 (Continuous 0.0001 contouring)
Main Spindle Speed: 5,000 RPM
Second Spindle Speed: 5,000 RPM
Main spindle motor power: 30 HP
Second Spindle Motor Power: 25 HP
Spindle Nose: A2-6
Milling Speed: 12,000 RPM
Milling Motor Power: 25 HP

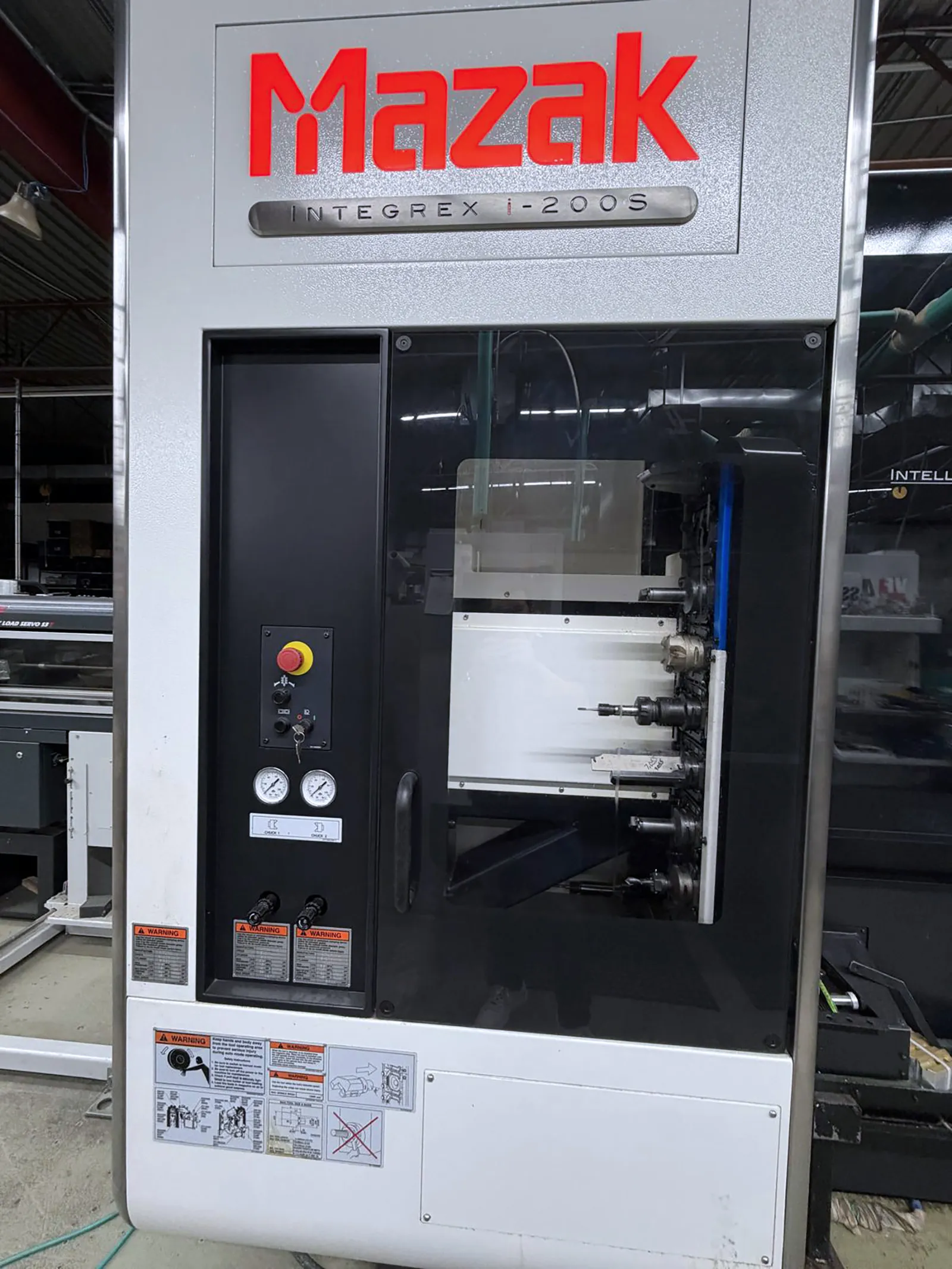

Tool Storage Capacity: 36 tools
