Manufacturer: Mazak
Model: INTEGREX-E-1060V8II
Year: 2014
Automatic Tool Changer: 120
Longitudinal" X: 78.8
Cross" Y: 41.7
Vertical" Z: 52.9
RPM: 10000
Stock # 9973
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description
MAZAK INTEGREX E 1060V8II CNC multi-tasking center, 2014 model, combines horizontal/vertical capabilities. Features 50 hp spindle, 10,000 RPM, dual 39.4" tables, powerful MAZATROL MATRIX 2 CNC control, high speed machining, linear scales and more. Ideal for precision machining and loaded with advanced machining capabilities.
2014 MAZAK E 1060V8II
SPECIFICATIONS:
Number Of Tables / Pallets...................... 2
Table Size - L.................................. 39.4"
Table Size - W.................................. 39.4"
Weight On Table................................. 5,952 lb
Main Spindle Horse Power........................ 50 hp
Main Spindle Speeds............................. 10,000 RPM
Main Spindle Taper.............................. 50.0
X - Axis Travel................................. 78.82"
Y - Axis Travel................................. 41.73"
Z - Axis Travel................................. 52.95"
B - Axis Travel................................. - 30 DEGREE ~ + 120 DEGREE
C - Axis Travel Table Indexing.................. 360
Rapid Traverse Rate - X......................... 1,654 in/min.
Rapid Traverse Rate - Y......................... 1,654 in/min.
Rapid Traverse Rate - Z......................... 1,654 in/min.
Cutting Feed Rate............................... 1,654 in/min.
Vertical Turning Table Size, Number Of Tables... 39.4
Vertical Turning Table Speed.................... 500 RPM
Vertical Turning Table Horse Power.............. 50 hp
Automatic Tool Changer.......................... 120
Tool Length..................................... 19.6"
Tool Weight..................................... 66 lb
Machine Weight.................................. 85,600 lb
Control......................................... CNC (MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL)
EQUIPPED WITH:
MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL
8MB PROGRAM STORAGE
E-TOWER
HEIDENHEIN LINEAR SCALE FEEDBACK X, Y, Z AXIS
MAZACC - 3D HIGH SPEED SOFTWARE PACKAGE
HIGH SMOOTHING CONTROL
SPINDLE CHILLER, SPINDLE AIR BLOW
CON SEP CHIP CONVEYOR
RENISHAW NC4 LASER TOOL LENGTH MEASUREMENT

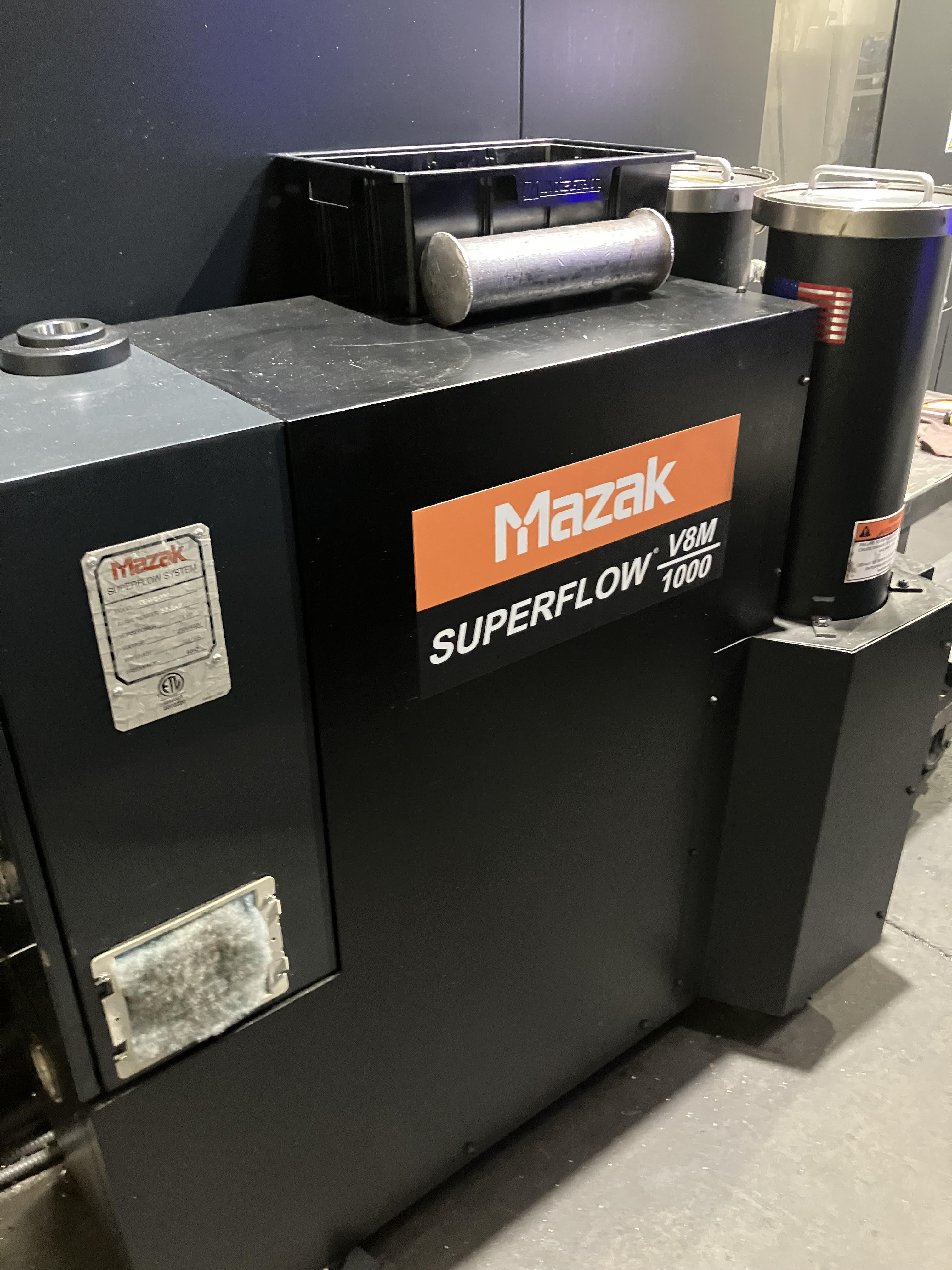

COOLANT THRU SPINDLE V8M SUPERFLOW 1000 PSI
MAZAK MAZATROL NEXUS 5 AXIS CNC COLOR CONTROL MATRIX 2
EIA, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
HIGH SPEED, SHAPE COMP., THREAD,INVERSE TIME, DYNAMIC COMPENSATION
3-D CO-0R ROT., AUTO TLM, POLAR COORDINATES INPUT, COMPARISON STOP, SYNC. CONT., G54.1
SYNC MILL TAP, ROT-AXIS SHAPE COMP, GOO SLOPE CONST., SCALE FEEDBACK, VARIABLE 600 SETS
CYLINDER, SIMULTANEOUS 5 AXIS, EIA HELICAL TAP CYCLE,
EIA PATTERN CYCLE, TILTED WORK PLANE, TABLE UNBALANCE DETECT, 5 AXIS TOOL COMP
ETHERNET RUNNING, TOOL CENTER POINT CONTROL, PROGRAM MEMORY EXPANSION, MILL TURN MAZATROL,
RENISHAW OMP 60 PROBING
HAND HELD MPG
STAIRS AND PLATFORM
2014 MAZAK E 1060V8II
SPECIFICATIONS:
Number Of Tables / Pallets...................... 2
Table Size - L.................................. 39.4"
Table Size - W.................................. 39.4"
Weight On Table................................. 5,952 lb
Main Spindle Horse Power........................ 50 hp
Main Spindle Speeds............................. 10,000 RPM
Main Spindle Taper.............................. 50.0
X - Axis Travel................................. 78.82"
Y - Axis Travel................................. 41.73"
Z - Axis Travel................................. 52.95"
B - Axis Travel................................. - 30 DEGREE ~ + 120 DEGREE
C - Axis Travel Table Indexing.................. 360
Rapid Traverse Rate - X......................... 1,654 in/min.
Rapid Traverse Rate - Y......................... 1,654 in/min.
Rapid Traverse Rate - Z......................... 1,654 in/min.
Cutting Feed Rate............................... 1,654 in/min.
Vertical Turning Table Size, Number Of Tables... 39.4
Vertical Turning Table Speed.................... 500 RPM
Vertical Turning Table Horse Power.............. 50 hp
Automatic Tool Changer.......................... 120
Tool Length..................................... 19.6"
Tool Weight..................................... 66 lb
Machine Weight.................................. 85,600 lb
Control......................................... CNC (MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL)
EQUIPPED WITH:
MAZAK MAZATROL MATRIX 2 CNC COLOR CONTROL
8MB PROGRAM STORAGE
E-TOWER
HEIDENHEIN LINEAR SCALE FEEDBACK X, Y, Z AXIS
MAZACC - 3D HIGH SPEED SOFTWARE PACKAGE
HIGH SMOOTHING CONTROL
SPINDLE CHILLER, SPINDLE AIR BLOW
CON SEP CHIP CONVEYOR
RENISHAW NC4 LASER TOOL LENGTH MEASUREMENT
COOLANT THRU SPINDLE V8M SUPERFLOW 1000 PSI
MAZAK MAZATROL NEXUS 5 AXIS CNC COLOR CONTROL MATRIX 2
EIA, EIA 3D COMP, ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
HIGH SPEED, SHAPE COMP., THREAD,INVERSE TIME, DYNAMIC COMPENSATION
3-D CO-0R ROT., AUTO TLM, POLAR COORDINATES INPUT, COMPARISON STOP, SYNC. CONT., G54.1
SYNC MILL TAP, ROT-AXIS SHAPE COMP, GOO SLOPE CONST., SCALE FEEDBACK, VARIABLE 600 SETS
CYLINDER, SIMULTANEOUS 5 AXIS, EIA HELICAL TAP CYCLE,
EIA PATTERN CYCLE, TILTED WORK PLANE, TABLE UNBALANCE DETECT, 5 AXIS TOOL COMP
ETHERNET RUNNING, TOOL CENTER POINT CONTROL, PROGRAM MEMORY EXPANSION, MILL TURN MAZATROL,
RENISHAW OMP 60 PROBING
HAND HELD MPG
STAIRS AND PLATFORM
Get Your Price from Used CNC LLC!
Buyers Who Viewed This Listing Also Viewed:
Mazak #Vortex-e1060-V/8, vertical machining center, 120 automatic tool changer, 73.8" X, 41.7" Y, 52.9" Z, 10000 RPM, #50, 50 HP, Mazatrol Matrix 2, Renishaw H/V OMP60 probe, 1000 psi thru spindle coolant, 2014
Category: Vertical CNC Machining Centers
Seller: Machnet
Location: Santa Monica, CA
Mfr: Mazak
Model: VORTEX-E1060-V/8
Year: 2014
2014 Mazak Vortex e1060-V/8 2-Pallet Mill/Turn, 74" x 42" x 53", B/C Axes, 2 40" Pallets, 10K RPM, CAT50, 120 ATC, Turning, Mazatrol Matrix 2, 1000PSI, Conveyor, Probing, & More, Mazak Vortex e1680-V/8 CNC Multi-Axis Turning/Machining Center, New: March 2014, Travels:, X-Axis: 73.82", Y-Axis: 41.73", Z-Axis: ...more
Mazak #Vortex-e1060V/8, 2 pallet turning/machining center, Mazatrol Matrix 2 CNC conversational Control, 73.8" X, 41.7" Y, 52.9" Z, 10000 RPM, 120 automatic tool changer, Cat 50, 2014
Category: Vertical CNC Machining Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Mazak
Model: VORTEX-E1060V/8
Year: 2014
Mazak Vortex e1060-V/8 5-Axis Vertical Machining CenterAxis Travel:X – axis 73.82″Y – axis 41.73″Z – axis 52.95″B – axis Full contouring 150 Degree (-30 Deg. to 120 Deg.)C – Axis 360 Degree (.0001 Deg. Increment)Pallets (2) 39.4″ x 39.4″Work piece Dimensions ...more
JUST ADDED!
Daewoo Doosan #DVF-5000, 5-Axis CNC Vertical Machining Center, 25" X, 18" Y, 16" Z, 42 HP, 18000 RPM, 120 automatic tool changer, Heidenhain TNC 640 control, 2020
Category: Vertical CNC Machining Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Doosan
Model: DVF 5000
Year: 2020
Used Vertical machining center featuring Heidenhain TNC 640 control, 18,000 RPM, 42 hp, 120 ATC, HSK 63 spindle, air and coolant thru spindle, chip conveyor, Renishaw probe, and tool touch setter., 2020 DOOSAN DVF 5000, X. 25", Y. 18", Z. 16", # Axis. 5, Power. 42 hp, RPM. 18,000 RPM, # ATC. 120, Taper. HSK 63 ...more
JUST ADDED!
Daewoo Doosan #DVF-5000, 5-Axis CNC vertical machining center, 24.6" X, 17.7" Y, 15.7" Z, 18000 RPM, CAT 40, 120 automatic tool changer, 2022
Category: Vertical CNC Machining Centers
Seller: Bay Area CNC Machinery
Location: Walnut Creek, CA
Mfr: Daewoo Doosan
Model: DVF-5000
Year: 2022
Travel & Rotation:- X-Axis Travel: 24.6 (625 mm)- Y-Axis Travel: 17.7 (450 mm)- Z-Axis Travel: 15.7 (400 mm)- B-Axis Tilt: +110 / -30- C-Axis Rotation: 360- Rapid Traverse (X/Y/Z): 1,575 IPM (40 m/min)Table & Capacity:- Rotary Table Diameter: 19.7 (500 mm)- Max Table Load: 882 lbs (400 kg)- Max Workpiece ...more
JUST ADDED!

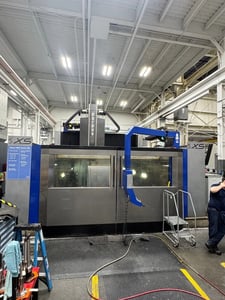

Parpas #XS63, 5-Axis CNC Vertical Machining Center, 236.2" X, 118.1" Y, 59" Z, 49 HP, 20000 RPM, 120 automatic tool changer, Heidenhain TNC-i530 control, 2014
