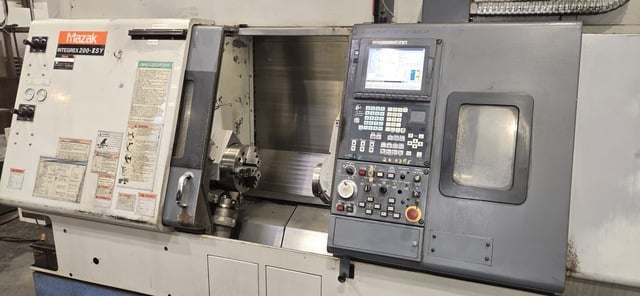

Mazak #Integrex-200-IISY, CNC Lathe, 5-Axis, 21.3" Swing, 39.5" Machining length, 10" Chuck, 2" Bar, 21.3" Turning diameter, 20 HP, 5000 RPM, 2001

Estimated monthly payment valid upon approved credit.

Request Formal Quote

2001 Mazak INTEGREX 200-IISY, 5-axis CNC lathe, features 21.25" swing, 39.5" machining length, 10" chuck, 20 hp, and max 5000 RPM. Equipped with high-pressure coolant, 40-tool magazine, spindle speeds up to 10,000 RPM, and advanced control options.

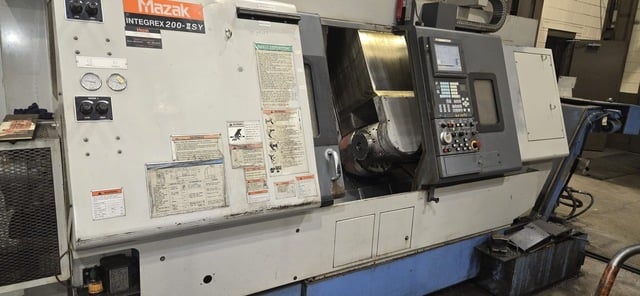

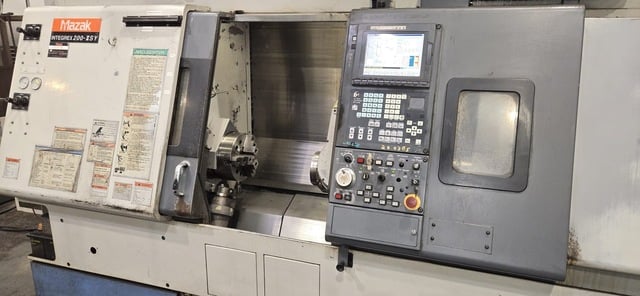

2001 MAZAK INTEGREX 200-IISY
SPECIFICATIONS:
# Axis............. 5
Swing.............. 21.25"
Machining Length... 39.5"
Chuck Size......... 10"
Bar Capacity....... 2"
Power.............. 20 hp
Max RPM............ 5,000 RPM
Turning Dia........ 21.25"
Tailstock.......... No

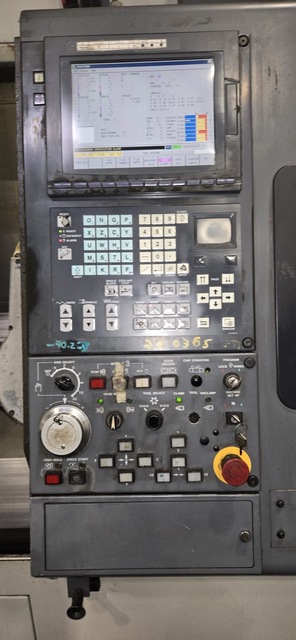

Control............ CNC (Mazatrol Fusion)
EQUIPPED WITH:

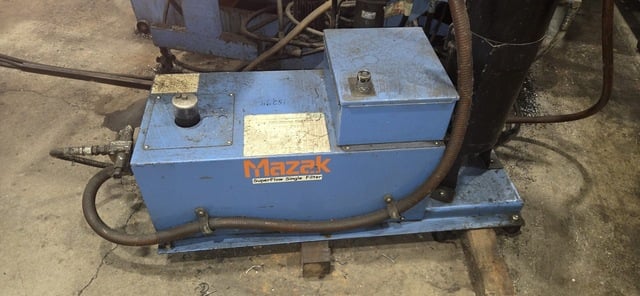

Mazak Super Flow I High Pressure Coolant 1000 PSI/6GPM
Super Flow Pump
Spindle Bore Dia. 76mm (2.99") for Main Spindle Max RPM

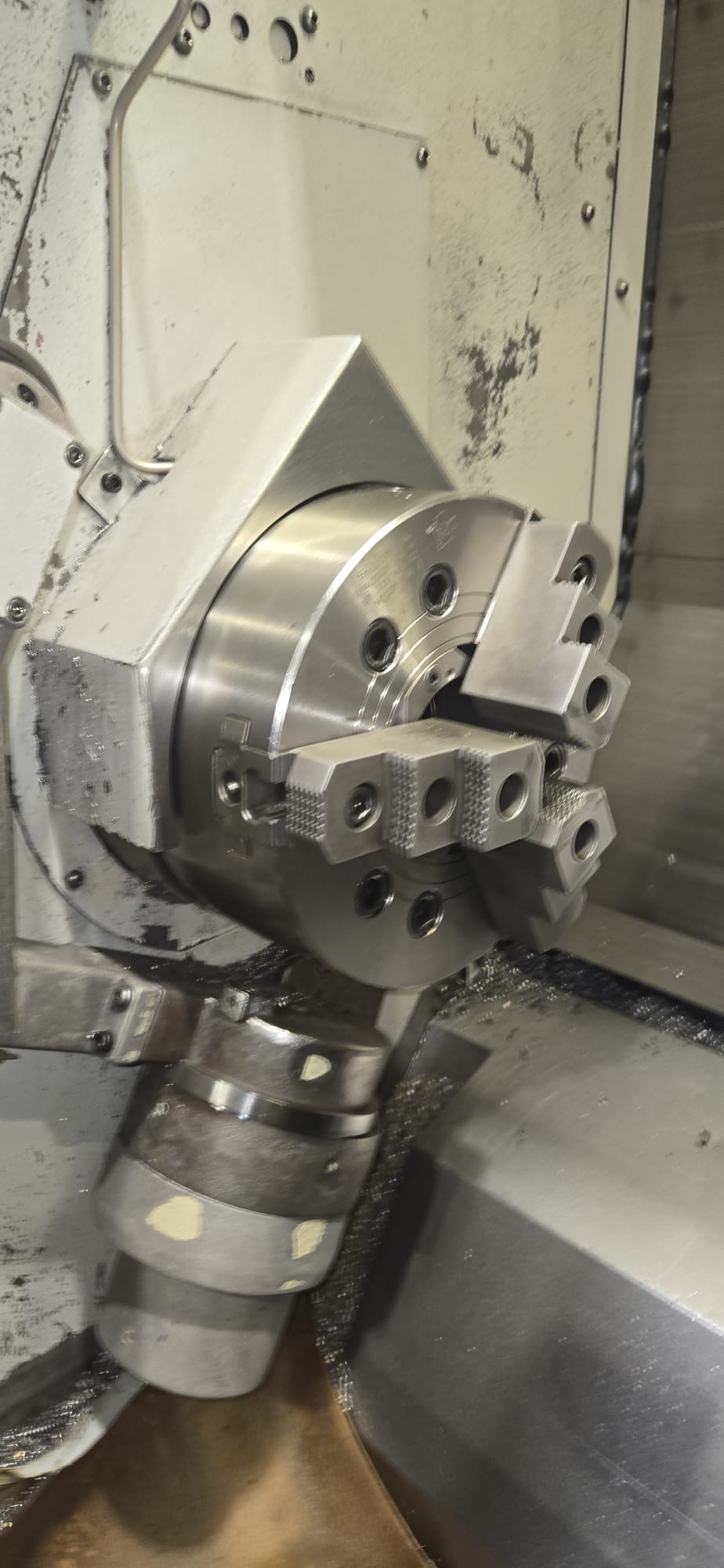

10" Chuck B210A815 (Bore: 76 / 1st Spindle)

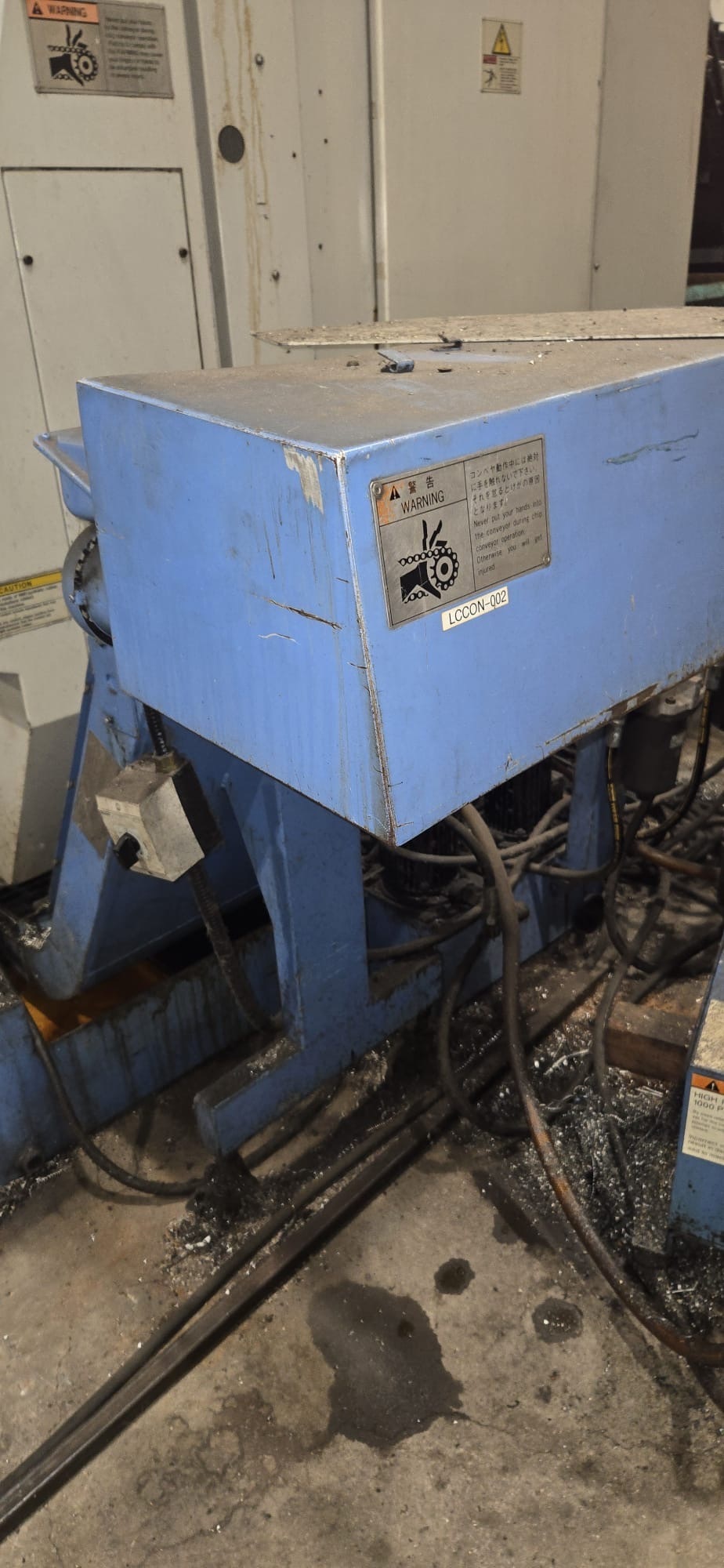

Chip Conveyor Side Disposal (Hinge Type)
Coolant Through Milling Head
Multitap Transformer
Machine Arranged 230-460V
PCMCIA Interface (2-Slot)
3.5" Floppy Disk Drive (FDD)
2GB Hard Drive

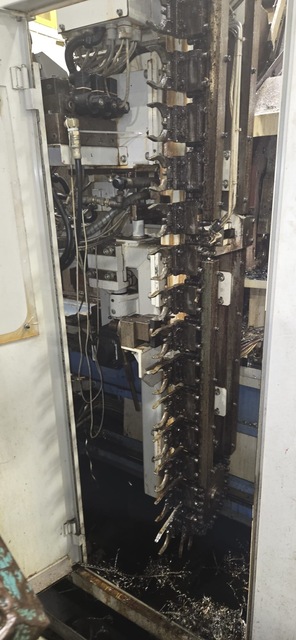

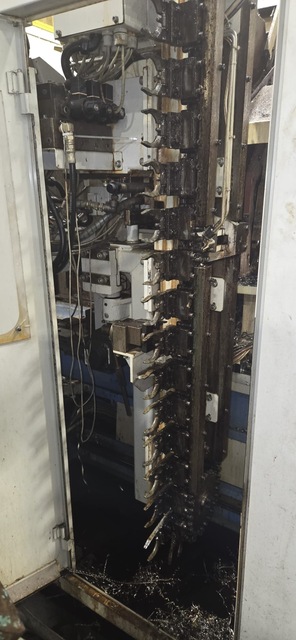

40 Tool Magazine
2nd Spindle C-Axis 0.001 Degree Increment
EIA/ISO Option Package (for Integrex with B Axis)
Hydraulic Pressure Interlock
B-Axis 0.001 Degree Increment N/A Contouring
Tool Eye
Operator Door Interlock with Lock-Switch
Rotary-Tool Spindle Speed 10000 RPM
5KG/71 PSI Coolant Flood/Thru Not Simul-Flowable
B-Axis 0.001 Degree Increment Contouring/EIA Only
Milling-Spindle Synchronous Tapping
Overload Detection System
High/Low Chuck Pressure System (Main Spindle)
High/Low Chuck Pressure System (2nd Spindle)
High-Speed PC-Card (K6-233MHz)
Geometry Compensation Function
