Manufacturer: Mazak
Model: INTEGREX-100-IV
Year: 2007
Swing: 21.4
Chuck: 6
Bar Capacity: 2.0
Stock # 33248
1 / 3
Click to zoom in
1 / 3
For Sale by Machnet
Surplus Record Dealer Since 2009
Location: Santa Monica, CA
Contact G. Taubman
Phone Number: 310...> Show Phone Number 310-909-2020
Let the seller know you found their listing on Surplus Record!
Description

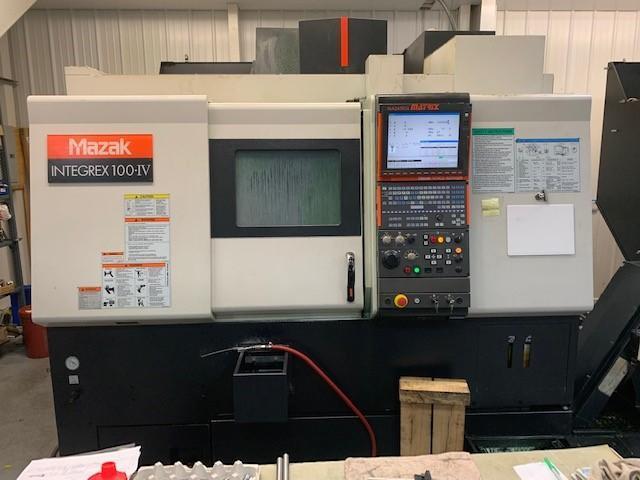

2007 Mazak Integrex 100-IV CNC Turning Center w/ Full Live Milling/Drilling
Mazak Integrex 100-IV CNC Turning Center
New: 2007
Specifications:
Chuck Size: 6"
Max Swing: 21.46"
Swing Over Cross: 13.86"
Cutting Diameter: 21.46"
Max Machining Length: 29.65"
X-Axis Travels: 16.14"
Y-Axis Travels: +/- 2.75"
Z-Axis Travels: 31.69"
C-Axis Rotation: 0.001 Degrees
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Spindle Taper: KM 63
Tool Changer: 40 ATC
Spindle Nose: A2-5
Spindle Bore: 2.4"
Bar Capacity: 2"
Rotary Tool Speed: 12,000 RPM
Rotary Motor: 7.5 HP
Equipped With:
Mazatrol Matrix Control
B-Axis Pendulum Head (225 Degree Movement)
Full C-Axis
Live Milling/Drilling
Y-Axis Capability for Off Center Work
Programmable Tailstock
Parts Catcher
Chip Conveyor

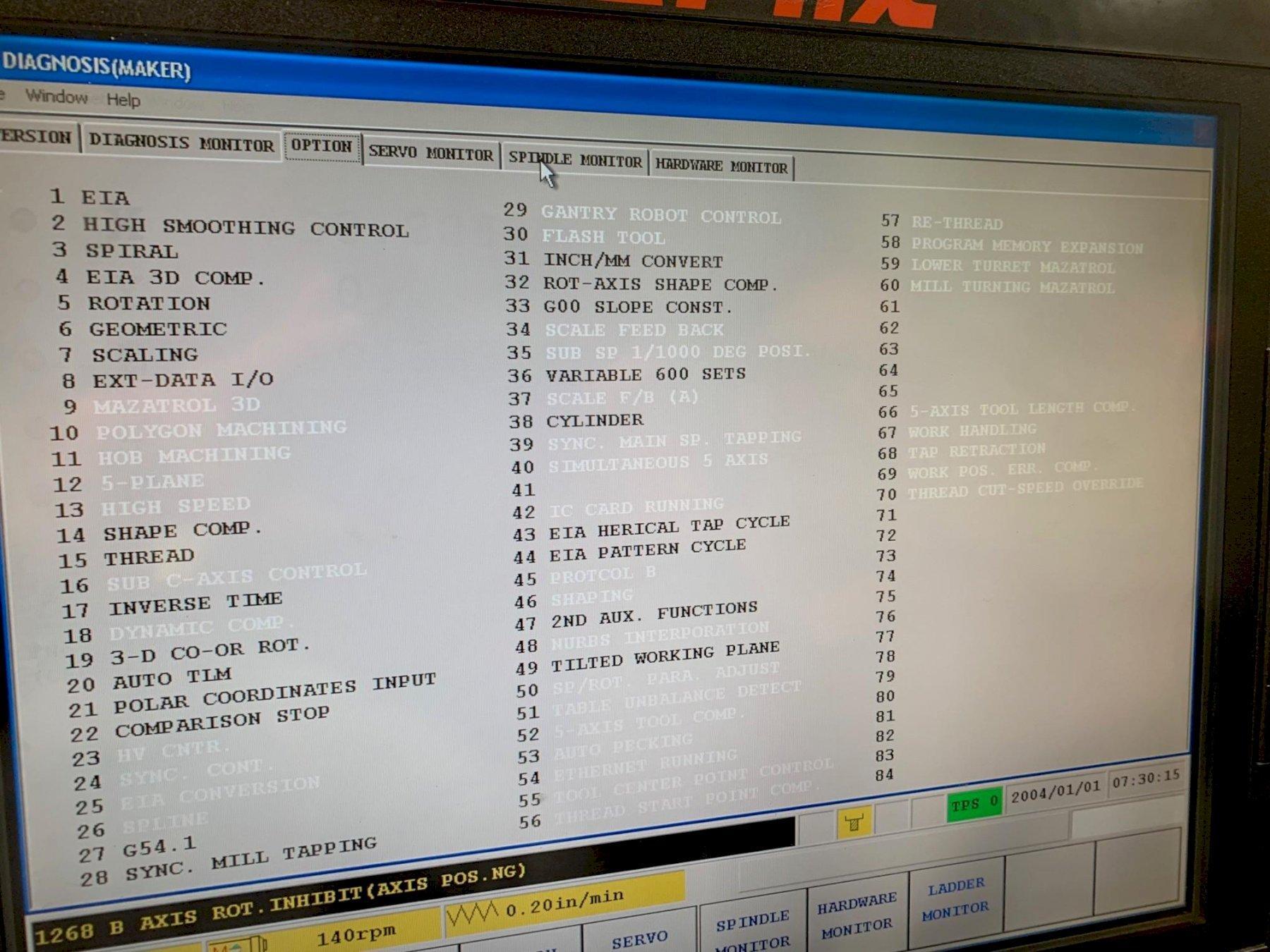

EIA/Smoothing/Spiral Interpolation/3D Comp/Rotation/Scaling & More
Weight: 11,088 Lbs
Mazak Integrex 100-IV CNC Turning Center
New: 2007
Specifications:
Chuck Size: 6"
Max Swing: 21.46"
Swing Over Cross: 13.86"
Cutting Diameter: 21.46"
Max Machining Length: 29.65"
X-Axis Travels: 16.14"
Y-Axis Travels: +/- 2.75"
Z-Axis Travels: 31.69"
C-Axis Rotation: 0.001 Degrees
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Spindle Taper: KM 63
Tool Changer: 40 ATC
Spindle Nose: A2-5
Spindle Bore: 2.4"
Bar Capacity: 2"
Rotary Tool Speed: 12,000 RPM
Rotary Motor: 7.5 HP
Equipped With:
Mazatrol Matrix Control
B-Axis Pendulum Head (225 Degree Movement)
Full C-Axis
Live Milling/Drilling
Y-Axis Capability for Off Center Work
Programmable Tailstock
Parts Catcher
Chip Conveyor
EIA/Smoothing/Spiral Interpolation/3D Comp/Rotation/Scaling & More
Weight: 11,088 Lbs
Get Your Price from Machnet!
