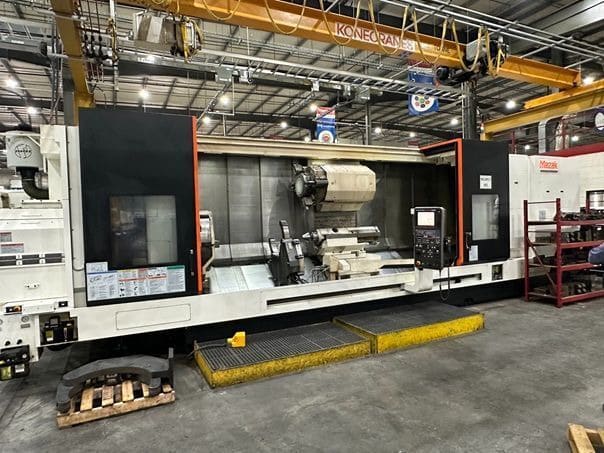

Mazak #Cybertech-Turn-5500M, 2-Axis, Mitsubishi Matrix Nexus Control, 36" swing, 32" chuck, 14.7" bar, 2012

MAZAK CYBERTECH TURN 5500M

SPECIFICATIONS:
SWING 36.02″
MACHINING LENGTH 159.13″
# AXIS 2
CHUCK SIZE 32″
BAR CAPACITY 14.76″
POWER 60 hp
MAX RPM 500 RPM
TURNING DIA 31.89″
TAILSTOCK Yes
LIVE TOOLING Yes
SUB SPINDLE No

Specifications (subject to buyer verification):
Spindle Bore: 14.76”
Chuck Size: 32”
Bed Length: 160”
Maximum Swing: 36.02”
Maximum Machining OD: 31.89”
Maximum Machining Length: 159.13”
Live milling speed: 3,000 RPM
Z-Axis Travel: 123”
Tooling: 12 Station Turret
Main Spindle HP: 60
Main Spindle RPM: 500
Motor Output (30 minute rating): 15 HP
WEIGHT 70,000 lbs

Equipped With (subject to buyer verification):
Mitsubishi Matrix Nexus Controller
Live Tooling
Pneumatic Main Chuck: BP 800-375
SMW-AUTOBLOK K6-ZSW Hydraulic Steady Rest min/max: 5.31” to 18.11”
Additional Manual Steady Rest: max 23.5”
Tailstock
Boring Bar Stocker
Tool Eye
Chiller
Three (3) ID holders: grooving, finish bore, rough bore
Three (3) OD holders; grooving, finish, roughing
Twenty-One (21) sets of various size soft jaws
