Mazak CNC Control Board IPM-200

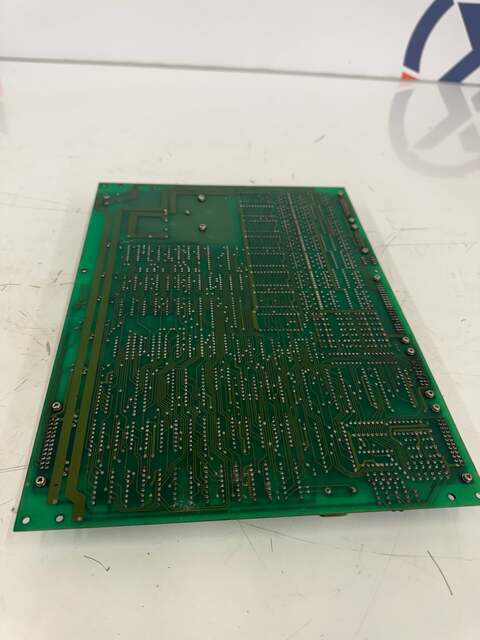

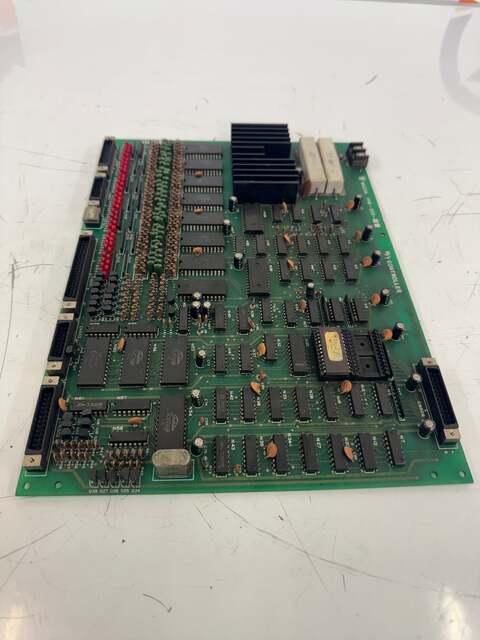

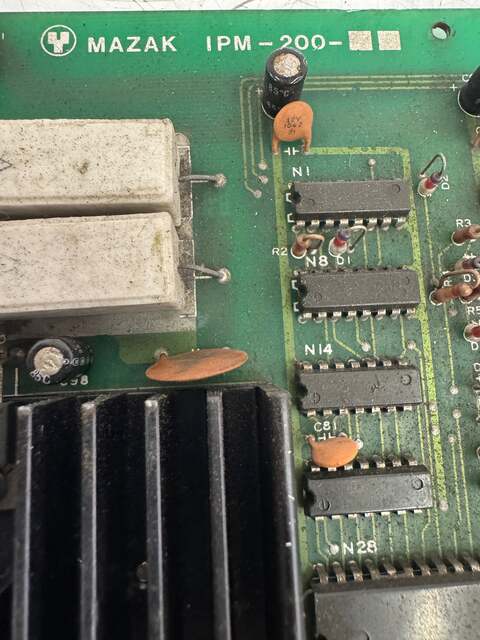

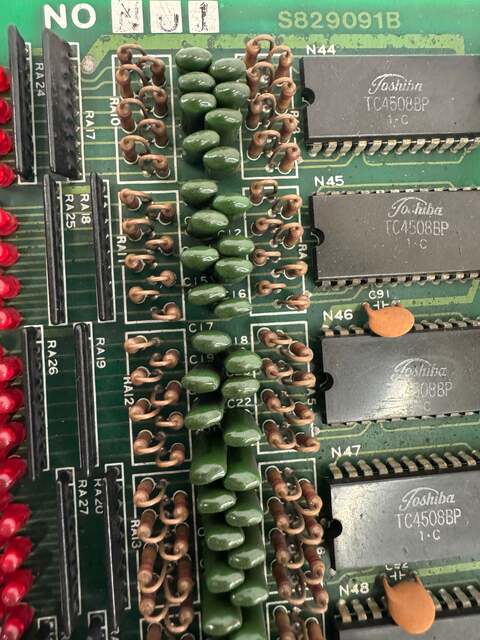

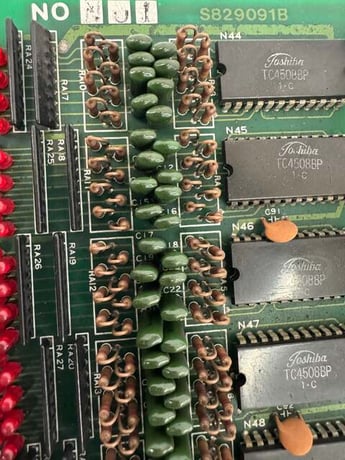

Used in Mazak CNC machining and turning centers, the IPM-200 is a discontinued Mazatrol main control board identified by Mazak and industrial surplus suppliers as an M/T Control BD. The board carries MPN IPM-200 and is silkscreened with the designation "W/1 CONTROLLER," with a board revision identifier of S829091B visible on the component side. The PCB features a multi-layer through-hole construction populated with Toshiba TC4508BP ICs, multiple DIP logic packages, a heat sink assembly, edge connectors on three sides, and an array of resistor networks. Alternate part number IPM200 is recognized in active US market listings. Mazak is a premium-tier CNC machine tool manufacturer, and legacy control boards such as this one are in demand as repair and replacement components for older Mazatrol-equipped machines. The IPM-200 is discontinued by the original manufacturer and is no longer available through new production channels, making surplus and used stock the primary source for end users maintaining compatible equipment. This board is offered as a surplus component removed from industrial service.

Stock # 0226-426
