Description

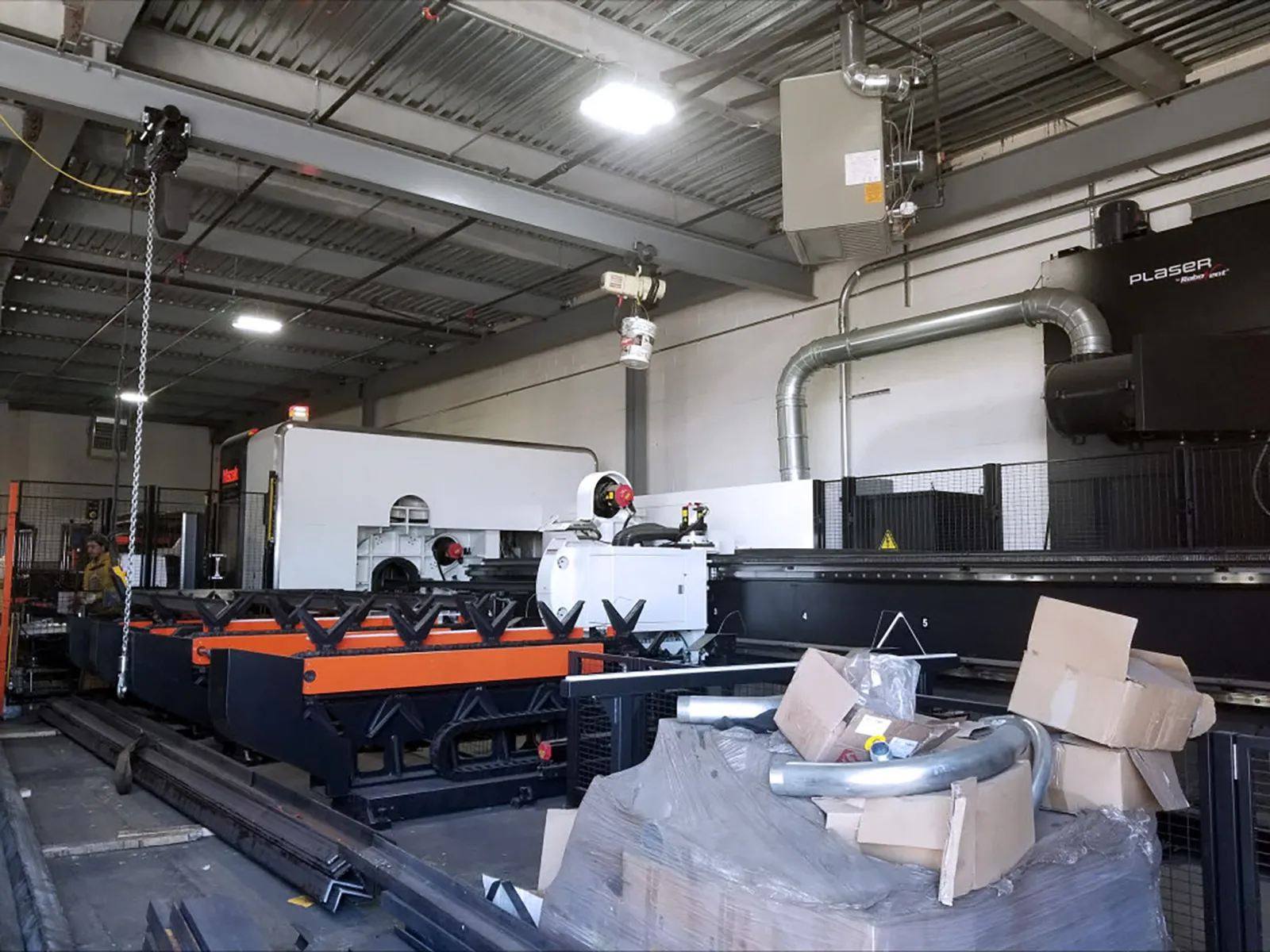

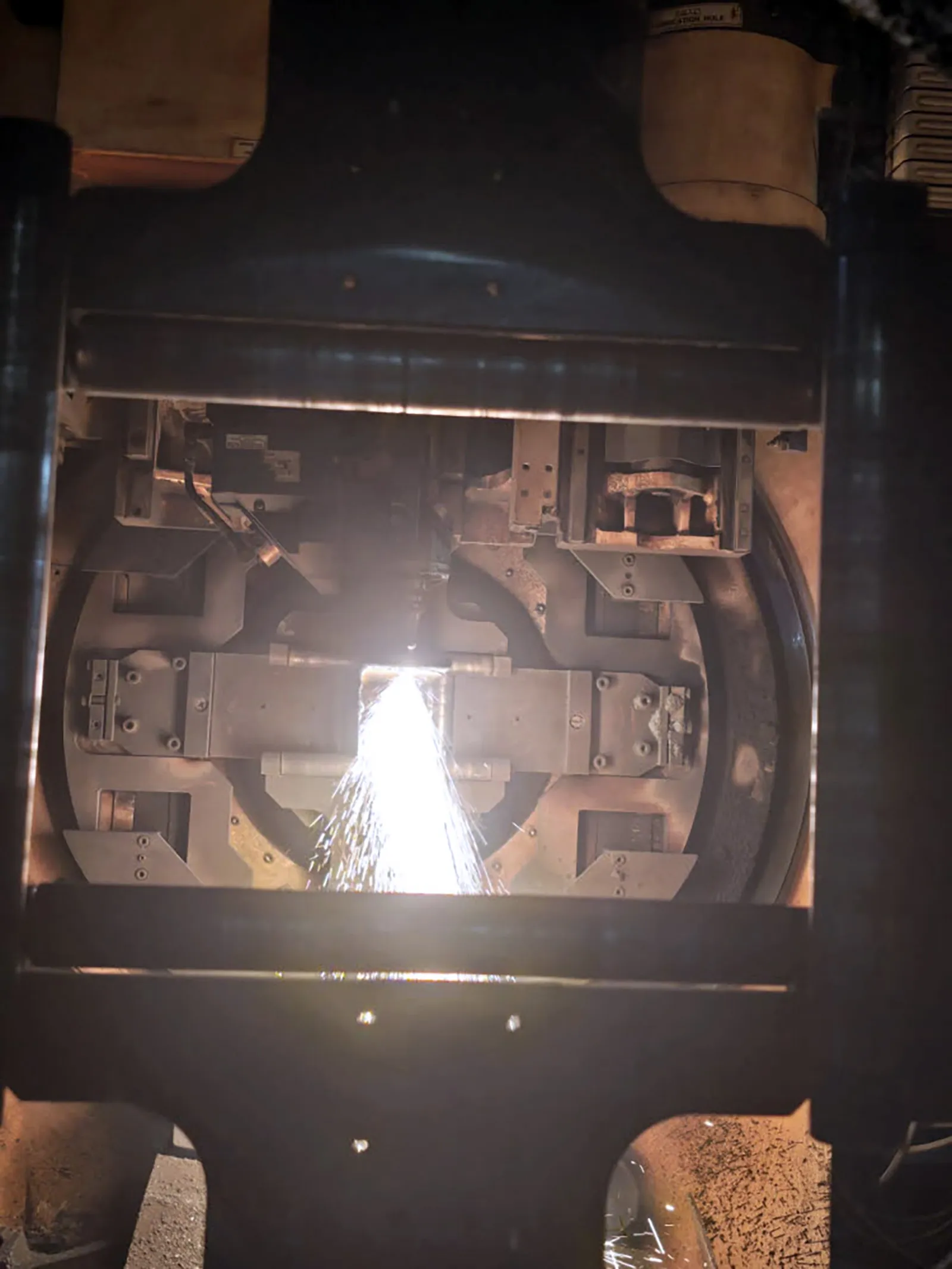

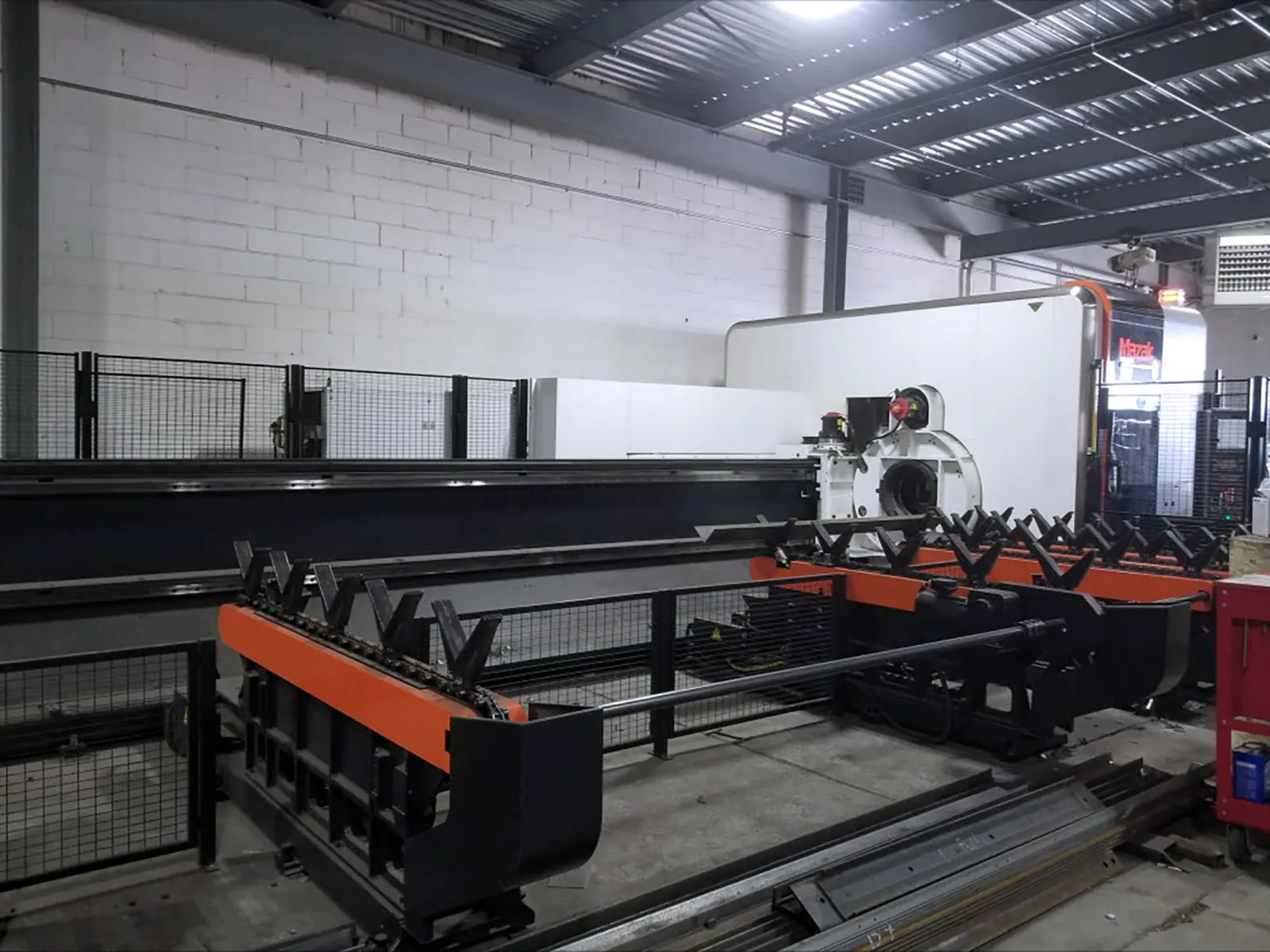

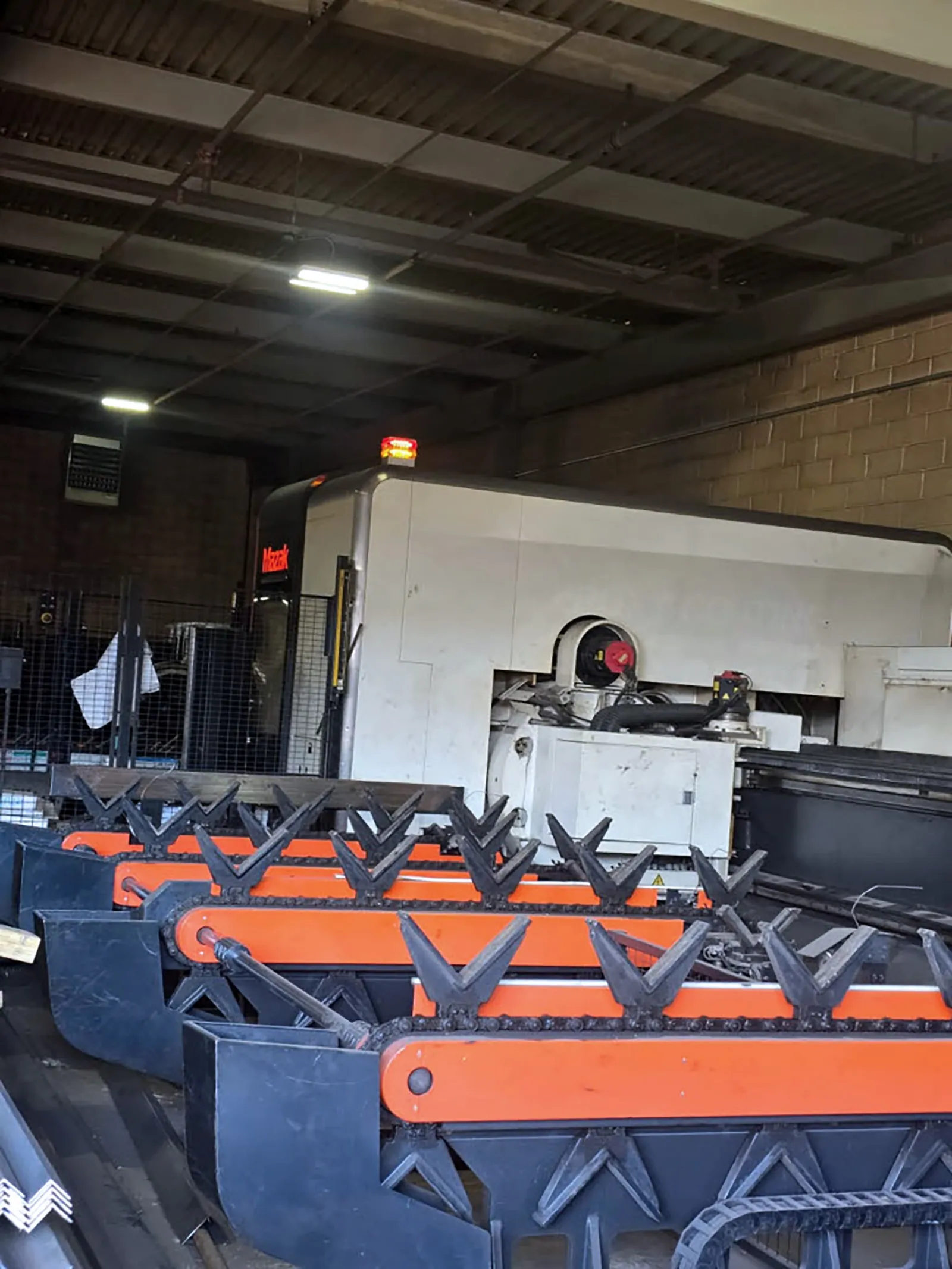

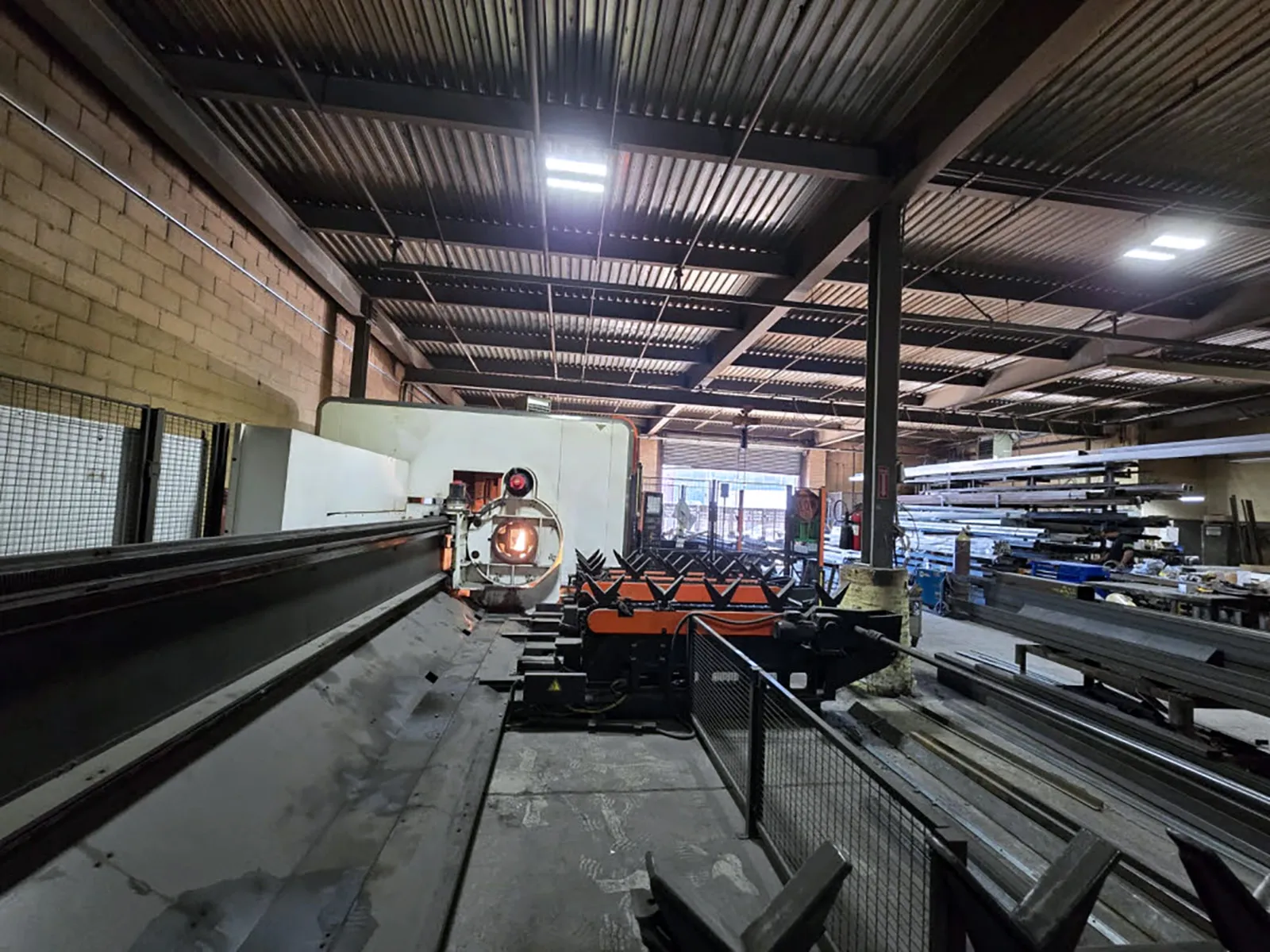

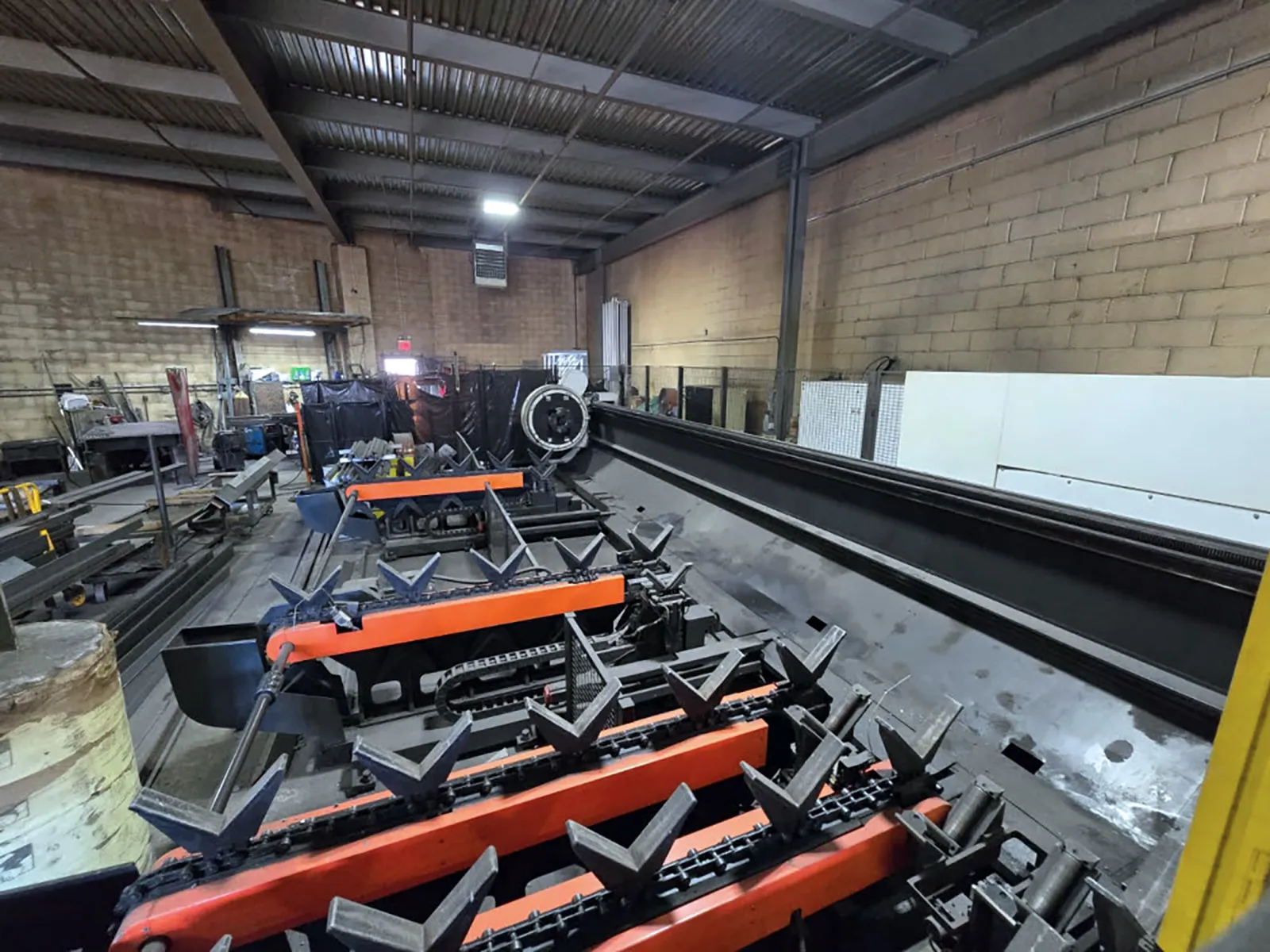

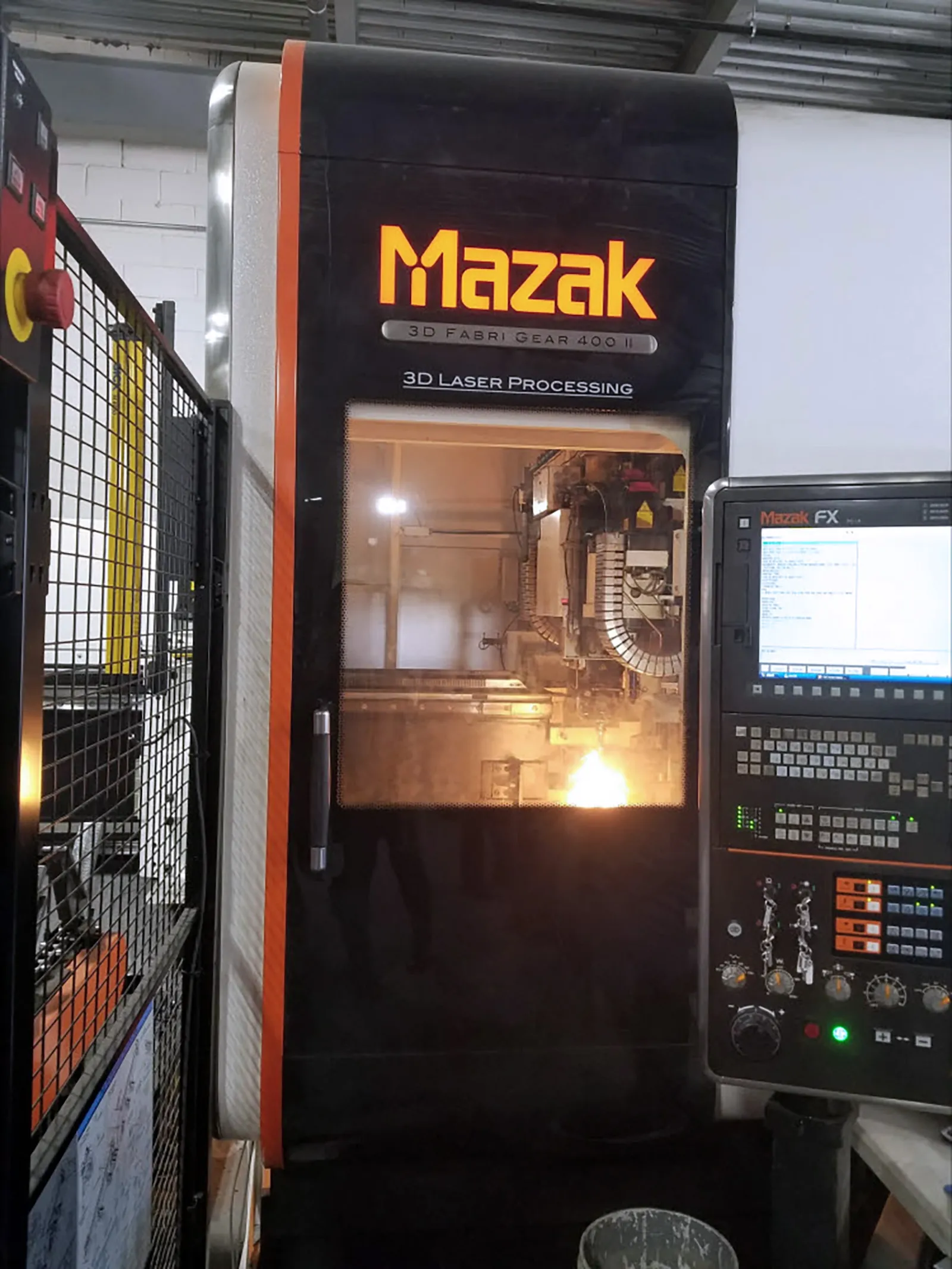

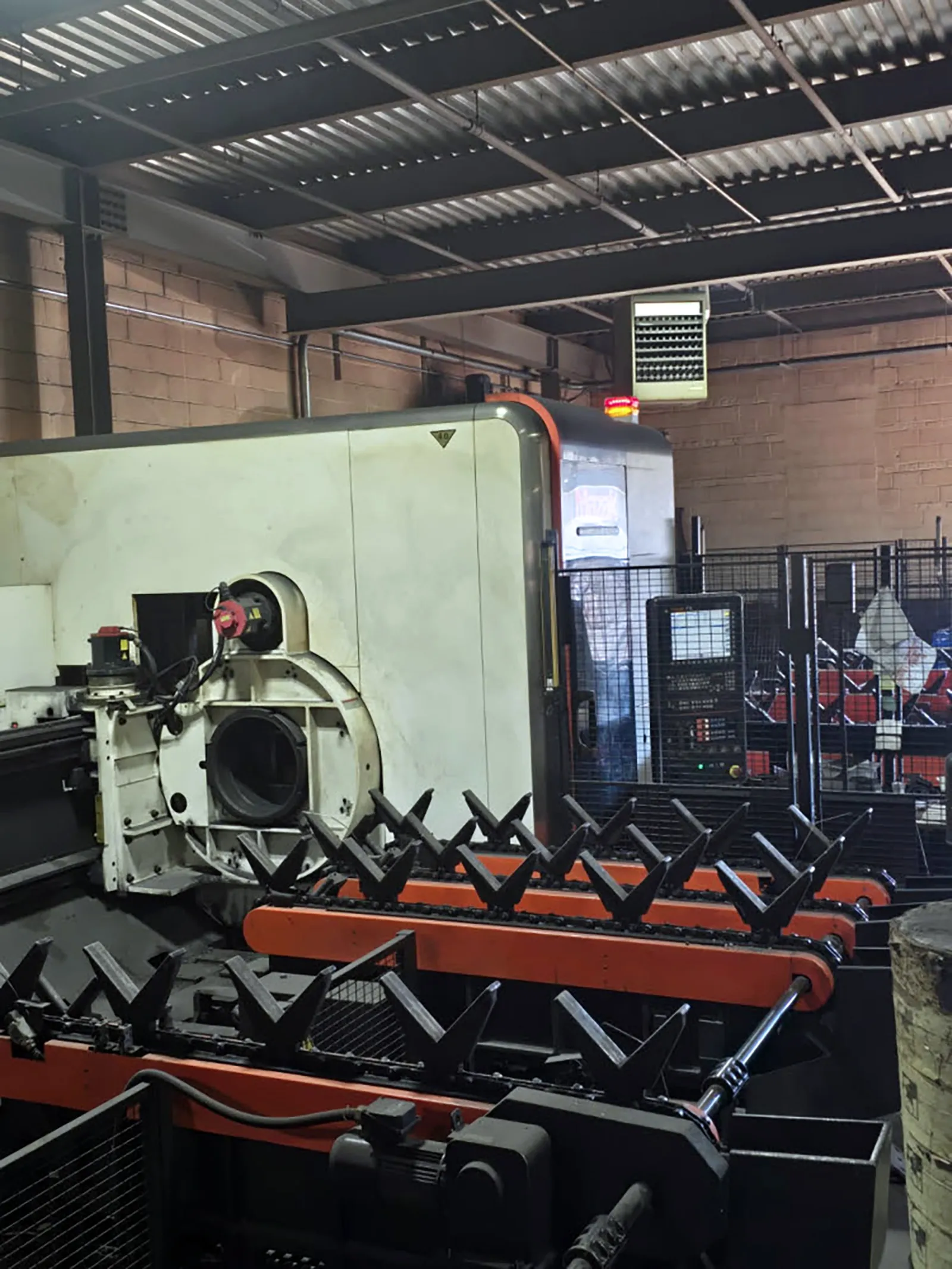

Boost productivity with this Mazak 3D Fabri-Gear 400 II CNC tube laser (2016), engineered for precision cutting of long, heavy pipes and structural materials. Achieve complex 3D cuts, beveling, drilling, and tapping in one setup. Its automated loading system supports continuous, high-volume production with minimal labor, making it ideal for fabrication, construction, and industrial manufacturing applications.
Workpiece Shape: Round, square, L/H/I beam and channel
Workpiece Material: Mild steel / Stainless steel
4000 Watt CO2 Laser
Workpiece Diameter
Round Pipe: .79" - 16"
Square Pipe: .79" x .79" - 10" x 10"
H/I Beam: .79" x .79" - 11.81" x 11.81"
Channel: .79" x .79" - 11.81" x 5.51"
Max Material Length for Loading: 314.96"
Min Material Length for Loading: 135.83"
Max Workpiece Weight: 1764 lbs
Stroke
X Chuck Left / right: 346.06"
U Chuck Left / right: 366.14"
V Chuck Left / right: 99.02"
Y Head back / forth: 50"
Z Head up / down: 14.57"
A head rotation: 99999.999 deg
B head swing: 135 deg
Max. Traverse Rate
X, U, V: 1181 IPM
Max. Traverse Rate Y: 945 IPM
Max. Traverse Rate Z: 945 IPM
Max. Traverse Rate A, B: 9600 deg/min
C (chuck rotation): 6000 deg/min
Machine Weight: 77,160 lbs
Workpiece Shape: Round, square, L/H/I beam and channel
Workpiece Material: Mild steel / Stainless steel
4000 Watt CO2 Laser
Workpiece Diameter
Round Pipe: .79" - 16"
Square Pipe: .79" x .79" - 10" x 10"
H/I Beam: .79" x .79" - 11.81" x 11.81"
Channel: .79" x .79" - 11.81" x 5.51"
Max Material Length for Loading: 314.96"
Min Material Length for Loading: 135.83"
Max Workpiece Weight: 1764 lbs
Stroke
X Chuck Left / right: 346.06"
U Chuck Left / right: 366.14"
V Chuck Left / right: 99.02"
Y Head back / forth: 50"
Z Head up / down: 14.57"
A head rotation: 99999.999 deg
B head swing: 135 deg
Max. Traverse Rate
X, U, V: 1181 IPM
Max. Traverse Rate Y: 945 IPM
Max. Traverse Rate Z: 945 IPM
Max. Traverse Rate A, B: 9600 deg/min
C (chuck rotation): 6000 deg/min
Machine Weight: 77,160 lbs
