Mayer #PS-9Z-3801, Beam Saw, 149.6" Cutting Length, 4.1" Blade Projection, 17.5 HP Main, 1.5 HP Scoring, 16-230 FPM, 2008

Estimated monthly payment valid upon approved credit.

Request Formal Quote

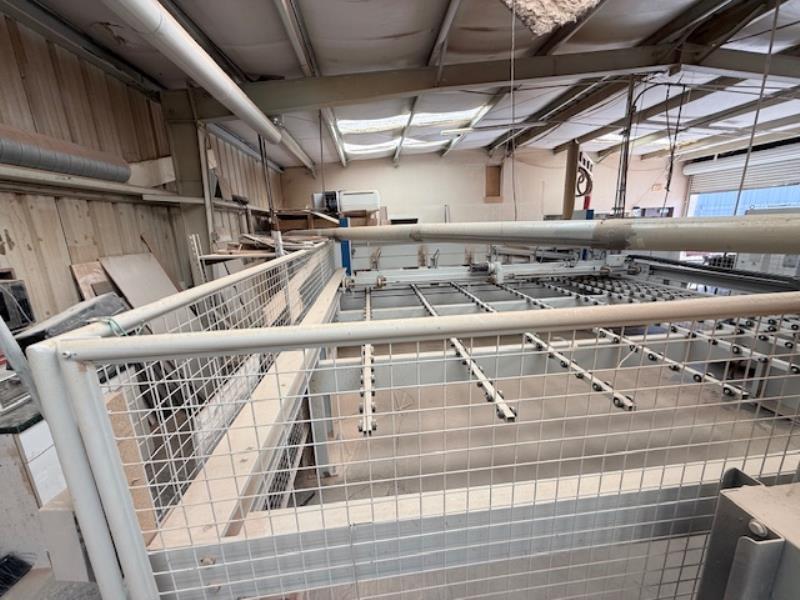

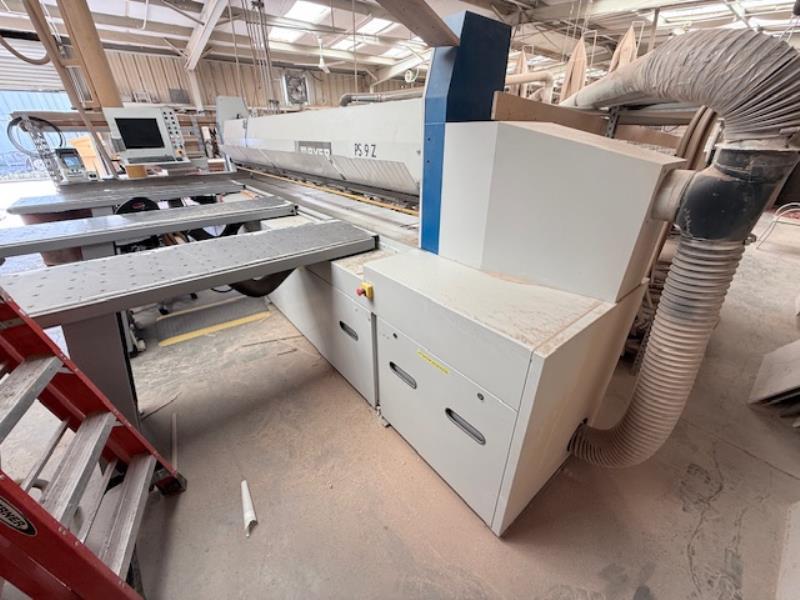

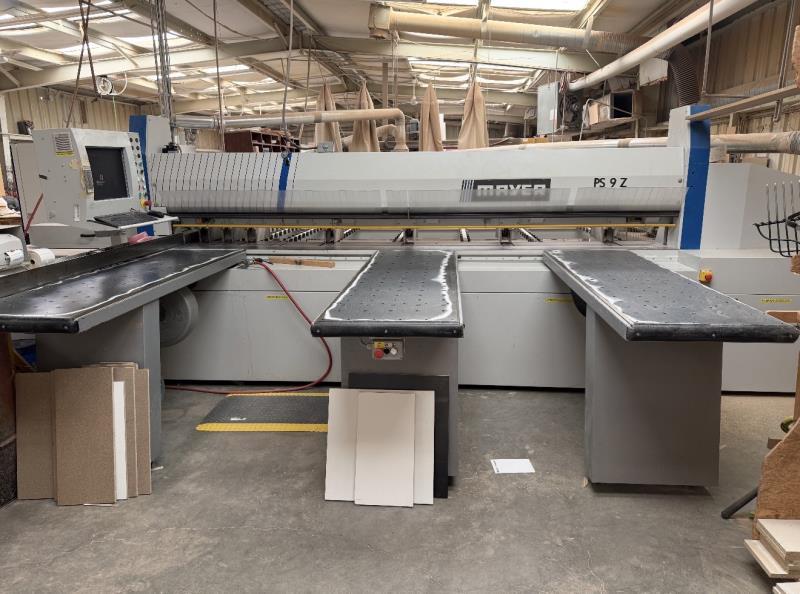

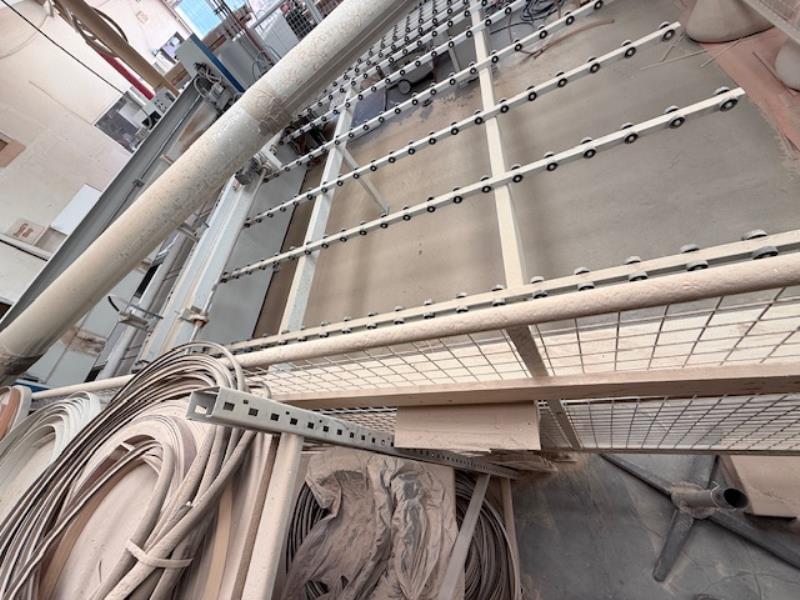

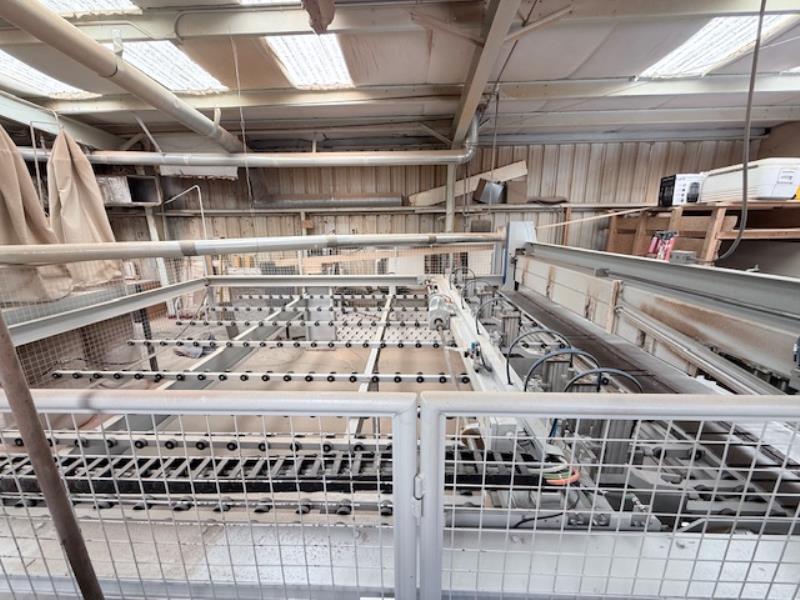

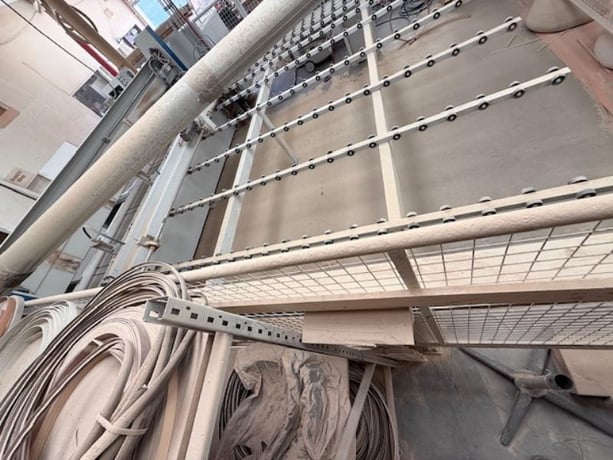

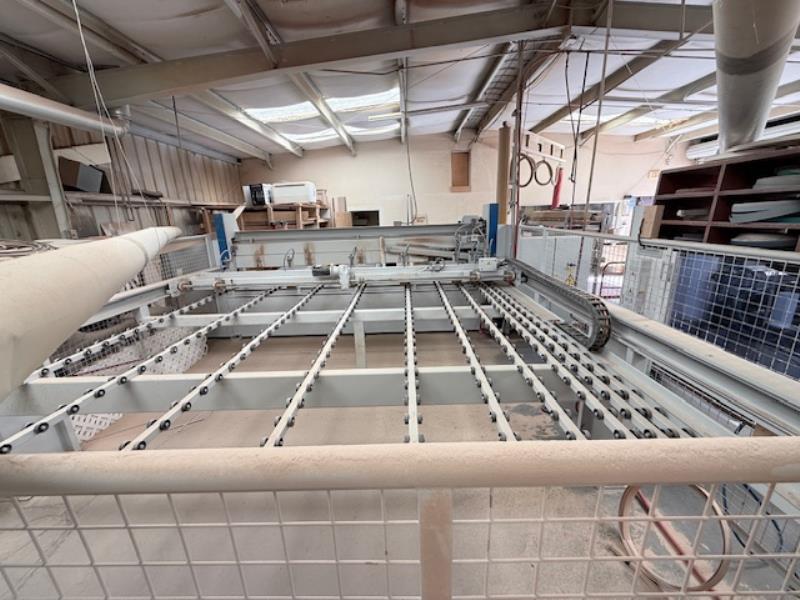

MAYER PS 9Z Front Load Panel Saw 149.6" Cutting length (3,800 mm), 4.1" (105 mm) max saw blade projection,Equipped with: -- 17.5 HP (9 kW) main saw motor & 1.5 HP (1.1 kW) scoring motor, 355 mm dia. main blade and 127 mm dia. score blade dia.; saw carriage with rack & pinion drive, forward cutting speed 16 - 230 FPM, constant return speed 232 FPM. -- Electronically controlled overhead program fence with rack & pinion drive on hardened & ground guideways, forward speed 80 FPM, return speed 196 FPM. -- Saw Table with: (7) Clamps (open up to 3.1" / 80 mm), of which (3) are closely spaced in crosscut area and the other (4) are at equal distance in rip cut area; AC Servo motor drives on both the saw carriage and pusher fence; rear table with double row support rollers. -- Features: -- PC Front-End WINDOWS XP Operating System, moving graphics displayed on 14" color monitor mounted in a pivoting console, (2) serial & (1) parallel interface; data input by PC keyboard, prepared for possible direct downloading from office PC. -- Control System Features: Automatic cutting length (material is scanned by sensor underneath the packet on the saw bed), electronically controlled automatic cutting height adjustment, automatic trim calculation; cabinet air conditioning. -- Includes: -- (8) Rear support rails with rollers; 78.7" long cross-cut fence; automatic side aligner (.75" to 51") with automatic presetting; rear slotted pressure beam to minimize off-cut; (3) front mounted air table (78" x 25"); plastic segmented safety guards on front of pressure beam; safety fencing around the back section of the machine.
