For Sale by Myers Technology Co LLC
Surplus Record Dealer Since 2008
Location: Elk Grove Village, IL
Contact John Myers
Phone Number: 847...> Show Phone Number 847-290-0167
Let the seller know you found their listing on Surplus Record!
Description

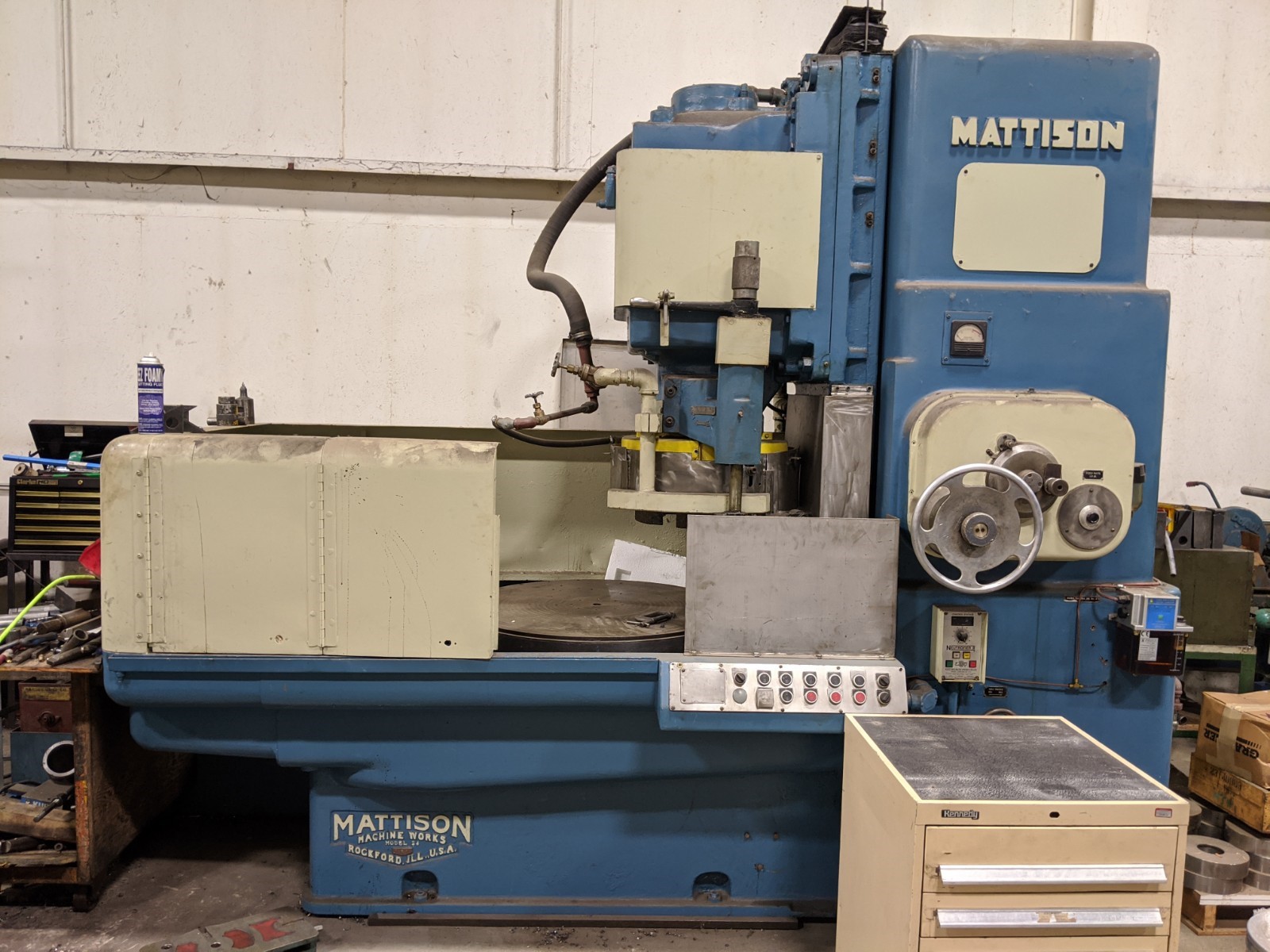

Mattison Model 24-36
Mattison Rotary surface grinder, 18" Wheel, 50HP, 36" Chuck, like Blanchard

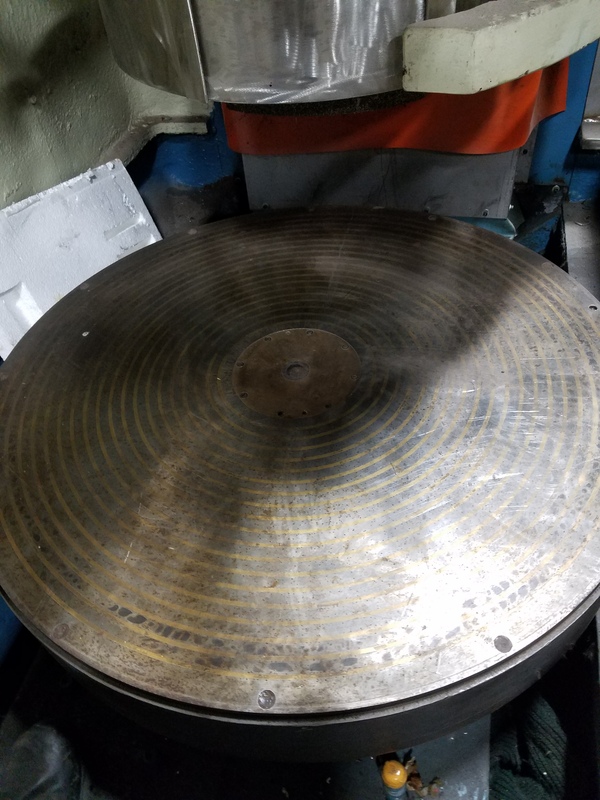

Chuck Diameter 36"
Max Swing inside guards 48"
Max. vertical height of work 12" under new wheels
Grinding wheel size 18"
Type of grinder wheel Segmented
Grinding wheel speed 705
Table ( Chuck Speeds) No./ range (4) : 8, 11, 18, 32 RPM
Horsepower 50hp
Auto Downfeed increments per minute LOW Low (11) : 0.005 to 0.042 IPM
Auto downfeed increments per minute HIGH (11) : 0.020 to 0.165 IPM (in/
head elevation and downfeed 2 H.P.
Table drive 2 H.P.
Coolant motor 1/4 H.P.
overall dimensions 140" by 68" by 102"
Approx. weight 14,000 lbs.
Chuck Life 1/2"

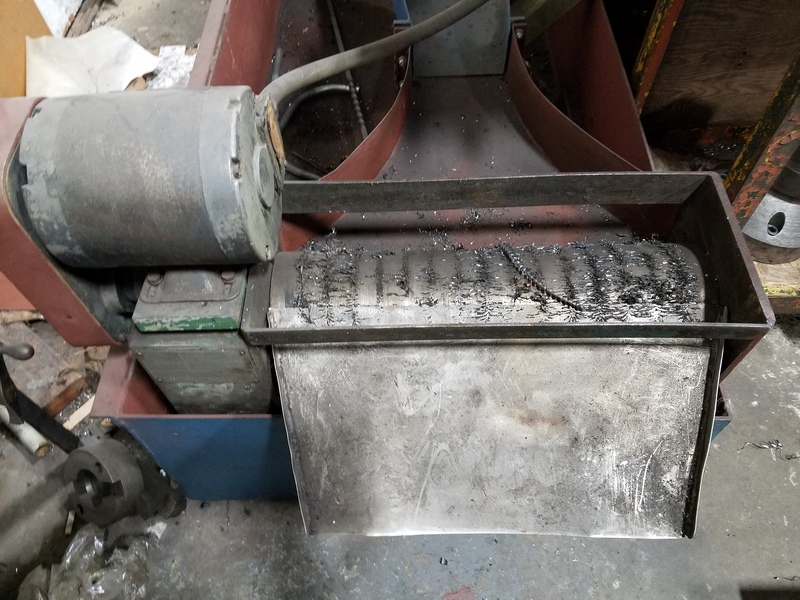

dry base Coolant w/ mag seperater
Mattison Rotary surface grinder, 18" Wheel, 50HP, 36" Chuck, like Blanchard
Chuck Diameter 36"
Max Swing inside guards 48"
Max. vertical height of work 12" under new wheels
Grinding wheel size 18"
Type of grinder wheel Segmented
Grinding wheel speed 705
Table ( Chuck Speeds) No./ range (4) : 8, 11, 18, 32 RPM
Horsepower 50hp
Auto Downfeed increments per minute LOW Low (11) : 0.005 to 0.042 IPM
Auto downfeed increments per minute HIGH (11) : 0.020 to 0.165 IPM (in/
head elevation and downfeed 2 H.P.
Table drive 2 H.P.
Coolant motor 1/4 H.P.
overall dimensions 140" by 68" by 102"
Approx. weight 14,000 lbs.
Chuck Life 1/2"
dry base Coolant w/ mag seperater
Get Your Price from Myers Technology Co LLC!
