For Sale by Piselli Enterprises
Surplus Record Dealer Since 1998
Location: Statesville, NC
Contact Rich Piselli
Phone Number: 704...> Show Phone Number 704-609-0766
Let the seller know you found their listing on Surplus Record!
Description
Description

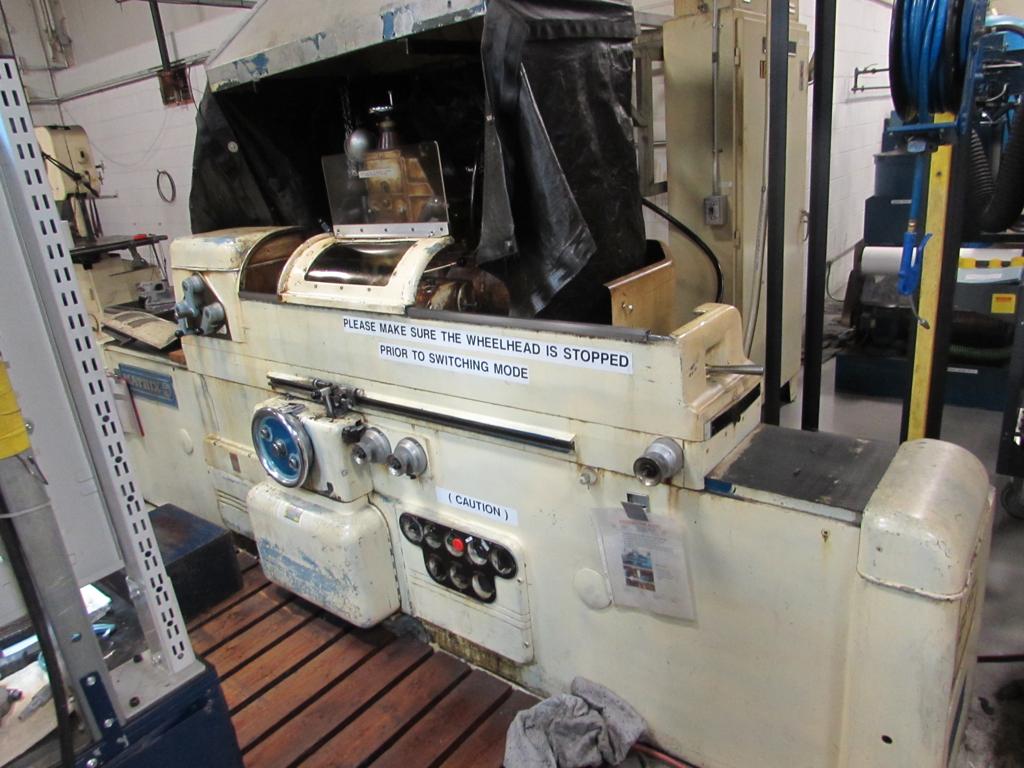

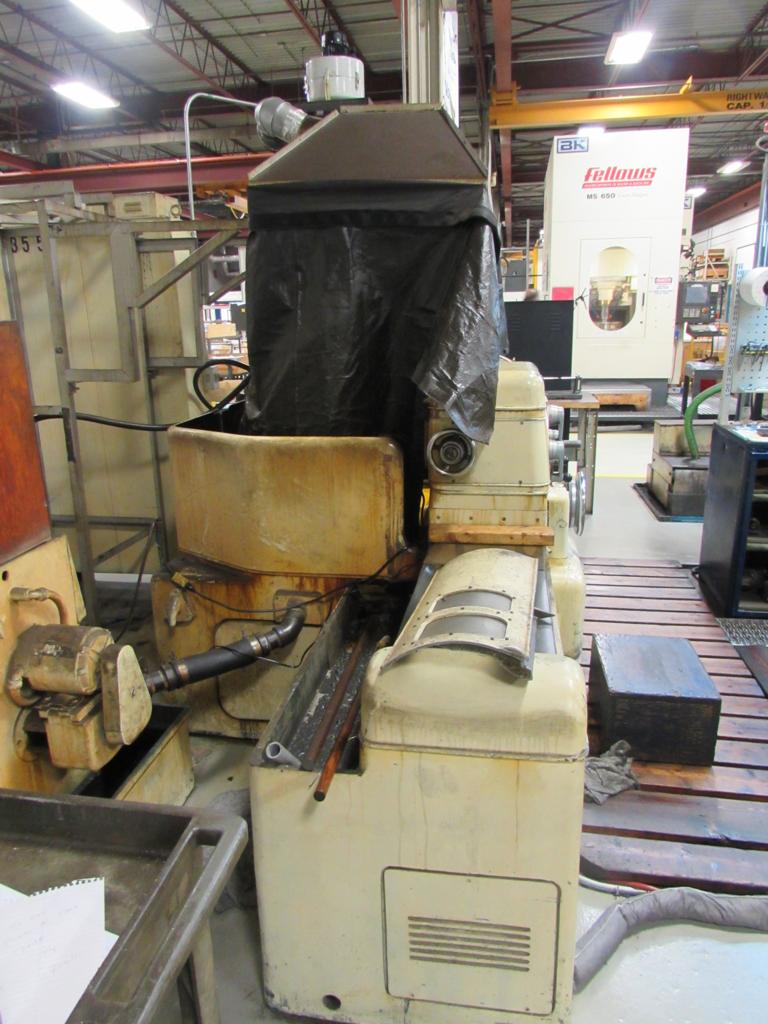

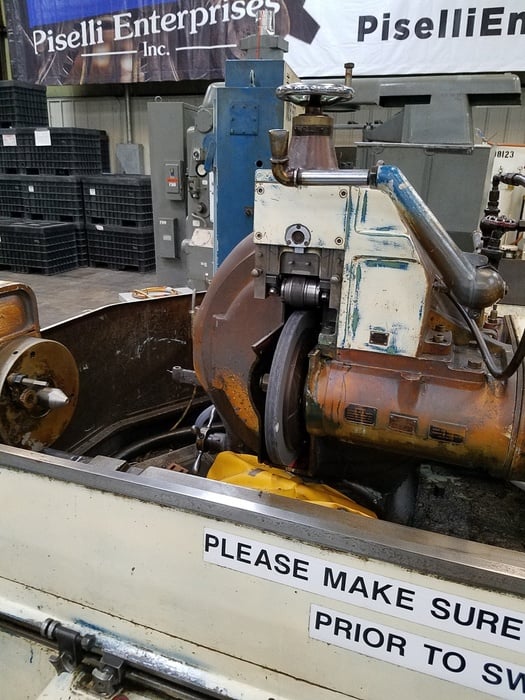

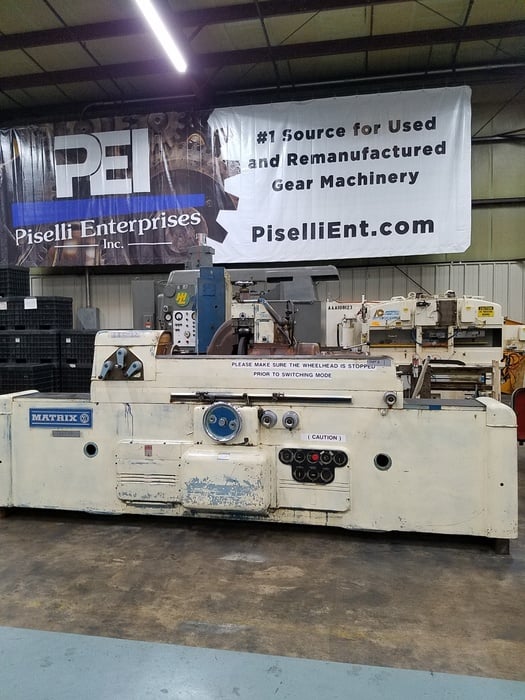

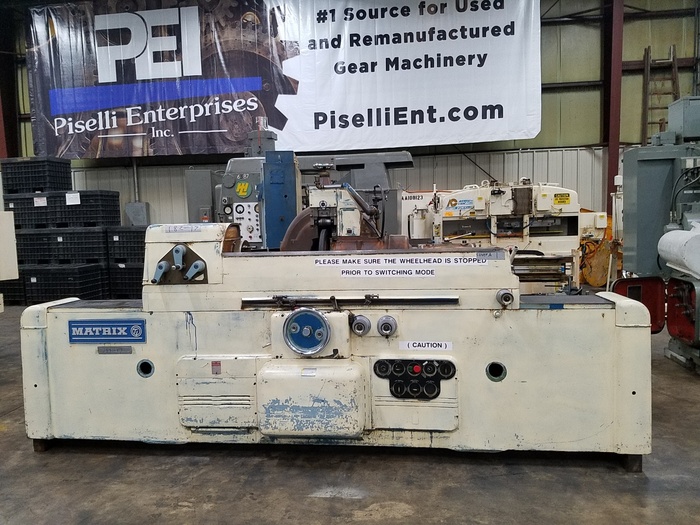

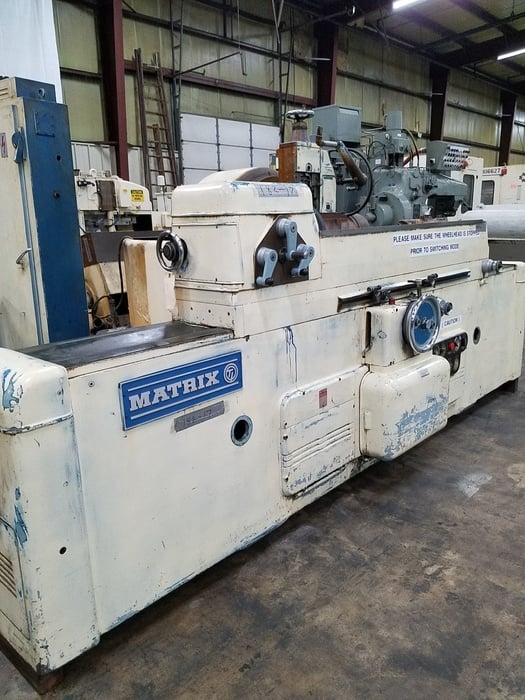

Matrix Model 46 Universal External thread grinder, equipped with filtration unit, change gears tooling, wheel flanges etc. inspect in Statesville, NC.
Specifications
Matrix Universal External Thread grinding Machine
Model # 46 Universal

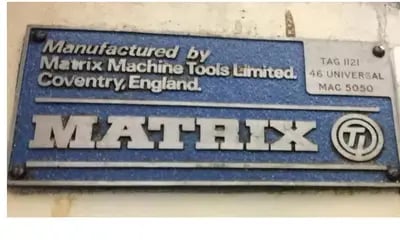

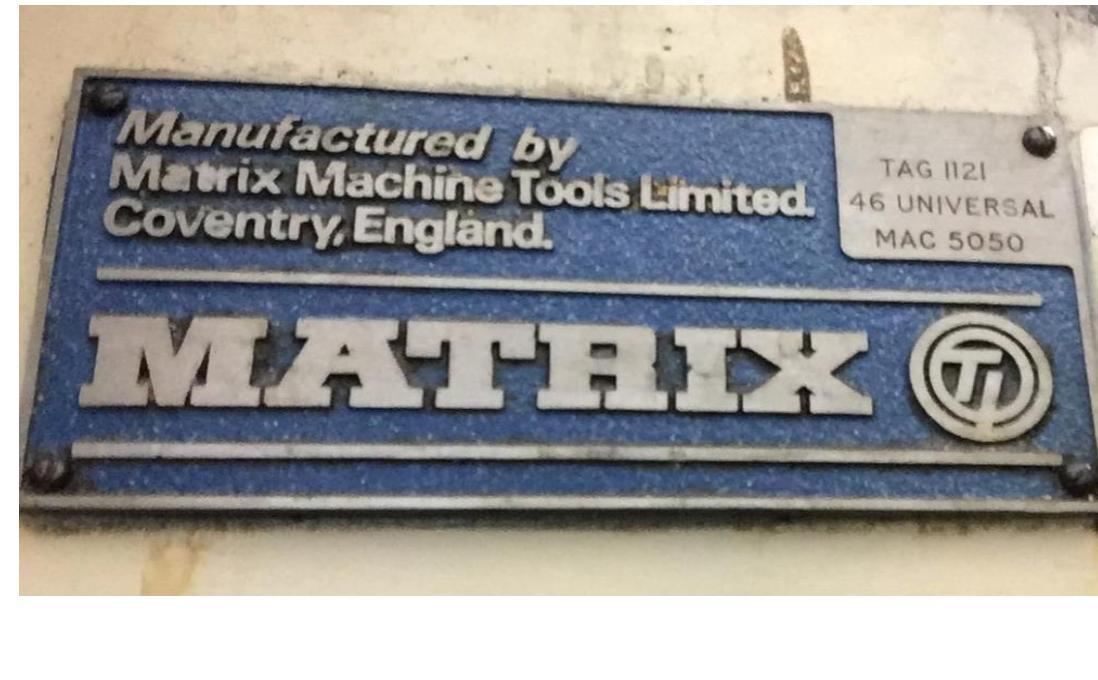

Machine number MAC 5050-1121
Machine specifications are as follows:
Max Length Between Centres...........................................1066mm
Max Length with Chuck.................................................984mm
Max Diameter of Workpiece.............................................254mm
Max Length Ground at one Setting.....................................1041mm
Max Lead Recommended..................................................304mm
Min Pitch Recommended................................................60 TPI
Max Helix Adjustment..............................................45 Degree
Max Capacity of Collet.................................................38mm
Max Including Taper per Foot.........................................25.4mm
Relief
Variable.............................................................0-5m/m
Workhead Speed Range..............................................21-39 RPM
Return Speed
Variable to..........................................................60 RPM
H.P. of Wheelhead Motor..........................................3.5 / 1.75
H.P. of Workhead Motor.................................................0.75
Max Weight of Workpiece..............................................100 lb
Head and Tailstock Centres.......................................No 4 Morse
Standard Wheel Diameter...............................................406mm
Machine is equipped with the following items
-wheel flange
-change gears

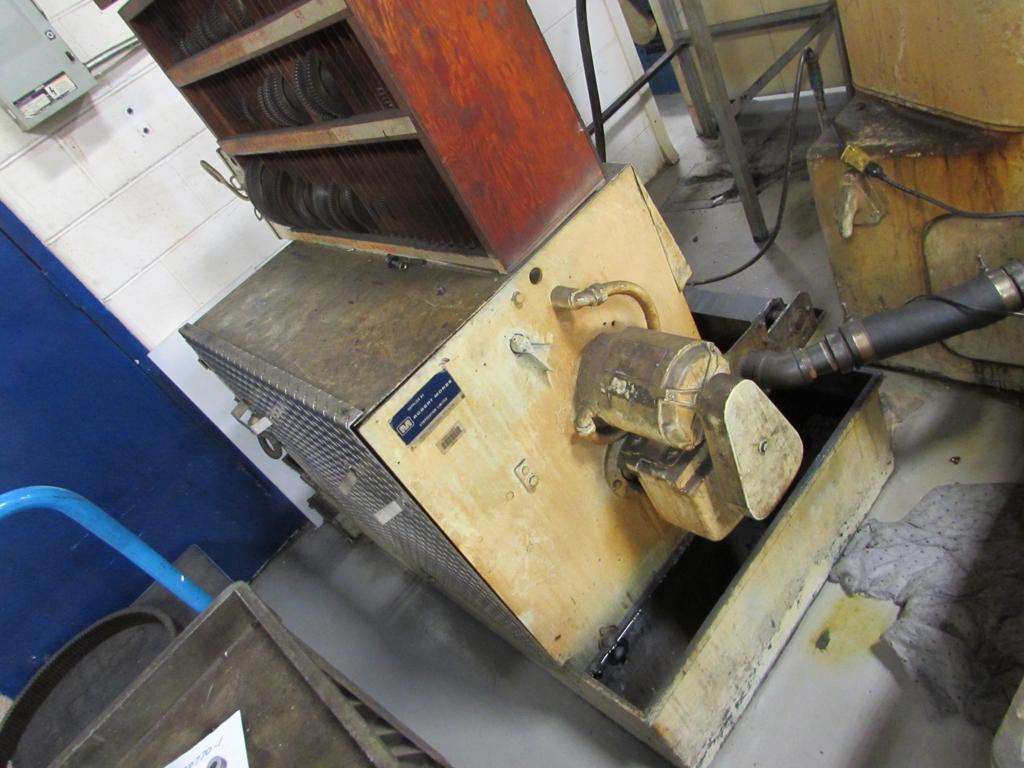

-filtration unit
-misc tooling
Machine can be inspected under power with proper notice. Machine came from
Gear shop in the midwest in good running condition.
* Contact us today for more information, Photos and formal quotation*
Contact: Rich Piselli | Rich@piselliEnt.com
Matrix Model 46 Universal External thread grinder, equipped with filtration unit, change gears tooling, wheel flanges etc. inspect in Statesville, NC.
Specifications
Matrix Universal External Thread grinding Machine
Model # 46 Universal
Machine number MAC 5050-1121
Machine specifications are as follows:
Max Length Between Centres...........................................1066mm
Max Length with Chuck.................................................984mm
Max Diameter of Workpiece.............................................254mm
Max Length Ground at one Setting.....................................1041mm
Max Lead Recommended..................................................304mm
Min Pitch Recommended................................................60 TPI
Max Helix Adjustment..............................................45 Degree
Max Capacity of Collet.................................................38mm
Max Including Taper per Foot.........................................25.4mm
Relief
Variable.............................................................0-5m/m
Workhead Speed Range..............................................21-39 RPM
Return Speed
Variable to..........................................................60 RPM
H.P. of Wheelhead Motor..........................................3.5 / 1.75
H.P. of Workhead Motor.................................................0.75
Max Weight of Workpiece..............................................100 lb
Head and Tailstock Centres.......................................No 4 Morse
Standard Wheel Diameter...............................................406mm
Machine is equipped with the following items
-wheel flange
-change gears
-filtration unit
-misc tooling
Machine can be inspected under power with proper notice. Machine came from
Gear shop in the midwest in good running condition.
* Contact us today for more information, Photos and formal quotation*
Contact: Rich Piselli | Rich@piselliEnt.com
