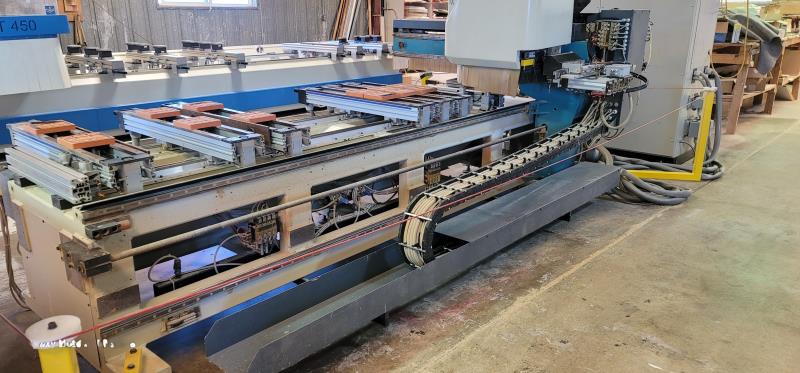

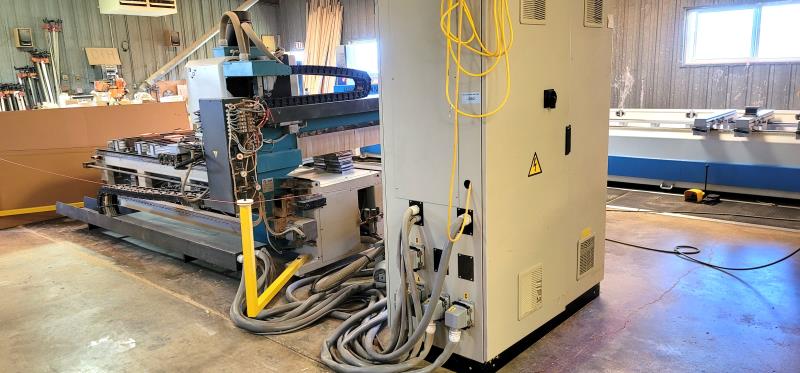

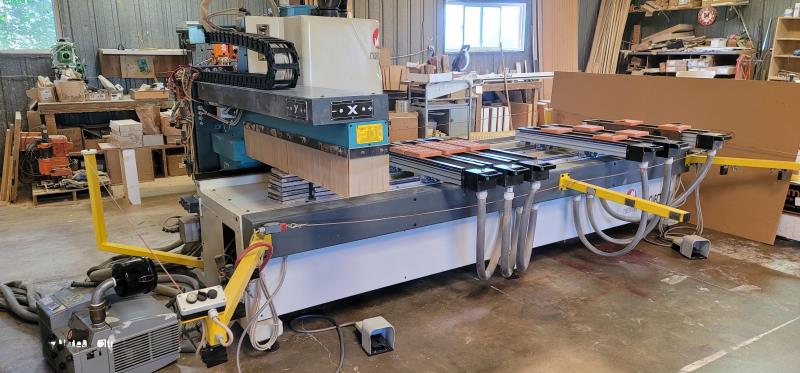

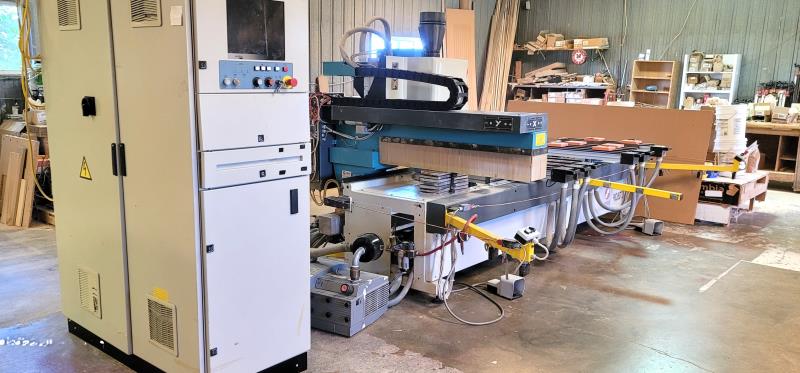

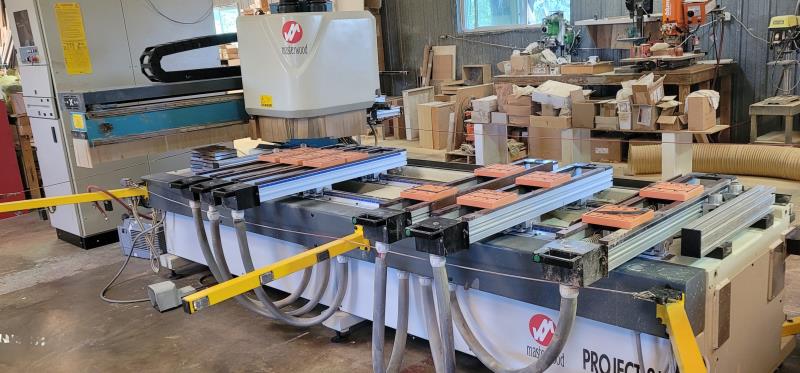

Masterwood #Project-317, CNC Machining Center, 102" X, 37" Y, 5" Z, 2.36" max Material thickness, 9 HP, 6000-24000 RPM, 4-Position ATC, 1998

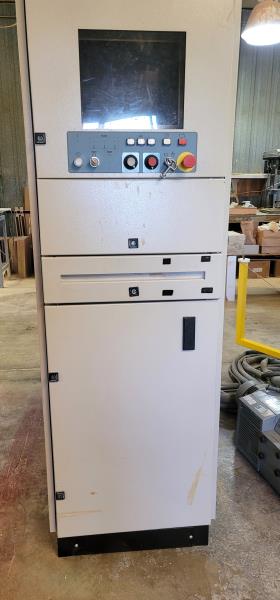

MASTERWOOD PROJECT 317 CNC MACHINING CENTER (P.T.P): Specifications -- Working Capacity: "X" Axis: 102" (2,600 mm); "Y" Axis: 37-1/2" (950 mm); "Z" Axis stroke: 5.9" (150 mm); max. material thickness: 2.36" (60 mm). -- Positioning Speed: "X" Axis: 164 FPM (50 MPM); "Y" Axis: 131 FPM (40 MPM); "Z" Axis: 25 FPM (8 MPM). -- Work Area: (6) Adjustable panel supports; ea. with: (2) Vacuum pods; (4) panel lifting blades for heavy parts; (6) fixed pop up rear stops; (1) side R/H stop; (1) L/H stop.Machine bed is divided into: (2) Independent working zones with mirror image capability. -- Boring Unit:.2 HP (1.5 kW) - 4,000 RPM Motor; (10) independent vertical boring spindles with: (7) Spindles in "X"-axis & (3) spindles in "Y"-axis. (6) Horizontal spindles with: (2 + 2) In "X"-axis; (1 + 1) in "Y"-axis; (1) 12,000 RPM "X"-axis grooving saw with: 125 mm Dia. blade. -- Machining: (1) 9 HP (6.7 kW) Vertically mounted electrospindle router with: ISO 30 Adaptor & ceramic bearings; variable speed: 6,000 - 24,000 RPM.(1) 4-Position automatic tool changer mounted to the machine head for "on the fly" ATC. -- Operator & Machine Control: PC Front-end controller; MASTERWOOD "MW 310" CNC + Windows Operating System; multitask software with: Graphic interactive editing & boring optimization program.Features -- 14" VGA Color monitor; MHZ processor; 64 MB SDRAM; 6.4 GB hard drive; 56 K modem, 1.44 MB floppy & CD ROM drives; Ethernet card; serial port; mouse; RS-232 port for remote programming from an office PC is possible -- Software includes: Realization of profiles & parametric drawings; graphic basic macros for simple & complex elaboration; graphic visualization of the surfaces to be machined; IN/OUT diagnostic; programming for drilling & routing operations with machine settings & tool editor.Includes -- Vacuum Pump.NOTE: Description based on Model Type, manufacturer's plate, and information from Seller; please inspect to confirm the required specifications. * Dimensions & Weight data are based on: 3rd Party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.
