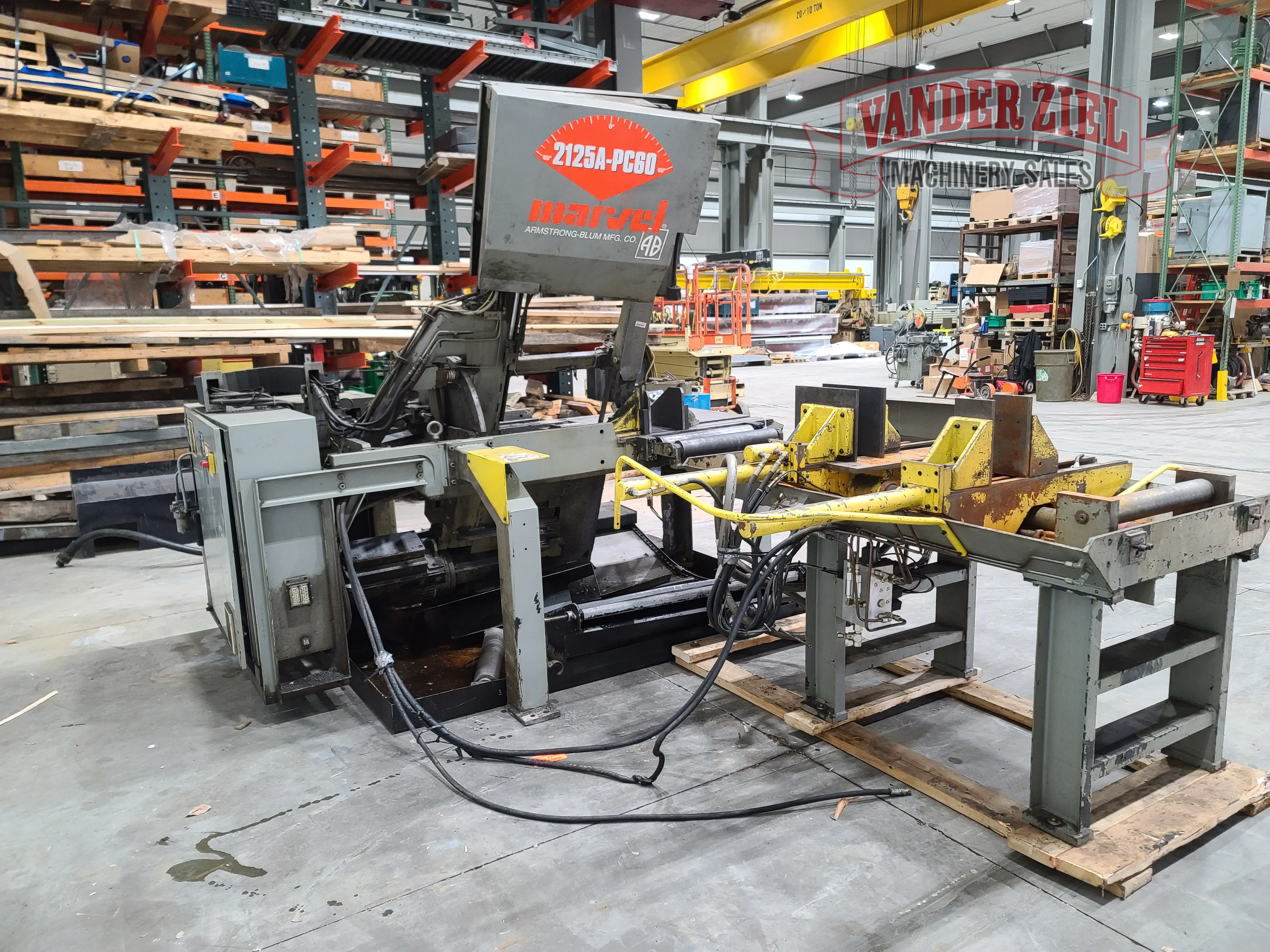

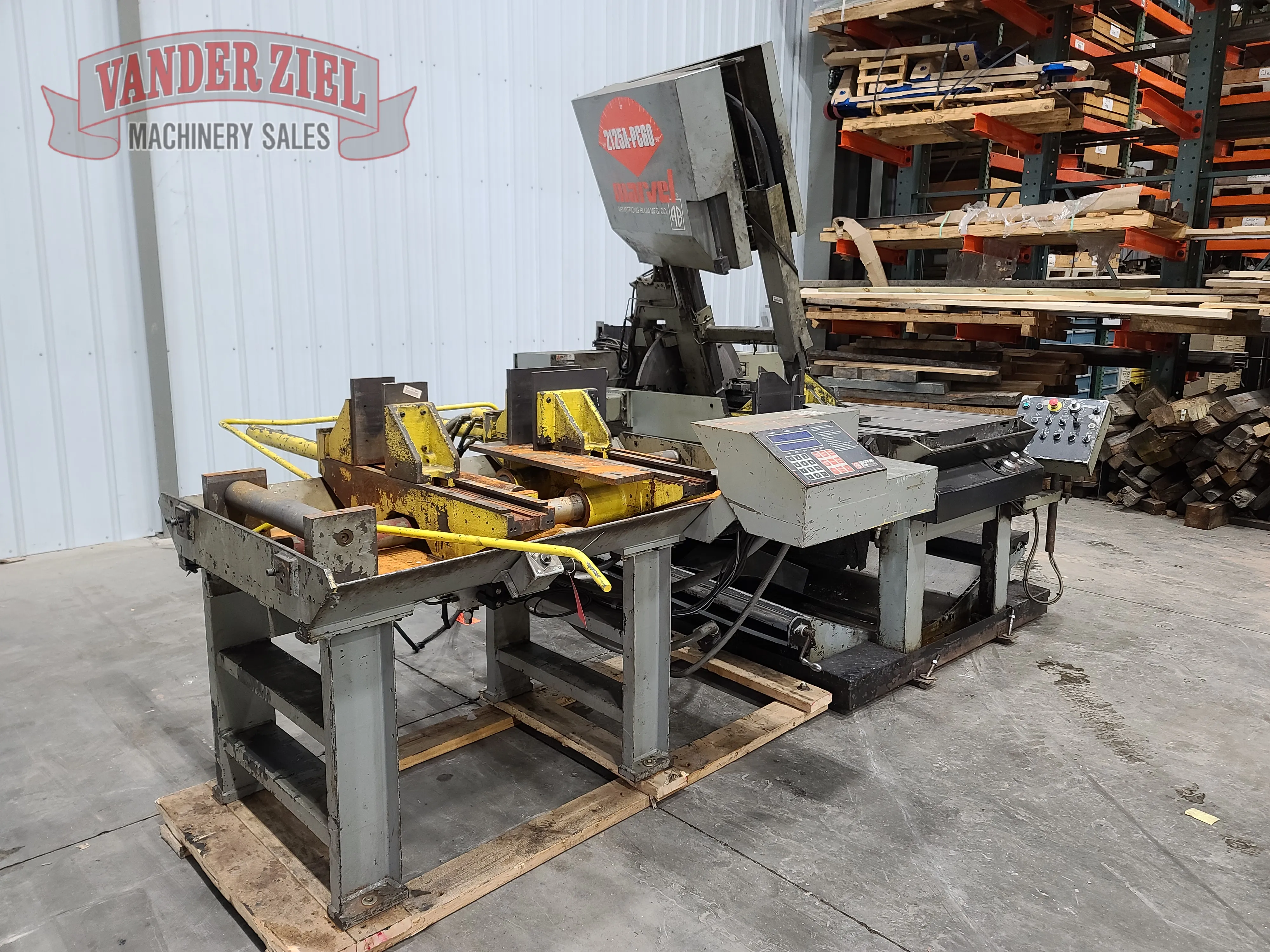

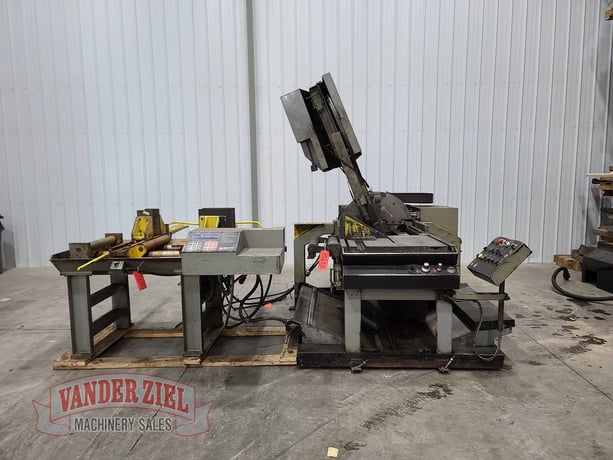

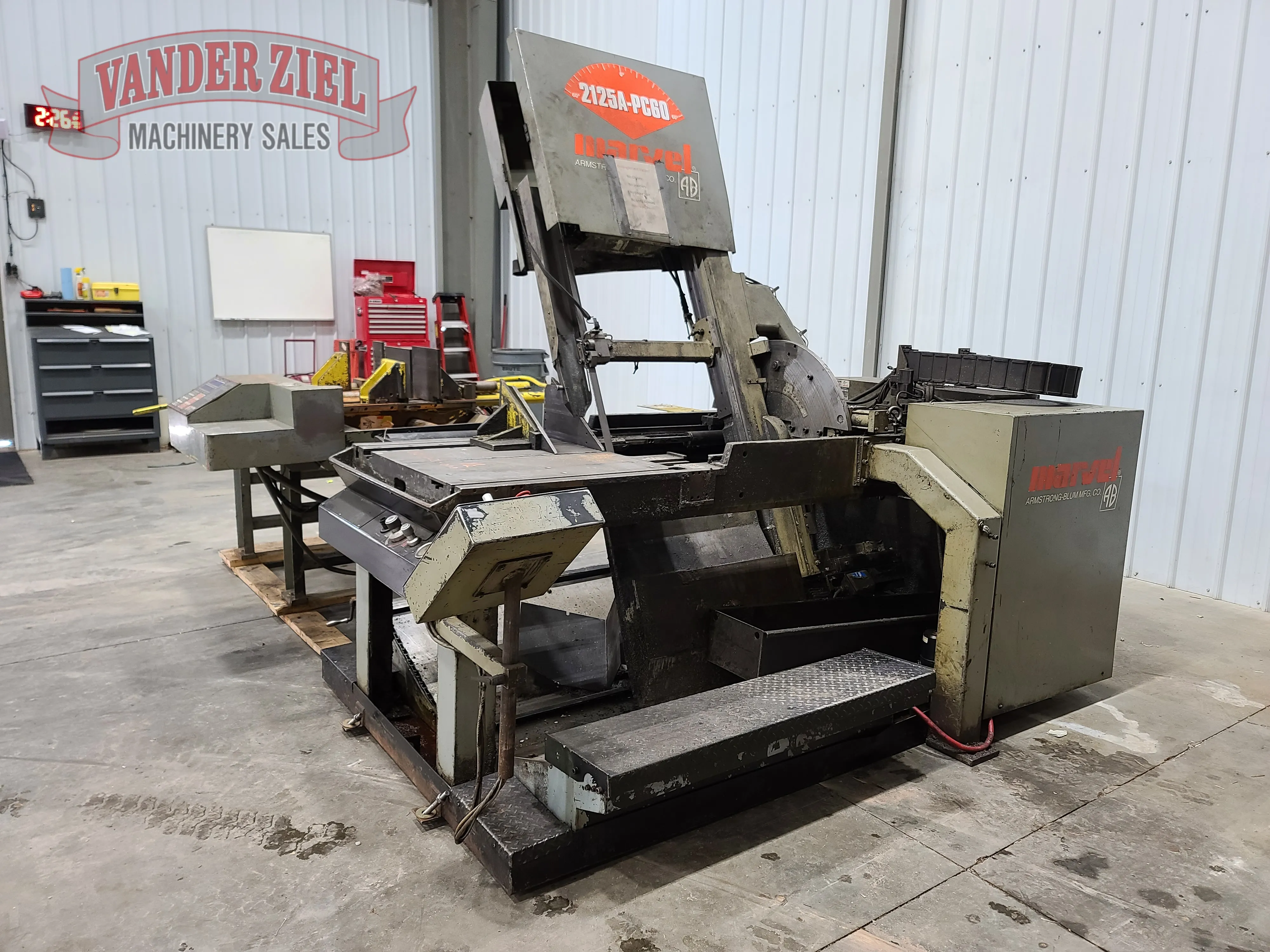

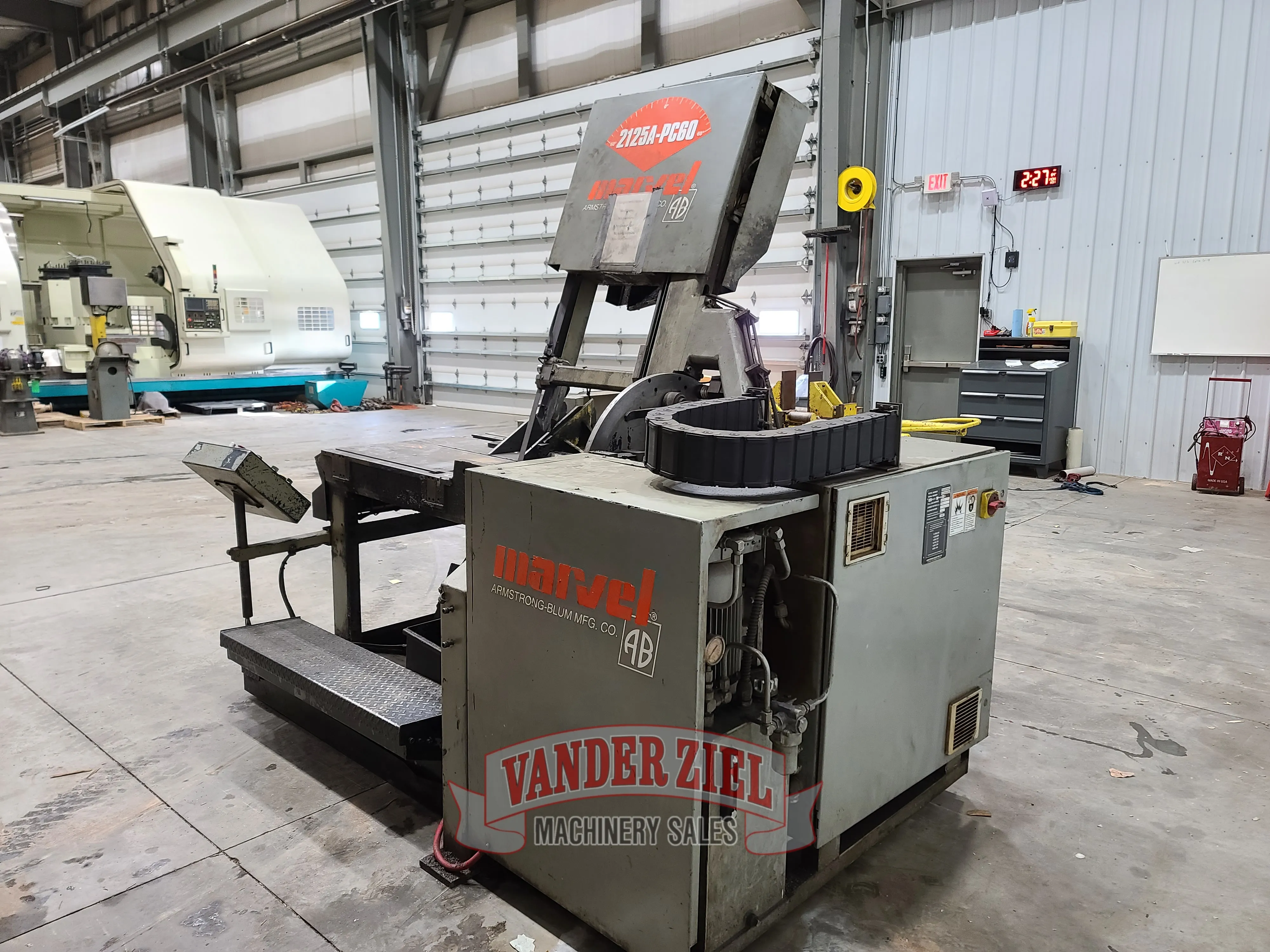

20" x 25" Marvel #E2125PC, vertical tilt frame band saw, 1.25" x .042" x 176" blade, 50-475 FPM, #15638

Marvel 20" x 25" Automatic Tilt Frame Saw, Model E2125A with Updated PCII+ Control

Serial # 212520199PC
Asset # 15638

Specifications:
Capacity 20" x 25"
Capacity at 45 Degrees 20" x 17"
Capacity at 60 Degrees 20" x 11.25"
Column Canted 3 Degrees

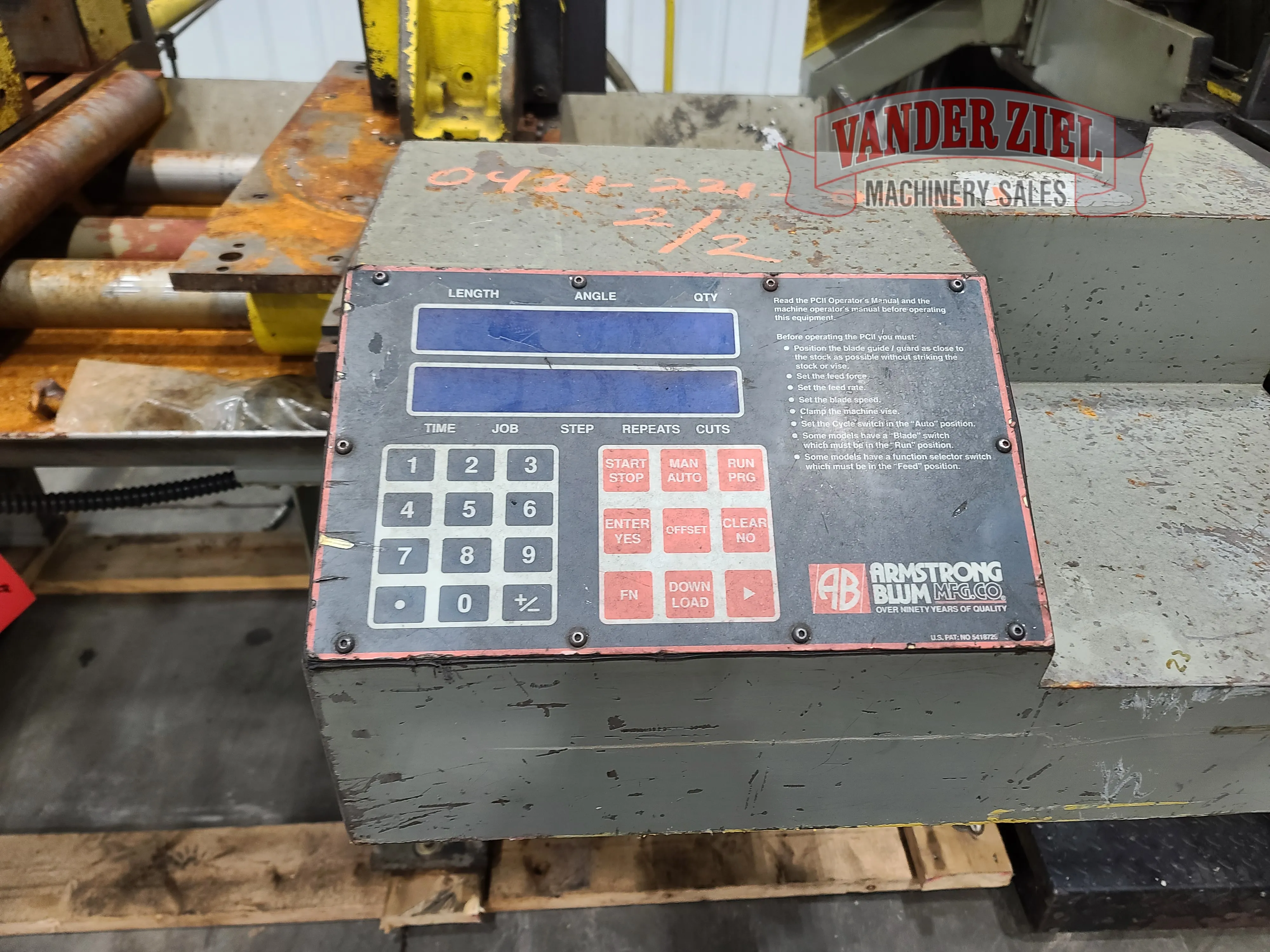

Control PCII+
Column Tilt Hydraulic, 0-60 degrees Left & Right
Drive Motor 5 HP
Blade Drive Sensorless Vector Control
Blade Size 1.25" x .042" x 17'6"
Blade Speed 50 -475 FPM
Blade Guides Self Clamping, Carbide Roller
Blade Tension Hydraulic - 45,000 PSI

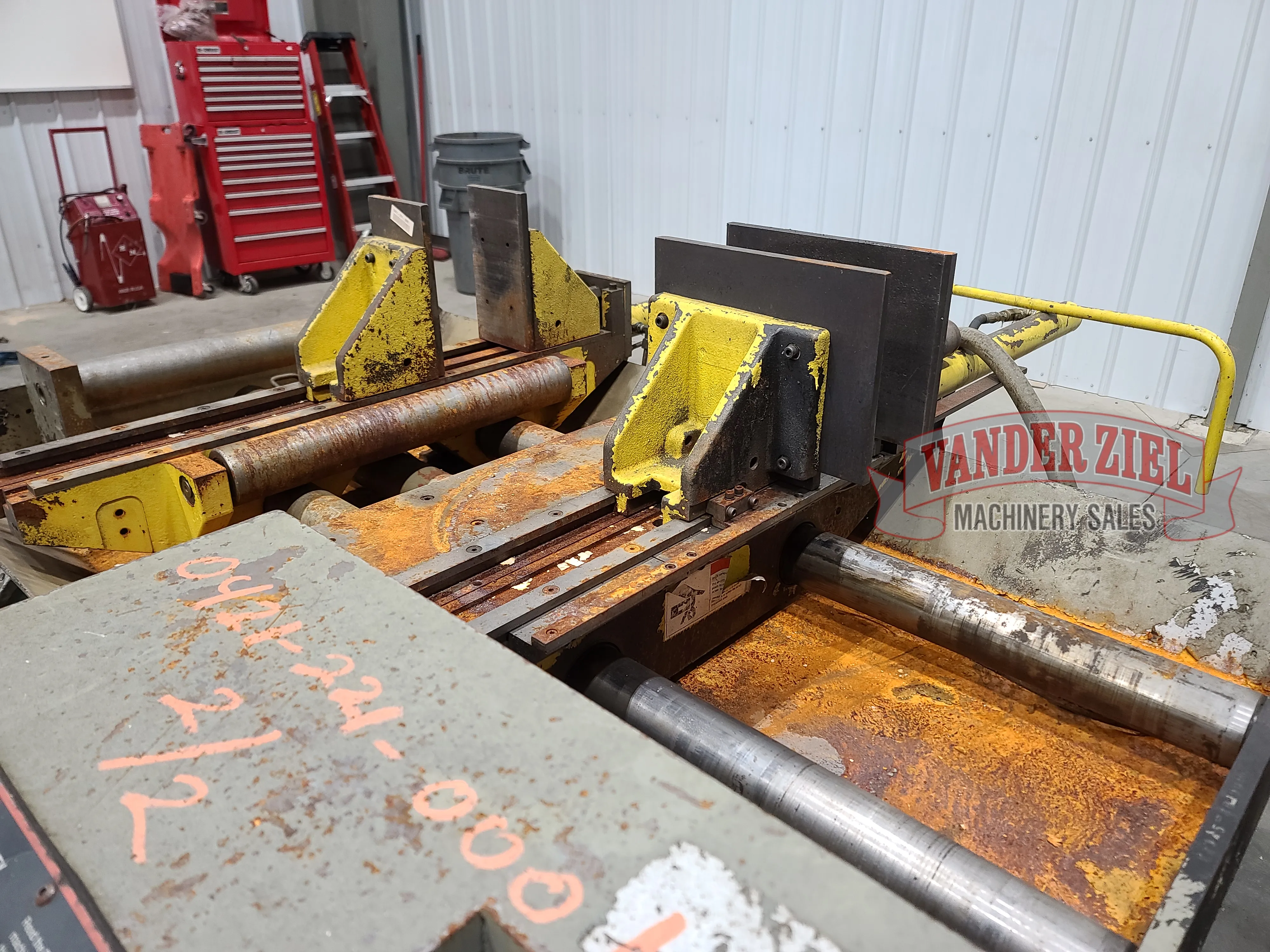

Vise Jaws 60 Degree Faceplate
Feed Force 0-350 lbs.
Index Length 24"
Wheel Diameter 23"

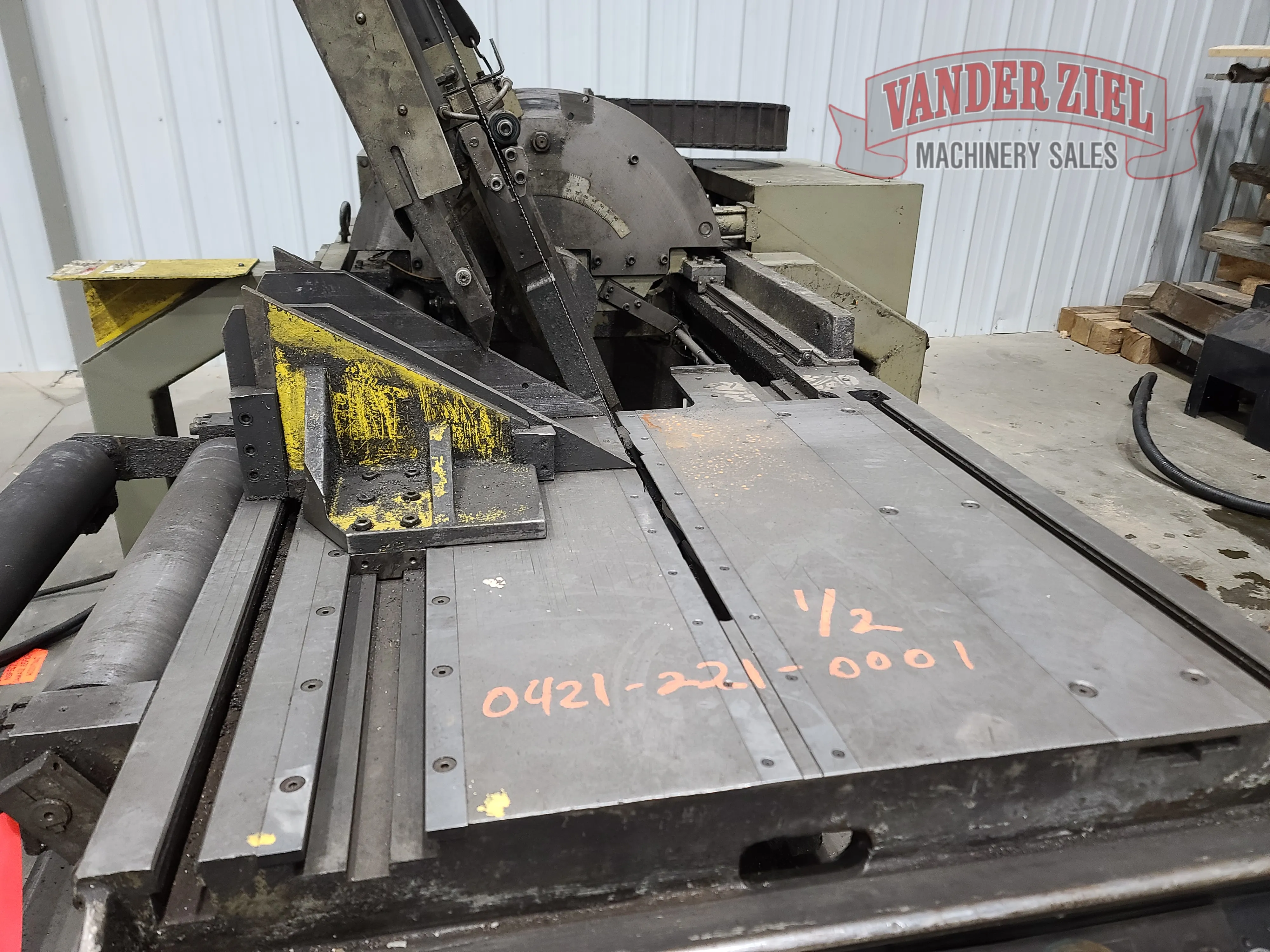

Machine Tavel Cast Iron, 2 T-Slots
Upper Guide Arm Hydraulic Positioned and locking
Control Voltage 24 Volts
Column Travel Recirculating Linear Ball Ways
Coolant Capacity 60 Gallons
Blade Cleaning Brush Standard Friction Drive
Table Height 38"
Overall Dimensions with Conveyor 136" x 109"
Overall Height 100"

Machine is equipped with Variable Vise Pressure.

Preliminary Specifications - Subject to Verification
