150 KVA Power Distribution Unit (PDU), 600 Delta Volts to 208Y/120 Volts, Camlock Connections, Digital Metering, Skid Frame, Marcus, CSA

150 kVA PDU – Portable Power Distribution Unit
600V Delta Input – 208Y/120V Output – 200A Main Disconnect – Dual Camlock Outputs – Digital Metering – Skid Frame

>> Qty 1 In Stock <<

>> $6,000 CAD / $4,300 USD or Best Offer – FOB Pickering, Ontario <<

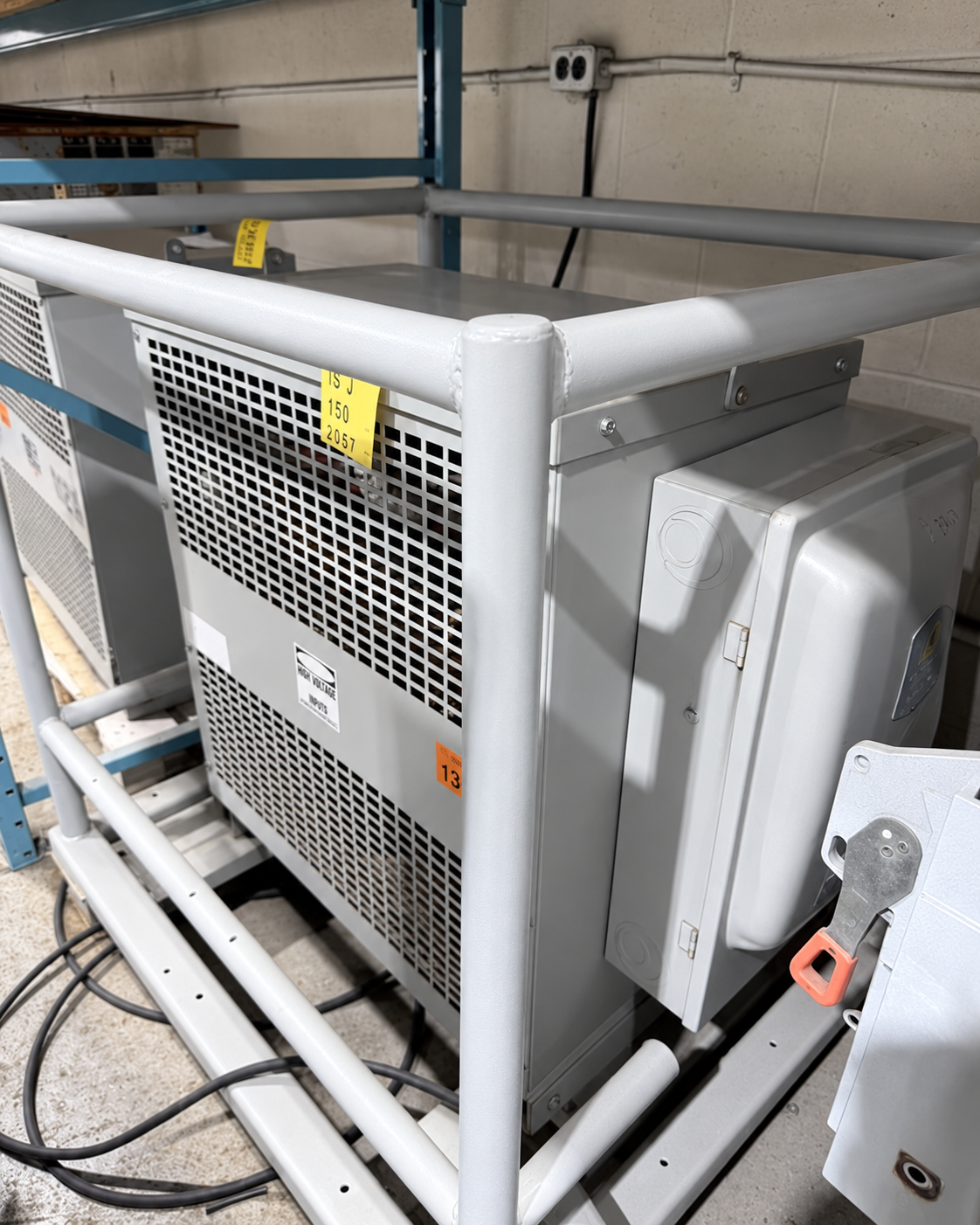

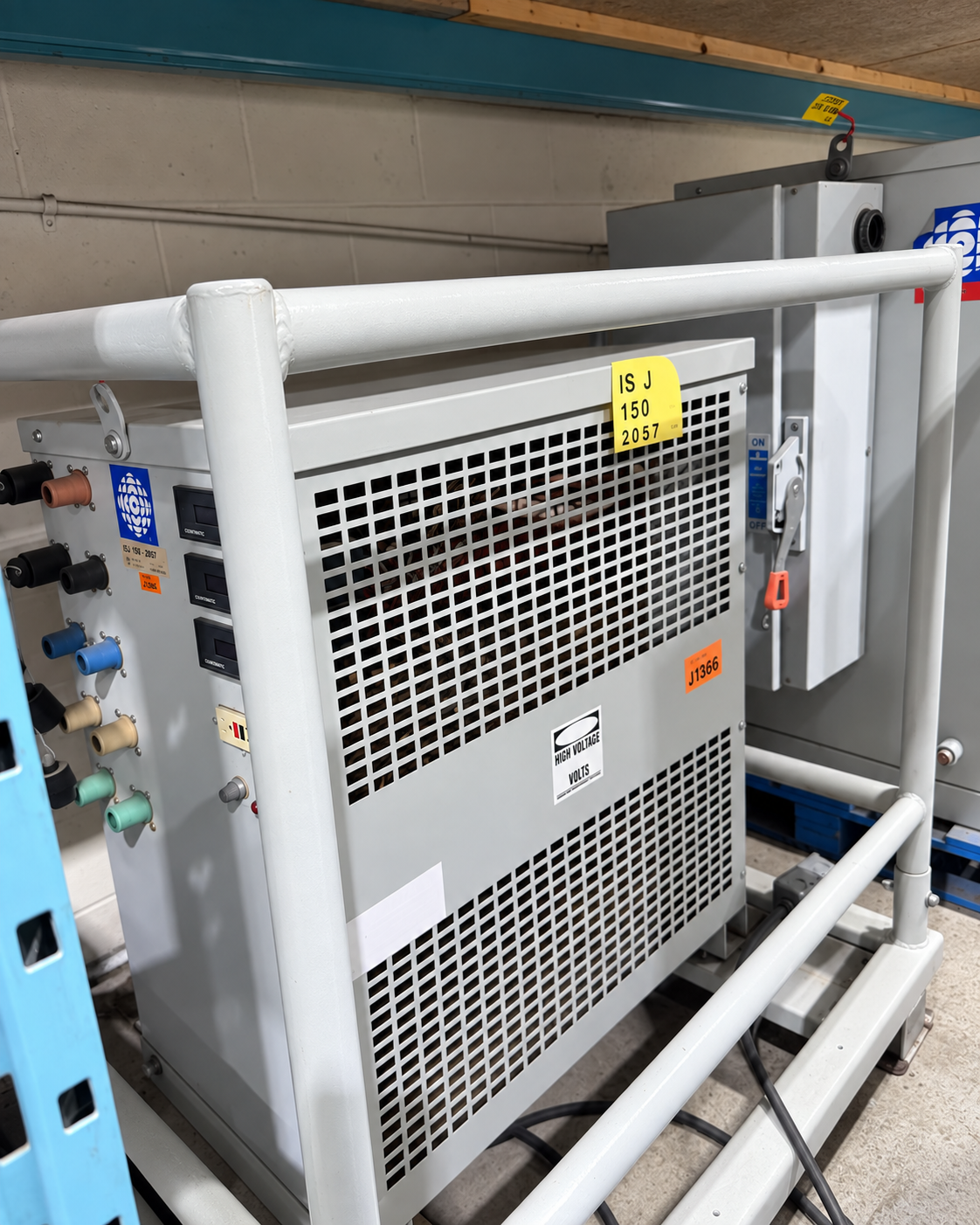

150 kVA PDU (portable power distribution unit) built on a Marcus Transformer of Canada three-phase dry-type isolation transformer. Mounted in a heavy-duty protective pipe skid frame with Square D 200A main disconnect, two sets of single-pole camlock outputs with phase indicator lights, per-phase digital ammeters and GFCI convenience receptacle. Steps 600V delta down to 208Y/120V for temporary power, film/TV production, broadcast, events, construction and shutdown work. Fits through a standard 36" doorway. CSA approved.

SPECIFICATIONS

Unit Type: PDU – Portable Power Distribution Unit
Transformer Manufacturer: Marcus Transformer of Canada Ltd.
Transformer Type: TWM, Dry-Type Isolation
kVA: 150
Phase: 3
Frequency: 60 Hz
Input Voltage: 600V Delta
Output Voltage: 208Y/120V
Temperature Rise: 150°C
Impedance: 3.4%

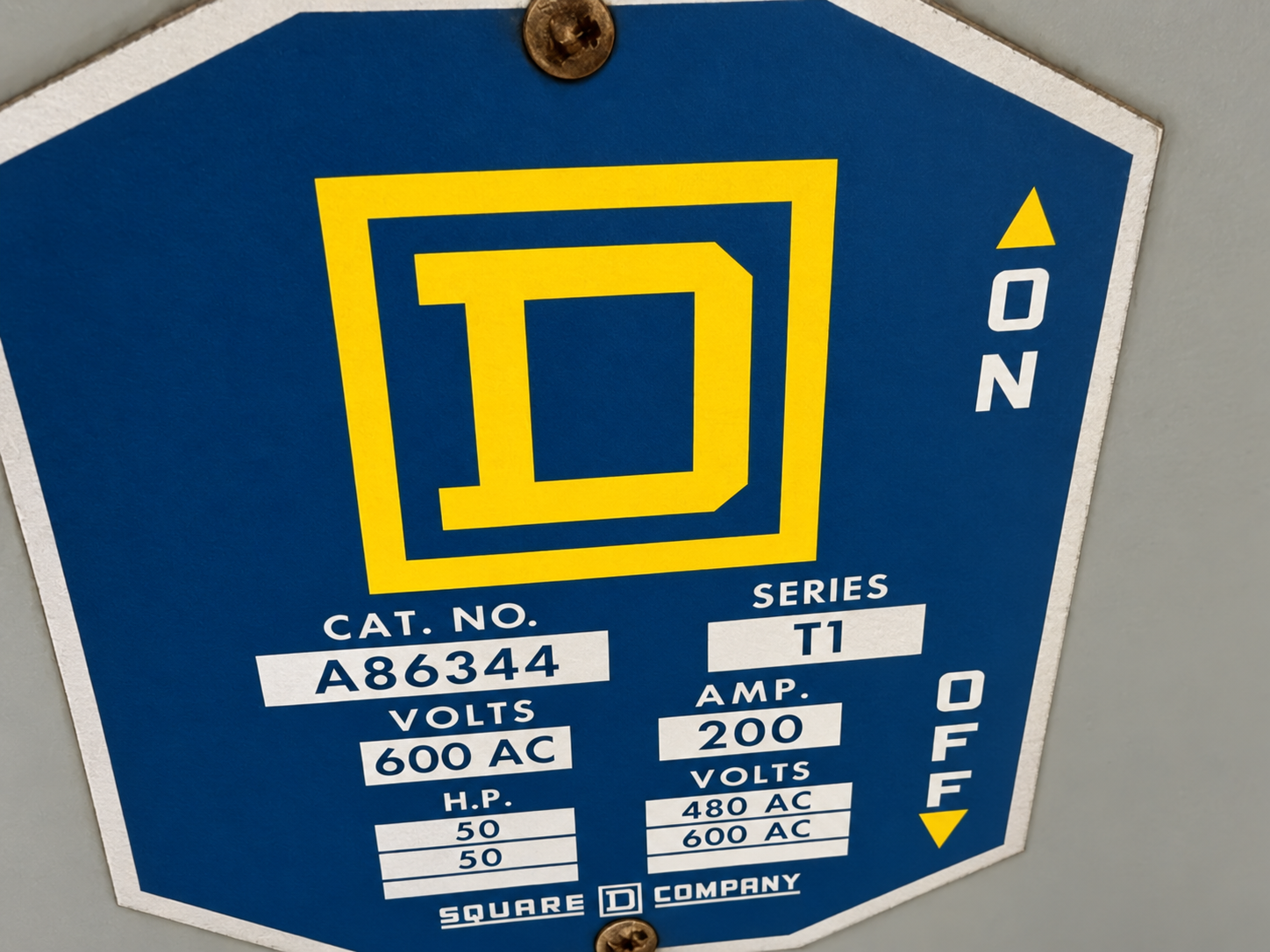

Main Disconnect: Square D, 200A, 600VAC, Cat. No. A86344, Series T1

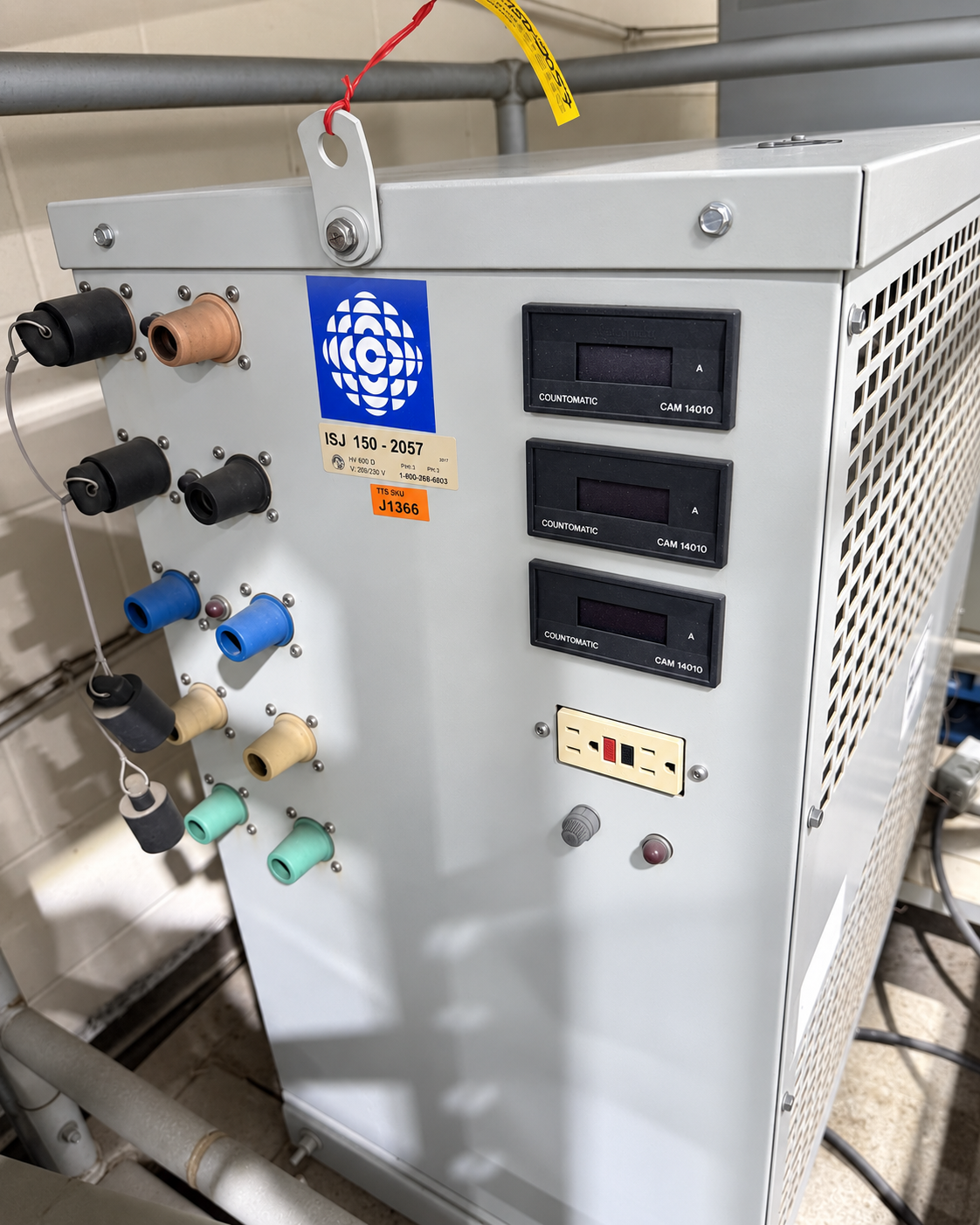

Outputs: 2 Sets Single-Pole Camlock (A, B, C, N, G), Color-Coded
Phase Indicators: Pilot Light per Phase
Metering: 3 x Countomatic CAM 14010 Digital Ammeters (per phase)
Receptacle: 120V GFCI Duplex

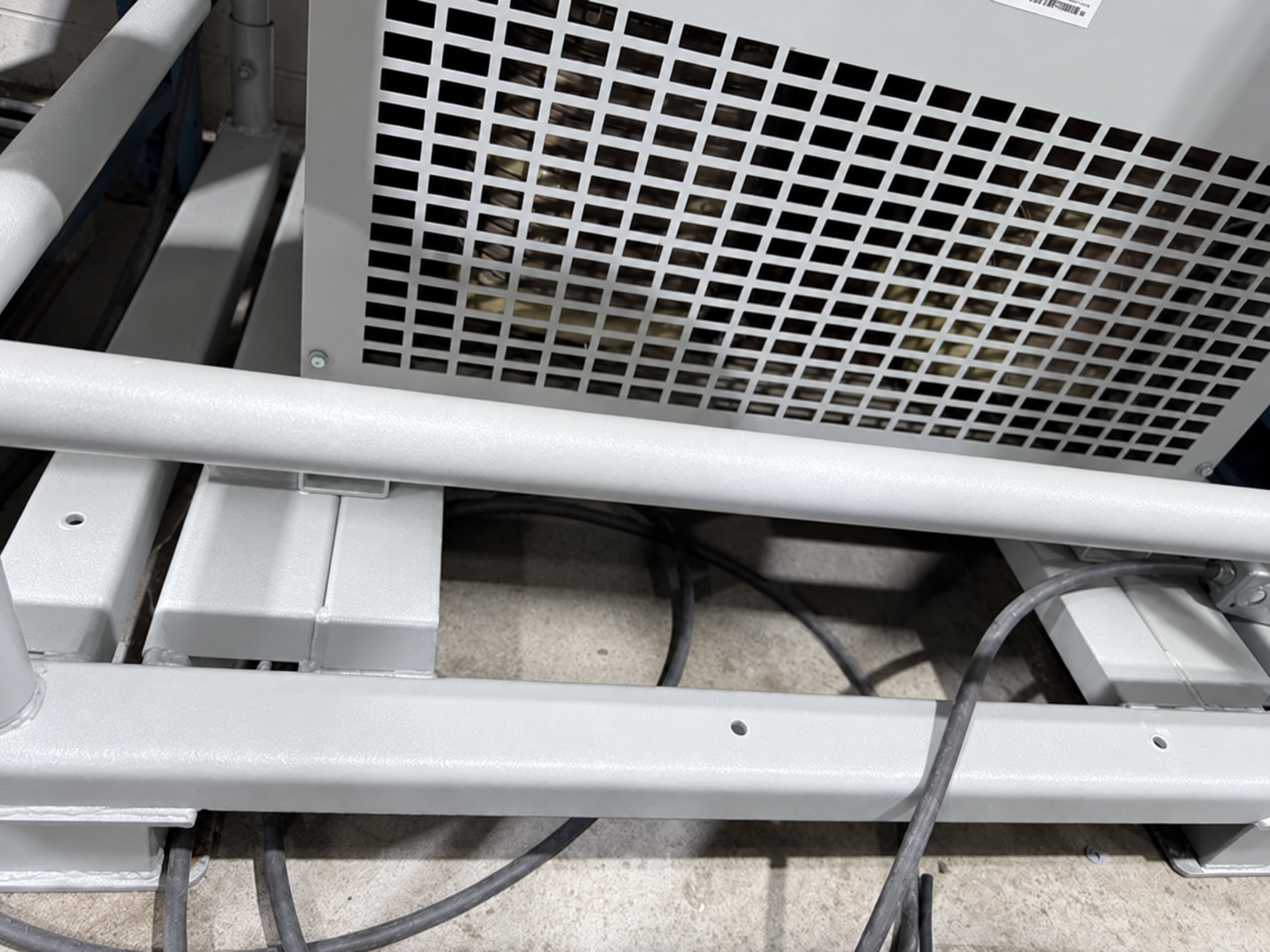

Frame: Permanent Protective Pipe Skid
Overall Dimensions (incl. skid): 48" H x 45" W x 35" D
Transformer Weight: 995 lbs (plus skid frame)
Serial No.: 9790-1287
Approvals: CSA
Made in: Canada

CONDITION

Condition: Used – Cleaned and Repainted

TERMS

Price: $6,000 CAD / $4,300 USD or Best Offer
Shipping: FOB Pickering, Ontario. Buyer pays all shipping, brokerage and duties.
Freight: Ships LTL / flatbed. Forklift loading available.
Stock #: J-1366
