Marco #UP3, diesel transfer bronze gear pump, 4 GPM, 3/8" NPT, 12V, self-priming

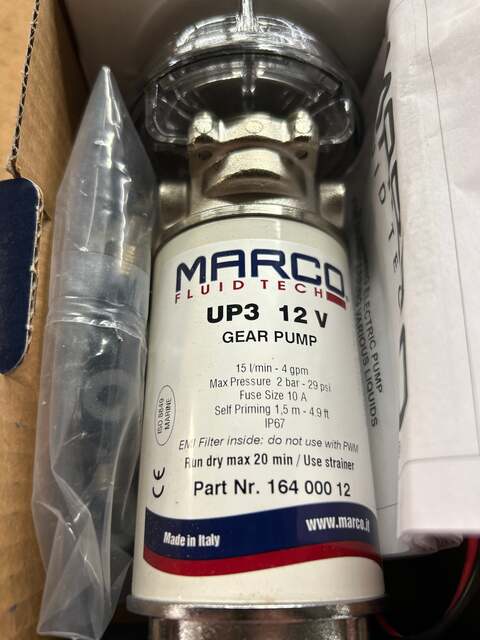

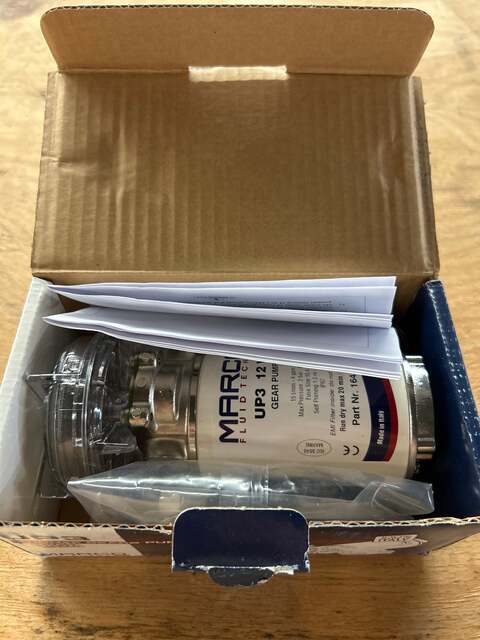

The Marco Fluid Tech UP3 is a self-priming 12V DC bronze gear pump rated for up to 4 GPM flow and a maximum pressure of 29 PSI (2 bar). Carrying part number 164 00 12, this high-speed pump is designed for transferring diesel fuel, fresh water, light oils, and glycol antifreeze in marine, industrial, and automotive applications. The pump body is constructed of nickel-plated brass with a stainless steel shaft and helical bronze gears. Motor protection is rated IP67 and ISO 8849 Marine, making it suited for wet or marine environments. The unit is self-priming to 4.9 feet (1.5 m), draws 6 amps at 120 watts, and requires a 10-amp fuse. Port connections are 3/8 in. BSP female and 3/8 in. NPT male. An EMI filter is integrated internally; the unit is not compatible with PWM speed controllers. The pump can run dry for a maximum of 20 minutes and includes a recommendation to use a strainer in service. This listing includes the pump, an accessories hardware pack, and original documentation, all in the original manufacturer's box. Manufactured in Italy by Marco Fluid Tech. Marked CE and ISO 8849 Marine certified.

Stock # 0526-01409
