Marco Fluid Tech #UP10-XA/DM, heavy-duty gear pump, 3/8" BSP, 101.5 PSI, 12V

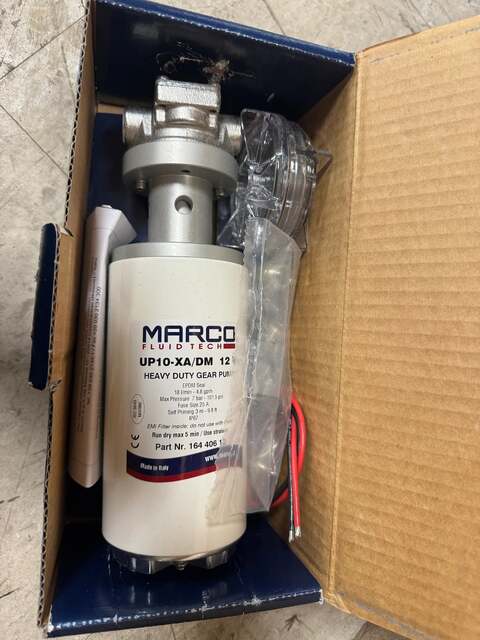

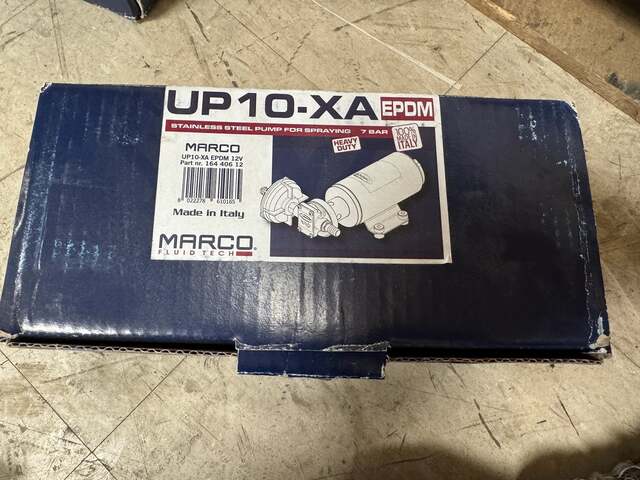

The Marco Fluid Tech UP10-XA/DM is a heavy duty self-priming gear pump rated for pressures up to 7 bar (101.5 psi) and a flow rate of 18 liters per minute (4.8 gpm). The pump body and fittings are constructed from AISI 316 stainless steel, and the unit features an EPDM seal, making it well suited for spraying and transfer of aggressive liquids including herbicides and chemical solutions. The motor operates on 12V DC with a fuse size of 25 amps and a rated consumption of 11 amps. Self-priming capability extends to 3 meters (9.8 feet). The design incorporates an EMI filter inside the motor housing. IP67 protection rating is noted on the nameplate. Part number 164 406 12 identifies the 12V EPDM variant. The pump includes an inline strainer on the inlet side. Maximum dry run time is 5 minutes. The unit is manufactured in Italy and carries CE marking. This unit is listed with its original manufacturer box. Ports are 3/8 in. BSP thread.

Stock # 0526-01406
